ZGL-Q11Bluetooth Headset

T FCC ID: ZGL-Q11 IMPORTANT REGULATORY INFORMATION This device complies with Part 15 of the FCC Rules: Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference that is received, including any interference that may cause undesired operation. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Apr.08, 2011 Federal Communication Commission Authorization and Evaluation Division FCC ID: ZGL-Q11 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, G-BLUE Technology Limited Contact person: Jack Fang Title: Manager Tel: 86-755-82518966

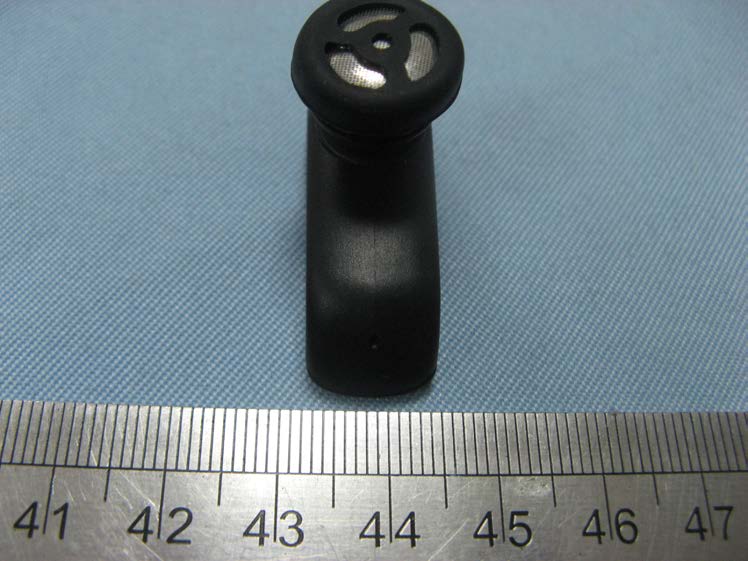

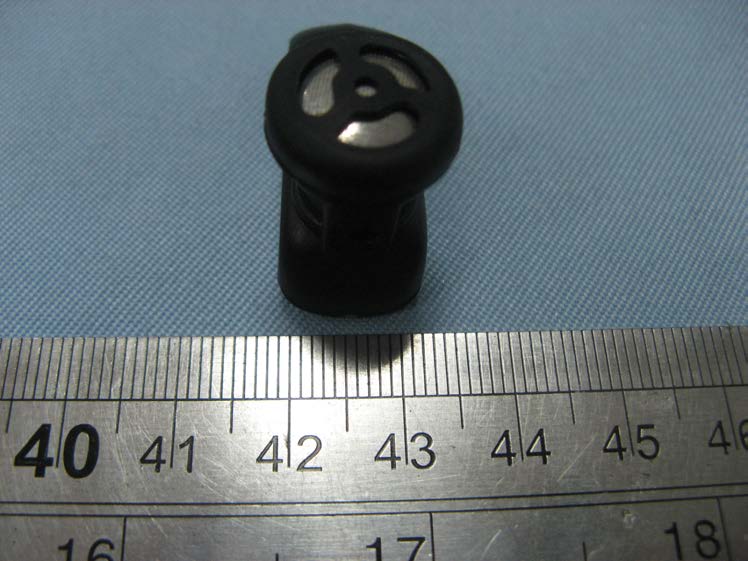

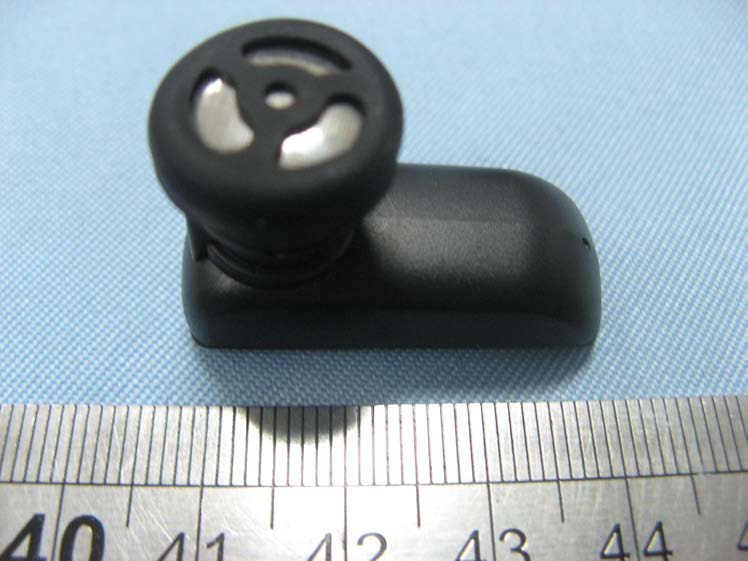

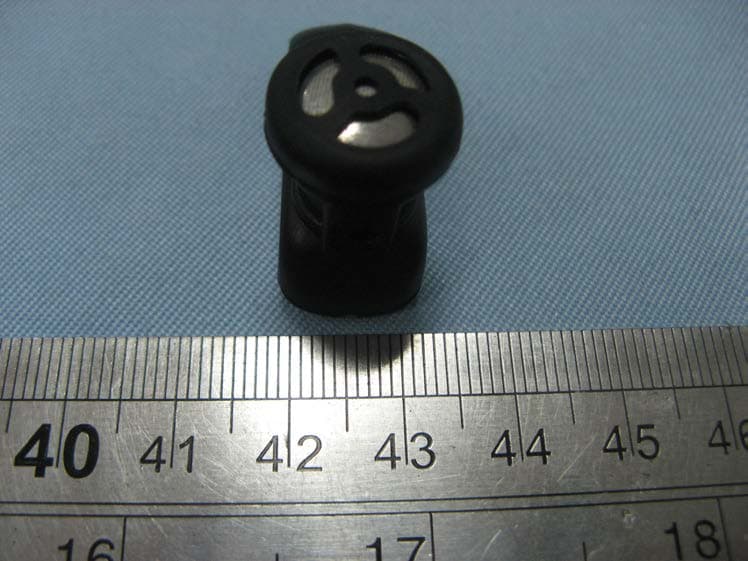

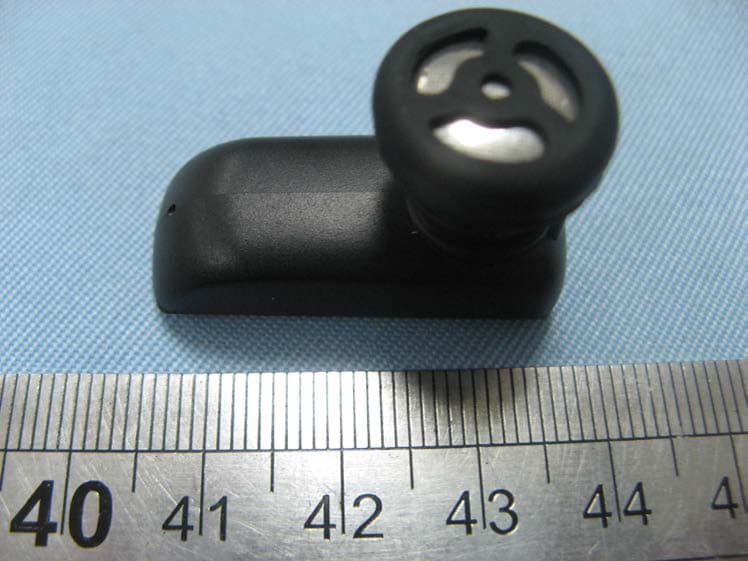

TOP VIEW OF SAMPLE BACK VIEW OF SAMPLE LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE

FCC ID Label Placement

INTERNAL PHOTO OF SAMPLE – 1 INTERNAL PHOTO OF SAMPLE – 2

Operational Description Bluetooth Headset FCC ID: ZGL-Q11 The IS1632N is an integrated monolith chip for Bluetooth mono headset application. It is a single-chip Bluetooth v2.0 + EDR baseband with an integrated transceiver. The IS1632N integrates most external components for a mono headset including voice codec, Li-Ion battery charger and a low drop regulator. The reductions of external components can be used for a tiny headset easily. A new voice manage structure achieve lower noise level and higher signal level. This implementation improves the audio quality to fit to human’s vocal experience and keep audio quality even under terrible environment. Operating Frequency 2402 – 2480 MHz Output Power BT (1Mbps): 2.70 dBm BT EDR (2Mbps): -0.21 dBm BT EDR (3Mbps): 0.78 dBm Modulation BT (1Mbps): GFSK BT EDR (2Mbps): π/4-DQPSK BT EDR (3Mbps): 8-DPSK Number of Channels 79 Antenna Information Integrated Antenna / 0.82 dBi Power Supply Internal 3.7 V Li-Ion Battery During charging process, the BT transceiver is automatically deactivated.

FCC Test Report Report No.: AGC 04Z110401‐2F1 FCC ID : ZGL‐Q11 PRODUCT DESIGNATION : Bluetooth headset BRAND NAME : GERRY, GBLUE TEST MODEL : Q11 CLIENT : G‐BLUE Technology Limited DATE OF ISSUE : Apr.14, 2011 STANDARD(S) : FCC Part 15 Rules Attestation of Global Compliance Co., Ltd. CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC04Z110401-2F1 Page 1 of 62 VERIFICATION OF COMPLIANCE Applicant: G-BLUE Technology Limited Address 8/F, Cnt Comm Blog 302 Queen’s RD Central HongKong Manufacturer Name: G-BLUE Technology Limited Address: 8/F, Cnt Comm Blog 302 Queen’s RD Central HongKong Product Description: Bluetooth headset Brand Name: GERRY, GBLUE Model Name: Q11 FCC ID ZGL-Q11 Report Number: AGC04Z110401-2F1 Date of Test: Apr. 08, 2011 to Apr.14, 2011 WE HEREBY CERTIFY THAT: The above equipment was tested by Attestation of Global Compliance Co., Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with radiated emission limits of FCC Rules Part 15.247. Checked By: Jekey Zhang Apr.14, 2011 Authorized By Randy He Apr.14, 2011 Report No.: AGC04Z110401-2F1 Page 2 of 62 TABLE OF CONTENTS 1. GENERAL INFORMATION ............................................................................................................ 4 1.1 PRODUCT DESCRIPTION ..................................................................................................................... 4 1.2 TABLE OF CARRIER FREQUENCYS ................................................................................................. 4 1.3 RECEIVER INPUT BANDWIDTH AND BEHAVIOUR FOR REPEATED SINGLE ....................... 5 1.4 RELATED SUBMITTAL(S) / GRANT (S) ............................................................................................. 5 1.5 TEST METHODOLOGY .......................................................................................................................... 5 1.6 TEST FACILITY ........................................................................................................................................ 5 1.7 SPECIAL ACCESSORIES ...................................................................................................................... 5 1.8 EQUIPMENT MODIFICATIONS ............................................................................................................. 5 2. SYSTEM TEST CONFIGURATION .............................................................................................. 7 2.1 CONFIGURATION OF TESTED SYSTEM ........................................................................................... 7 2.2 EQUIPMENT USED IN TESTED SYSTEM .......................................................................................... 7 2.3 RF OUTPUT POWER .............................................................................................................................. 8 2.4 LIST OF TEST EQUIPMENTS ............................................................................................................... 9 3. SUMMARY OF TEST RESULTS ................................................................................................. 10 4. DESCRIPTION OF TEST MODES .............................................................................................. 10 5. CONDUCTION EMISSIONS ......................................................................................................... 11 5.1 MEASUREMENT PROCEDURE: ........................................................................................................ 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................... 11 5.3 LIMITS AND MEASUREMENT RESULT: .......................................................................................... 12 6. MAXIMUM OUTPUT POWER ...................................................................................................... 13 6.1 MEASUREMENT PROCEDURE: ........................................................................................................ 13 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................... 13 6.3 LIMITS AND MEASUREMENT RESULT: .......................................................................................... 15 7. 20 DB BANDWIDTH ...................................................................................................................... 18 7.1 MEASUREMENT PROCEDURE ......................................................................................................... 18 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................... 18 7.3 LIMITS AND MEASUREMENT RESULTS: ....................................................................................... 18 8. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY (N/A) ........................ 28 8.1 MEASUREMENT PROCEDURE ......................................................................................................... 28 8.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................... 28 8.3 LIMITS AND MEASUREMENT RESULT: .......................................................................................... 28 9. OUT OF BAND EMISSION ........................................................................................................... 29 9.1 MEASUREMENT PROCEDURE: ........................................................................................................ 29 Report No.: AGC04Z110401-2F1 Page 3 of 62 9.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .......................................................... 29 9.3 MEA…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST SETUP
