ZGW03Wireless Tag Manager

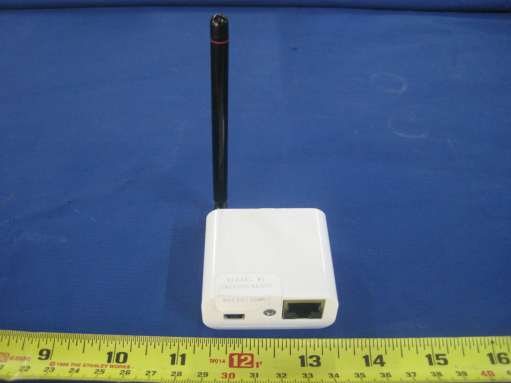

EUT Front View EUT Rear View EUT Side View EUT Side View EUT Bottom View

5 4 3 2 1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Label Drawing Location Compliance Statement Location

EUT PCB Top View EUT PCB Bottom View EUT Ports View

CAO GADGETS, LLC WIRELESS TAG MANAGER Model: ZGW03 Aug 2nd, 2012 Report No.: RF_SL11121303-CAO-002_FCC (This report supersedes NONE) Modifications made to the product : None This Test Report is Issued Under the Authority of: Yao Li Test Engineer David Zhang Engineering Reviewer This test report may be reproduced in full only. Test result presented in this test report is applicable to the representative sample only. a Title: FCC RF Test Report of Cao Gadgets, LLC Model: ZGW03 To 47 CFR 15.203, 15.207, 15.209, 15.231: 2011 Serial# RF_SL11121303-CAO-002_FCC Issue Date Aug 2nd, 2012 Page 2 of 57 www.siemic.com REDIT SIEMIC SIEM Laboratory Introduction ATION SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management through out a project. Our extensive experience with China, Asia Pacific, North America, European, and international compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Accreditation Body Scope USA FCC, A2LA EMC , RF/Wireless , Telecom , SAR Canada IC, A2LA, NIST EMC, RF/Wireless , Telecom , SAR Taiwan BSMI , NCC , NIST EMC, RF, Telecom , Safety Hong Kong OFTA , NIST RF/Wireless ,Telecom Australia NATA, NIST EMC, RF, Telecom , Safety Korea KCC/RRA, NIST EMI, EMS, RF , Telecom, Safety , SAR Japan VCCI, JATE, TELEC, RFT EMI, RF/Wireless, Telecom Mexico NOM, COFETEL, Caniety Safety, EMC , RF/Wireless, Telecom Europe A2LA, NIST EMC, RF, Telecom , Safety, SAR Accreditations for Product Certifications Country Accreditation Body Scope USA FCC TCB, NIST EMC , RF , Telecom Canada IC FCB , NIST EMC , RF , Telecom Singapore iDA, NIST EMC , RF , Telecom EU NB EMC & R&TTE Directive Japan MIC, (RCB 208) RF , Telecom HongKong OFTA (US002) RF , Telecom a Title: FCC RF Test Report of Cao Gadgets, LLC Model: ZGW03 To 47 CFR 15.203, 15.207, 15.209, 15.231: 2011 Serial# RF_SL11121303-CAO-002_FCC Issue Date Aug 2nd, 2012 Page 3 of 57 www.siemic.com This page has been left blank intentionally. a Title: FCC RF Test Report of Cao Gadgets, LLC Model: ZGW03 To 47 CFR 15.203, 15.207, 15.209, 15.231: 2011 Serial# RF_SL11121303-CAO-002_FCC Issue Date Aug 2nd, 2012 Page 4 of 57 www.siemic.com CONTENTS 1 EXECUTIVE SUMMARY & EUT INFORMATION ............................................................................................................ 6 2 TECHNICAL DETAILS ................................................................................................................................................. 7 3 MODIFICATION ........................................................................................................................................................... 8 4 TEST SUMMARY ......................................................................................................................................................... 9 5 MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................................... 10 ANNEX A. TEST INSTRUMENT & METHOD ........................................................................................................................ 20 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................................... 24 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................................... 25 ANNEX D. USER MANUAL, BLOCK & CIRCUIT DIAGRAM .................................................................................................. 29 ANNEX E. SIEMIC ACCREDITATION .................................................................................................................................. 30 a Title: FCC RF Test Report of Cao Gadgets, LLC Model: ZGW03 To 47 CFR 15.203, 15.207, 15.209, 15.231: 2011 Serial# RF_SL11121303-CAO-002_FCC Issue Date Aug 2nd, 2012 Page 5 of 57 www.siemic.com This page has been left blank intentionally. a Title: FCC RF Test Report of Cao Gadgets, LLC Model: ZGW03 To 47 CFR 15.203, 15.207, 15.209, 15.231: 2011 Serial# RF_SL11121303-CAO-002_FCC Issue Date Aug 2nd, 2012 Page 6 of 57 www.siemic.com 1 Executive Summary & EUT information The purpose of this test programme was to demonstrate compliance of the Cao Gadgets, LLC Wireless Tag Manager, against the current Stipulated Standards. The Wireless Tag Manager have demonstrated compliance with the 47 CFR 15.203, 15.207, 15.209, 15.231: 2011. EUT Information EUT Description : Wireless Tag Manager Model No : ZGW03 Serial No : 0A0D0D04A300 Input Power : 5 VDC Classification Per Stipulated Test Standard : Low Power Transceiver a Title: FCC RF Test Report of Cao Gadgets, LLC Model: ZGW03 To 47 CFR 15.203, 15.207, 15.209, 15.231: 2011 Serial# RF_SL11121303-CAO-002_FCC Issue Date Aug 2nd, 2012 Page 7 of 57 www.siemic.com 2 TECHNICAL DETAILS Purpose Compliance testing of Wireless Tag Manager with stipulated standard Applicant / Client CAO Gadgets, LLC Manufacturer CAO Gadgets, LLC 2 Welbury, Aliso Viejo, CA 92656 Laboratory performing the tests SIEMIC Laboratories 2206 Ringwood Ave. San Jose, CA 95131 Test report reference number RF_SL11121303-CAO-002_FCC Date EUT received Jun 18 th , 2012 Standard applied 47 CFR 15.203, 15.207, 15.209, 15.231: 2011 Dates of test (from – to) Jun 25 th – Jun 29 th , 2012 No of Units: # 2 Equipment Category: DSC Trade Name: Wireless Tag Manager Model : ZGW03 RF Operating Frequency (ies) 437.515MHz Number of Channels : 1 Modulation : ASK FCC ID : ZGW03 a Title: FCC RF Test Report of Cao Gadgets, LLC Model: ZGW03 To 47 CFR 15.203, 15.207, …

Text truncated - open the document above for the full version.

Radiated Emission (>30MHz) – Front View Radiated Emission (>30MHz) – Rear View Radiated Emission (>1GHz) – Front View Radiated Emission (>1GHz) – Rear View AC Line Conducted Emission Set up - Front View AC Line Conducted Emission Set up - Front View
