ZHW-8087607DUAL WIRELESS CHARGER

112K - 205KHz The digital apparatus complies with Canadian CAN RSS-216 / CNR-216. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. The distance between user and products should be no less than 20cm. 112K - 205KHz Cet appareil numérique répond aux normes canadiennes CAN RSS-216 / CNR-216. Le présent appareil doit être installé et exploité à une distance minimale de 20 cm entre le radiateur et les corps.

August 20, 2020 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: ZHW-8087607 Product Name: DUAL WIRELESS CHARGER Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this August 20, 2020 By: Raymond McLaren Signature Printed Title: Product Evaluation Associater On behalf of : The Source (Bell) Electronics Inc. Telephone: 0017057281617

IC: 255A-8087607 FCC ID: ZHW-8087607 IC: 255A-8087607 FCC ID: ZHW-8087607 IC: 255A-8087607 FCC ID: ZHW-8087607 IC: 255A-8087607 FCC ID: ZHW-8087607

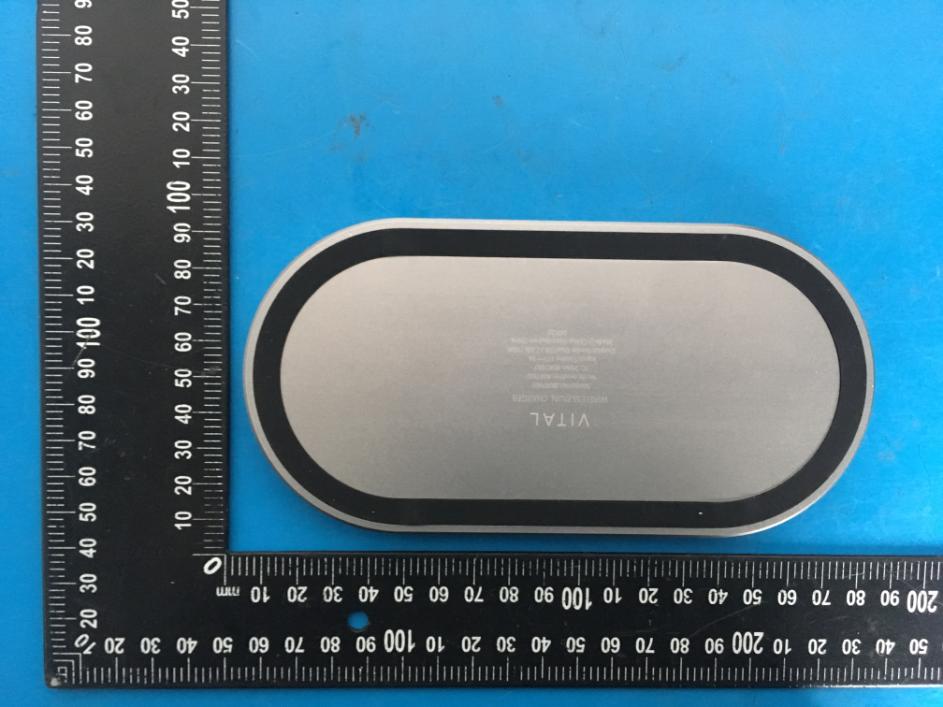

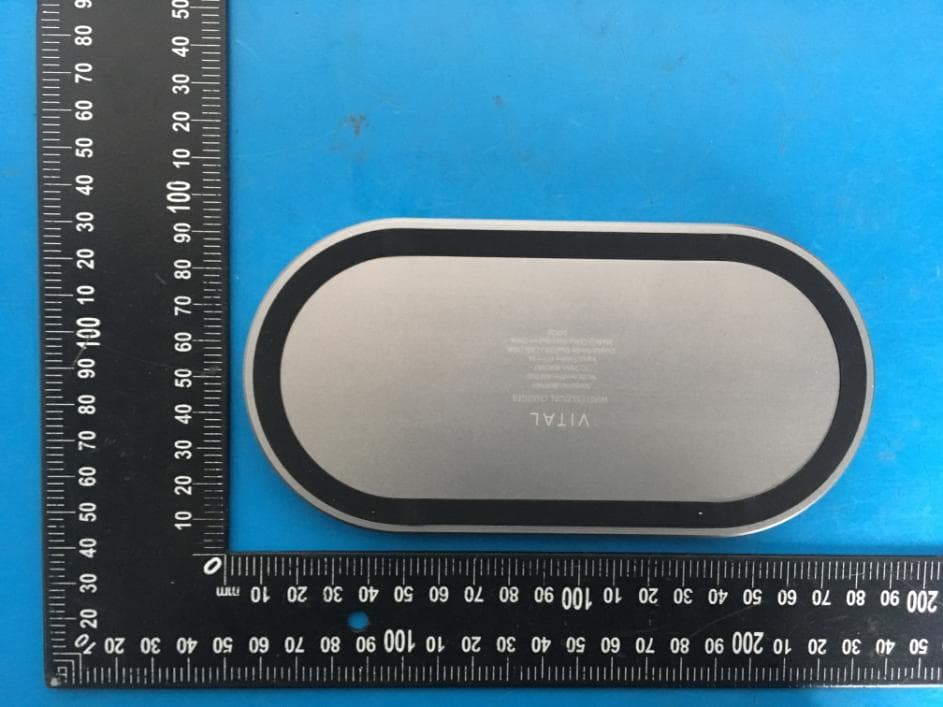

Label VITAL The Source (Bell) Electronics Inc. Product name: DUAL WIRELESS CHARGER Model No.: 8087607 FCC ID: ZHW-8087607 IC: 255A-8087607 Label location

IC: 255A-8087607 FCC ID: ZHW-8087607 IC: 255A-8087607 FCC ID: ZHW-8087607 IC: 255A-8087607 FCC ID: ZHW-8087607

FCC TEST REPORT FCC ID: ZHW-8087607 On Behalf of The Source (Bell) Electronics Inc. DUAL WIRELESS CHARGER Model No.: 8087607 Prepared for : The Source (Bell) Electronics Inc. Address : 279 Bayview Drive, P.O. Box 3400 Barrie Ontario L4M 4W5 Canada Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2007185-C01-R04 Date of Receipt : July28, 2020 Date of Test : July 28, 2020–August 03, 2020 Date of Report : August 03, 2020 Version Number : V0 Page 2 of 15 Report No.: A2007185-C01-R04 TABLE OF CONTENTS 1. Test Result Summary .............................................................................. 5 2. EUT Description ....................................................................................... 6 2.1. DESCRIPTION OF DEVICE (EUT) ............................................................................................................. 6 2.2. ACCESSORIES OF DEVICE (EUT) ............................................................................................................ 8 2.3. TESTED SUPPORTING SYSTEM DETAILS ................................................................................................. 8 2.4. BLOCK DIAGRAM OF CONNECTION BETWEEN EUT AND SIMULATORS ....................................................... 8 2.5. DESCRIPTION OF TEST MODES ............................................................................................................... 8 2.6. TEST CONDITIONS ................................................................................................................................. 8 2.7. TEST FACILITY ...................................................................................................................................... 9 2.8. MEASUREMENT UNCERTAINTY ............................................................................................................... 9 3. Test Results and Measurement Data ................................................... 10 3.1. RF EXPOSURE TEST ....................................................................................................................... 10 4. Photos of test setup .............................................................................. 13 5. Photographs of EUT .............................................................................. 15 Page 3 of 15 Report No.: A2007185-C01-R04 TEST REPORT DECLARATION Applicant : The Source (Bell) Electronics Inc. Address : 279 Bayview Drive, P.O. Box 3400 Barrie Ontario L4M 4W5 Canada Manufacturer : Shenzhen BNY Industrial Co. Ltd Address : Room.803. Xingduli Business Building, Longgang Street, Longgang District, Shenzhen, 518114, China EUT Description : DUAL WIRELESS CHARGER (A) Model No. : 8087607 (B) Trademark : VITAL Measurement Standard Used: FCC CFR Title 47 Part 15 Subpart C FCC KDB 680106 D01 RF Exposure Wireless Charging Apps v03 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The test results are contained in this test report and Shenzhen Alpha Product Testing Co., Ltd. is assumed full responsibility for the accuracy and completeness test. Also, this report shows that the EUT is technically compliant with the KDB 680106 D01 requirements. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen Alpha Product Testing Co., Ltd. Tested by (name + signature).............: Lucas Pang Project Engineer Approved by (name + signature).......: Simple Guan Project Manager Date of issue...... .......................: August 03, 2020 Page 4 of 15 Report No.: A2007185-C01-R04 Revision History Revision Issue Date Revisions Revised By V0 August 03, 2020 Initial released Issue Lucas Pang Page 5 of 15 Report No.: A2007185-C01-R04 1. Test Result Summary Requirement CFR 47 Section Result RF EXPOSURE §1.1307(b)(1) & KDB680106 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Page 6 of 15 Report No.: A2007185-C01-R04 2.EUT Description 2.1. Description of Device (EUT) EUT Name : DUAL WIRELESS CHARGER Model No. : 8087607 DIFF. : N/A Trademark : VITAL Power supply : Input : DC 12V/3A Output : 5W/7.5W/10W Operation frequency : 112~205KHz Modulation : MSK Antenna Type : lnternal Antenna Page 7 of 15 Report No.: A2007185-C01-R04 Conditions requirement Answers Power transfer frequency is less than 1 MHz. After measuring the product the transfer frequency is 0.112-0.205KHz Output power from each primary coil is less than or equal to 15 watts. After measuring the product the each primary coil power is 10 watts The transfer system includes only single primary and secondary coils. This includes charging systems that may have multiple primary coils and clients that are able to detect and allow coupling only between individual pairs of coils. The transfer system includes only single primary. Client device is placed directly in contact with the transmitter. Client device is placed directly in contact with the transmitter. Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Mobile exposure conditions only. The aggregate H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. After measuring the product the Max H-field Strength is 0.677A/m Far less than 50% of the MPE limit. Page 8 of 15 Report No.: A2007185-C01-R04 2.2. Accessories of Device (EUT) Accessories1 : / Manufacturer : / Model : / Ratings : / 2.3. Tested Supporting System Details No…

Text truncated - open the document above for the full version.

FCC TEST REPORT FCC ID: ZHW-8087607 On Behalf of The Source (Bell) Electronics Inc. DUAL WIRELESS CHARGER Model No.: 8087607 Prepared for : The Source (Bell) Electronics Inc. Address : 279 Bayview Drive, P.O. Box 3400 Barrie Ontario L4M 4W5 Canada Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2007185-C01-R03 Date of Receipt : July28, 2020 Date of Test : July 28, 2020–August 03, 2020 Date of Report : August 03, 2020 Version Number : V0 Page 2 of 32 Report No.: A2007185-C01-R03 TABLE OF CONTENTS 1. Test Result Summary .............................................................................. 5 2. General Information ................................................................................. 6 2.1. DESCRIPTION OF DEVICE (EUT) ............................................................................................................. 6 2.2. ACCESSORIES OF DEVICE (EUT) ............................................................................................................ 7 2.3. TESTED SUPPORTING SYSTEM DETAILS ................................................................................................. 7 2.4. BLOCK DIAGRAM OF CONNECTION BETWEEN EUT AND SIMULATORS ....................................................... 7 2.5. DESCRIPTION OF TEST MODES ............................................................................................................... 7 2.6. TEST CONDITIONS ................................................................................................................................. 7 2.7. TEST FACILITY ...................................................................................................................................... 8 2.8. MEASUREMENT UNCERTAINTY ............................................................................................................... 8 2.9. TEST EQUIPMENT LIST ........................................................................................................................... 9 3. Test Results and Measurement Data ................................................... 10 3.1. CONDUCTED EMISSION ........................................................................................................................ 10 3.2. RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................... 13 3.3. TEST SPECIFICATION ........................................................................................................................... 21 4. Photos of test setup .............................................................................. 23 5. Photographs of EUT .............................................................................. 26 Page 3 of 32 Report No.: A2007185-C01-R03 TEST REPORT DECLARATION Applicant : The Source (Bell) Electronics Inc. Address : 279 Bayview Drive, P.O. Box 3400 Barrie Ontario L4M 4W5 Canada Manufacturer : Shenzhen BNY Industrial Co. Ltd Address : Room.803. Xingduli Business Building, Longgang Street, Longgang District, Shenzhen, 518114, China EUT Description : DUAL WIRELESS CHARGER (A) Model No. : 8087607 (B) Trademark : VITAL Measurement Standard Used: FCC CFR Title 47 Part 15 Subpart C Section 15.209 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The test results are contained in this test report and Shenzhen Alpha Product Testing Co., Ltd. is assumed full responsibility for the accuracy and completeness of test. Also, this report shows that the EUT is technically compliant with the FCC CFR Title 47 Part 15 Subpart C Section 15.209 requirements. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen Alpha Product Testing Co., Ltd. Tested by (name + signature).............: Lucas Pang Project Engineer Approved by (name + signature).......: Simple Guan Project Manager Date of issue...... .......................: August 03, 2020 Page 4 of 32 Report No.: A2007185-C01-R03 Revision History Revision Issue Date Revisions Revised By V0 August 03, 2020 Initial released Issue Lucas Pang Page 5 of 32 Report No.: A2007185-C01-R03 1. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203 PASS AC Power Line Conducted Emission §15.207 PASS Spurious Emission §15.209(a)(f) PASS Occupied Bandwidth §15.215 (c) PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Page 6 of 32 Report No.: A2007185-C01-R03 2.General Information 2.1. Description of Device (EUT) EUT Name : DUAL WIRELESS CHARGER Model No. : 8087607 DIFF. : N/A Trademark : VITAL Power supply : Input : DC 12V/3A Output : 5W/7.5W/10W Operation frequency : 112~205KHz Modulation : MSK Antenna Type : Internal Antenna Page 7 of 32 Report No.: A2007185-C01-R03 2.2. Accessories of Device (EUT) Accessories1 : / Manufacturer : / Model : / Ratings : / 2.3. Tested Supporting System Details No. Description Manufacturer Model Serial Number Certification 1 Wireless load -- -- -- N/A 2 SWITCHING ADAPTER N/A RH-120300US -- N/A 2.4. Block Diagram of connection between EUT and simulators 2.5. Description of Test Modes Channel Frequency (KHz) 1 140 2.6. Test Conditions Items Required Actual Temperature range: 15-35°C 24°C Humidity range: 25-75% 56% Pressure range: 86-106kPa 98kPa Page 8 of 32 Report No.: A2007185-C01-R03 2.7. Test Facility Shenzhen Alpha Product Testing Co., Ltd Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China June 21, 2018 File on Federal Communi…

Text truncated - open the document above for the full version.

IC: 255A-8087607 FCC ID: ZHW-8087607 Radiated Emission IC: 255A-8087607 FCC ID: ZHW-8087607 IC: 255A-8087607 FCC ID: ZHW-8087607 Conducted Emission
