WIRELESS SPEAKER HRSP 5040 VIBE 8092990 INSTRUCTION MANUAL WHAT’S INCLUDED: • Speaker • USB C charging cable • 3.5mm audio cable • Instruction Manual The Bluetooth ® word mark and logos are registered trademarks owned by Bluetooth ® SIG, Inc. and any use of such marks by The Source (Bell) Electronics Inc. is under license. Other trademarks and trade names are those of their respective owners. COMPONENT IDENTIFICATION 1. Power button 2. Play/Pause 3. Volume controls 4. Line in port 5. Charging indicator 6. Charging port PRODUCT OVERVIEW You can use this item with any compatible, Bluetooth ® -enabled device to stream music and enjoy hands-free calling. Please read this manual first before using. This speaker has an IPX6 rating: protected against high-pressure water jets from all directions. OPERATION TO DO THIS Play/pause Press the button to play, press again to resume. Next track Press and hold the button for 2 seconds. Previous track Press and hold the — button for 2 seconds. Increase volume Short Press the + button. Decrease volume Short Press the - button. Answer/ End the call Press the HR button Reject the call Press and hold the HR Button for 2 second TWS Press +and – button at the same times and hold for 2 seconds Reset Press HR and – button at the same times and hold for 2 seconds STATUS INDICATOR Mode indicator Rapidly flashing blue Pairing mode Steady blue Paired Steady red Line in mode Charge indicator Steady red Charging Steady green Fully charged CHARGING Use the included charging cable to fully charge the speaker before first use. It will take approximately 4 hours to fully charge. • The red LED will be ON while the speaker is charging • The red LED will turn green once charging is complete Tip: When the battery is low, the speaker will beep every few seconds, please charge the speaker. If it is not plugged in to charge within approximately 15 minutes, it will turn OFF. PAIRING 1. Press and hold the button to turn the speaker ON. The blue LED will flash. 2. Turn Bluetooth ® ON in your device settings and select “HRSP 5040”. 3. Once paired successfully, the blue LED will be ON and the speaker will chime. 4. If you fail to pair your device or you want to pair it with a new device, please repeat the steps outlined above. NOTE: If there is no device paired within 10 minutes the speaker will turn OFF. To un-pair, press the button or disconnect in your device settings. NOTE: The speaker will automatically pair with previously paired devices provided the Bluetooth ® is ON and within range. The speaker will chime to indicate that it has been successfully re-paired. HANDSFREE SPEAKERPHONE When a smartphone is connected to your speaker follow the steps below to take calls handsfree. 1. If there is an incoming call while streaming music, the speaker will ring for iOS ring tone or beep for Android TM . 2. Press the Play/Pause button to answer the call. 3. Press the Play/Pause again to end the call. LINE-IN (AUX IN) MODE 1. Use the supplied cable to connect the speaker directly with your device. 2. The LED will blink slowly. Tip: LINE-IN will take priority over the Bluetooth® connection. TWS (TRUE WIRELESS STEREO) CONNECTION Connect two 8092990 speakers for a true wireless stereo experience. To connect: 1. Ensure neither speaker is connected to your device via Bluetooth and turn Bluetooth OFF on your device. 2. Press and hold the button on both speakers to turn ON. The button on both speakers will flash. 3. On either of speakers, press and hold “+”and “-” button at the same time for about 2 or 3 seconds until a prompt is heard. Another prompt will be heard in 2 seconds. It represents TWS connected successfully. 4. Turn Bluetooth® ON in your device settings and select “HRSP 5040” for Bluetooth pairing. 5. When you hear the prompt and both button LED stay ON, Bluetooth connection to your device is completed successfully. Note: During your device under BT connection with TWS modes in use, you can press both and “+” buttons at the same time for 3 seconds to clear all the pairing records. TECHNICAL SPECIFICATIONS Carrier Frequency: Bluetooth ® Battery Capacity: 3.7V, 2200mAh Charging time: 2-3 hours Frequency Response: 80HZ-18KHZ Operation Distance: Up to 10 meters/33 feet TWS Distance: 3.5metres/11.5 feet Output Power: 4W*2 (Max) Play time: 12 hours NOTE: This speaker is in compliance with the specified Bluetooth ® version. It does not guarantee compatibility with all the functions on every Bluetooth ® enabled device. Please check your mobile phone’s user manual for compatibility and functionality. TROUBLESHOOTING No Sound: • Ensure the speaker is charged and has enough battery power for operation • Ensure the speaker is switched ON • Ensure Bluetooth ® device is ON • The volume of the speaker is too low, adjust the volume to an appropriate level NOTE: • If the speaker beeps every few seconds, the battery is low. Please recharge the speaker. • When using the HR Speaker for your Personal computer. • Select playback device “HRSP 5040 Stereo” for music listening • Select playback device “HRSP 5040 Hands-Free AG Audio” when calling is coming. check the volume when the call is coming. Also please test the speaker levels before using as speaker phone. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate…

Text truncated - open the document above for the full version.

_____________________________________________________________________________________________ 279 Bayview Dr., P.O. Box 34000, Barrie, Ontario, Canada, L4M 4W5 Date: 2021/06/22 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The RF chip, model AC6966B, which installed in our product Bluetooth Audio Speaker, Model: 8092990, FCC ID: ZHW- 8092990, supports BDR (GFSK), EDR (π/4-DQPSK, 8DPSK), and BLE functions. For use in America, only supports BDR (GFSK), EDR (π/4-DQPSK, 8DPSK). The BLE function has been shielded by the manufacturer using the software. Regards, ________________________ Raymond McLaren Product Evaluation Associate The Source (Bell) Electronics Inc. [email protected] Tel.: 0017057281617 Fax: 0017057284424

_____________________________________________________________________________________________ 279 Bayview Dr., P.O. Box 34000, Barrie, Ontario, Canada, L4M 4W5 FCC Confidential Authorization 2021/06/22 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: ZHW-8092990 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, (The Source (Bell) Electronics Inc.) hereby requests long-term confidential treatment of information accompanying this application as outlined below: • Block Diagram • Schematics • Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Regards, ________________________ Raymond McLaren Product Evaluation Associate The Source (Bell) Electronics Inc. [email protected] Tel.: 0017057281617 Fax: 0017057284424

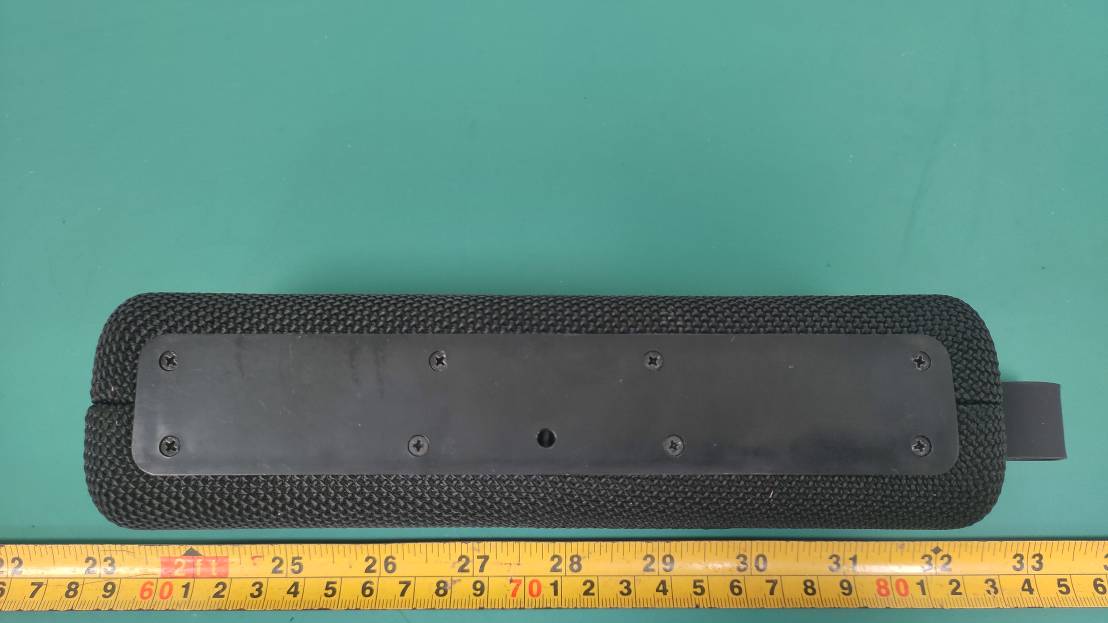

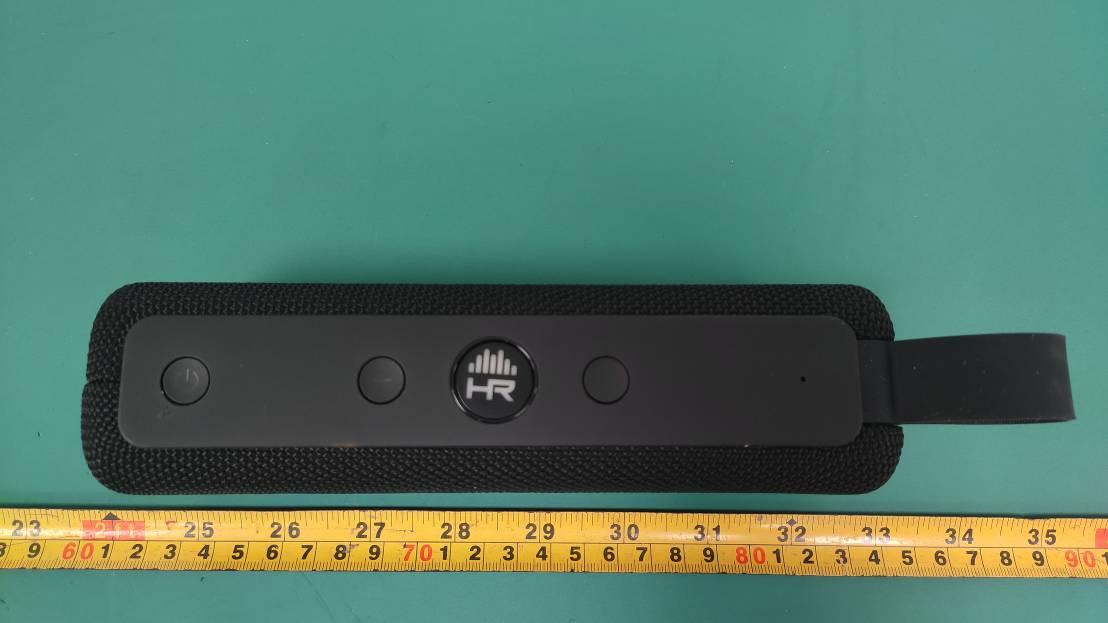

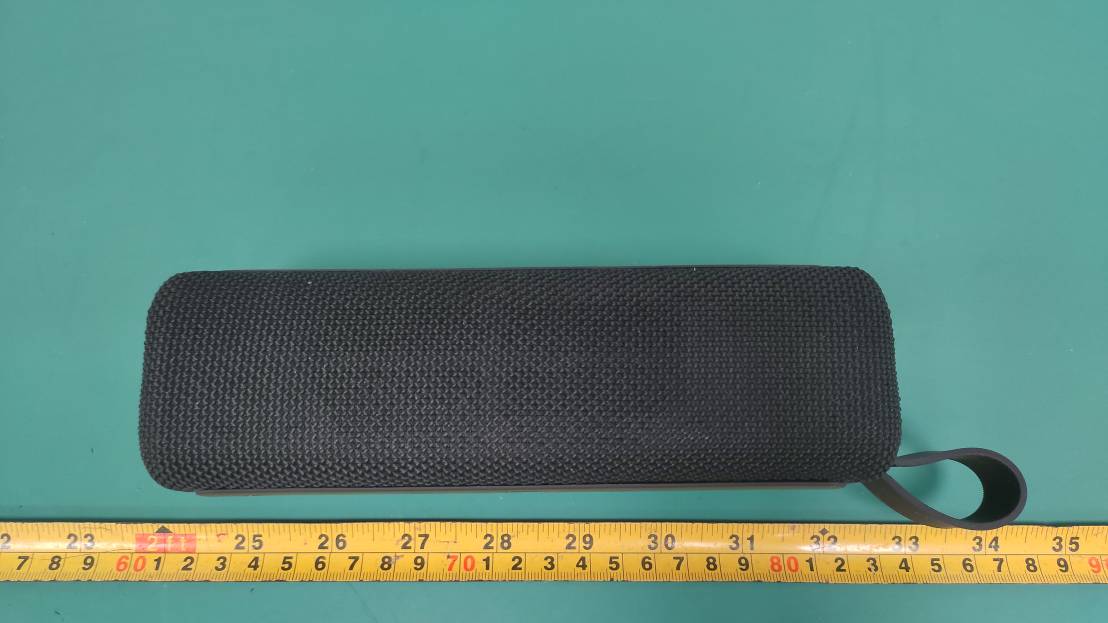

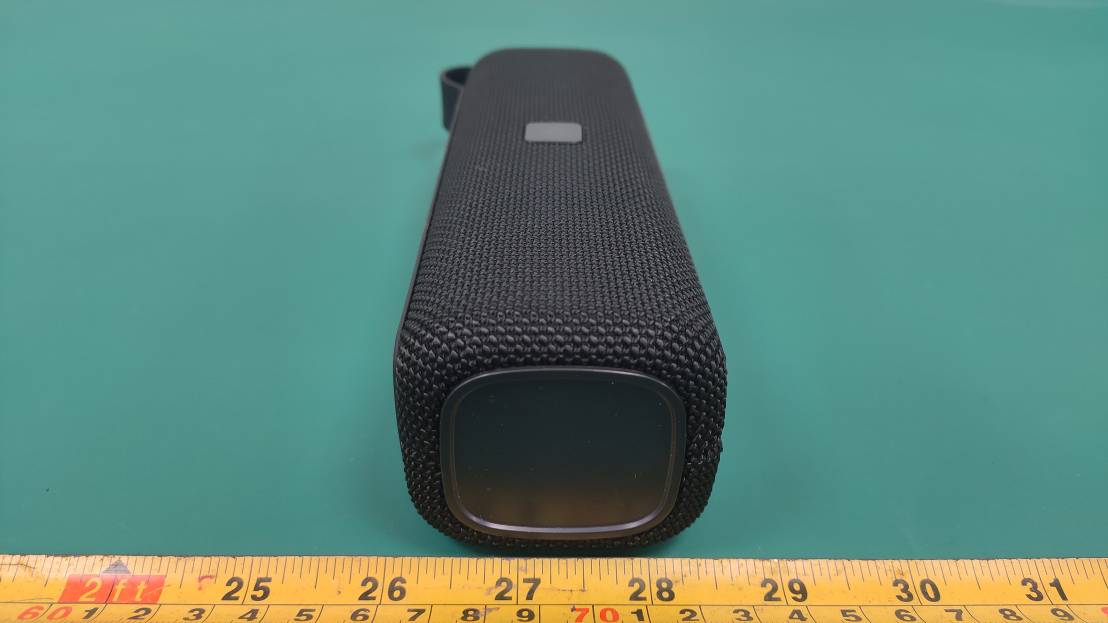

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ5210521-18681E-RF Page 1 of 5 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ5210521-18681E-RF Page 2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ5210521-18681E-RF Page 3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ5210521-18681E-RF Page 4 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: SZ5210521-18681E-RF Page 5 of 5
