ZJ5BSMOW07R2.4GHz Wireless receiver

BSMOW07 2.4GHz Wireless 5 Buttons Optical Mouse Page 1 of 8 1.0 Edition 2.4GHz Wireless Optical Mouse BSMOW07 AND BSMD02 USER’S MANUAL Important Ergonomic Information Some experts believe that using any mouse or trackball may cause serious injury to hands, wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see a qualified health professional. TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS:
Take frequent breaks, get up and walk around several times every hour.
Vary your tasks throughout the day.
Keep your shoulders relaxed with your elbows at your side. Position your keyboard and mouse so you do not have to reach.
Adjust your chair and keyboard so your upper arms and wrists are straight.
Avoid resting your wrists on sharp edges. System Requirement
Mouse compatible with standard Microsoft OS
If your computer’s operating system is Windows 98/ 98SE, please prepare the Windows98 or 98SE compact disk for system’s request during the installation of mouse. Before you begin
Keep this installation guide for future reference! It contains Important Troubleshooting Information.
Keep your old PS/2 or USB mouse as back-up devices. BSMOW07 2.4GHz Wireless 5 Buttons Optical Mouse Page 2 of 8 1.0 Edition Getting Started Congratulations on your purchase of a 1,600dpi Wireless Optical Mouse. By using the advanced RF technology a 360° operation is possible and no line-of-sight is required between the receiver and the mouse. The 1,600dpi high resolution will bring users the best operation accuracy and efficiency, especially when the pixel of display over 1024*768 pixel. It operates at twice the speed and only requires 1/4 of the space in comparison to a 400 dpi mouse. Battery and power consumer is always the key issue for a wireless product, The BSMOW07 designed a power on/off slide switch in the mouse bottom for saving more battery life, and low power indicator on the scroll wheel of the mouse will blink to indicate battery low power. For loss prevention, store receiver in cavity on the bottom of the mouse. With numerous user-friendly functions and the compact and ergonomic design, the RF mouse may offer users the best experience of utilization and the most convenience in traveling. Package Contains Your BSMOW07 Mouse package includes the following: 1. The wireless optical mouse 2. USB storable nano receiver (BSMD02) 3. User’s manual 4. CD-ROM 5. 2 AAA alkaline batteries Note：If any part is missing, please contact your dealer for a replacement immediately. BSMOW07 2.4GHz Wireless 5 Buttons Optical Mouse Page 3 of 8 1.0 Edition Precaution The optical mouse can not work on a glass or mirror surface. Avoid operating this mouse on a glossy surface; otherwise, this mouse may not operate normally. For consideration of saving battery power, it is strongly recommended to operate an optical mouse on a bright surface with fine texture to obtain lower power consumption of the high illumination LED. A very dark surface will cause higher power consumption. For optimal performance, mouse should be no more than 5M away from receiver. For a better transmission distance, avoid using this device on a metal plate or desktop because a large surface of iron, aluminum, copper and other metal will act as a shield or ground to the RF antenna of the mouse and receiver. Operating on a metal surface may shorten the transmission distance. If your notebook computer has a metal (contains Al or Mg) case, the metal housing of the LCD panel will isolate partial radiation of the RF signal from the mouse. This could possibly result in reducing the distance of transmission when you operate the mouse right in front of the notebook and when the receiver is connected on the back of the notebook. However, the RF mouse should work properly while you are operating the mouse just beside your desktop computer. BSMOW07 2.4GHz Wireless 5 Buttons Optical Mouse Page 4 of 8 1.0 Edition Overview Button Definition Hardware Installation Guide (Mouse) Battery installation: 1. Remove the battery compartment cover. 2. Install batteries with the positive (+) & negative (-) in the correct direction indicated by the battery compartment label. 3. Replace battery compartment cover. (Caution: Do not look directly in to the optical emitter. Keep away from young children) Connect the receiver with computer. Plug in the USB receiver to any available USB port or hub connected to your computer. (Windows will now detect the mouse and install the required drivers automatically). Button #1 – Left mouse click Button #4 – Programmable (Internet Forwards) Button #5 – Programmable (Internet Backwards) Button#2–Right mouse click Button #3 – Middle Button 4-way Scrolling Wheel Low power indicator BSMOW07 2.4GHz Wireless 5 Buttons Optical Mouse Page 5 of 8 1.0 Edition JUST SIMPLY MOVING THE MOUSE, YOUR MOUSE IS NOW READY TO BE USED Note: * During normal use, please make sure that the mouse is no more than 5M away from the receiver in order to have reliable connection. Operation Guide BATTERY LOW INDICATION When battery becomes low, battery indicator LED on the top side of the mouse will flashing on/ off when moving or clicking the mouse. The mouse will continue to operate for a period of time depending on usage, but batteries should be replaced immediately. OPERATIONS ON POWER SAVING MODE In order to conserve battery power, the mouse is designed to reduce power consumption gradually from standby mode to sleep mode, if it is not being used. Stand by modes: The standby mode is entered immediately upon stopping moving mouse. The optical sensor of the mouse will reduce current consumption gradually. Sleep mode: When the RF link between the mouse and the receiver is stopped (Ex: host computer is turned off, or the mouse is out of range the mouse goes to sleep mode. In sleep mode, pressing any key can boring the mouse back to work. POWER ON/OFF: For the consideration of traveling purpose, this mouse designed a slide switch in the…

Text truncated - open the document above for the full version.

Page: 1

Page: 2 Page: 3

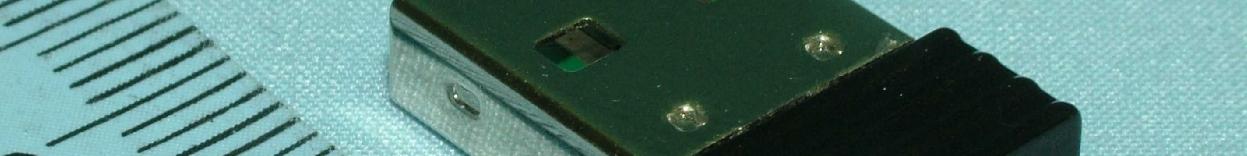

FCC ID: ZJ5BSMOW07R Report No.: RF990520C13B Operational Description The transmitter of the EUT (2.4GHz Wireless receiver) is powered by 5Vdc from host equipment. The type of antenna is Copper trace antenna. The output power of this device is very low. Under normal use condition, the transmitter and the receiver are quite close, so high EIRP power is neither necessary nor allowed because of interference.

Report No.: RF990520C13B 1 Report Format Version 4.0.0 Reference No.: 110512C24 FCC TEST REPORT REPORT NO.: RF990520C13B MODEL NO.: BSMD02 FCC ID: ZJ5BSMOW07R RECEIVED: May 12, 2011 TESTED: May 20 ~ 23, 2011 ISSUED: May 27, 2011 APPLICANT: Buffalo Kokuyo Supply Inc. ADDRESS: AKAMONDORI Bldg., 30-20, Ohsu 3-chome, Naka-ku, Nagoya. Aichi, 460-8315, Japan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, 244 Taiwan This test report consists of 30 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990520C13B 2 Report Format Version 4.0.0 Reference No.: 110512C24 Table of Contents RELEASE CONTROL RECORD..............................................................................3 1. CERTIFICATION..........................................................................................4 2. SUMMARY OF TEST RESULTS..................................................................5 2.1 MEASUREMENT UNCERTAINTY...............................................................5 3. GENERAL INFORMATION..........................................................................6 3.1 GENERAL DESCRIPTION OF EUT............................................................6 3.2 DESCRIPTION OF TEST MODES..............................................................7 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.........................................7 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL:.............8 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................10 3.4 DESCRIPTION OF SUPPORT UNITS......................................................10 4. TEST TYPES AND RESULTS....................................................................11 4.1 CONDUCTED EMISSION MEASUREMENT............................................11 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..........................11 4.1.2 TEST INSTRUMENTS..............................................................................11 4.1.3 TEST PROCEDURES...............................................................................12 4.1.4 DEVIATION FROM TEST STANDARD.....................................................12 4.1.5 TEST SETUP............................................................................................12 4.1.6 EUT OPERATING CONDITIONS..............................................................13 4.1.7 TEST RESULTS........................................................................................14 4.2 RADIATED EMISSION MEASUREMENT.................................................16 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...............................16 4.2.2 TEST INSTRUMENTS..............................................................................17 4.2.3 TEST PROCEDURES...............................................................................18 4.2.4 DEVIATION FROM TEST STANDARD.....................................................18 4.2.5 TEST SETUP............................................................................................19 4.2.6 EUT OPERATING CONDITIONS..............................................................19 4.2.7 TEST RESULTS........................................................................................20 4.3 BAND EDGES MEASUREMENT..............................................................25 4.3.1 LIMITS OF BAND EDGES MEASUREMENT............................................25 4.3.2 TEST INSTRUMENTS..............................................................................25 4.3.3 TEST PROCEDURE.................................................................................25 4.3.4 DEVIATION FROM TEST STANDARD.....................................................25 4.3.5 EUT OPERATING CONDITION................................................................25 4.3.6 TEST RESULTS........................................................................................25 5. PHOTOGRAPHS OF THE TEST CONFIGURATION.................................28 6. INFORMATION ON THE TESTING LABORATORIES...............................29 7. APPENDIX A – MODIFICATIONS RECORDERS FOR ENGINEERING CHANGES TO THE EUT BY THE LAB......................................................30 Report No.: RF990520C13B 3 Report Format Version 4.0.0 Reference No.: 110512C24 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED RF990520C13B Original release May 27, 2011 Report No.: RF990520C13B 4 Report Format Version 4.0.0 Reference No.: 110512C24 1. CERTIFICATION PRODUCT: 2.4GHz Wireless receiver BRAND NAME: iBuffalo MODEL NO.: BSMD02 APPLICANT: Buffalo Kokuyo Supply Inc. TESTED: May 20 ~ 23, 2011 TEST ITEM: ENGINEERING SAMPLE STANDARDS: FCC Part 15, Subpart C (Section 15.249) ANSI C63.4-2003 ANSI C63.10-2009 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: ( Jessica Cheng / Specialist ) APPROVED BY : , DATE: ( Ken Liu / Manager ) Report No.: RF990520C13B 5 Report Format Version 4.0.0 Reference No.: 110512C24 2. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part 15, Subpart C (Section 15.249) STANDARD SECTION TEST TYPE AND LIMIT RESULT REMARK 15.207 Conducted Emission Test PASS Minimum passing margin is –16.25dB …

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST
