ZJA-GL2011WIRELESS REMOTE CONTROLLER

Wireless Remote Control SpecificationsHF008 (Radio) wireless remote control is the wireless transmitting circuit, steadily performance, wide range in operating voltage, high coincidence.Specifications:1. Operating Voltage: DC 12V2. Operating Frequency: 433.92 MHz3. Standby Current: 1 - 2 Ua4. Operating Current: 4-5 Ma5. Transmitting Distance 35m (Open space without obstacles)6. Output: 10 - 12 dBm 7. AmplitudeModulation: OOK (Modulation)8. Operating Temperature: 10 - 17 CelsiusFCC NOTES:This device complies with part 15 of the FCC Rules.Operation is subject to the following two comditions1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired operationNOTE:THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO ORTV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TOTHIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER＇SAUTHORITY TO OPERATE THE EQUIPMENT.

Block Diagram Wireless Transmitter Mainly Control Circuit MCU Power Source DC 12V 433.92MHz Crystal oscillator (Y1) 433.92MHz

LIGHTCOM TECHNOLOGY CO., LTD Letter of Authorization FCC ID: ZJA-GL2011 May 03, 2011 Federal Communications Commission Authorization and Evaluation Divisoin 7435 Oakland Mills Road Columbia, MD 21046 To Whom It’s My Concern: We, the undersigned,hereby Authorize Anbotek Compliance Laboratory Limited (Daniel Zhu) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Anbotek Compliance Laboratory Limited (Daniel Zhu). On our behalf shall have the same effect as acts of our own. This Authorization expires on Jun. 03, 2011 This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, LIGHTCOM TECHNOLOGY CO., LTD, are not subject to a denial of federal benefits pursuant to section 5301 of the Anti-Drug Abuse Act of 1988.21 USC835a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Shengxiang Li Business

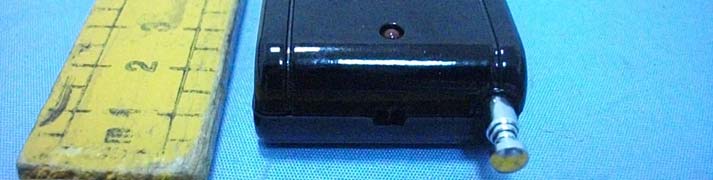

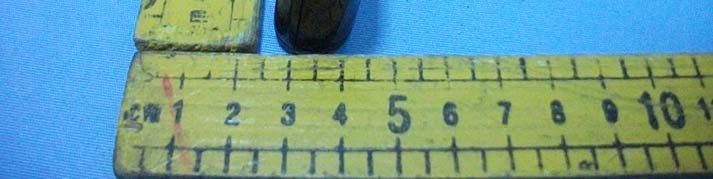

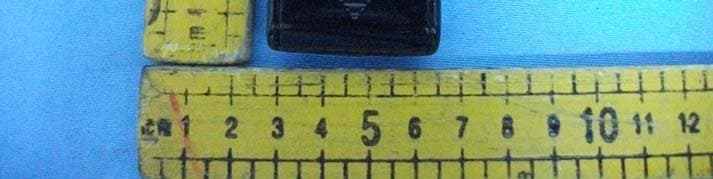

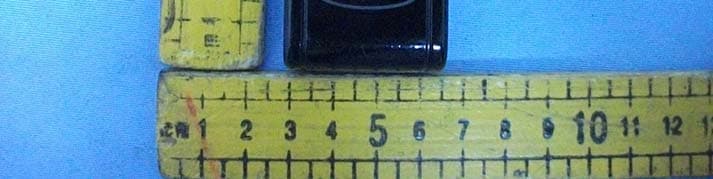

Page 16 of 19 FCC ID: ZJA-GL2011 Anbotek Compliance Laboratory Limited Report No.201104707F Figure 1 The EUT-Front View Figure 2 The EUT-Back View Page 17 of 19 FCC ID: ZJA-GL2011 Anbotek Compliance Laboratory Limited Report No.201104707F Figure 3 The EUT-Front View Figure 4 The EUT-TOP View Page 18 of 19 FCC ID: ZJA-GL2011 Anbotek Compliance Laboratory Limited Report No.201104707F Figure 5 The EUT-Left side View Figure 6 The EUT-Right side View

FCC ID Label Sample for FCC ID: ZJA-GL2011 FCC ID: ZJA-GL2011 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation.

The proposed Label Location on EUT Proposed FCC ID Label Location Proposed Label Location on EUT The EUT-Back View/Proposed FCC ID Label Location

Page 18 of 18 FCC ID: ZJA-GL2011 Anbotek Compliance Laboratory Limited Report No.201104707F Figure 4 PCB of the EUT-Front View Figure 5 PCB of the EUT-Back View

Circuit Function Description 1. MCU & RF : responsible for communication with receiver. 2. Powered by 1 PC 12V battery. 3. When press UP button, circuit will create a start signal to power control unit to switch on power, circuit begin to work. Meanwhile MCU send on signal to power control unit to keep power on and keep dif ferent functions. At this tim e , MCU will check Button code value and then send to the circuit, which create 433.92 MHz high frequency signal, and send out Button code value from Antenna. 4. When press DOWN button, MCU will send O FF signal to power control unit to shut off power. 5. RF crystal frequency is 433.92 MHz. 6. The device use an fixed antenna, which resistance is 5 Ω.

1 2 34 ABCD 4 3 2 1 D CBA Title Number Revision Size A4 Date: 25-Apr-2011 Sheet of File: F:\ 资料 \ 摇控开关 \433 彩灯 \433 摇控彩灯 .ddb Drawn By: VDD 1 IOB5 2 IOB4 3 IOB3 4 IOB2 5 IOB1 6 IOB0 7 VSS 8 U1 IN 1 GND 2 OUT 3 U2 C4 C5 12V K1K2 Q1 Q2 R1R2 1 2 3 Y1 C1 12V 433.92MHz C2 C3 DATA D1 R3 DATA
