ZJN-A060GSM Mobile Phone

-1- GSM Mobile Phone A060 User Manual Content 1 General Information ................................................................................................................................................. 5 1.1 Profile.............................................................................................................................................................. 5 1.2 Safety Information .......................................................................................................................................... 5 1.3 Safety warning and Attentions ........................................................................................................................ 5 2 Your phone................................................................................................................................................................. 8 2.1 Phone overview............................................................................................................................................... 8 2.2 Functions of Keys ........................................................................................................................................... 8 2.3 Technical specifications ................................................................................................................................ 10 3 Getting started......................................................................................................................................................... 10 3.1 Installing the SIM Cards and the Battery ...................................................................................................... 10 3.2 Installing T-Flash Card.................................................................................................................................. 13 -2- 3.3 Charging the Battery ..................................................................................................................................... 13 3.4 Powering On/Off the Mobile Phone ............................................................................................................. 16 3.5 Linking to the Network ................................................................................................................................. 16 3.6 Dialing Calls ................................................................................................................................................. 16 3.7 Using the Headset ......................................................................................................................................... 17 4 Input method ........................................................................................................................................................... 18 4.1 Icons for Input Methods ................................................................................................................................ 18 4.2 To Shift Entry Methods................................................................................................................................. 18 4.3 Numeric Input ............................................................................................................................................... 18 4.4 English input ................................................................................................................................................. 18 4.5 Inserting a Symbol ........................................................................................................................................ 19 5 Using the Menus ...................................................................................................................................................... 19 5.1 Messages ....................................................................................................................................................... 19 5.2 Phonebook..................................................................................................................................................... 22 5.3 Calendar ........................................................................................................................................................ 23 5.4 Call history.................................................................................................................................................... 23 5.5 Services ......................................................................................................................................................... 25 -3- 5.6 WLAN .......................................................................................................................................................... 26 5.7 Connectivity .................................................................................................................................................. 26 5.8 Email ............................................................................................................................................................. 27 5.9 Multimedia .................................................................................................................................................... 27 5.10 Camera .......................................................................................................................................................... 29 5.11 FM Radio ...................................................................................................................................................... 29 5.12 Audio player.................................................................................................................................................. 29 5.13 Java ..............................................................................................................................................…

Text truncated - open the document above for the full version.

2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 (July 05, 2011) To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZJN-A060 We hereby request confidential treatment of information accompanying this application as outlined below: ——Schematic ——Block Diagram ——Operational Description ——Part list ——Tune-up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application.

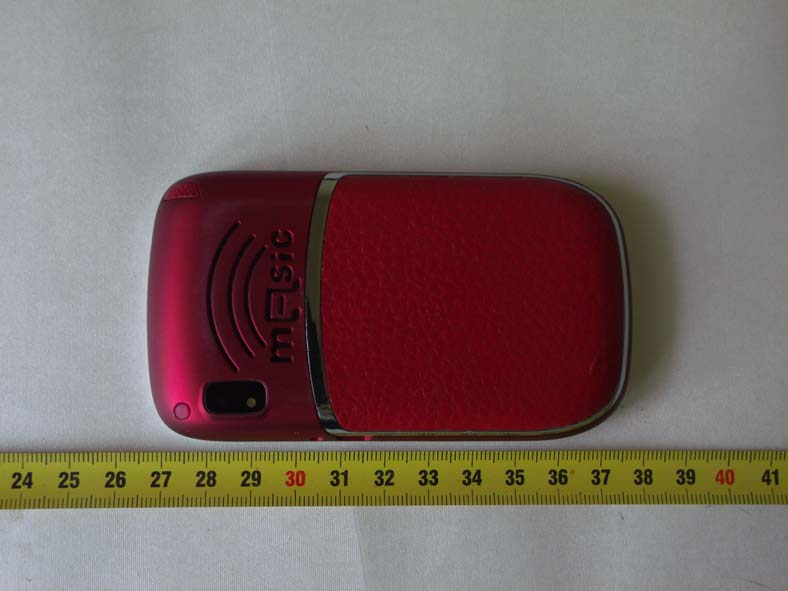

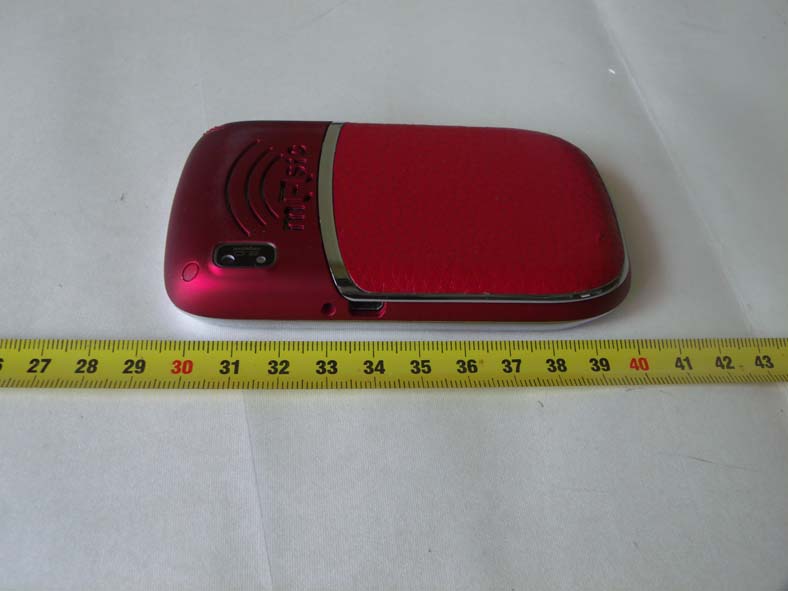

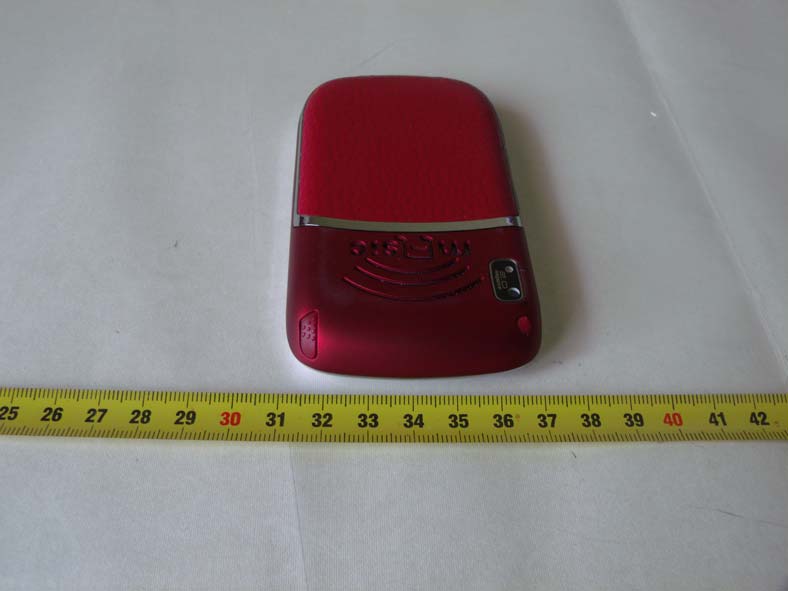

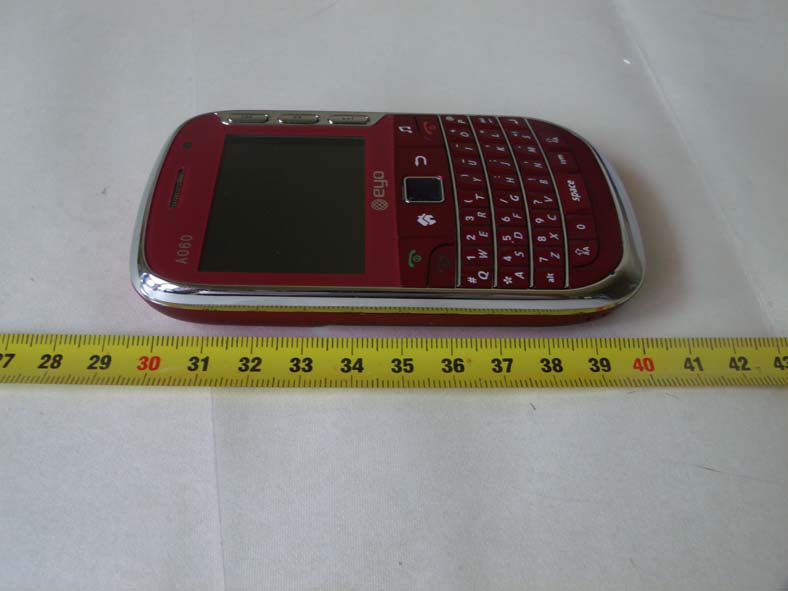

E U T- To p Vi e w EUT-Rear View EUT-Left Side View EUT-Right Side View E U T- To p Vi e w EUT-Bottom View

FCC ID LABELING AND LOCATION FCC ID Labeling Proposed FCC ID Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) FCC ID: ZJN-A060 Model: A060

EUT-Battery off View EUT-Internal View 1 GSM Antenna Location EUT-Internal View 2 E U T- M a i n B o a r d To p Vi e w Bluetooth Antenna Location WI-FI Antenna Location EUT-Main Board Bottom View EUT-Main Board Shielding off Bottom View Battery View

Compliance Certification Services Inc. Report No: KS110623B03 FCC ID: ZJN-A060 Date of Issue :June 24, 2011 Page 1 of 41 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For GSM Mobile Phone Model No.: A060 Trade Name: eyo FCC ID: ZJN-A060 for EYO ASIA ELECTRONIC CO.,LTD Room 2128,Block A,QunXing Plaza,HuaQiangNorth Road,Futian District,Shenzhen Issued by Compliance Certification Services (Kunshan) Inc. No.10, Weiye Rd., Innovation Park, Eco & Tec. Development Part, Kunshan City, Jiangsu Province, P.R.China. TEL: 86-512-57355888 FAX: 86-512-57370818 http://www.ccsrf.com Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services Inc. Report No: KS110623B03 FCC ID: ZJN-A060 Date of Issue :June 24, 2011 Page 2 of 41 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ........................................................... 3 2. EUT DESCRIPTION....................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ............................... 5 4. TEST METHODOLOGY.............................................................................................................. 5 5. T EST CONFIGURATION................................................................................................................... 5 6. DOSIMETRIC ASSESSMENT SETUP ....................................................................................... 5 6.1 MEASUREMENT SYSTEM DIAGRAM ...........................................................................................................7 6.2 SYSTEM COMPONENTS ...............................................................................................................................8 7. EVALUATION PROCEDURES ................................................................................................. 11 8. MEASUREMENT UNCERTAINTY............................................................................................ 14 9. EXPOSURE LIMIT .................................................................................................................... 15 10. EUT ARRANGEMENT .............................................................................................................. 16 10.1 ANTHROPOMORPHIC HEAD PHANTOM..................................................................................................16 10.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION...................................................................................17 10.3 DEFINITION OF THE “TILTED” POSITION ................................................................................................18 11. MEASUREMENT RESULTS..................................................................................................... 19 11.1 TEST LIQUIDS CONFIRMATION ...............................................................................................................19 LIQUID MEASUREMENT RESULTS ..................................................................................................................19 11.2 SYSTEM PERFORMANCE CHECK............................................................................................................20 11.3 EUT TUNE-UP PROCEDURES AND TEST MODE....................................................................................23 11.4 CONDUCTED OUTPUT POWER ...............................................................................................................24 11.5 KDB 648474 SAR HANDSETS MULTI XMITER ASSESSMENT................................................................25 11.6 EUT SETUP PHOTOS ................................................................................................................................28 11.7 SAR MEASUREMENT RESULTS ...............................................................................................................29 12. EUT PHOTO ............................................................................................................................. 35 13. EQUIPMENT LIST & CALIBRATION STATUS........................................................................ 39 14. FACILITIES............................................................................................................................... 40 15. REFERENCES.......................................................................................................................... 40 16. ATTACHMENTS ....................................................................................................................... 41 Compliance Certification Services Inc. Report No: KS110623B03 FCC ID: ZJN-A060 Date of Issue :June 24, 2011 Page 3 of 41 Rev. 00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Product Name: GSM Mobile Phone Model Name.: A060 Applicant Discrepancy: Initial Trade Name: eyo Devices supporting GPRS： Class B Description Test Modes(worst case ): The all Models EUT were pretested, then the SIM1 was found to transmit the highes t SAR value after tested dual SIM1and SIM2. Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE Date of Test: June 23, 2011 Applicant: EYO ASIA ELECTRONIC CO.,LTD Room 2128,Block A,Q…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Services Inc. SystemPerformance Head Check-D850_2011.06.23 DUT: Dipole 850 MHz D835V2; Type: D835V2; SN:4d114 Communication System: CW; Frequency: 850 MHz Medium parameters used: f = 850 MHz; σ = 0.91 mho/m; εBB r BB = 42.05; ρ = 1000 kg/mPP 3 PP Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(9.07, 9.07, 9.07); Calibrated: 1/20/2011 • Sensor-Surface: 3mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) System Performance Check at Frequencies below 1 GHz/d=15mm, Pin=250 mW, dist=3.0mm (EX-Probe)/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.51mW/g System Performance Check at Frequencies below 1 GHz/d=15mm, Pin=250 mW, dist=3.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.77 V/m; Power Drift = 0.00052 dB Peak SAR (extrapolated) = 3. 35W/kg SAR(1 g) = 2.43 mW/g; SAR(10 g) = 1.57 mW/g Maximum value of SAR (measured) =3.53 mW/g Test Laboratory: Compliance Certification Services Inc. SystemPerformance Boby Check-D850_2011.06.23 DUT: Dipole 850 MHz D835V2; Type: D835V2; SN:4d114 Communication System: CW; Frequency: 850 MHz Medium parameters used: f = 850 MHz; σ = 0.99 mho/m; εBBB r BBB = 55.69; ρ = 1000 kg/mPPP 3 PPP Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(9.07, 9.07, 9.07); Calibrated: 1/20/2011 • Sensor-Surface: 3mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) System Performance Check at Frequencies below 1 GHz/d=15mm, Pin=250 mW, dist=3.0mm (EX-Probe)/Area Scan (7x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.50mW/g System Performance Check at Frequencies below 1 GHz/d=15mm, Pin=250 mW, dist=3.0mm (EX-Probe)/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 58.74 V/m; Power Drift = 0.0021 dB Peak SAR (extrapolated) = 3.37 W/kg SAR(1 g) = 2.54 mW/g; SAR(10 g) = 1.68 mW/g Maximum value of SAR (measured) = 3.47 mW/g Test Laboratory: Compliance Certification Services Inc. SystemPerformance Head Check-D1900_2011.06.23 DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d136 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; εBBB r BBB = 40.39; ρ = 1000 kg/mPPP 3 PPP Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(8.17, 8.17, 8.17); Calibrated: 1/20/2011 • Sensor-Surface: 3mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: SAM1; Type: SAM; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) System Performance Check at Frequencies above 1 GHz/d=10mm, Pin=250 mW, dist=3.0mm (EX-Probe) 2/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.139 mW/g System Performance Check at Frequencies above 1 GHz/d=10mm, Pin=250 mW, dist=3.0mm (EX-Probe) 2/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 104.61 V/m; Power Drift = 0.0032 dB Peak SAR (extrapolated) = 16.549 W/kg SAR(1 g) = 10.40 mW/g; SAR(10 g) = 5.39 mW/g Maximum value of SAR (measured) = 10.919 mW/g Test Laboratory: Compliance Certification Services Inc. SystemPerformance Boby Check-D1900_2011.06.23 DUT: Dipole 1900 MHz D1900V2; Type: D1900V2; Serial: D1900V2 - SN:5d136 Communication System: CW; Frequency: 1900 MHz Medium parameters used: f = 1900 MHz; σ = 1.54 mho/m; εBB r BB = 53.96; ρ = 1000 kg/mPP 3 PP Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(8.17, 8.17, 8.17); Calibrated: 1/20/2011 • Sensor-Surface: 3mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: SAM1; Type: SAM; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) System Performance Check at Frequencies above 1 GHz/d=10mm, Pin=250 mW, dist=3.0mm (EX-Probe) 2/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.204 mW/g System Performance Check at Frequencies above 1 GHz/d=10mm, Pin=250 mW, dist=3.0mm (EX-Probe) 2/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 104.3 V/m; Power Drift = 0.0001 dB Peak SAR (extrapolated) = 16.529 W/kg SAR(1 g) = 10.33 mW/g; SAR(10 g) = 5.32 mW/g Maximum value of SAR (measured) = 10.953 mW/g Test Laboratory: Compliance Certification Services Inc. SystemPerformanceHeadCheck-D2450_2011.06.23 DUT: Dipole 2450 MHz D2450V2; Type: D2450V2; SN:817 Communication System: CW; Frequency: 2450 MHz Medium parameters used: f = 2450 MHz; σ = 1.83 mho/m; ε r = 39.38; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(9.07, 9.07, 9.07); Calibrated: 1/20/2011 • Sensor-Surface: 3mm (Mechanical Surface Detection), Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) System Perf…

Text truncated - open the document above for the full version.

Test Laboratory: Compliance Certification Services Inc. GSM 850-Body Low CH128 DUT: GSM Mobile Phone; Type: A060 ; Date/Time: 06/23/2011 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 824.2 MHz;Communication System PAR: 9.191 dB Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.96 mho/m; εB r B = 55.858; ρ = 1000 kg/mP 3 P Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(9.07, 9.07, 9.07); Calibrated: 1/20/2011 • Sensor-Surface: 2.5mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) GSM 850/GSM850 Body Up Low CH128/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm GSM 850/GSM850 Body Up Low CH128/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm SAR(1 g) = 0.342mW/g; SAR(10 g) = 0.224 mW/g Test Laboratory: Compliance Certification Services Inc. GSM 850-Body Middle CH189 DUT: GSM Mobile Phone; Type: A060 ; Date/Time: 06/23/2011 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Communication System PAR: 9.191 dB Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.96 mho/m; εB r B = 55.858; ρ = 1000 kg/m P 3 P Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(9.07, 9.07, 9.07); Calibrated: 1/20/2011 • Sensor-Surface: 2.5mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) GSM 850/GSM850 Body Up Middle CH189/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm GSM 850/GSM850 Body Up Middle CH189/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm SAR(1 g) = 0.347 mW/g; SAR(10 g) = 0.215 mW/g Test Laboratory: Compliance Certification Services Inc. GSM 850-Body High CH251 DUT: GSM Mobile Phone; Type: A060 ; Date/Time: 06/23/2011 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 848.8 MHz;Communication System PAR: 9.191 dB Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.96 mho/m; εB r B = 55.858; ρ = 1000 kg/m P 3 P Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(9.07, 9.07, 9.07); Calibrated: 1/20/2011 • Sensor-Surface: 2.5mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) GSM 850/GSM850 Body Up High CH251/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm GSM 850/GSM850 Body Up High CH251/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm SAR(1 g) = 0.339 mW/g; SAR(10 g) = 0.225mW/g Test Laboratory: Compliance Certification Services Inc. GSM 850-Body DUT: GSM Mobile Phone; Type: A060 ; Date/Time: 06/23/2011 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 824.2 MHz;Communication System PAR: 9.191 dB Medium parameters used (interpolated): f = 824.2 MHz; σ = 0.96 mho/m; εB r B = 55.858; ρ = 1000 kg/m P 3 P Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(9.07, 9.07, 9.07); Calibrated: 1/20/2011 • Sensor-Surface: 2.5mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) GSM 850/GSM850 Body Down Low CH128/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm GSM 850/GSM850 Body Down Low CH128/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm SAR(1 g) = 0.341 mW/g; SAR(10 g) = 0.225 mW/g Test Laboratory: Compliance Certification Services Inc. GSM 850-Body Middle CH189 DUT: GSM Mobile Phone; Type: A060 ; Date/Time: 06/23/2011 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 836.6 MHz;Communication System PAR: 9.191 dB Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.96 mho/m; εB r B = 55.858; ρ = 1000 kg/m P 3 P Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(9.07, 9.07, 9.07); Calibrated: 1/20/2011 • Sensor-Surface: 2.5mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Measurement SW: DASY52, Version 52.6 (1); SEMCAD X Version 14.4.2 (2595) GSM 850/GSM850 Body Down Middle CH189/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm GSM 850/GSM850 Body Down Middle CH189/Zoom Scan (7x7x9)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=3mm SAR(1 g) = 0.351mW/g; SAR(10 g) = 0.215 mW/g Test Laboratory: Compliance Certification Services Inc. GSM 850-Body High CH251 DUT: GSM Mobile Phone; Type: A060 ; Date/Time: 06/23/2011 Communication System: Generic GSM; Communication System Band: GSM 850 (824.0 - 849.0 MHz); Frequency: 848.8 MHz;Communication System PAR: 9.191 dB Medium parameters used (interpolated): f = 848.8 MHz; σ = 0.96 mho/m; εB r B = 55.858; ρ = 1000 kg/m P 3 P Phantom section: Flat Section Measurement Standard: DASY5 (IEEE/IEC/ANSI C63.19-2007) DASY5 Configuration: • Probe: EX3DV4 - SN3755; ConvF(9.07, 9.07, 9.07); Calibrated: 1/20/2011 • Sensor-Surface: 2.5mm (Mechanical Surface Detection) • Electronics: DAE4 Sn1245; Calibrated: 1/11/2011 • Phantom: Twin SAM Phantom; Type: QD 000 P40 CD; Serial: 1609 • Mea…

Text truncated - open the document above for the full version.

Shenzhen BATT Testing Technology Co., Ltd. FCC ID: ZJN-A060 Note: This report shall not be reproduced except in full ,without the written approval of by SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD .This document may be altered or revised by SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD. personnel only, and shall be noted in the revision section of the document. FCC PART 22 H/24 E MEASUREMENT AND TEST REPORT For EYO ASIA ELECTRONIC CO.,LTD Room 2128,Block A,QunXing Plaza, HuaQiangNorth Road, Futian District,Shenzhen Report Type: Original Report Product Type: GSM Mobile Phone Test Engineer: Simon Mo Report Number: BATT201105102R-1-22H&24E Report Date: 2011-07-11 Reviewed By: Mike Yong EMC Engineer Prepared By: SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD. 11F,Bldg.B,Xinbaoyuan,XinanhuCommercialcity,Bao’an District,Shenzhen,Guangdong,China Tel.:86-755-27754004(100 lines) Fax.:86-755-27754182 EYO ASIA ELECTRONIC CO.,LTD FCC ID: ZJN-A060 Report No.: BATT201105102R-1-22H&24E Page 2 of 29 FCC Part 22H/24E Test Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................3 OBJECTIVE...................................................................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................5 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................5 EQUIPMENT MODIFICATIONS.......................................................................................................................................5 CONFIGURATION OF TEST SETUP.................................................................................................................................5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................5 SUMMARY OF TEST RESULTS...............................................................................................................................6 §1.1037, §2.1093 - RF EXPOSURE ..............................................................................................................................7 APPLICABLE STANDARD..............................................................................................................................................7 TEST RESULT...............................................................................................................................................................7 §2.1047 - MODULATION CHARACTERISTIC.......................................................................................................8 § 2.1046, § 22.913 (A), & § 24.232 (C) - RF OUTPUT POWER ................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST DATA.......................................................…
