ZJN-E97GSM Mobile Phone

1 Contents 1 Quickly using ............................................................................................................................ 3 1.1 Basic functions ................................................................................................................. 6 1.2 Input method .................................................................................................................... 7 1.3 Contacts ........................................................................................................................... 8 1.4 Call logs ........................................................................................................................... 8 1.5 Message .......................................................................................................................... 9 1.5.1 Templates ................................................................................................................ 9 1.5.2 Voice mail server ..................................................................................................... 9 1.5.3 Broadcast message ................................................................................................. 9 1.5.4 SMS settings ......................................................................................................... 10 1.5.5 MMS settings： ..................................................................................................... 10 1.5.6 Write messages ..................................................................................................... 11 1.5.7 Inbox ...................................................................................................................... 11 1.5.8 Outbox ................................................................................................................... 11 1.5.9 Drafts ..................................................................................................................... 12 1.5.10 Sentbox ................................................................................................................. 12 1.6 Tools .............................................................................................................................. 12 1.6.1 Alarm ..................................................................................................................... 12 1.6.2 Bluetooth ............................................................................................................... 13 1.6.3 Calendar ................................................................................................................ 13 1.6.4 Calculator .............................................................................................................. 14 1.6.5 Recorder ................................................................................................................ 14 1.6.6 World clock ............................................................................................................ 14 1.6.7 Timer ..................................................................................................................... 14 1.6.8 STK ........................................................................................................................ 15 1.7 Image brower ................................................................................................................. 15 1.8 Application ..................................................................................................................... 15 1.8.1 E-book reader ........................................................................................................ 15 1.8.2 Sokoban ................................................................................................................ 16 1.9 Camera .......................................................................................................................... 16 1.10 Multimedia...................................................................................................................... 17 1.10.1 TV .......................................................................................................................... 17 1.10.2 Audio player ........................................................................................................... 17 1.10.3 Video player ........................................................................................................... 18 1.10.4 FM radio ................................................................................................................ 19 1.11 File list ............................................................................................................................ 19 1.12 Internet ........................................................................................................................... 20 1.13 Settings .......................................................................................................................... 20 2 1.13.1 Call settings ........................................................................................................... 20 1.13.2 Phone setting ......................................................................................................... 24 1.13.3 Display setting ....................................................................................................... 24 1.13.4 Security setting ...................................................................................................... 26 1.13.5 Connection management ....................................................................................... 27 1.14 Profiles ........................................................................................................................... 27 1.15 Consult information .......................................................................................................…

Text truncated - open the document above for the full version.

EYO ASIA ELECTRONIC CO.,LTD
Date:May 12,2011 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: ZJN-E97 To Whom It May Concern: This letter is to ascertain that EYO ASIA ELECTRONIC CO.,LTD. Product E97 has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, JianQiu He/ Vice General Manager EYO ASIA ELECTRONIC CO.,LTD Room 2128,Block A, QunXing Plaza, HuaQiangNorth Road, Futian District,Shenzhen, China

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 EYO ASIA ELECTRONIC CO.,LTD May 12, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, EYO ASIA ELECTRONIC CO.,LTD hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description:GSM Mobile Phone model name:E97 FCC ID:ZJN-E97) We affirm that between SIEMIC and EYO ASIA ELECTRONIC CO.,LTD ,any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, JianQiu He/ Vice General Manager EYO ASIA ELECTRONIC CO.,LTD Room 2128,Block A, QunXing Plaza, HuaQiangNorth Road, Futian District,Shenzhen, China The image cannot be displayed. Your computer may not have enough memory to open the image, or the image may have been corrupted. Restart your computer, and then open the file again. If the red x still appears, you may have to delete the image and then insert it again.

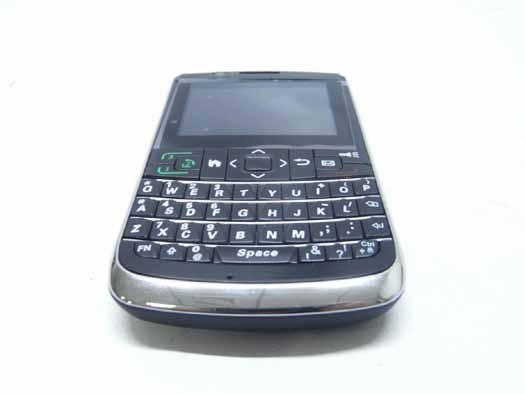

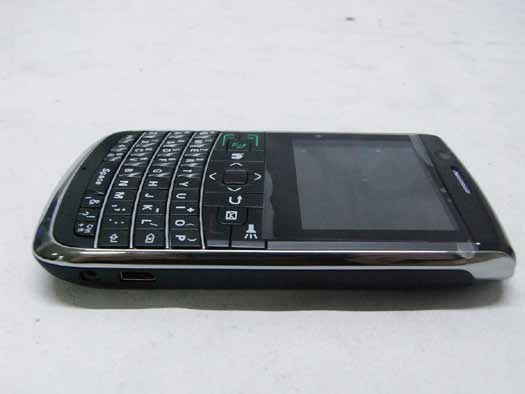

FCC ID: ZJN-E97 Report No.: MOST110427F3 FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE FCC ID: ZJN-E97 Report No.: MOST110427F3 TOP VIEW OF EUT BOTTOM VIEW OF EUT FCC ID: ZJN-E97 Report No.: MOST110427F3 LEFT VIEW OF EUT RIGHT VIEW OF EUT FCC ID: ZJN-E97 Report No.: MOST110427F3 PHOTO OF USB CABLE PHOTO OF BATTERY FCC ID: ZJN-E97 Report No.: MOST110427F3 PHOTO OF EARPHONE PHOTO OF THE ENTIRE SAMPLE

FCC ID: ZJN-E97 Report No.: MOST110427F3 INTERNAL PHOTO OF SAMPLE - 1 INTERNAL PHOTO OF SAMPLE - 2 FCC ID: ZJN-E97 Report No.: MOST110427F3 INTERNAL PHOTO OF SAMPLE - 3 INTERNAL PHOTO OF SAMPLE - 4 FCC ID: ZJN-E97 Report No.: MOST110427F3 INTERNAL PHOTO OF SAMPLE - 5 INTERNAL PHOTO OF CHARGER - 1 FCC ID: ZJN-E97 Report No.: MOST110427F3 INTERNAL PHOTO OF CHARGER - 2

1/2 Operation Description OPERATIONAL DESCRIPTION APPLICANT: EYO ASIA ELECTRONIC CO., LTD Manufacturer: EYO.ASIA.ELECTRONIC.CO.,.LTD FCC ID : ZJN-E97 Instruction Book: Users Manual Frequency Range GSM Transmit Frequency Band: 824.2-848.8 MHz Receive Frequency Band: 849.2-893.8 MHz Transmit Frequency Band: 1850.2-1909.8 MHz Receive Frequency Band: 1930.2-1989.8 MHz Specific Operating Power Range: Power Class 1; Power Control Level 0 +30dBm +2.0dB/-2.0dB Power Control Level 1 +28dBm +3.0dB/-3.0dB Power Control Level 2 +26dBm +3.0dB/-3.0dB Power Control Level 3 +24dBm +3.0dB/-3.0dB Power Control Level 4 +22dBm +3.0dB/-3.0dB Power Control Level 5 +20dBm +3.0dB/-3.0dB Power Control Level 6 +18dBm +3.0dB/-3.0dB Power Control Level 7 +16dBm +3.0dB/-3.0dB Power Control Level 8 +14dBm +3.0dB/-3.0dB Power Control Level 9 +12dBm +4.0dB/-4.0dB Power Control Level 10 +10dBm +4.0dB/-4.0dB Power Control Level 11 +8dBm +4.0dB/-4.0dB Power Control Level 12 +6dBm +4.0dB/-4.0dB Power Control Level 13 +4dBm +4.0dB/-4.0dB Power Control Level 14 +2dBm +5.0dB/-5.0dB Power Control Level 15 +0dBm +5.0dB/-5.0dB Note; Effective radiation efficiency is –3.7dB DC Voltage and Current into the Final Amplifier Module: Supply Voltage = 5.0Vdc Supply Current = ~0.5Amp. Tune-up Procedure: Tune-up Procedure Equipment Identification: Equipment's Identification label and its intended Location are as shown in EXHIBIT Type “ID Label / Location Information” (FCC ID Nameplate), and in EXHIBIT Type “Internal Photo”(Photograph of inside) Photographs: A complete set of the Photographs showing External and Internal Views of Circuit Details and Construction are provided by from EXHIBIT Type “External Photos” and “Internal Photos”. Accessories: Accessorie s 2/2 Operation Description Figure 1.2: Terminal Components (Accessories) Technical Descriptions TX synthesizer uses an Offset-PLL circuit. The Offset-PLL circuit consists of PLL-IC and TX_VCO and loop filter. Reference frequency of the above synthesizers is 26MHz and generated by VCTCXO. Control signal is sent from Baseband section and keeps frequency stability. TX IQ signal is input from Baseband section to MT6235, The Bluetooth signal is input form MT6601 and FM signal is input form TLG1120 section to MT6235. TX IQ signal is applied to the quadrature up-converter, and the up-converter LO signal is generated from the transceiver VCO within MT6139B. This up-converter translates the GMSK-modulated signal to an intermediate frequency (IF) that forms one input to a frequency/phase detector circuit. This IF signal is the reference input to an Offset-PLL circuit. The feedback path of this Offset-PLL circuit includes a down-conversion from the RF output frequency range to the IF range. The two inputs to this down-conversion mixer are formed the TX_VCO output and the LO generation circuits. The mixer output is the offset feedback signal that forms the variable input to a frequency/phase detector circuit. The detector compares its variable input to its reference input and generates an error signal that is low-pass filtered by the loop filter and applied to TX_VCO to force the RF frequency in the direction that minimizes errors. The TX_VCO output passes PA, Antenna SW, Coaxial connector with switch and emitted from embedded antenna. Digital Modulation: Analog speech produced by a microphone is encoded to digital PCM samples using a CODEC. The PCM samples are passed to a Vocoder for AMR (Advanced Multi Rate) encoding, to compress the speech samples. The encoding rate is determined by the Vocoder which formats the speech samples as data packets. A new data packet with data rate information is read by the microprocessor every 20 ms. The speech CODEC becomes AMR, FR(Full Rate), EFR(Enhanced FR) and HR(Half Rate). The microprocessor then sends the data packet to the transmit subsystem, and passed DAC to covert analog signal. I/Q base band signal is filtered and is inputted into 6M4003 containing quadrature phase modulator. Battery AC Charge r Bluetooth Specification Power Supply DC 5V by USB port form Adapter Frequency Range 2402MHz -2480MHz Modulation Type FHSS Channel Spacing 1MHz Channel Number 79 (CH Low: 2402MHz, CH Mid: 2441MHz, CH High: 2480MHz) Antenna Type Internal Fixed Antenna Gain 1.0dBi Temperature Range -20°C ~ 50°C

P1 S320 <Drawn By> <Checked By> <QC By> <Released By> Dec.11 2006<Checked Date><QC Date><Release Date> BeiJing DaYo Mobile <Code> A1<Drawing Number> <Scale> 1 9 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY:TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD ABCD DATE: 1 2 3 4 5 6 DCBA LTR ECO NO: APPROVED: <CH_900&1800> <NPI> <OP_BT CLK BUF> <OP_UN_BT CLK BUF> <CH_RF PA> <CH_850> <CH_1900> R101 0 L101 NC C101 NC 1 ANT101 TP_2.5X4.0 65 21 34 J101 1 ANT102 TP_2.5X4.0 SH5 SHS3200021 1 PCB PCB 1 CLK 2 DATA 3 NC 4 VDD_SYN 5 VDD_SYN_REG 6 VDD_LO 7 VDD_RF 8 TX_VCTRL 9 PA_VCTRL 10 US/EGSM_TX 11 DCS/PCS_TX 12 VDD_RF2 13 PCS_RX+ 14 PCS_RX- 15 DCS_RX+ 16 DCS_RX- 17 EGSM_RX- 18 EGSM_RX+ 19 USGSM_RX- 20 USGSM_RX+ 21 VDD_BB1 22 RX_CAP_Q- 23 RX_CAP_Q+ 24 RX_CAP_I- 25 RX_CAP_I+ 26 VDD_BB2 27 Q- 28 Q+ 29 I- 30 I+ 31 CLK_EN 32 REF_26/13B 33 REF_OUT 34 VDD_DCXO 35 REF_IN+ 36 REF_IN- 37 DCXO_REG 38 TEMP_OUT 39 VDD_IO 40 LE 41 GND U102 1 HOT 2 GND 3 HOT 4 GND Z101 CXC6X260000GHVRN00 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 RN103 1K C121 3.3pf C122 3.3pf L105 2.2nH C120 3.3pf L104 6.8nH C104 47pF R105 15K C133 47pf C103 22pf C109 100nF C111 33pf C105 22pf D102 C130 100nF C127 680pf C126 680pf C108 100pf C131 1uf C132 1uf L103 10nH C119 100pf C118 4.7pf C123 10pf C124 1uf C125 100pf L106 18nH L107 6.8nH 1 INPUT(DCS1800) 2 GND 3 GND 4 INPUT(EGSM900) 5 GND 6 OUTPUT(EGSM900) 7 OUTPUT(EGSM900) 8 OUTPUT(DCS1800) 9 OUTPUT(DCS1800) 10 GND U103 EFCH9418TDL1 C107 100pf C102 27pF L102 NC R102 0 C129 1uf C128 100pf C117 2.2pf C116 2.2pf C115 1.5pf C114 1.5pf 1 GND 2 RFIN_HB 3 GND 4 RFIN_LB 5 GND 6 GND 7 VRAMP 8 TX_ENABLE 9 GPCTRL0 10 GPCTRL1 11 VBAT 12 GPCTRL2(NC) 13 GND 14 GND 15 ANTENNA 16 RX4(NC) 17 RX3(RX1) 18 RX2(RX0) 19 RX1(NC) 20 GND 21 GND 22 GND 23 GND U101 C139 1.5pF C140 1.5pF 1 INPUT 2 3 OUPUT 4 OUPUT 5 Z104 SFHG60MQ101 L112 6.8nH C142 2.2pF C143 2.2pF 1 INPUT 2 3 OUPUT 4 OUPUT 5 Z103 SFH881PQ101 L111 18nH C138 100pf C137 100pf C135 22pf C134 56pf R108 NC R109 NC C144 22pf C145 3.3pf R103NC R10410K R10633 R107 0 R110510 C146 100pf R111 0 1 SH3 SH_D240_RF 1 SH2 SH_D240_PA 1 SH1 SH_D240_PA + C112 22uF 1 GND 2 IN 3 OUT T101 2SC4774 1 SH6 S320_P1_ATV VDDRF VDDRF VDDRF VDDRF [2] RF_RAMP [2] VLOGIC_CTRL [2] PA_EN VBAT [2] PA_BS [2] RFSDA [2] RFSCK [2] RFSEN [2] CLK_26M [7] CLK_26M_BT [2] RX/TXIP [2] RX/TXIN [2] RX/TXQP [2] RX/TXQN [1,2] VDDRF VDDIO [2] SW_VC1 VDDRF P1 S320 Dec.11 2006 BeiJing DaYo Mobile <Drawn By> <Checked By> <QC By> <Released By> <Checked Date><QC Date><Release Date> <Code> A1<Drawing Number> <Scale> 2 9 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY:TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD ABCD DATE: 1 2 3 4 5 6 DCBA LTR ECO NO: APPROVED: 1 2.8V1.8V 0 VDDIO LDOIOB 150mA 2.85/2.95/2.75/1.8V VDDRF 3V/1.8V 150mA 50mA2mA 60mA VDDUSB Voltage voltage Max(mA) VDDCORE 1.8/1.7/1.6/1.5V 200mA VDDIO 2.8/1.8V 150mA VDDABB 2.8V VDDRTC VDDMEM 3.3V VSIM 3V/1.8V 60mA VDDAUX1 VDDAUX2 1.8/2.8/1.5/1.3V 2.8/3/2.5/1.8V VDDVB 3.3V 1.8/1.7/1.6/1.5V 100mA100mA100mA <OP_TP> <CH_Backup Bat> JTAG CAUTION: I2C has been pulled up by SC6600L, don't pull up it again GPIO 48/GPIO_64/GPIO_65 no Interrupt wakeup function Main Battery Input C204 22pf C205 22pf 4 1 23 Z201 SSP-T7-F RF DIGITAL IOGPIOTOUCH PANELJTAGKEYPADSPI0UARTSYSTEM CONTROL MEMORY IISSPI1 CAMERA GPIO64 No Interrupt FunctionGPIO65 No Interrupt Function GPIO48 No Interrupt Function V13 KEYOUT[0] U13 KEYOUT[1] U14 KEYOUT[2] V14 KEYOUT[3] T14 KEYOUT[4] T13 KEYOUT[5]/GPO_19 T15 KEYIN[0] T16 KEYIN[1] R16 KEYIN[2] N13 KEYIN[3] M13 KEYIN[4]/GPO_42 F9 RF_VBS3/GPO_35 G10 RF_PAMODE/GPO_36 G9 RF_PAEN/GPO_37 B7 TP_YU/GPIO_53 V5 U0TXD U6 U0RXD U7 U0CTS/U1RXD/GPIO_48 V6 U0RTS/U1TXD/GPIO_49 C10 TP_XL/GPIO_51 C9 TP_XR/GPIO_52 D16 SDA/GPO_25 E16 SCL/GPO_24 M9 MTMS/GPO_38 M10 MTDI/GPO_39 N10 MTCK/GPO_40 N11 MTDO/GPIO_66 M12 MTRSTN/GPIO_67 F8 RF_VBS2/GPO_34 F7 RF_VBS1/GPO_33 U3 LDOMEMB T10 PWM/CLKAUX/GPIO_69 N16 EMRSTN/GPO_23 N12 CLK_AUX/CLKDSP/GPIO_68 V12 PBINT B10 RFSDA/GPO_29 B9 RFSCK/GPO_30 A10 RFSEN/GPO_31 V3 FM_RST/GPO_16 T4 FM_EN/GPO_17 V4 PA_AUDIO_EN/GPO_41 U4 SD_DET/GPI_0/PWM T5 FLIP_ON/GPI_1 U5 GPO_18 T6 BT_XTL_REQ/GPO_70 B11 XTLEN/GPO_28 A18 EMD[0] A17 EMD[1] C17 EMD[2] D18 EMD[3] E17 EMD[4] E18 EMD[5] H17 EMD[6] G18 EMD[7] B17 EMD[8] B18 EMD[9] C18 EMD[10] D17 EMD[11] F17 EMD[12] G17 EMD[13] F18 EMD[14] H18 EMD[15] M16 EMLBN L16 EMUBN K16 EMOEN P16 EMWEN G12 EMADVN/GPO_45 F13 EMCRE G16 EMCEN[0] H16 EMCEN[1] H13 EMCEN[2]/GPO_21 J12 EMCEN[3]/GPO_22 V16 EMA[0] U16 EMA[1] V18 EMA[2] U18 EMA[3] V17 EMA[4] T17 EMA[5] T18 EMA[6] R17 EMA[7] P17 EMA[8] L17 EMA[9] J16 EMA[10] N17 EMA[11] M17 EMA[12] K17 EMA[13] J17 EMA[14] M18 EMA[15] J18 EMA[16] U17 EMA[17] R18 EMA[18] P18 EMA[19] N18 EMA[20] L18 EMA[21] K18 EMA[22]/EMCEN4 F6 RF_PABAND/GPO_32 B12 CAM_RSTN/GPO_27 C12 CAM_PD/GPO_26 A12 CCIRMCK/CLK32K C13 CCIRD[7] B13 CCIRD[6] A13 CCIRD[5] A14 CCIRD[4] B14 CCIRD[3] C14 CCIRD[2] C15 CCIRD[1] B15 CCIRD[0] A15 CCIRVS B16 CCIRHS A16 CCIRCK T3 PRODTEST U2 LDOIOB V8 IISDI V9 IISCLK U8 IISDO U9 IISLRCK V7 IISMCK/CLK32K V11 SPI0_DO/U1TXD V10 SPI0_DI/U1RXD U10 SPI0_CLK/GPO_43 U11 SPI0_CS0 T8 SPI0_CS1/GPO_50 M7 SPI1_DO/U1TXD N7 SPI1_DI/U1RXD N9 SPI1_CLK/GPO_46 N8 SPI1_CS0/GPO_47 U12 KEYOUT[6]/GPIO_64 L13 KEYIN[5]/GPIO_65 V15 EMCLK/GPO_44 U15 LCMRSTN/GPO_20 F12 EMWAIT/GPIO_55 B8 TP_YD/GPIO_54 U201-A SC6600L TP24TP25TP26TP27TP28 AVDD36_1AVDD36_2 VBAT CHARGE GND AVDD36_3 C1 AVDDVBO F11 AVDDAUX1 A6 VDD V2 VSSIO U1 VSS T11 VSS K12 VSSIO A1 AVDD36_2 C16 VSSIO C11 VSS C8 VSSIO C7 VSS T7 VDD F10 AVDDAUX2 B2 AVDD36_1 A2 AVDDRF A11 VCAM A9 VDDIO K13 VBAT J13 VMEM K10 VSS T12 VDD A5 VBAT A4 VMEM K9 VSS J10 VSS J9 VSS G7 VSS A3 AVDDBB C4 AGNDBB K2 VCHG K3 ISENSE L3 VDRV T9 VDDIO G13 VSS R3 VBAT B4 VBAT C3 AVDD36_3 F16 VDD J3 VSSAO J2 VDDAO L6 VIBR_OUT M6 VIBR_VSS N6 KPLED_OUT H3 AGNDVB J1 AVDDVB V1 NC U201-C SC6600L USB CLKSIM0RTCADCRF AUDIO SIM1 WHTLED H2 VCOM F3 AIL1 G3 AIR1 K1 AOM G2 MICN J7 AUXSPN J6 …

Text truncated - open the document above for the full version.

FCC 47 CFR PART 15 SUBPART C TEST REPORT For Applicant :

EYO ASIA ELECTRONIC CO., LTD

Address : Room 2128, Block A, Qunxing Plaza, HuaQiangNorth Road, Futian District, Shenzhen, China Product Name : GSM Mobile Phone Model Name : E97 Brand Name : FCC ID : ZJN-E97 Report No. : MOST110427F2 Date of Issue : May 11, 2011 Issued by : Most Technology Service Co., Ltd. Address : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8617 0306 Fax : 86-755-8617 0310 The report consists 37 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. FCC ID: ZJN-E97 Report No.: MOST110427F2 Page 2 of 37 TABLE OF CONTENTS 1VERIFICATION OF CONFORMITY ............................................................................................................... 3 2. GENERAL INFORMATION .............................................................................................................................. 4 2.1 Product Information ........................................................................................................................................ 4 2.2 Objective ........................................................................................................................................................ 5 2.3 Test Standards and Results ........................................................................................................................... 5 2.4 Environmental Conditions .............................................................................................................................. 5 3. TEST FACILITY ............................................................................................................................................... 6 3.1TEST FACILITY .............................................................................................................................................. 6 3.2 GENERAL TEST PROCEDURES ................................................................................................................. 6 3.3 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ..................................................................... 7 4. SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 8 4.1 SUPPORT EQUIPMENT ............................................................................................................................... 8 4.2 TEST EQUIPMENT LIST ............................................................................................................................... 9 5. 47 CFR Part 15C 15.249 Requirements ........................................................................................................ 10 5.1 Spurious Emission Test ............................................................................................................................... 10 5.1.1 Requirement ............................................................................................................................................. 10 5.1.2 Test Description ........................................................................................................................................ 11 5.1.3 Test Description ........................................................................................................................................ 12 5.1.4 Test Result ................................................................................................................................................ 13 5.2 Band Edge ................................................................................................................................................... 20 5.2.1 Requirement ............................................................................................................................................. 20 5.2.2 Test Description ........................................................................................................................................ 20 5.2.3Test Result ................................................................................................................................................. 20 5.3 LINE CONDUCTED EMISSION TEST ........................................................................................................ 23 5.3.1. LIMITS OF LINE CONDUCTED EMISSION TEST .................................................................................. 23 5.3.2. BLOCK DIAGRAM OF TEST SETUP ...................................................................................................... 23 5.3.3. PRELIMINARY PROCEDURE OF LINE CONDUCTED EMISSION TEST ............................................. 24 5.3.4. FINAL PROCEDURE OF LINE CONDUCTED EMISSION TEST ........................................................... 24 5.3.5. TEST RESULT OF LINE CONDUCTED EMISSION TEST ..................................................................... 25 APPENDIX 1 ...................................................................................................................................................... 27 PHOTOGRAPHS OF TEST SETUP .................................................................................................................. 27 APPENDIX 2 ...................................................................................................................................................... 30 PHOTOGRAPHS OF EUT ................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: ZJN-E97 CE TEST SETUP FCC ID: ZJN-E97 CONDUCTED TEST SETUP RADIATED EMISSION TEST SETUP FCC ID: ZJN-E97
