ZJO-ST112DWT100-ST112 Wireless Temperature Sensor with DWT100-R02WH base station

Product handbook of DWT100-ST112 Wireless Temperature Sensor Table of Contents Part I DWT100 system parameter.....................................................................................................2 1.1 DWT100-ST112 wireless temperature sensor specifications..............................................2 1.2 DWT100-R02WH base station specifications................................................................2 Part II System operation principle..................................................................................................3 2.1 System configuration..........................................................................................................3 2.2 System operation.............................................................................................................3 Part III Application Examples.............................................................................................................4 3.1 Temperature monitoring system in the Electric Power Substation.....................................4 3.2 Switch cabin and equipment in steel plants.......................................................................4 3.3 Materials management in the supermaket.........................................................................4 Part IV PCB drawing..........................................................................................................................5 4.1 Wireless temperature sensor..............................................................................................5 4.1.1 The schematic diagram of DWT100-ST112......................................................................5 4.1.2 The top layer of the PCB drawing of DWT100-ST112.......................................................5 4.1.3 The bottom layer of the PCB drawing of DWT100-ST112................................................6 4.2 Data transmission base station...........................................................................................7 4.2.1 The schematic diagram of DWT100-R02WH....................................................................7 4.2.2 The top layer of the PCB drawing of DWT100-R02WH....................................................8 4.2.3 The bottom layer of the PCB drawing of DWT100-R02WH..............................................8 Part V Assembly drawing of system..................................................................................................9 5.1 Assembly drawing of DWT100-ST112.................................................................................9 5.2 Assembly drawing of DWT100-R02WH.............................................................................10 Part I DWT100 system parameter 1.1 DWT100-ST112 wireless temperature sensor specifications 1.1.1 Operating testing temperature:-55°C~+150°C 1.1.2 Measurement error:±1°C 1.1.3 Operating environment temperature:-40°C~+100°C 1.1.4 Modulation:GFSK 1.1.5 Frequency band:2.45GHz 1.1.6 Wireless communication distance:>300m(2.45GHz,open space) 1.1.7 Measurement interval:4s (risk), 16s (alarm) and 30s (normal) 1.1.8 Average power consumption:≤3μA(3V) 1.1.9 Battery life:≥10years 1.1.10 Battery capacity:500mAh 1.1.11 Surface material:stainless steel; thermal pad material:heat conductive copper 1.1.12 Dimension (Φ x H):31mm x 12mm 1.1.13 Weight:32g 1.1.14 Packaging:IP68 1.1.15 Installation:glue and/or clamp 1.1.16 Transmisson power:10mw 1.2 DWT100-R02WH base station specifications 1.2.1 Modulation: GFSK 1.2.2 Frequency band: 2.45GHz 1.2.3 Antenna: whip antenna, helical antenna 1.2.4 Sensitivity:-90dB 1.2.5 Power supply voltage:DC9~24V 1.2.6 Operating current: < 60mA (12V) 1.2.7 Operating environment temperature: -20°C~+65°C 1.2.8 Sensors manageable: 65536 pcs 1.2.9 Interfaces: RS485, CAN 1.2.10 Communication speed : 4K -- 115.5Kpbs, adjustable 1.2.11 Mean Time Between Failure(MTBF):>50000h 1.2.12 Mounting bracket/bottom material: stainless steel; main frame:enhanced ABS plastic; antenna shell:enhanced ASA resin 1.2.13 Dimension: 300mm x125mm x 125mm 1.2.14 Weight:0.7kg 1.2.15 Packaging:IP68 1.2.16 Installation: brackets Part II System operation principle 2.1 System configuration The system diagram of a temperature on-line monitoring system is as follows, it contains an administaration center(host machine), one or more DWT100-R02WH data receiving base stations and a plural of DWT100-ST112 wireless temperature sensors. 2.2 System operation DWT100-ST112 wireless temperature sensors measure the temperature of monitoring points regularly, and one or more sensors are used to mesure the environment temperature as well. These temperature data measured by sensors are transmitted to the base stations via 2.45GHz ISM band wireless channel periodically. The base station will save and record these data. The host machine will periodically poll the base stations in roll via wired network connections over RS-485 bus (or CAN); Upon polling each base station will transmit the temperature data to the host through the network connection. Then the host will process and save these temperature data. By comparing the relative temperature rises between the equipment and the enviroment, between indoor air and outdoor air, the host machine can detect possible overheat situation and produces Early Warning Signal to alert operators to handle the situation. The host can further communicate with a backend control station on Ethernet, through IEC 61850 standard protocol; and the host can also use a standard relay to send the alerting signal to public measurement/control panel. Product Part III Application Examples 3.1 Temperature monitoring system in the Electric Power Substation Equipment monitoring points can be: cable connector, knife switch contact, switch contact, copper bar junction, reactor, arc suppression coil, capacitor etc.. 3.2 Switch cabin and equipment in steel plants Monitoring temperatures differences between inside and outside cabin. 3.3…

Text truncated - open the document above for the full version.

Crystal 16MHz

Win Wireless Network Technology Ltd. SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 Win Wireless Network Technology Ltd. SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 (May 5, 2011) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Win Wireless Network Technology Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: ZJO-ST112 Product name: DWT100-ST112 Wireless Temperature Sensor with DWT100-R02WH base station Model: DWT100-ST112 We affirm that between SIEMIC and Win Wireless Network Technology Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Mr. Zhou Xiao / Project Manager Title: Manager Telephone: +86-573-82651519 Email: [email protected] Date: May 5, 2011

FCC ID: ZJO-ST112

Label Location

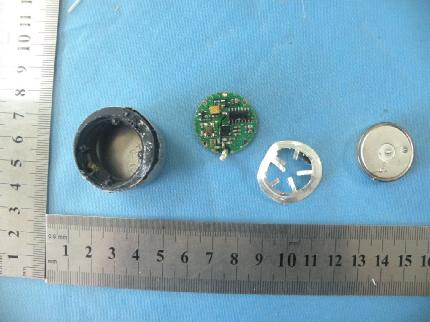

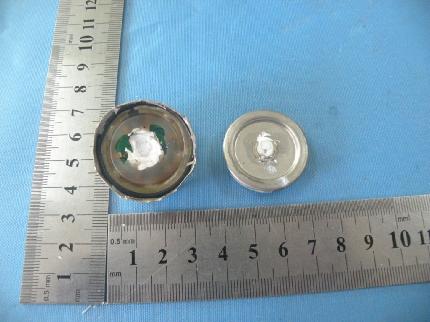

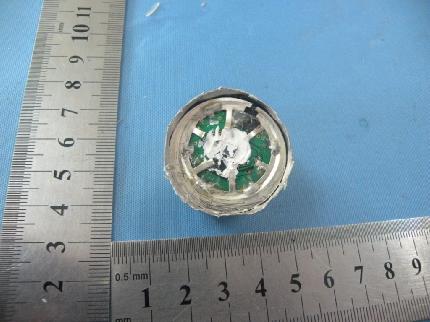

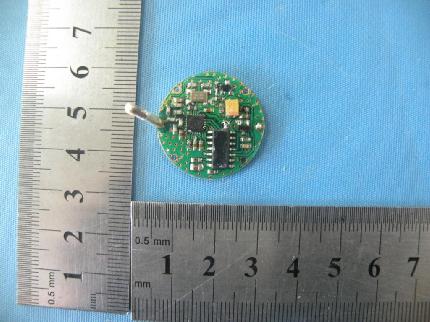

Top View Top View Top View Top View Top View Bottom View ANTENNA

Operation description 1. Operating testing temperature:-55°C~+150°C 2. Measurement error:±1°C 3. Operating environment temperature:-40°C~+100°C 4. Modulation:GFSK 5. Frequency band:2.45GHz 6. Wireless communication distance:>300m(2.45GHz,open space) 7. Measurement interval:4s (risk), 16s (alarm) and 30s (normal) 8. Average power consumption:≤3μA(3V) 9. Battery life:≥10years 10. Battery capacity:500mAh 11. Surface material:stainless steel; thermal pad material:heat conductive copper 12. Dimension (Φ x H):31mm x 12mm 13. Weight:32g 14. Packaging:IP68 15. Installation:glue and/or clamp 16. Transmisson power:10mw DWT100-ST112 wireless temperature sensors measure the temperature of monitoring points regularly, and one or more sensors are used to mesure the environment temperature as well. These temperature data measured by sensors are transmitted to the base stations via 2.45GHz ISM band wireless channel periodically. The base station will save and record these data. The host machine will periodically poll the base stations in roll via wired network connections over RS-485 bus (or CAN); Upon polling each base station will transmit the temperature data to the host through the network connection. Then the host will process and save these temperature data. By comparing the relative temperature rises between the equipment and the enviroment, between indoor air and outdoor air, the host machine can detect possible overheat situation and produces Early Warning Signal to alert operators to handle the situation. The host can further communicate with a backend control station on Ethernet, through IEC 61850 standard protocol; and the host can also use a standard relay to send the alerting signal to public measurement/control panel.

Rt1503 SDA 1 SCL 2 Po 3 GND 4 A2 5 A1 6 A0 7 VDD 8 U5 DS620U GND CLK C3 224 R2 101 R4 471 CE RA0 C2 106 VSS GND CLK C7 224C5 224 C9224 C10 222 C6 224 R5 105 R6 223 L1 22nH L23.6nH C12 1P C13 1P CSS C8 15P DR1 CY1 16MHz C1510PC16 10P CE GND RA3 ANT C4 155 RA1 DR1 C11 681 R3 103 CSS SDA SDO SDA VDD VREF V+ 1 V- 2 U1 LM4041BIM3-1.2 VDD 1 RA5/T1I/OSC1 2 RA4/A3/OSC2 3 RA3/MCLR 4 RC2/AN6 8 RC1/A5 9 RC0/A4 10 RC3/A7 7 RC5/CCP1 5 RC4 6 RA2/A2/C1O 11 RA1/A1/C1I- 12 RA0/A0/C1I+ 13 VSS 14 U3PIC16F684 C1224 SDO CLK T_PI T_PI INT A 5 K 3 4 VREF U2 TLV431CDBVR R7102 ANT CE 1 CS 2 SCK 3 SDI 4 SDO 5 IRQ 6 VDD 7 VSS 8 XC2 9 XC1 10 VDD_PA 11 ANT1 12 ANT2 13 VSS 14 VDD 15 IREF 16 VSS 17 VDD 18 DVDD 19 VSS 20 U4 nRF24L01 INT VCC VCC VCC R10 472 R1 103 VCC RA1 L3 22nH Q? 2N3904

Shenzhen Certification Technologh Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guangdong, P.R. China. FCCID: ZJO-ST112 Page 1 of 27 TEST REPORT FCC ID: ZJO-ST112 Applicant : Win Wireless Network Technology Ltd. Address : No. 1369 Chengnan Rd., Jiaxing 314001, Zhejiang, China. Equipment under Test (EUT): Name : DWT100-ST112 Wireless Temperature Sensor with DWT100-R02WH base station Model : DWT100-ST112 Standards : FCC PART 15, SUBPART C : 2010 (Section 15.249) Report No. : STE110331242 Date of Test : April 14-15, 2011 Date of Issue : April 17, 2011 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.:STE110331242 FCCID: ZJO-ST112 Page 2 of 27 TABLE OF CONTENT Description Page 1 General Information---------------------------------------------------------------------------------------3 1.1 Description of Device (EUT)-------------------------------------------------------------------3 1.2 Description of Test Facility---------------------------------------------------------------------4 2 EMC Equipment List-----------------------------------------------------------------------------------4 3 Test Procedure-------------------------------------------------------------------------------------------5 4 Summary of Measurement---------------------------------------------------------------------------6 5 POWER LINE CONDUCTED EMISSION----------------------------------------------------------7 5.1 Conducted Emission Limits(15.209&249)--------------------------------------------------7 5.2 Test Setup------------------------------------------------------------------------------------------7 5.3 Test Procedure------------------------------------------------------------------------------------8 5.4 Test Resluts----------------------------------------------------------------------------------------8 6 Radiation Emission------------------------------------------------------------------------------------9 6.1 Radiation Emission Limits(15.209&249 (a))-----------------------------------------------9 6.2 Test Setup-----------------------------------------------------------------------------------------10 6.3 Test Procedure-----------------------------------------------------------------------------------11 6.4 Test Equipment Setting For emission test.est Result----------------------------------12 6.5 Test Condition------------------------------------------------------------------------------------12 6.6 Test Result----------------------------------------------------------------------------------------12 7 Occupied bandwidth---------------------------------------------------------------------------------16 7.1 Test limit-------------------------------------------------------------------------------------------16 7.2 Method of measurement-----------------------------------------------------------------------16 7.3 Test Setup-----------------------------------------------------------------------------------------16 7.4 Test Results---------------------------------------------------------------------------------------16 8 Band Edge Check-------------------------------------------------------------------------------------17 8.1 Test limit-------------------------------------------------------------------------------------------17 8.2 Test Procedure-----------------------------------------------------------------------------------17 8.3 Test Setup-----------------------------------------------------------------------------------------17 8.4 Test Result----------------------------------------------------------------------------------------17 9 Antenna Requirement-------------------------------------------------------------------------------18 9.1 Standard Requirement-------------------------------------------------------------------------18 9.2 Antenna Connected Construction-----------------------------------------------------------18 9.3 Result-----------------------------------------------------------------------------------------------18 10 Photographs of Test Setup------------------------------------------------------------------------19 11 Photographs of EUT---------------------------------------------------------------------------------21 Report No.:STE110331242 FCCID: ZJO-ST112 Page 3 of 27 1 General Information 1.1 Description of Device (EUT) Trade Name : N/A EUT : DWT100-ST112 Wireless Temperature Sensor with DWT100-R02WH base station Model No. : DWT100-ST112 : Type of Antenna : Integral Antenna Operation Frequency : 2450MHz Channel number : 1 Modulation type : GFSK Power Supply : DC 3V Supply by battery Rated PF output Power : 97.49 dBuV (PK detector) Applicant : Win Wireless Network Technology Ltd. Address : No. 1369 Chengnan Rd., Jiaxing 314001, Zhejiang, China. Manufacturer : Win Wireless Network Technology Ltd. Address : No. 1369 Chengnan Rd., Jiaxing 314001, Zhejiang, China. Report No.:STE110331242 FCCID: ZJO-ST112 Page 4 of 27 1.2 Description of Test Facility Shenzhen Certification Technology Service Co.,Ltd. 3F, Bldg.27, Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, Shenzhen 518055, Guangdong, P.R. China FCC Registered No.:305283 2 EMC Equipment List Equipment Manufacture Model No. Serial No. L…

Text truncated - open the document above for the full version.

Radiated Emission Test Setup Below 1G Above 1G
