ZJO-TR142TWR300-TR142 active RFID with TWR300-BN140 base station

Product Handbook of TWR300-TR142 Active RFID Table of Contents Part I TWR300 system parameters....................................................................................................2 1.1 TWR300-TR142 active RFID specifications..........................................................................2 1.2 TWR300-BN140 base station specifications........................................................................2 Part II System operation principle.....................................................................................................3 2.1 System configuration..........................................................................................................3 2.2 System operation................................................................................................................3 Part III Applications...........................................................................................................................4 3.1 Attendance management...................................................................................................4 3.2 Speed detection for high-speed trains................................................................................4 3.3 Inventory management.......................................................................................................4 Part IV PCB drawing..........................................................................................................................4 4.1.1 The schematic diagram of TWR300-TR142......................................................................4 4.1.2 The top layer of the PCB drawing of TWR300-TR142......................................................4 4.1.3 The bottom layer of the PCB drawing of TWR300-TR142................................................5 4.1.4 The schematic diagram of TWR300-BN140.....................................................................5 4.1.5 The top layer of the PCB drawing of TWR300-BN140......................................................6 4.1.6 The bottom layer of the PCB drawing of TWR300-BN140...............................................6 Part V Assembly drawing of system..................................................................................................7 5.1 Assembly drawing of TWR300-TR142.................................................................................7 5.2 Assembly drawing of TWR300-BN140................................................................................8 Part I TWR300 system parameters 1.1 TWR300-TR142 active RFID specifications 1.1.1 Maximum code number: 2 32 1.1.2 Operating mode: read,write 1.1.3 Modulation: GFSK 1.1.4 Frequency band: 2.45GHz 1.1.5 Transmitting power: ≤1mw 1.1.6 Operating voltage:1.8V~3.6V DC 1.1.7 Operating current(max): ≤30mA 1.1.8 Operating current(average): ≤30mA 1.1.9 Battey type: CR2032 1.1.10 Battery life: 1.5 years 1.1.10 Readable range: 100m 1.1.11 Dimension: 60mm x24mm x 5mm 1.1.12 Maximum duty time: 700ms 1.2 TWR300-BN140 base station specifications 1.2.1 Modulation: GFSK 1.2.2 Frequency band: 2.45GHz 1.2.3 Antenna: whip antenna,helical antenna(10dB) 1.2.4 Sensitive: -90dB 1.2.5 Operating voltage: 9V~24V DC 1.2.6 Operating current: ≤60mA(12V) 1.2.7 Working temperature: -40°C~+100°C 1.2.8 Cards manageable: 65536 pcs 1.2.9 Communication interface: RS-485,CAN 1.2.10 Communication speed : 4K -- 115.5Kpbs, adjustable 1.2.11 Mean Time Between Failure(MTBF): >50000h 1.2.12 Mounting bracket/bottom material: stainless steel;Main frame:enhanced ABS plastic;Antenna shell: enhanced ASA resin 1.2.13 Dimension: 300mm x125mm x 125mm 1.2.14 Weight: 0.7kg 1.2.15 Packaging: IP68 1.2.16 Installation: brackets Part II System operation principle 2.1 System configuration The system diagram of an RFID monitoring system is as follows, it contains an administaration center(host machine), one or more TWR300-BN140 base stations and a plaural of TWR300-TR142 active RFID cards. 2.2 System operation TWR300-TR142 active RFID card transmit its ID and other stored information to base station via the 2.45GHz ISM band channel and the base station will save and record these data. When obejects with TWR300-TR142 active RFID cards enter into the range covered by a base station, the base station reads the ID and other information, such as battery capacity etc. of RFID cards and send them to the host machine along with the timestamps. The host can match the received information to default information and make a decision to react on certain events based on, for example, objects’ movement and location. These information are written into database to be used by other consumers or for future reference. The system can be used for security applications to monitor people or objects remotely in real-time. Part III Applications 3.1 Attendance management 3.2 Speed detection for high-speed trains 3.3 Inventory management Part IV PCB drawing 4.1.1 The schematic diagram of TWR300-TR142 4.1.2 The top layer of the PCB drawing of TWR300-TR142 4.1.3 The bottom layer of the PCB drawing of TWR300-TR142 4.1.4 The schematic diagram of TWR300-BN140 4.1.5 The top layer of the PCB drawing of TWR300-BN140 4.1.6 The bottom layer of the PCB drawing of TWR300-BN140 Part V Assembly drawing of system 5.1 Assembly drawing of TWR300-TR142 5.2 Assembly drawing of TWR300-BN140 changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee …

Text truncated - open the document above for the full version.

Crystal 16MHz

Win Wireless Network Technology Ltd. SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 Win Wireless Network Technology Ltd. SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 (May 5, 2011) To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Win Wireless Network Technology Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) FCC ID: ZJO-TR142 Product name: TWR300-TR142 active RFID with TWR300-BN140 base station Model: TWR300-TR142 We affirm that between SIEMIC and Win Wireless Network Technology Ltd., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Mr. Zhou Xiao / Project Manager Title: Manager Telephone: +86-573-82651519 Email: [email protected] Date: May 5, 2011

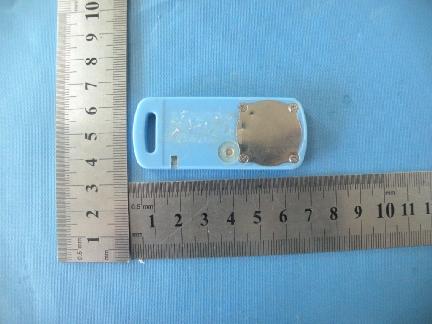

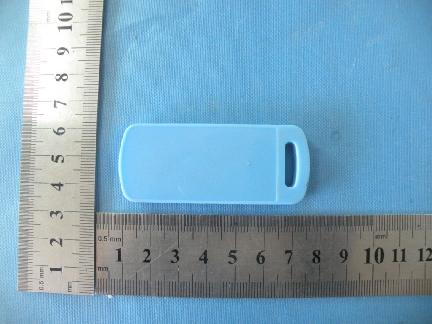

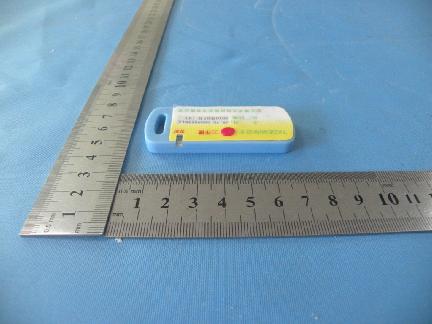

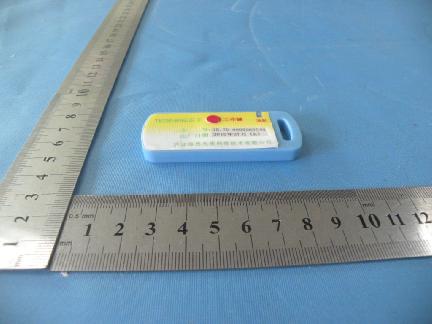

Full View Top View Top View Bottom View Front View Left View Rear View Right View

FCC ID: ZJO-TR142

Label Location

Top View Bottom View ANTENNA

Operation description 1 Maximum code number: 232 2 Operating mode: read,write 3 Modulation: GFSK 4 Frequency band: 2.45GHz 5 Transmitting power: ≤1mw 6 Operating voltage:1.8V~3.6V DC 7 Operating current(max): ≤30mA 8 Operating current(average): ≤30mA 9 Battey type: CR2032 10 Battery life: 1.5 years 11 Readable range: 100m 12 Dimension: 60mm x24mm x 5mm 13 Maximum duty time: 700ms TWR300-TR142 active RFID card transmit its ID and other stored information to base station via the 2.45GHz ISM band channel and the base station will save and record these data. When obejects with TWR300-TR142 active RFID cards enter into the range covered by a base station, the base station reads the ID and other information, such as battery capacity etc. of RFID cards and send them to the host machine along with the timestamps. The host can match the received information to default information and make a decision to react on certain events based on, for example, objects’ movement and location. These information are written into database to be used by other consumers or for future reference. The system can be used for security applications to monitor people or objects remotely in real-time.

R1471 CE RA0 C2 105 RA3 C4 155 RA1 SDI CSSSDO CLK R7 473 GND VCC D2绿R2 272 S2TD-014 INT Kin1 Kin1 ALA Q1 8050 R3 103 ALAALAO C3224 VSS 20 VDD 1 RA5/T1i/OSC1/CLKi 2 RA4/AN3/T1G/OSC2/CLKo 3 RA3/MCLR/VPP 4 RC5/CCP1/P1A 5 RC4/C2o/P1B 6 RC3/AN7/P1C 7 RC6/AN8/SS 8 RC7/AN9/SDO 9 RB7/TX/CK 10 RB6/SCK/SCL 11 RB5/AN11/RX/DT 12 RB4/AN10/SDI/SDA 13 RC2/AN6/P1D 14 RC1/AN5/C12in1- 15 RC0/AN4/C2in+ 16 RA2/AN2/T0i/INT/C1o 17 RA1/AN1/C12i-/Vr/PC 18 RA0/AN0/C1in+/PD/ULP 19 U1 PIC16F690-I/SS R4 473 D1红R9 272 VCC S1TD-014 R8 473 Kin2 Kin2 GND R5 105 R6 223 L1 22nH L23.6nH C7 106 CLK C9 224 C15 10P C5 224 C6 224 C12 1P C13 1P CSS C8 15P SDI CY1 16MHz C10 222 C16 10P CE GND ANT VDD SDO CE 1 CS 2 SCK 3 SDI 4 SDO 5 IRQ 6 VDD 7 VSS 8 XC2 9 XC1 10 VDD_PA 11 ANT1 12 ANT2 13 VSS 14 VDD 15 IREF 16 VSS 17 VDD 18 DVDD 19 VSS 20 U3 nRF24L01 INT VCC VCC VCC

Shenzhen Certification Technologh Service Co., Ltd 3F, Bldg27,Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, ShenZhen, Guangdong, P.R. China. FCCID: ZJO-TR142 Page 1 of 25 TEST REPORT FCC ID: ZJO-TR142 Applicant : Win Wireless Network Technology Ltd. Address : No. 1369 Chengnan Rd., Jiaxing 314001, Zhejiang, China. Equipment under Test (EUT): Name : TWR300-TR142 active RFID with TWR300-BN140 base station Model : TWR300-TR142 Standards : FCC PART 15, SUBPART C : 2010 (Section 15.249) Report No. : STE110331241 Date of Test : April 14-15, 2011 Date of Issue : April 17, 2011 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing. Report No.:STE110331241 FCCID: ZJO-TR142 Page 2 of 25 TABLE OF CONTENT Description Page 1 General Information---------------------------------------------------------------------------------------3 1.1 Description of Device (EUT)-------------------------------------------------------------------3 1.2 Description of Test Facility---------------------------------------------------------------------4 2 EMC Equipment List-----------------------------------------------------------------------------------4 3 Test Procedure-------------------------------------------------------------------------------------------5 4 Summary of Measurement---------------------------------------------------------------------------6 5 POWER LINE CONDUCTED EMISSION----------------------------------------------------------7 5.1 Conducted Emission Limits(15.209&249)--------------------------------------------------7 5.2 Test Setup------------------------------------------------------------------------------------------7 5.3 Test Procedure------------------------------------------------------------------------------------8 5.4 Test Resluts----------------------------------------------------------------------------------------8 6 Radiation Emission------------------------------------------------------------------------------------9 6.1 Radiation Emission Limits(15.209&249 (a))-----------------------------------------------9 6.2 Test Setup-----------------------------------------------------------------------------------------10 6.3 Test Procedure-----------------------------------------------------------------------------------11 6.4 Test Equipment Setting For emission test.est Result----------------------------------12 6.5 Test Condition------------------------------------------------------------------------------------12 6.6 Test Result----------------------------------------------------------------------------------------12 7 Occupied bandwidth---------------------------------------------------------------------------------16 7.1 Test limit-------------------------------------------------------------------------------------------16 7.2 Method of measurement-----------------------------------------------------------------------16 7.3 Test Setup-----------------------------------------------------------------------------------------16 7.4 Test Results---------------------------------------------------------------------------------------16 8 Band Edge Check-------------------------------------------------------------------------------------17 8.1 Test limit-------------------------------------------------------------------------------------------17 8.2 Test Procedure-----------------------------------------------------------------------------------17 8.3 Test Setup-----------------------------------------------------------------------------------------17 8.4 Test Result----------------------------------------------------------------------------------------17 9 Antenna Requirement-------------------------------------------------------------------------------18 9.1 Standard Requirement-------------------------------------------------------------------------18 9.2 Antenna Connected Construction-----------------------------------------------------------18 9.3 Result-----------------------------------------------------------------------------------------------18 10 Photographs of Test Setup------------------------------------------------------------------------19 11 Photographs of EUT---------------------------------------------------------------------------------21 Report No.:STE110331241 FCCID: ZJO-TR142 Page 3 of 25 1 General Information 1.1 Description of Device (EUT) Trade Name : N/A EUT : TWR300-TR142 active RFID with TWR300-BN140 base station Model No. : TWR300-TR142 : Type of Antenna : Integral Antenna Operation Frequency : 2450MHz Channel number : 1 Modulation type : GFSK Power Supply : DC 3V Supply by battery Rated PF output Power : 92.95 dBuV (PK detector) Applicant : Win Wireless Network Technology Ltd. Address : No. 1369 Chengnan Rd., Jiaxing 314001, Zhejiang, China. Manufacturer : Win Wireless Network Technology Ltd. Address : No. 1369 Chengnan Rd., Jiaxing 314001, Zhejiang, China. Report No.:STE110331241 FCCID: ZJO-TR142 Page 4 of 25 1.2 Description of Test Facility Shenzhen Certification Technology Service Co.,Ltd. 3F, Bldg.27, Area A, Tanglang Industrial Zone, Xili Town, Nanshan District, Shenzhen 518055, Guangdong, P.R. China FCC Registered No.:305283 2 EMC Equipment List Equipment Manufacture Model No. Serial No. Last cal. Cal Interval 3m Semi-An…
