ZJTIA2TV100Multimedia Broadcaster

- 1 - Safety Notice Before using this product, please read the below safety notice carefully. This will help to extend the product’s lifecycle, and make it work normally.  When IA2TV is working, please make sure its ventilation system is working.  The power adapter is dissipating heat during normal use, please be sure not to cover it and keep it away from your body to prevent discomfort or injury by heat exposure.  Keep the iA2TV in a well-ventilated area, away from excessive light, heat, or moisture.  Please use the power adapter that comes with the product’s package. Incorrect power adapter may damage your device.  Make sure all the peripherals are properly connected before using IA2TV.  This product should only be used in an environment with ambient temperatures between 0 ̊C ─ 40 ̊C. - 2 -  Please don’t disassemble this product by yourself. Any disassembly not approved by the original manufacturer may result in malfunction, and void warranty.  If the IA2TV is not operating properly or has been dropped or damaged, contact your product’s authorized dealer, reseller, or service provider.  Never push objects of any kind into cabinet slots or other openings.  DO NOT use the USB connector to connect the power or Mobile hard disk better. Care and Cleaning  Please power off the IA2TV before cleaning.  DO NOT use ammonia, alcohol, or abrasive detergent cleaning agents.  With a clean, soft, lint-free cloth to remove dust and loose particles. - 3 - FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following condition: The device may not cause harmful interference. ICES This Class B digital apparatus complies with Canadian ICE-003. Cet appareil numérique de la class B set confome à la nome NMB-003 du Canada. A pleine puissance, l’écoute prologée du baladeur peut endommager lóreille de l’utilisateur. - 4 - Table of Contents Safety Notice .........................................................................................................1 Care and Cleaning.................................................................................................2 FCC ......................................................................................................................3 ICES ......................................................................................................................3 1. Introduction ........................................................................................................6 1.1 What’s in the Box .........................................................................................6 1.2 What You Need ............................................................................................7 1.3 IA2TV at a Glance .......................................................................................8 2. Setting up IA2TV ...............................................................................................9 2.1 Placing the IA2TV ........................................................................................9 2.1.1 On the Desk ... ....................................................................................9 2.1.2 On the Wall .........................................................................................9 - 5 - 2.2 Connecting the IA2TV..................................................................................12 2.3 The Indication of Status Lights ....................................................................15 3. IA2TV Windows Control Program......................................................................16 3.1 P2P and LAN ...............................................................................................16 3.2 Playing and Watching ..................................................................................17 3.2.1 Local Shared Folder Settings ..............................................................17 3.2.2 Playing in P2P or LAN Mode ...............................................................18 3.2.3 Playing Multimedia Files ......................................................................19 3.3 Settings ........................................................................................................21 3.3.1 System Message .................................................................................21 3.3.2 Wireless ..............................................................................................22 3.3.3 TV Mode Setup ....................................................................................24 3.3.4 Remote Upgrade .................................................................................24 4. Troubleshooting .................................................................................................25 5. Specifications ....................................................................................................27 - 6 - 1. Introduction With IA2TV, a portable wireless multimedia player, you can enjoy your favorite movies, music, digital photos and pictures from your Desktop (DT) or Notebook (NB). 1.1 What’s in the Box IA2TV AC Adapter CD Video cable Audio cable Notice: The CD includes the installation package of IA2TV Windows Control and IA2TV User’s Manual. - 7 - 1.2 What You Need To start using your IA2TV, you need the followings: (1) Network WiFi and wireless AP (2) TV (3) Computer and Software T o play multimedia files from PC on TV, your PC must install the IA2TV Windows Control, and the system requirements are better to meet the followings: A DT or NB with Windows XP SP2 or Windows 7, CPU 1.6GHZ, DRAM 2GB, WiFi 802.11b/g/n Notice: If P2P mode, not necessary router. - 8 - 1.3 IA2TV at a Glance PowerTurn on or turn off the IA2TV P2PSwitch between P2P and LAN mode TV ModeChoose NTSC or PAL Audio Out Connect IA2TV to satellite speakers with component audio ports, using a component audio cable with red and white connectors AV Out Connect IA2TV to a TV with component v…

Text truncated - open the document above for the full version.

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C1 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 APPENDIX C. Photographs of EUT FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C2 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C18 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C19 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C20 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C21 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C22 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C23 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255

Product Name: Multimedia Broadcaster Model Number: IA2TV-100 FCC ID: UCVIA2TV100 IC: 4613B-IA2TV100 DC RATING: 5V ̧1A FOXCONN INTERNATIONAL INC. Made in China PRECENO TECHNOLOGY PTE.LTD.

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C3 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C4 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C5 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C6 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C7 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C8 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C9 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C10 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C11 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C12 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C13 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C14 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C15 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C16 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : C17 OF C24 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 28, 2011 FAX : 886-2-2696-2255

Page No. : A1 of A2 FCC ID : ZJTIA2TV100 F FCC TEST REPORT Report No. : FR112808AI Appendix A. Maximum Permissible Exposure Page No. : A2 of A2 FCC ID : ZJTIA2TV100 F FCC TEST REPORT Report No. : FR112808AI 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 1.3. Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11n: 17.59dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2.86 1.931968 17.59 57.4116 0.0221

Page No. : A1 of A2 FCC ID : ZJTIA2TV100 F FCC TEST REPORT Report No. : FR112808AC Appendix A. Maximum Permissible Exposure Page No. : A2 of A2 FCC ID : ZJTIA2TV100 F FCC TEST REPORT Report No. : FR112808AC 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m²) = 377 2 E E = Electric field (V/m) P = Peak RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 377 30 d GP   From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 1.3. Calculated Result and Limit Antenna Type : PIFA Antenna Max Conducted Power for IEEE 802.11b/g: 17.96dBm Test Mode Min. User Distance (cm) Gain (dBi) Numeric Gain Conducted Power (dBm) Conducted Power (mW) Power Density (mW/cm2) 2.4G 20 2.86 1.931968 17.96 62.5173 0.0240

SPORTON International Inc. Report Format Version: a F FCC TEST REPORT Report No. : FR112808AI FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : Multimedia Broadcaster Model No. : IA2TV-100 Brand Name : IA2TV Filing Type : New Application Applicant Manufacturer : PRECENO TECHNOLOGY PTE.LTD No. 10 Anson Road #15-17/18, International Plaza Singapore FCC ID : ZJTIA2TV100 Received Date : Feb. 08, 2011 Final Test Date : Mar. 05, 2011 Statement Test result included is only for the 802.11n of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Jun. 16, 2011 FAX : 886-2-2696-2255 FCC ID : ZJTIA2TV100 F FCC TEST REPORT Report No. : FR112808AI Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details ................................................................................................................................................................................... 3 2.2 Accessories ........................................................................................................................................................................................ 3 2.3 Table for Filed Antenna ....................................................................................................................................................................... 3 2.4 Table for Carrier Frequencies ............................................................................................................................................................. 4 2.5 Test Manner ........................................................................................................................................................................................ 4 2.6 Table for Test Modes .......................................................................................................................................................................... 5 2.7 Table for Testing Locations ................................................................................................................................................................. 5 2.8 Table for Supporting Units .................................................................................................................................................................. 5 2.9 Table for Parameters of Test Software Setting .................................................................................................................................... 6 2.10 EUT Operation during Test ................................................................................................................................................................. 6 2.11 Test Configuration ............................................................................................................................................................................... 7 3 TEST RESULT ......................................................................................................................................................... 9 3.1 AC Power Line Conducted Emissions Measurement .......................................................................................................................... 9 3.2 Maximum Peak Output Power Measurement .................................................................................................................................... 15 3.3 Power Spectral Density Measurement .............................................................................................................................................. 17 3.4 6dB Spectrum Bandwidth Measurement ........................................................................................................................................... 23 3.5 Radiated Emissions Measurement .................................................................................................................................................... 29 3.6 Band Edge and Fundamental Emissions Measurement .................................................................................................................... 47 3.7 Antenna Requirements ..................................................................................................................................................................... 53 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 54 5 TEST LOCATION ................................................................................................................................................... 56 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 57 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................. A1 ~ A2 APPENDIX B. TEST PHOTOS ................................................................................................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. Report Format Version: a F FCC TEST REPORT Report No. : FR112808AC FCC RADIO TEST REPORT according to 47 CFR FCC Part 15 Subpart C § 15.247 Equipment : Multimedia Broadcaster Model No. : IA2TV-100 Brand Name : IA2TV Filing Type : New Application Applicant Manufacturer : PRECENO TECHNOLOGY PTE.LTD No. 10 Anson Road #15-17/18, International Plaza Singapore FCC ID : ZJTIA2TV100 Received Date : Feb. 08, 2011 Final Test Date : Mar. 05, 2011 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. SPORTON International Inc. No. 52 Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON International Inc. Page No. : i of ii TEL : 886-2-2696-2468 Issued Date : Jun. 16, 2011 FAX : 886-2-2696-2255 FCC ID : ZJTIA2TV100 F FCC TEST REPORT Report No. : FR112808AC Table of Contents 1 SUMMARY OF THE TEST RESULT ....................................................................................................................... 2 2 GENERAL INFORMATION ...................................................................................................................................... 3 2.1 Product Details ................................................................................................................................................................................... 3 2.2 Accessories ........................................................................................................................................................................................ 3 2.3 Table for Filed Antenna ....................................................................................................................................................................... 3 2.4 Table for Carrier Frequencies ............................................................................................................................................................. 3 2.5 Test Manner ........................................................................................................................................................................................ 3 2.6 Table for Test Modes .......................................................................................................................................................................... 4 2.7 Table for Testing Locations ................................................................................................................................................................. 4 2.8 Table for Supporting Units .................................................................................................................................................................. 4 2.9 Table for Parameters of Test Software Setting .................................................................................................................................... 5 2.10 EUT Operation during Test ................................................................................................................................................................. 5 2.11 Test Configuration ............................................................................................................................................................................... 6 3 TEST RESULT ......................................................................................................................................................... 8 3.1 AC Power Line Conducted Emissions Measurement .......................................................................................................................... 8 3.2 Maximum Peak Output Power Measurement .................................................................................................................................... 14 3.3 Power Spectral Density Measurement .............................................................................................................................................. 16 3.4 6dB Spectrum Bandwidth Measurement ........................................................................................................................................... 22 3.5 Radiated Emissions Measurement .................................................................................................................................................... 28 3.6 Band Edge and Fundamental Emissions Measurement .................................................................................................................... 46 3.7 Antenna Requirements ..................................................................................................................................................................... 51 4 LIST OF MEASURING EQUIPMENTS .................................................................................................................. 52 5 TEST LOCATION ................................................................................................................................................... 54 6 TAF CERTIFICATE OF ACCREDITATION ........................................................................................................... 55 APPENDIX A. MAXIMUM PERMISSIBLE EXPOSURE ................................................................................. A1 ~ A2 APPENDIX B. TEST PHOTOS ........................................................................................................…

Text truncated - open the document above for the full version.

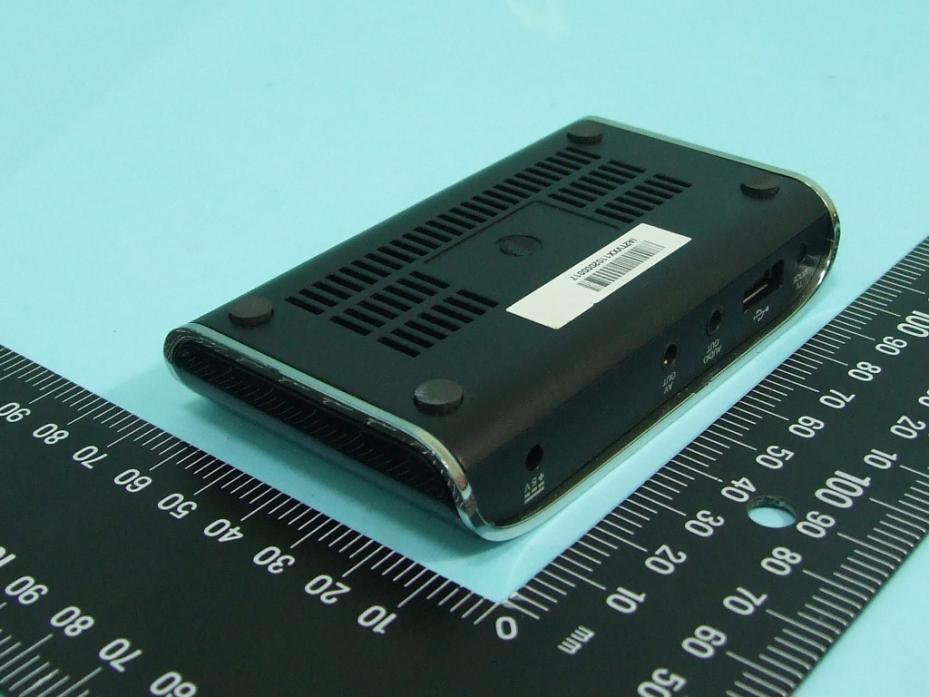

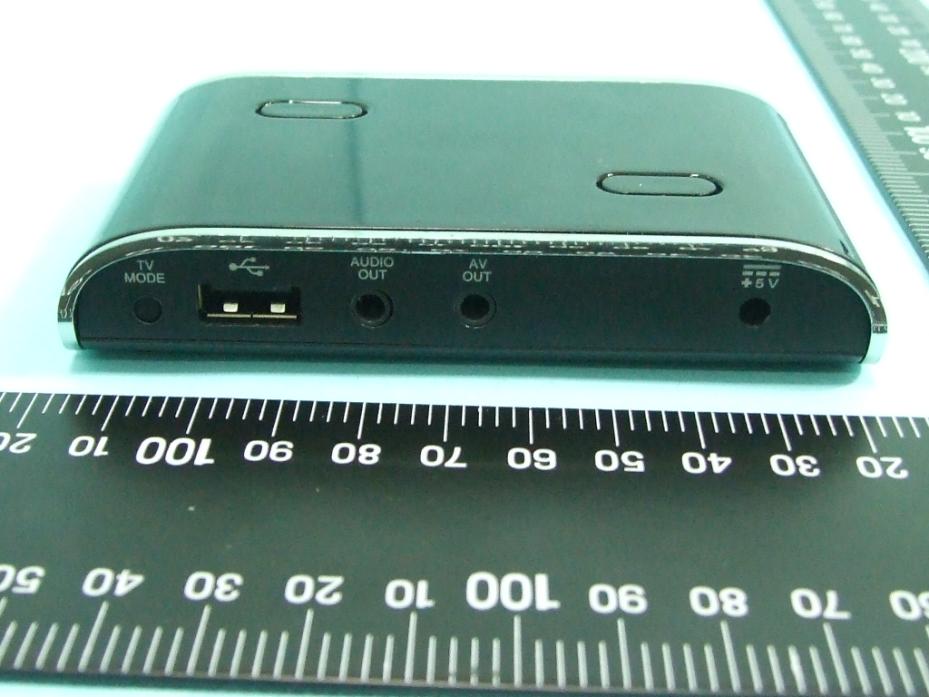

Page No. : B1 of B8 FCC ID : ZJTIA2TV100 FCC TEST REPORT Report No. : FR112808AI Appendix B. Test Photos Page No. : B2 of B8 FCC ID : ZJTIA2TV100 FCC TEST REPORT Report No. : FR112808AI 1 Photographs of Conducted Emissions Test Configuration Mode 1 FRONT VIEW REAR VIEW Page No. : B3 of B8 FCC ID : ZJTIA2TV100 FCC TEST REPORT Report No. : FR112808AI SIDE VIEW Page No. : B4 of B8 FCC ID : ZJTIA2TV100 FCC TEST REPORT Report No. : FR112808AI Mode 4 FRONT VIEW REAR VIEW Page No. : B5 of B8 FCC ID : ZJTIA2TV100 FCC TEST REPORT Report No. : FR112808AI SIDE VIEW Page No. : B6 of B8 FCC ID : ZJTIA2TV100 FCC TEST REPORT Report No. : FR112808AI 2 Photographs of Radiated Emissions Test Configuration For radiated emissions 9kHz~30MHz FRONT VIEW REAR VIEW Page No. : B7 of B8 FCC ID : ZJTIA2TV100 FCC TEST REPORT Report No. : FR112808AI For radiated emissions 30MHz~1GHz Mode 1 FRONT VIEW REAR VIEW Page No. : B8 of B8 FCC ID : ZJTIA2TV100 FCC TEST REPORT Report No. : FR112808AI For radiated emissions above 1GHz Mode 1 FRONT VIEW REAR VIEW
