ZKE-ICAM7100Iris Recognition Device (Model: iCAM7100)

copyright©2010 IRIS ID all rights reserved. Do not distribute or copy without confirm. This document is highly confidential. iCAM 7100 Quick User’s Manual 1. Summary • The Device called as iCAM 7100, is a kind of access controlling and time attendance device using iris recognition with DC power. • This Device can support smart card and Serial and Wiegand input and output for external existing system. • It is designed for enrollment and recognition by capturing user’s face and iris in stand- alone mode. • It has backward compatibility with previous model and can support time attendance market with RTC function 2. Functionality • The face camera has AF (auto focus) function and the resolution is about 5Mpixel • The adjustable motor is adopted for various user’s height with left and right button. • The iris cameras use multiple mono image sensor. • With LCD display in front panel, user can enroll user’s face by oneself. The LCD can display recognition result and user’s information. • The LED in cold mirror display user’s distance. The green and orange mean in range and out of range alternatively. • After finishing recognition, the result will be showed through voice and 3 color LED in center bottom place. copyright©2010 IRIS ID all rights reserved. Do not distribute or copy without confirm. This document is highly confidential. Motor Button Motor Button Indication LED 5M Face Camera MIC Input USB 2.0 3 Color LED & Speaker USB type Smart Card copyright©2010 IRIS ID all rights reserved. Do not distribute or copy without confirm. This document is highly confidential. 3. Specification(Main Part) ItemSpecification Dimension178 x 213.4 x 76.7 mm Weight1.6Kg CPUSamsung S3C6410 Memory256MB(m-DDR) Storage 1GB(On-board) 4GB(Up to 16GB SD) Iris Sensor752 x 480 (B/W WVGA) Face Sensor5M with AF Display4.3” LCD Operating Range33±2cm Power InputAllowable Operation Voltage: 12 V DC During Operation Voltage: 12 ~24 V DC Operation Temperature~ 5°C Operating Humidity0~90% R.H Button Power (Internal) Motor Tilt(On both sides), 6 Function Keys Connectivity10/100Mbps LAN, USB 2.0, Wiegand, RS232, RS422, Relay Sound In/OutMono/external speaker Output, Mono Input RTCCR2032(Replaceable) Motor12V DC copyright©2010 IRIS ID all rights reserved. Do not distribute or copy without confirm. This document is highly confidential. 4. Specification(USB typed RF) Item Specification Dimension26 x 94 x 15mm Weight17g Power SupplyBus Power USB SpeedUSB 2.0 Full Speed StandardISO7816 Power Consumption60mA MTBF500K Hour LEDBlue Card interface Speed420Kbps Card clock FrequncyUp to 8MHz Supporting Card typeiClass,Mifare,Desfire Operation Temperature-2 0~55°C Operating Humidity0~90% R.H copyright©2010 IRIS ID all rights reserved. Do not distribute or copy without confirm. This document is highly confidential. 5. Operation Procedures ① Un-plugged screws on both sides as shown below ② Pull the front door ③ Power on after connecting power and LAN LAN Power Input(12~24V DC) Power Switch copyright©2010 IRIS ID all rights reserved. Do not distribute or copy without confirm. This document is highly confidential. ④ After power on, please check message in LCD as below and press “Enroll”. ⑤ Enroll face image. Touch user’s image in the LCD for capturing, then assign user’s ID automatically. Press “Next” for enrolling iris. Image 1. Image 2. 터치 copyright©2010 IRIS ID all rights reserved. Do not distribute or copy without confirm. This document is highly confidential. ⑥ Enroll user’s iris. When starting enrollment, the first image will be displayed. Adjusting user’s iris with cold mirror. If user is in range , green will be shown. Otherwise, orange will be shown. Stay in range for a second, the second image will appear like second image. Press “Save” for finishing enrollment ⑦ After finishing enrollment, the device will run in the continuous recognition mode. The result will be displayed either failure or success Out of range In range Image1. Starting enrollment Image2. Enrollment complete Image 1. Recognition fail Image 2. Recognition success copyright©2010 IRIS ID all rights reserved. Do not distribute or copy without confirm. This document is highly confidential. 6. Warranty Period The period of device warranty is 2 years. 7. A/S Policy and contact point If there is any problem without customer’s fault, the repair fee is free within 2 years. Contact Point: 032-820-5300(Factory) 8. FCC notice to users and product statements This device complies with part15 of the FCC Rules. Operation is subject to the following two conditions (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may not cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: copyright©2010 IRIS ID all rights reserved. Do not distribute or copy without confirm. This document is highly confidential. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Change or modifications not expressly approved by the party responsible …

Text truncated - open the document above for the full version.

Date: May 13, 2011 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Yo Han, Park / Chief Engineer of ETL Inc., to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Yo Han, Park of ETL Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name: Jong-Wook Kim / Team Leader Company: Iris ID, Inc. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Confidentiality Request Letter May 13, 2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZKE-ICAM7100 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Jong-Wook Kim / Team Leader Iris ID, Inc. Daerung Post Tower 1st 512, 212-8 Guro-dong, Guro-gu, Seoul 152-790, Korea

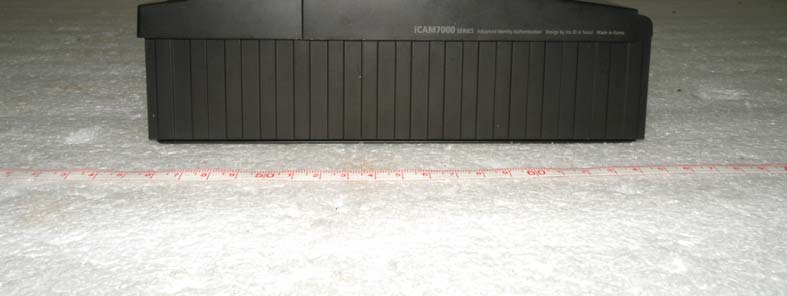

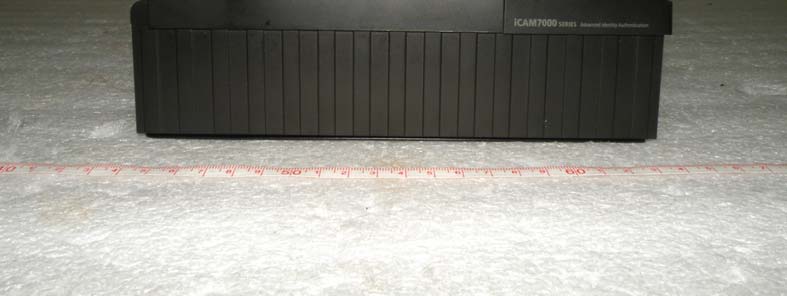

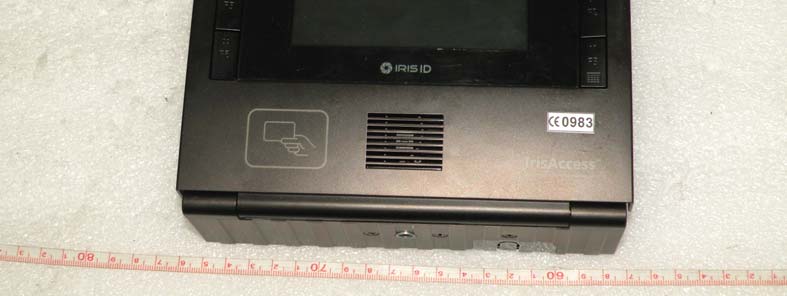

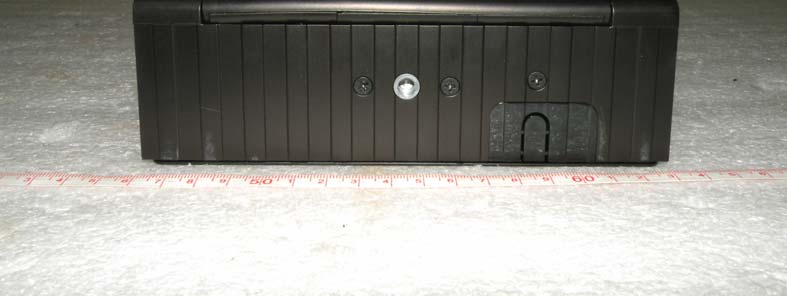

Appendix C. External Photographs Report no. ETLE110408.0278, Page C1 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLE110408.0278, Page C2 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Top side view of EUT Bottom side view of EUT Appendix C. External Photographs Report no. ETLE110408.0278, Page C3 of C3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Side view of EUT

Appendix A. FCC ID Label and Location Report no. ETLE110408.0278, Page A1 of A1 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. Iris ID, Inc. Iris Recognition Device FCC ID : ZKE-ICAM7100 Model No. : iCAM7100 POWER : DC 12 V Serial No. : Proto type This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: Iris ID, Inc. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D1 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Inside view of EUT #1 ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D2 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Inside view of EUT #2 ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D3 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Inside view of EUT #3 ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D4 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Inside view of EUT #4 ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D5 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Top side view of main boardٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D6 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Bottom side view of main board ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D7 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Top side view of RF board ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D8 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Bottom side view of RF boardٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D9 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Top side view of LCD boardٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D10 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Bottom side view of LCD boardٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D11 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Top side view of sensor boardٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D12 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Bottom side view of sensor board ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D13 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 View of LCD panelٻ ٻ ٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D14 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 View of LCD panel labelٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D15 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Top side view of iris recognition camera main boardٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D16 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Bottom side view of iris recognition camera main boardٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D17 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Top side view of iris recognition camera sub main boardٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D18 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Bottom side view of iris recognition camera sub main boardٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D19 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Top side view of iris recognition camera motor switch board 1ٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D20 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Bottom side view of iris recognition camera motor switch board 1ٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D21 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Top side view of iris recognition camera motor switch board 2ٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D22 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Bottom side view of iris recognition camera motor switch board 2ٻ ٻ ٻ Appendix D. Internal Photographs Report no. ETLE110408.0278, Page D23 of D26 Head Office:# 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0…

Text truncated - open the document above for the full version.

copyright©2010 IRIS ID all rights reserved. Do not distribute or copy without confirm. This document is highly confidential. iCAM 7100Quick Operation Manual Enrollment Procedure I.Power on and press Enroll menu in the LCD after booting is completed. II.Issue user’s card and Enroll user’s and card ID in the menu. III.After finishing card enrollment, the next step is enrolling user’ Iris. The first step is capturing user’s face image. Check user’s face image in the LCD, touch LCD for capturing when face size is appropriate. IV.Enroll user’s iris. S/W will show image score for checking validity of iris recognition on both eyes. Before finishing it, the verification step is added for accurate operation.The administrator should help and guide the usage and validity with user. V.Assign access right on time and place in the LCD menu. VI.If there is need to modify or change, S/W will make menu for it through DB access. Verification Procedure I.By issuing user’s card, iCAM7100 will know who user is. And the verification could be completed by capturing iris image. II.If no one is matched with card data, the display shows the result. Otherwise capturing iris will be ready automatically after finishing reading user’s card. III.If user’s card is matched, iCAM7100 will search iris code and wait before iris capturing for quick operation. IV.From long distance, the indication led should be placed in the center of user’s eyes. And approaching user’s iris to iCAM7100 until the color of LED is changed to green. The user should stay within 1 second without movement for stable capturing iris. The operating distance is 33cm from the surface of iCAM7100 to user’s iris. V.Processing captured image using iris algorithm and comparing processed iris code with enrolled one. The result will be displayed in the LCD. VI.At the same time, voice will be out and the green LED will be seen in the bottom center location. VII.After finishing verification, the door that user want to access will be opened for a few second. The open time can be adjustable in the menu The S/W might not a final version, so the procedures described in this document can be changed without notice

Report no. ETLE110408.0278, Page 2 of 23 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:ZKE-ICAM7100 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions 5.3 Radiated Emissions 5.4 13.56 MHz Carrier Field Strength Within The Bands 5.5 Occupied Bandwidth 5.6 Frequency Tolerance 6. Sample Calculation 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. Circuit Diagram Appendix G. Part list Appendix H. User Manual Appendix I. Operational Description Report no. ETLE110408.0278, Page 3 of 23 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:ZKE-ICAM7100 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Iris Recognition Device  Model Number : iCAM7100  S/N : Proto type  Type of Modulation : ASK  Operating Frequency : 13.56 MHz  Antenna Type : PCB Pattern Antenna  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.4-2003  FCC Classification : Part 15 Low Power Communication Device Transmitter  Dates of Tests : May 02, 2011 to May 05, 2011  Place of Tests : ETL Inc. Testing Lab. Radiated Emission test; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Conducted Emission test; ETL Inc. Testing Lab. 371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea  Test Report No. : ETLE110408.0278 Applicant Name : Iris ID, Inc. Address : Daerung Post Tower 1st 512, 212-8 Guro-dong, Guro-gu, Seoul 152-790, Korea Attention : Jong-Wook Kim / Team Leader Report no. ETLE110408.0278, Page 4 of 23 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:ZKE-ICAM7100 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.4-2003 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions from the Iris ID, Inc. Model: iCAM7100 Report no. ETLE110408.0278, Page 5 of 23 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:ZKE-ICAM7100 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Iris Recognition Device (model: iCAM7100). 2.2 General Specification - Main Part Item Specification Dimension 178.0 mm x 213.4 mm x 76.7 mm Weight 1.6 kg CPU Samsung S3C6410 Memory 256 MB (m-DDR) Storage 1 GB (On-board) 4 GB (Up to 16 GB SD) Iris Sensor 752 x 480 (B/W WVGA) Face Sensor 5 M with AF Display 4.3” LCD Allowable Operation Voltage: 12 V DC Power Input During Operation Voltage: 12 V ~ 24 V DC Operation Temperature -20 ~ °C+55 °C Operating Humidity 0 % R.H ~ 90 % R.H. Power (Internal) Button Motor Tilt (On both sides), 6 Function Keys Connectivity 10/100 Mbps LAN, USB 2.0, Wiegand, RS232, RS422, Relay Sound In/Out Mono/external speaker Output, Mono Input RTC CR2032 (Replaceable) Motor 12 V DC Report no. ETLE110408.0278, Page 6 of 23 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:ZKE-ICAM7100 - USB typed RF Item Specification Dimension 26 mm x 94 mm x 15 mm Weight 17 g Power Supply Bus Power USB Speed USB 2.0 Full Speed Standard ISO7816 Power Consumption 60 mA MTBF 500 k Hour LED Blue Card interface Speed 420 kbps Card clock Frequency Up to 8 MHz Supporting Card type iClass, Mifare, Desfire Operation Temperature -20 ~ °C+55 °C Operating Humidity 0 % R.H. ~ 90 % R.H. Type of Modulation ASK Operating Frequency 13.56 MHz Antenna Type PCB Pattern Antenna Report no. ETLE110408.0278, Page 7 of 23 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC TEST REPORT FCC ID:ZKE-ICAM7100 3. DESCRIPTION OF TESTS 3.1 Conducted Emission Conducted emissions measurements were made in accordance with section 11, "Measurement of Information Technology Equipment" of ANSI C63.4-2003. The measurements were performed over the frequency range of 0.15 MHz to 30 MHz using a 50 Ω/50 μH LISN as the input transducer to a Spectrum Analyzer or a Test Receiver. The measurements were made with the detector set for "Peak" amplitude within a bandwidth of 9 kHz or for "quasi-peak" within a bandwidth of 9 kHz. The line-conducted emission test is conducted inside a shielded anechoic chamber room with 1 m x 1.5 m x 0.8 m wooden table which is placed 40 cm away from the vertical wall and 1.5 m away from the side wall of the chamber room. Two LISN are bonded to the shielded room. The EUT is powered from the LISN and the support equipment is powered from the other LISN. Power to the LISNs are filtered by a noise…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLE110408.0278, Page B1 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Conducted Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLE110408.0278, Page B2 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLE110408.0278, Page B3 of B3 Head Office: # 371-51 Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 ETLQP-21-F22-0 FCC ID:ZKE-ICAM7100 Radiated Emission Test Setup (Below 30 MHz)
