ZKE-IT1AMDIris and Face Recognition Device fot the time and attendance Market

DESFIRE MiFARE iCALSS iT1-AMD Attachment Module for iT100 Dimensions (W x H x D) Weight Type Power Input Power Output Connectivity Certifications Temperature Humidity Card Reader 180mm x 41mm x 32mm (7.08” x 1.61” x 1.25”) (included Install Plate) 0.39lbs (177g) (included Install Plate) Attached Module Required POE+ (30W) 24 VDC / Max 1.2A Wi-Fi 802.11 b/g/n (optional) CE, FCC, KC Operating: 0 ~ 45°C (32 ~ 113°F) / Storage: -20 ~ 90°C (-4 ~ 194°F) 5% to 95% non-condensing 13.56MHz Multi-Protocol RFID / ISO/IE D 14443A/B, MIFARE Classic, MIFARE Ultralight, MIFARE Desfire(UID Read Only), ISO/IED 15693, Felica(JIS X6319-4) Specifications Iris ID's iT1-AMD module is an integrated multi-smartcard device of iT100. Iris ID's innovative RFID card technology enables various smart cards such as HID iCLASS and MIFARE DESFIRE to be recognized in one device. Multi-Smartcard Easy InstallationPowerful ConnectivitySupports POE PoE IrisTime FCC compliance information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under FCC rules. RF specification Frequency: 13.56 MHz Power: 0.0000000000472 W

Iris ID, Inc. 512, Daerung Post Tower 1st Suite, 288, Digital-ro, Guro-gu, Seoul, 08390, Republic of Korea Date: December 29, 2020 Subject; Request for Confidentiality FCC ID: ZKE-IT1AMD To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Operational Description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission' s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. • External Photos • Internal Photos • Test Setup Photos • User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Joosuk Kim Title: Principal Engineer

Iris ID, Inc Letter of Authorization Company: Iris ID, Inc. Address: 512, Daerung Post Tower 1st Suite, 288, Digital-ro, Guro-gu, Seoul, 08390, Republic of Korea Product Name: Iris & Face Recognition Device Accessary Model Number: iT1-AMD FCC Identifier:ZKE-IT1AMD We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Joosuk Kim Date: December 29, 2020 Title: Principal Engineer Signature of applicant:

Iris ID, Inc. Date: Jan 27, 2021 Federal Communications Commission Equipment Authorization Division 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Subject: Supplier's Declaration of Compliance To Whom It May Concern: We hereby attest to the fact that we have applied the Supplier’s Declaration of Conformity (SDoC) for a Class A Digital device portion of this composite filing. The requirements identified in KDB 896810 and 47CFR 2.948(b) have been followed. A test report has been issued by ESTECH Co., Ltd( 140-16, Eongmalli-ro, Majang-myeon, Icheon-si, Gyeonggi-do, Korea) and can be identified by report number : ESTCFC2101-006. Sincerely, Iris ID, Inc. Address : Daerung Post Tower 1st Suite, 288, Digital-ro, Guro-gu, Seoul, 08390, Republic of Korea Signature : Name and Job Title : Joosuk Kim / Manager E-mail : [email protected] Tel : +82-02-3289-5358

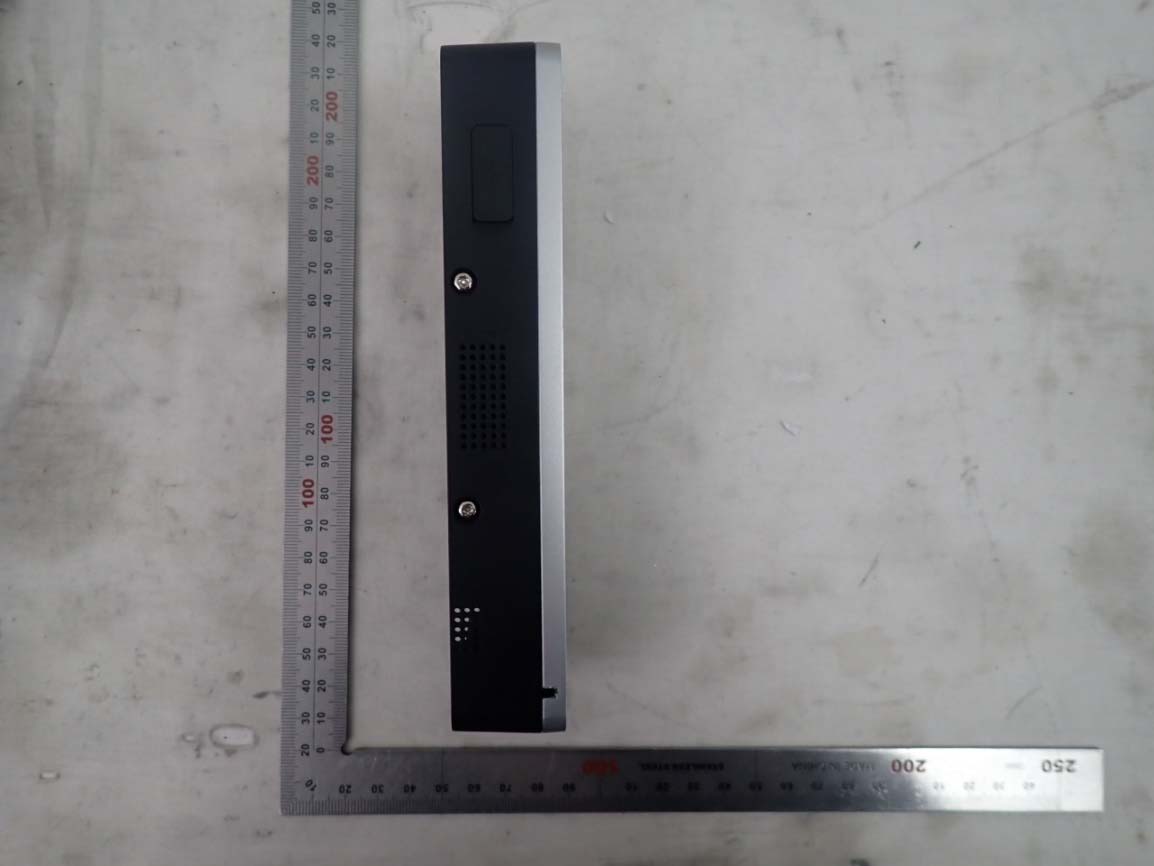

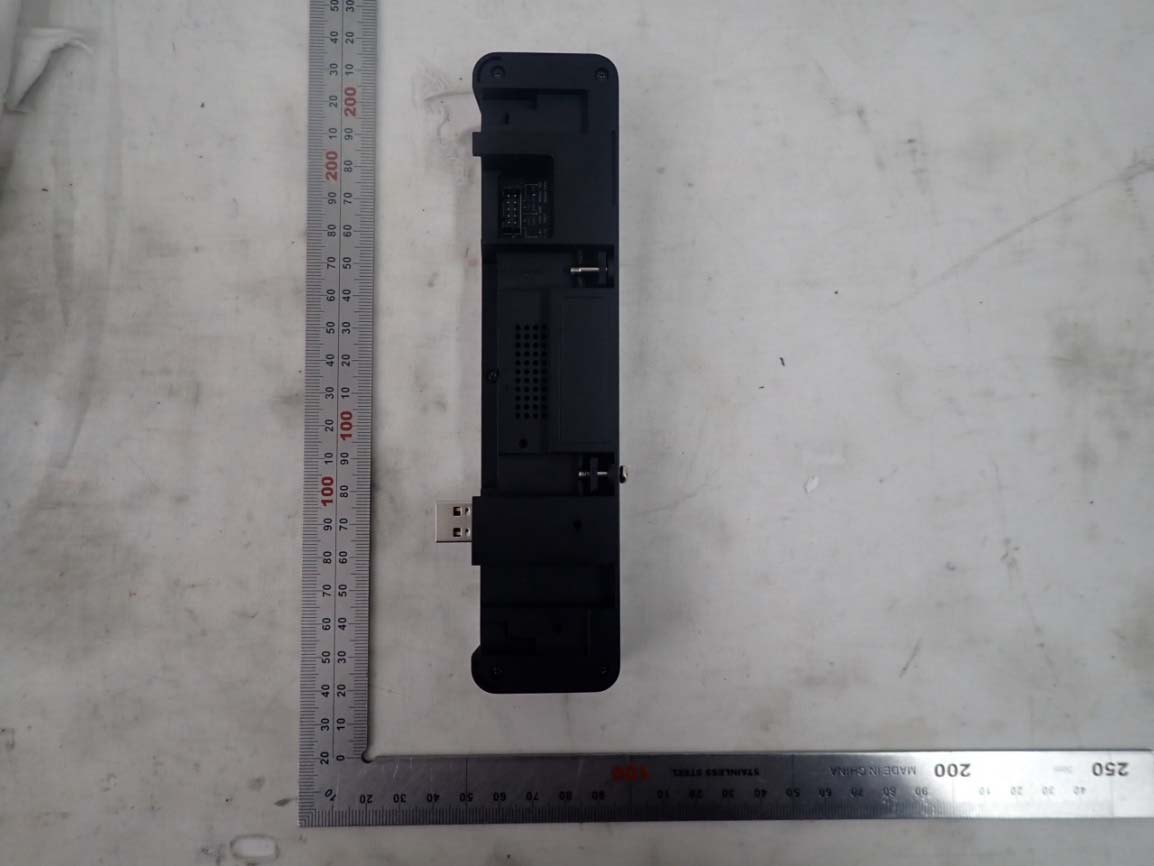

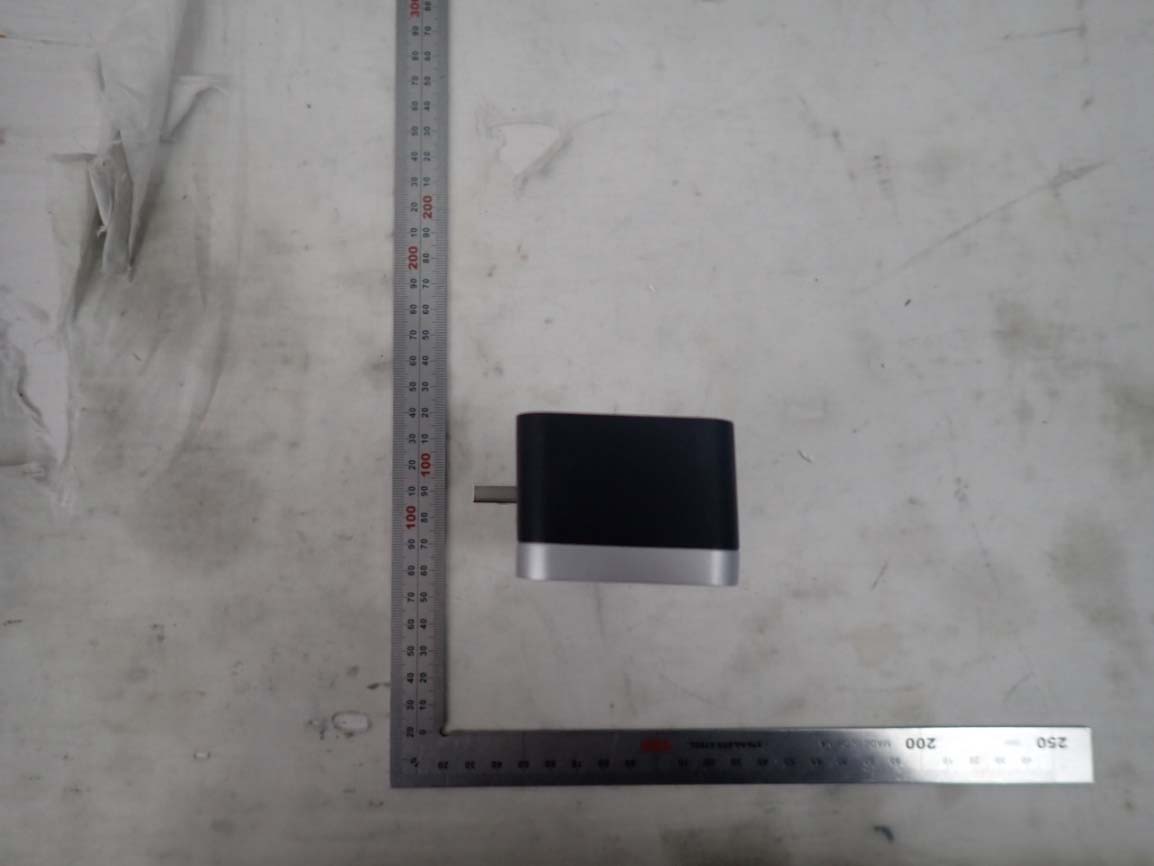

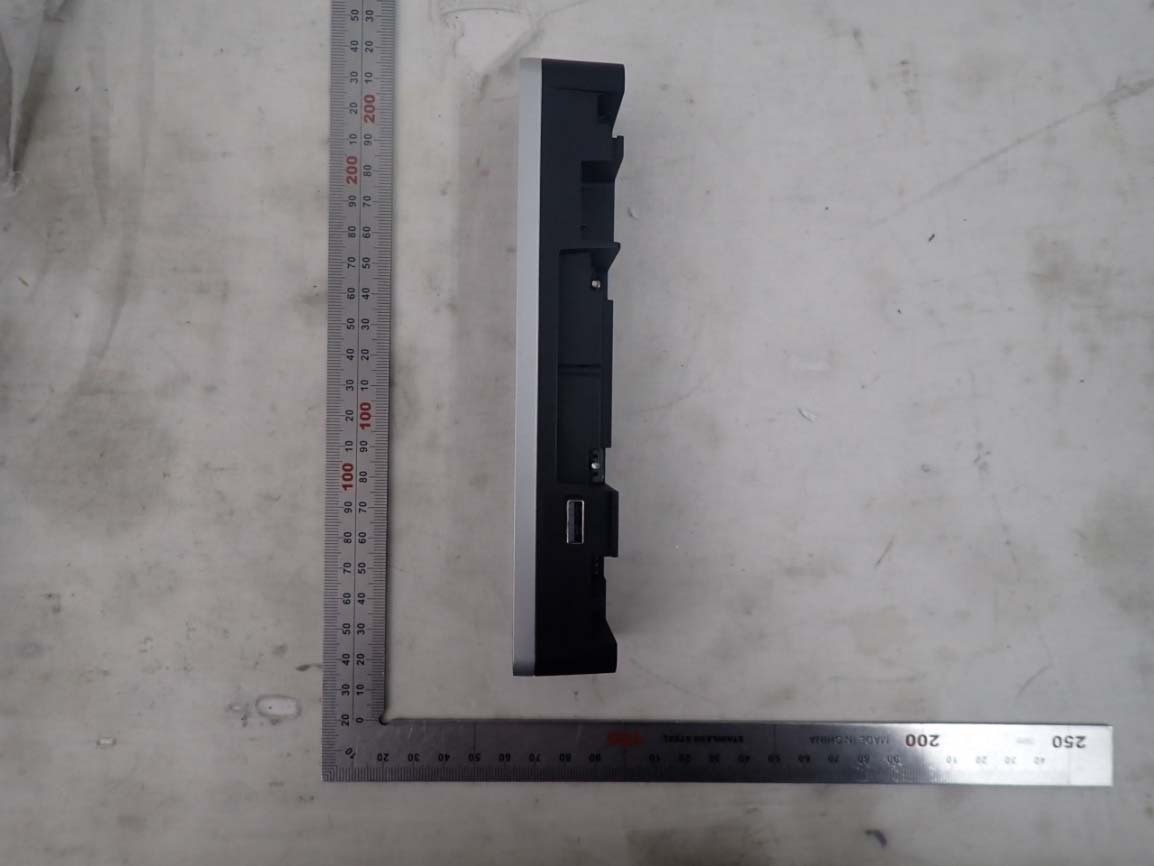

FRONT REAR LEFT RIGHT TOP BOTTOM

Main board Front Main board Rear USB Board Front USB Board Rear Sub Board Front Sub Board Rear RFID Module Front RFID Module Rear Antenna Front Antenna Rear Inside

Test Report for FCC Company name Address Telephone Product name Model No. Serial No. Test date Testing location Standard Tested by Reviewed by Abbreviation * Note - This test report is not permitted to copy partly without our permission - This test result is dependent on only equipment to be used - This test result based on a single evaluation of one sample of the above mentioned Country of origin Date of issue NONE Applicant Report NumberESTRFC2101-001 Iris ID, Inc. Product iT1-AMD ManufacturerIris ID, Inc. FCC ID :ZKE-IT1AMD 512, Daerung Post Tower 1st Suite, 288, Digital-ro, Guro-gu, Seoul, 08390, Republic of Korea Report Number : ESTRFC2101-001 EST-QP17-R-IO1-F04 (2019.11.01) Page 1 of 16 FCC PART 15 Subpart C(15.225), ANSI C 63.10(2013) OK, Pass = Complied, Fail = Failed, N/A = not applicable Measurement facility registration number +82-02-3289-5338 Iris & Face Recognition Device Accessary - This test report is not related to KOLAS accreditation 659627 (Signature) 07-Jan-21 ~ 08-Jan-21 347-69, Jungbu-daero 147beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do 467-811, R. O. Korea 29-Jan-21 KOREA Engineer H.G. Lee Engineering Manager I.k. Hong(Signature) ResultComplied 3 4 5 6 8 8 8 8 9 9 9 10 11 11 11 11 12 13 14 15 15 15 16 Appendix 2. Special diagram(Adapter Mode) 6.2 E quipments lists .......................................................................................... 6. Frequency Tolerance ....................................................................................... 7.3 Environmental conditions .............................................................................. 7. Measurement of radiated emission ..................................................................... 7.2 Measurement equipment .............................................................................. 7.1 Radiated emission limits, general requirements ................................................ 6.3 Frequency stability Data .............................................................................. 6.1 Procedure ................................................................................................... 7.5 Test data(30 MHz ~ 1 GHz) ........................................................................ Report Number : ESTRFC2101-001 EST-QP17-R-IO1-F04 (2019.11.01) Page 2 of 16 7.4 Test data(9 kHz ~30 MHz) ........................................................................... 8.1 Measurement equipment .............................................................................. 7.6 Test data(Above 1 GHz) .............................................................................. 8. Measurement of conducted emission .................................................................. Appendix 3. Antenna Requirement Appendix 1. Measurement Data Plot 8.3 Test data ................................................................................................ ... 8.2 Environmental conditions .............................................................................. Contents 1. Laboratory Information .................................................................................... 2. Descri ption of EUT .......................................................................................... 3. Test Standards ................................................................................................ 5.3 Measurement Data ....................................................................................... 4. Measurement condition ................................................................................. ... 5. 20dBm Bandwidth .......................................................................................... 5.1 Procedure ................................................................................................ ... 5.2 20dBm Bandwidth Set up .............................................................................. 1. Laboratory Information 1.1 General 1.2 Test Lab. Corporation Name : ESTECH Co., Ltd. Head Office : Suite 1015 World Meridian II, 123 Gasan Digital 2-ro, Geumcheon-gu, Seoul 153-759, R. O. Korea EMC/Telecom/Safety Test Lab : 347-69, Jungbu-daero 147beon-gil, Majang-myeon, Icheon-si, Gyeonggi-do 467-811, R. O. Korea 1.3 Official Qualification(s) MSIP : Granted Accreditation from Ministry of Information & Communication for EMC, Safety and Telecommunication KOLAS : Accredited Lab By Korea Laboratory Accreditation Schema base on CENELEC requirements FCC : Conformity Assessment Body(CAB) with registration number 659627 under VCCI : Granted Accreditation from Voluntary Control Council for Interference from ITE This EUT (Equipment Under Test) has been shown to be capable of compliance with the applicable technical standards and is tested in accordance with the measurement procedures as indicated in this report.ESTECH Lab attests to accuracy of test data. All measurement reported herein were performed by ESTECH Co., Ltd. ESTECH Lab assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Report Number : ESTRFC2101-001 EST-QP17-R-IO1-F04(2019.11.01) Page 3 of 16 APEC TEL MRA between the RRA and the FCC 2. Description of EUT 2.1 Summary of Equipment Under Test Product: Model Number: iT1-AMD Serial Number: Manufacturer: Country of origin: Operating Frequency : 13.56 MHz Antenna Type: PCB Loop Antenna Modulation Type: ASK Channel : 1 ch Power Rating Receipt Date: X-tal list(s) or Frequencies generated : 2.2 General descriptions of EUT Operating: 0 ~ 45°C (32 ~ 113°F) / Storage: -20 ~ 90°C (-4 ~ 194°F) 5% to 95% non-condensing 13.56MHz Multi-Protocol RFID / ISO/IED 14443A/B, MIFARE Classic, MIFARE Ultralight, MIFARE Desfire(UID Read Only), ISO/IED 15693, Felica(JIS X6319-4) 180mm x 41mm x 32mm (7.08” x 1.61” x 1.25”) (included Install Plate) 0.39lbs (177g) (included Install Plate) Attached Module Iris & Face Recognition Device Accessary Report Number : ESTRFC210…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO 1. Conducted Emission setup photo 1. Front 2. Rear 2. Radiated Emission setup photo (below 30 MHz) 1. Front 2. Rear 1. Radiated Emission setup photo (below 1 GHz) 1. Front 2. Rear
