ZKP-RDC002Z-RS-DC002

R Series ® ALS Operator’s Guide 9650-0912-01 Rev. J The issue date for the R Series Operator’s Guide ALS (REF 9650-0912-01 Rev. J) is June 2013. If more than 3 years have elapsed since the issue date, contact ZOLL Medical Corporation to determine if additional product information updates are available. Copyright © 2013 ZOLL Medical Corporation. All rights reserved. R Series, M Series, pedi-padz, pro-padz, stat-padz, CodeNet, Real CPR Help, RescueNet, See-Thru CPR, Code-Ready, SurePower, OneStep, Smart Alarms, CPR Index, Defib Mentor, Rectilinear Biphasic, and ZOLL are trademarks or registered trademarks of ZOLL Medical Corporation in the United States and/or other countries. Masimo is a registered trademark of Masimo Corporation in the United States and/or other countries. All other trademarks are property of their respective owners. 0123 ZOLL Medical Corporation 269 Mill Road Chelmsford, MA USA 01824-4105 ZOLL International Holding B.V. Newtonweg 18 6662 PV ELST The Netherlands 9650-0912-01 Rev. JZOLL R Series Operator’s Guidei Table of Contents Chapter 1General Information Product Description ............................................................................................................1-1 How to Use This Manual..................................................................................................... 1-2 Operator’s Guide Updates .................................................................................................. 1-3 Unpacking ........................................................................................................................... 1-3 Symbols Used on the Equipment ....................................................................................... 1-3 Conventions ........................................................................................................................ 1-6 Defibrillator Function ........................................................................................................... 1-6 Intended Use — Manual Operation ............................................................................ 1-6 Intended Use — ECG Monitoring ............................................................................... 1-7 Intended Use — Real CPR Help ................................................................................ 1-7 Defibrillator Complications .......................................................................................... 1-7 Defibrillator Output Energy ......................................................................................... 1-7 External Pacemaker (Optional)........................................................................................... 1-8 Intended Use — Pacemaker ....................................................................................... 1-8 Pacemaker Complications .......................................................................................... 1-9 Pediatric Pacing ........................................................................................................ 1-10 Intended Use — SpO 2 Monitoring .................................................................................... 1-10 Intended Use — EtCO 2 Monitoring................................................................................... 1-10 Intended Use — NIBP ...................................................................................................... 1-11 ECG Monitoring ................................................................................................................ 1-11 Recorder Function ............................................................................................................ 1-11 Paddles and Electrodes .................................................................................................... 1-12 Batteries............................................................................................................................ 1-12 Code-Ready System......................................................................................................... 1-13 Safety Considerations....................................................................................................... 1-13 Warnings........................................................................................................................... 1-14 Operator Safety ........................................................................................................ 1-15 Patient Safety ........................................................................................................... 1-16 Cautions............................................................................................................................ 1-18 Restarting the Defibrillator ................................................................................................ 1-18 FDA Tracking Requirements............................................................................................. 1-19 Notification of Adverse Events .................................................................................. 1-19 Software License .............................................................................................................. 1-20 Service .............................................................................................................................. 1-20 The ZOLL Serial Number.................................................................................................. 1-21 TABLE OF CONTENTS iiwww.zoll.com9650-0912-01 Rev. J Chapter 2Product Overview Defibrillator Controls and Indicators.................................................................................... 2-1 The Front Panel .......................................................................................................... 2-3 Display Screen ........................................................................................................…

Text truncated - open the document above for the full version.

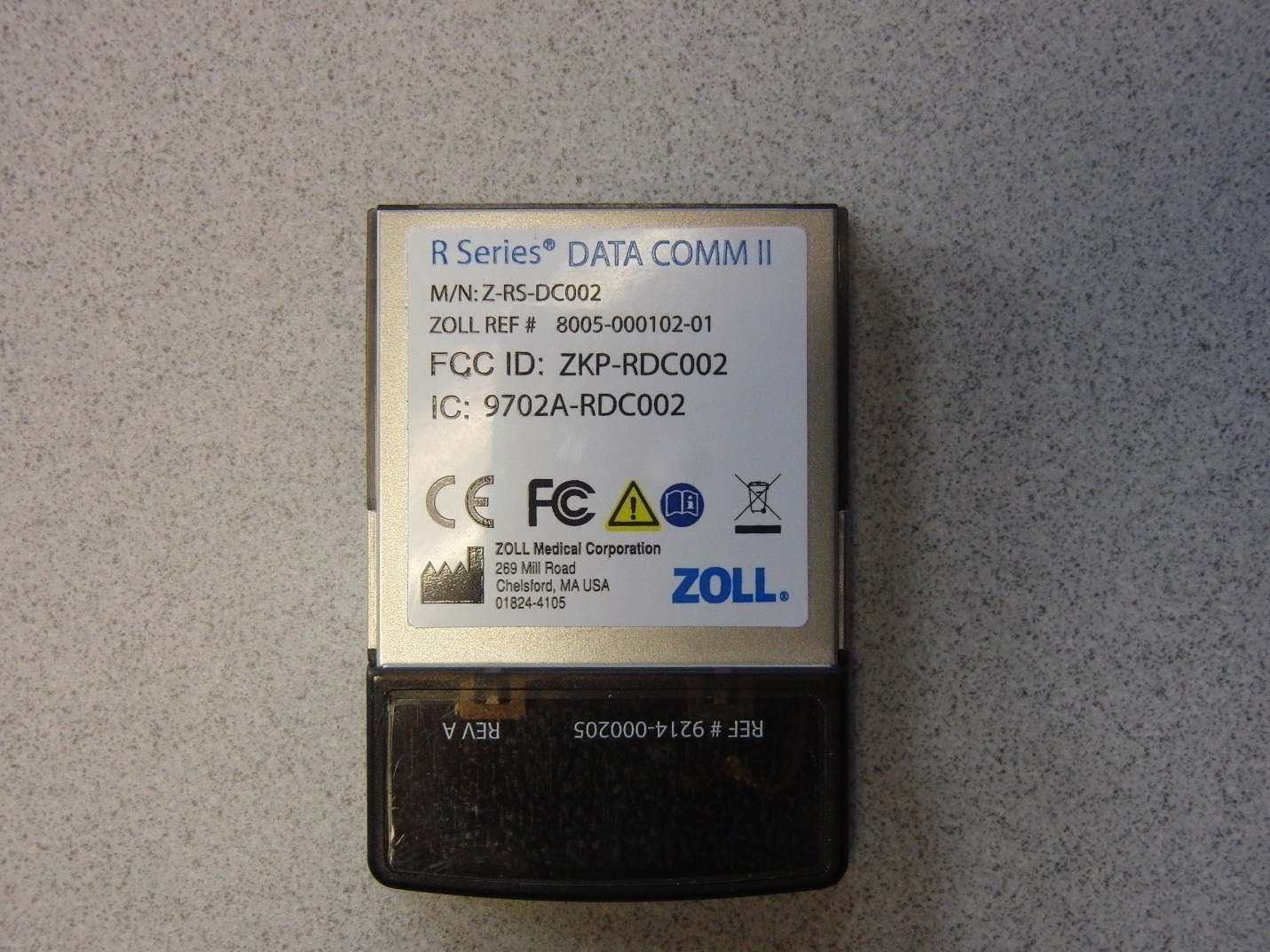

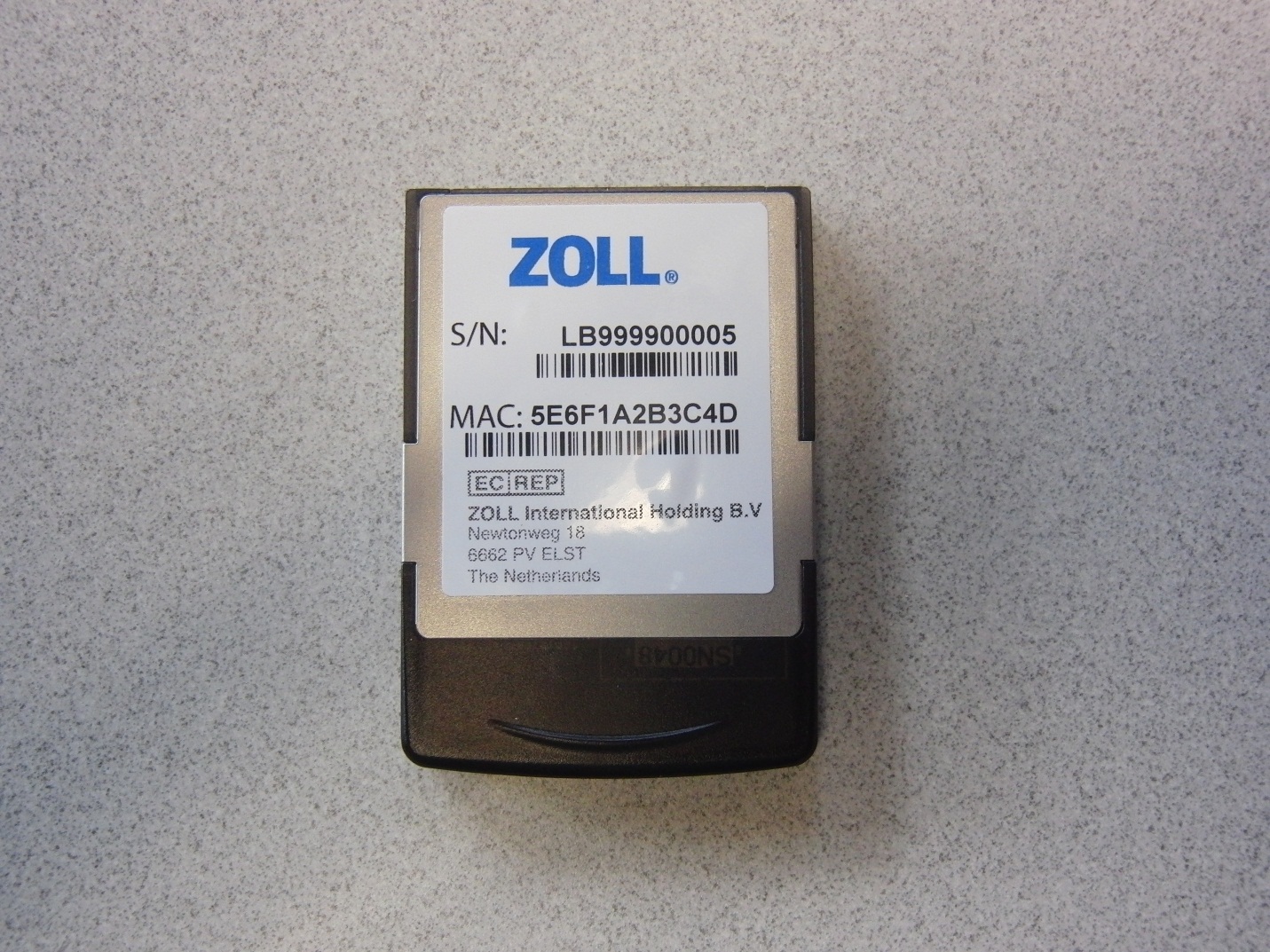

WTD 13.4.9 FCC Compliance Opinion LGPD0094 Information about the Applicant Grantee (Company Name) Zoll Medical Corp. FCC Contact Person Carl Mamuszka Address 269 Mill Road City, State, Zip Chelmsford, MA 01824 Job Number LGPD0094 Model Z-RS-DC002 FCC ID ZKP-RDC002 Agent Scott Nelson Approval Type Original Equipment Class NII Unlicensed National Information Infrastructure Tx, DTS Digital Transmission System Rule Part 15.247 15.407 Overview The R Series DATA COMM II wi-fi module, manufactured by Logic PD for ZOLL Medical Corporation, contains an 802.11 a/b/g/n radio. Test reports are submitted by LS Research LLC and Northwest EMC, Inc. to demonstrate compliance of the radio. The reports from LS Research LLC list the product as Logic PD 37x Torpedo + Wireless SOM. This product and the R Series DATA COMM II are identical. The Northwest EMC report lists the product as the ZOLL CF Card Module. The ZOLL CF Card Module and the R Series Data COMM II are also the same as the Logic PD 37x Torpedo + Wireless SOM. Confidentiality requested for allowed files. Request is properly addressed and referenced. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dave Tolman, TCB Committee 8/12/2013

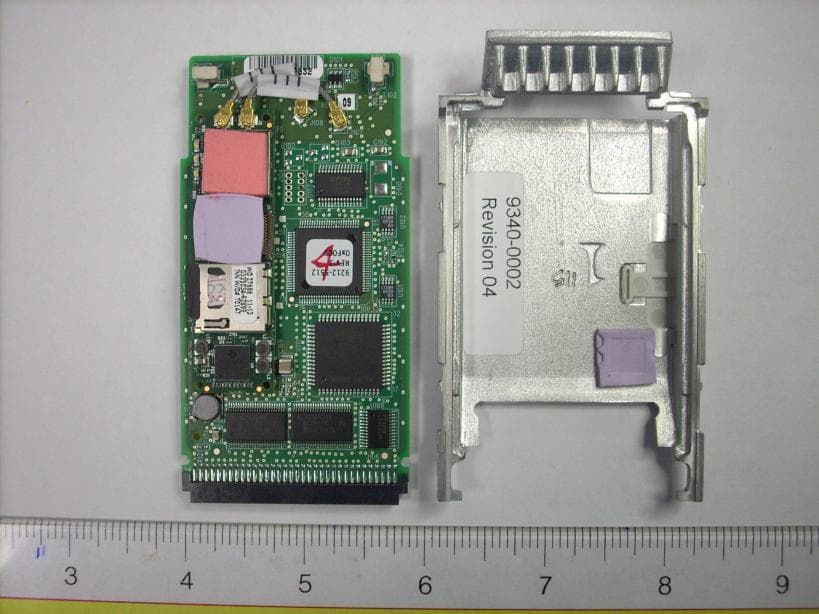

D7002 MODULE WITH SHIELD D7002 MODULE WITH SHIELD REMOVED

ZOLL CF WiFi Antennas The antennas for the system consist of two printed circuit trace antennas. They are permanently connected within the device using coax cables and W.FL connectors. The user has no access to the antennas, coax cables, or connectors. The 2.45GHz monopole is used for both Bluetooth and 802.11 The 5.4GHz antenna is used for the high frequency 802.11 bands. One is a ¼ wavelength PIFA at 2.45GHz. Gain is 1.24Dbi Peak Gain 1.24 Peak Realized Gain 1.16 The other is a ¼ wavelength monopole at 5.4GHz. Gain is 2.6dBi Peak Gain 2.6 Peak Realized Gain 2.5

There is no tune-up facility for the radio module. All settings are made at the factory.

Zoll Medical Corporation Z-RS-DC002 FCC 2.1091: Maximum Permissible Exposure Level Report No. LGPD0094.6 Report Prepared By Northwest EMC Inc. NORTHWEST EMC – (888) 364-2378 – www.nwemc.com California – Minnesota – Oregon – New York – Washington 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Evaluation Date of Evaluation June 19, 2013 Zoll Medical Corporation Model: Z-RS-DC002 Emissions Description of Evaluation Specification Evaluation Method Pass/Fail Maximum Permissible Exposure FCC 2.1091:2013 OET Bulletin 65, Supplement C Ed 01-01 Pass Approved By: Don Facteau, IS Manager NVLAP Lab Code: 200630-0 This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Report No. LGPD0094.62/9 REV 2012.05.24 REVISION HISTORY Revision Number Description Date Page Number 00 None Report No. LGPD0094.63/9 REV 2012.05.24 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea KCC / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Hong Kong OFTA – Recognized by OFTA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. Russia GOST – Accredited by Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC to perform EMC and Hygienic testing for Information Technology products to GOST standards. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ Report No. LGPD0094.64/9 REV 2013.01.07 LOCATIONS Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 New York Labs WA01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 685-0796 Minnesota Labs MN01-08 9349 W Broadway Ave. Brooklyn Park, MN 55445 (763) 425-2281 Washington Labs NC01-05,SU02,SU07 19201 120 th Ave. NE Bothell, WA 98011 (425) 984-6600 VCCI A-0108 A-0029 A-0109 A-0110 Industry Canada 2834D-1, 2834D-2 2834B-1, 2834B-2, 2834B-3 2834E-1 2834C-1 Report No. LGPD0094.65/9 WTD 12.5.23 PRODUCT DESCRIPTION Client and Equipment Under Test (EUT) Information Company Name: ZOLL Medical Corporation Address: 269 Mill Road City, State, Zip: Chelmsford, MA 01824 Test Requested By: Curt McNamara – Logic Product Development Model: Z-RS-DC002 Information Provided by the Party Requesting the Test Functional Description of the EUT (Equipment Under Test): 802.11abgn / Bluetooth combo CF wireless card containing 1x1 SISO radio module operating in 20 MHz channel bandwidth that is normally installed in the R Series ZOLL R Series™ defibrillators. Testing Objective: To demonstrate compliance with FCC 2.1091 RF exposure requirements for the 802.11abgn and Bluetooth radios. Report No. LGPD0094.66/9 WD.12.29.11 Maximum Permissible Exposure (MPE) OVERVIEW Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. ANSI C95.1-1992 specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. If the use of warning labels on a transmitter is not effective or desirable, the alternative of performing SAR evaluation with the device at its closest range to persons under normal operating conditions may be used. The field strength and power density limits adopted by the FCC are based on whole-body averaged exposure and the assumption of RF field levels relate most accurately to estimating whole-body averaged SAR. This means some local values of exposures exceeding the stated field strength and power density limits may not necessarily imply non-compliance if the spatial average of spatially averaged RF fields over the exposed portions of a person’s body does not …

Text truncated - open the document above for the full version.

W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com TEST REPORT # TR 312142 B C-1489 FCCIC DTS LSR Job #: C-1489 Compliance Testing of: Logic PD 37x Torpedo + Wireless SOM Test Date(s): January 3 rd to August 2 nd 2012 Prepared For: Logic PD 411 Washington Ave N. Suite 400 Minneapolis, MN 55401 This Test Report is issued under the Authority of: Khairul Aidi Zainal, Senior EMC Engineer Signature: Date:8/2/12 Test Report Reviewed by: Tom Smith Signature: Date: 8/6/2012 Project Engineer: Khairul Aidi Zainal, Senior EMC Engineer. Signature: Date: 8/2/12 This Test Report may not be reproduced, except in full, without written approval of LS Research, LLC. LS Research, LLC Page 2 of 63 Prepared For: LS Research Model #: SOMDM3730-30-2780AKCR-B Report #: TR 312142 B C-1489 FCCIC DTS EUT: 37x Torpedo + Wireless SOM Serial #: Refer to table in section 2.2 LSR Job #: C-1489 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ............................................................................................................. 4 1.1 - Scope .................................................................................................................................. 4 1.2 – Normative References ....................................................................................................... 4 1.3 - LS Research, LLC Test Facility .......................................................................................... 5 1.4 – Location of Testing ............................................................................................................. 5 1.5 – Test Equipment Utilized ..................................................................................................... 5 EXHIBIT 2. PERFORMANCE ASSESSMENT ................................................................................... 6 2.1 – Client Information ............................................................................................................... 6 2.2 - Equipment Under Test (EUT) Information .......................................................................... 6 2.3 - Associated Antenna Description ......................................................................................... 6 2.4 - EUT’S Technical Specifications .......................................................................................... 7 2.5 - Product Description ............................................................................................................. 8 EXHIBIT 3. EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS ................... 9 3.1 - Climate Test Conditions ...................................................................................................... 9 3.2 - Applicability & Summary Of EMC Emission Test Results ................................................... 9 3.3 - Modifications Incorporated In The EUT For Compliance Purposes .................................... 9 3.4 - Deviations & Exclusions From Test Specifications ............................................................. 9 EXHIBIT 4. DECLARATION OF CONFORMITY .............................................................................. 10 EXHIBIT 5. RADIATED EMISSIONS TEST ...................................................................................... 11 5.1 - Test Setup ......................................................................................................................... 11 5.2 - Test Procedure ................................................................................................................. 11 5.3 - Test Equipment Utilized .................................................................................................... 12 5.4 - Test Results ...................................................................................................................... 12 5.5 - Calculation of Radiated Emissions Limits and reported data. ........................................... 13 5.6 - Radiated Emissions Test Data Chart ................................................................................ 14 5.7 – Screen Captures. ............................................................................................................. 18 5.7.1 Transceivers operating in the 2400 to 2483.5 MHz band ................................................ 21 5.7.2 Transceivers operating in the 5725 to 5850 MHz band ................................................... 22 EXHIBIT 6. CONDUCTED EMISSIONS TEST, AC POWER LINE .................................................. 25 6.1 Test Setup ....................................................................................................................... 25 6.2 Test Procedure ............................................................................................................... 25 6.3 Test Equipment Utilized ................................................................................................... 25 LS Research, LLC Page 3 of 63 Prepared For: LS Research Model #: SOMDM3730-30-2780AKCR-B Report #: TR 312142 B C-1489 FCCIC DTS EUT: 37x Torpedo + Wireless SOM Serial #: Refer to table in section 2.2 LSR Job #: C-1489 6.4 Test Results .................................................................................................................... 25 EXHIBIT 7. OCCUPIED BANDWIDTH ............................................................................................. 29 7.1 - Limits ................................................................................................................................. 29 7.2 - Method of Measurements ................................................................................................. 29 7.3 - Test Data .......................................................................................................................... 29 7.4 – Screen Captures ............................................................................…

Text truncated - open the document above for the full version.

W66 N220 Commerce Court ● Cedarburg, WI 53012 Phone: 262.375.4400 ● Fax: 262.375.4248 www.lsr.com TEST REPORT # DP 312142 C-1489 U-NII band 2 LSR Job #: C-1489 Compliance Testing of: Logic PD 37x Torpedo + Wireless SOM Prepared For: Logic PD 411 Washington Ave N. Suite 400 Minneapolis, MN 55401 This Data Packet is issued under the Authority of: Khairul Aidi Zainal, Senior EMC Engineer. Signature: Date: 9/19/12 This data packet may not be reproduced, except in full, without written approval of LS Research, LLC. Prepared For: Logic PD EUT: 37x Torpedo + Wireless SOM LS Research, LLC Model #: SOMDM3730-30-2780AKCR-B LSR Job #: C-1489 Serial #: Refer to table in section 2.2 Page 2 of 70 TABLE OF CONTENTS EXHIBIT 1. INTRODUCTION ........................................................................................................... 4 1.1 - Scope ............................................................................................................................... 4 1.2 – Normative References ..................................................................................................... 4 1.3 - LS Research, LLC Test Facility ........................................................................................ 5 1.4 – Location of Testing .......................................................................................................... 5 1.5 – Test Equipment Utilized ................................................................................................... 5 EXHIBIT 2. PERFORMANCE ASSESSMENT ................................................................................. 6 2.1 – Client Information ............................................................................................................ 6 2.2 - Equipment Under Test (EUT) Information ........................................................................ 6 2.3 - Associated Antenna Description ....................................................................................... 6 2.4 - Product Description .......................................................................................................... 6 EXHIBIT 3. EUT OPERATING CONDITIONS & CONFIGURATIONS DURING TESTS .................. 7 3.1 - Climate Test Conditions ................................................................................................... 7 3.2 - Modifications Incorporated In The EUT For Compliance Purposes ................................... 7 3.3 - Deviations & Exclusions From Test Specifications ........................................................... 7 EXHIBIT 5. General Procedures. ..................................................................................................... 8 5.1 Radiated measurements .................................................................................................... 8 5.2 Calculation of Radiated emissions limits and reported data. ............................................... 8 EXHIBIT 6. EUT Duty Cycle .......................................................................................................... 10 6.1 Test Procedure. ................................................................................................................ 10 6.2 Data. ................................................................................................................................ 10 EXHIBIT 7. Emission Bandwidth (EBW) ........................................................................................ 13 7.1 Test procedure. ................................................................................................................ 13 7.2 Test Data. ......................................................................................................................... 13 7.3 Screen Captures .............................................................................................................. 17 EXHIBIT 8 Maximum Conducted Output Power And Peak Power Spectral Density ..................... 21 8.1 Test Procedure ................................................................................................................. 21 8.2 Limits ................................................................................................................................ 21 8.3 Test Data .......................................................................................................................... 22 8.4 Screen Captures .............................................................................................................. 24 EXHIBIT 9. Peak Excursion Ratio .................................................................................................. 33 9.1 Test Procedure ................................................................................................................. 33 9.2 Limit ................................................................................................................................. 33 Prepared For: Logic PD EUT: 37x Torpedo + Wireless SOM LS Research, LLC Model #: SOMDM3730-30-2780AKCR-B LSR Job #: C-1489 Serial #: Refer to table in section 2.2 Page 3 of 70 9.3 Test Data .......................................................................................................................... 33 9.4 Screen Captures .............................................................................................................. 37 EXHIBIT 10 Spurious Emissions .................................................................................................... 41 10.1 Test Procedure ............................................................................................................... 41 10.2 Limits .............................................................................................................................. 41 10.3 Test Data ........................................................................................................................ 42 APPENDIX A – Tes…

Text truncated - open the document above for the full version.

ZOLL Medical Corporation Zoll CF Card Module FCC 15.407:2013 Report #: LGPD0094 Report Prepared By Northwest EMC Inc. NORTHWEST EMC – (888) 364-2378 – www.nwemc.com California – Minnesota – Oregon – New York – Washington WTD 12.5.23 CERTIFICATE OF TEST Last Date of Test: May 17, 2013 ZOLL Medical Corportion Model: Zoll CF Card Module Emissions Test Description Specification Test Method Pass/Fail Closing Time FCC 15.407:2013 ANCI C63.10:2009 Pass Move Time FCC 15.407:2013 ANCI C63.10:2009 Pass Non Occupancy Period FCC 15.407:2013 ANCI C63.10:2009 Pass Deviations From Test Standards None Approved By: Kyle Holgate, Operations Manager NVLAP Lab Code: 200676-0 Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 41 Tesla Ave. Irvine, CA 92618 Phone: (503) 844-4066 Fax: 844- 3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada (Site filing #2834B-1). This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Report No. LGPD00942 of 31 REV 2012.08.02 REVISION HISTORY Revision Number Description Date Page Number 00 None Barometric Pressure The recorded barometric pressure has been normalized to sea level. Report No. LGPD00943 of 31 REV 2012.05.24 ACCREDITATIONS AND AUTHORIZATIONS United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC Guide 65 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea KCC / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Hong Kong OFTA – Recognized by OFTA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. Russia GOST – Accredited by Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC to perform EMC and Hygienic testing for Information Technology products to GOST standards. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ Report No. LGPD00944 of 31 REV 2013.02.26 LOCATIONS Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 New York Labs NY01- 04 4939 Jordan Rd. Elbridge, NY 13060 (315) 685-0796 Minnesota Labs MN01-08 9349 W Broadway Ave. Brooklyn Park, MN 55445 (763) 425-2281 Washington Labs NC01-0 5,SU02,SU07 19201 120 th Ave. NE Bothell, WA 98011 (425) 984- 6600 VCCI A- 0108 A- 0029 A-…

Text truncated - open the document above for the full version.
