ZL9-360MTablet PC

Flex 360M User Manual                                                                                                     !  2 Table of Contents Chapter 1 Getting to know your Tablet PC ...................................................................... 3 Front view ........................................................................................................................... 3 Right view ........................................................................................................................... 6 Chapter 2 Get to use Windows 8.1 ................................................................................... 7 Operating system configuration for the first time .......................................................... 7 Desktop Operating system ............................................................................................... 7 HotKeys .............................................................................................................................. 8 Sleep mode and power off of the tablet PC ................................................................... 11 Touch Screen Operations ............................................................................................... 13 Connections to the wireless network ............................................................................ 17 Support & Help ................................................................................................................. 18 Chapter 3 System Recovery. ............................................................... ............................19 Chapter 4 T roubleshooting ............................................................................................. 20 Troubleshooting ............................................................................................................... 20                                                                     ! "    # $ %                     !                   & % "          #                                 "        $     !  %! %  $    ' (              " %   " %   %       "          %        % %         &      '    (             )     %*    )    %*+,      % !     !  %     !% %                         + %    %    !    !  !  !% %             +, -%   %!  .     ! %         -     %   &     %!"/  &     (    %  *      &    (   ! ."/ 0   01      # 1  % *                   $ % 2   0       0  0      -     !%       %"                           2   %       3    0  -  34          %          !           5 6  %         !           5 57 8%6    9               #                        $ % 2  4(  7 8%       -  :34!    !! !    "7 8%  7 8%   " 7 8%  %     7 8%           %    !          9                       7 8% 1      "       …

Text truncated - open the document above for the full version.

ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITED No.161, Xin Min Road, Tong Luo Wei Industrial Zone, Dong Guan, China -------------------------------------------------------------------------------- (FCC ID：ZL9-360M) POWER OF ATTORNEY DATE: 2015-09-01 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize SEM.Test Technology Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SEM.Test Technology Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITED are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITED ------------------------- (Xiaona Liu) (QA Manager)

ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITED No.161, Xin Min Road, Tong Luo Wei Industrial Zone, Dong Guan, China --------------------------------------------------------------------------------------------------------------------- Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZL9-360M Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics ZL9-360M_FCCID_Schematics.pdf Block Diagram ZL9-360M_FCCID_BlockDiagram.pdf Operational Description ZL9-360M_FCCID_OperationalDescription.pdf Software Security Description ZL9-360M_FCCID_SWSecurityDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ELECTRONICS TECHNOLOGY(DONG GUAN)COMPANY LIMITED ------------------------- (Xiaona Liu) (QA Manager)

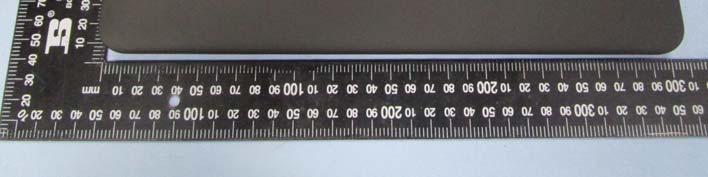

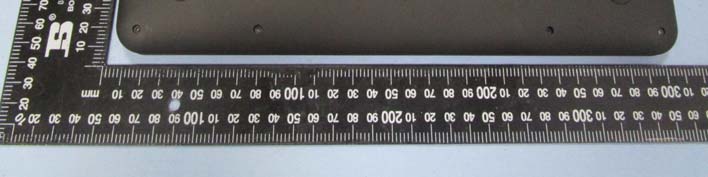

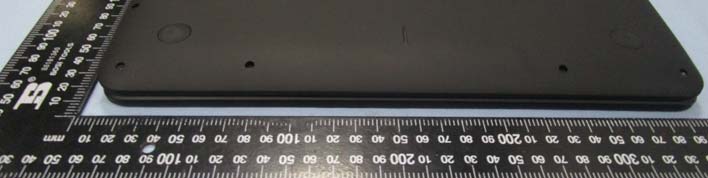

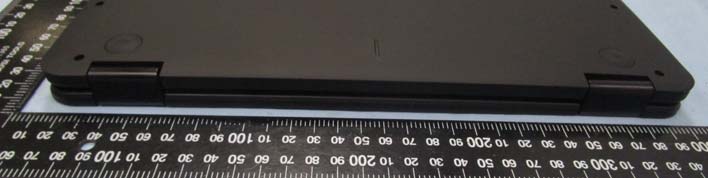

Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B EUT View 3 EUT View 4 Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B EUT View 5 EUT View 6 Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B EUT View 7

Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZL9-360M This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 BT/WIFI Antenna 2 BT/WIFI Antenna 1 Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B Solder Board-Component View 1 Solder Board-Component View 2 Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B Solder Board-Component View 3 Solder Board-Component View 4 Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B Solder Board-Component View 5 Solder Board-Component View 6 Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B Solder Board-Component View 7 Solder Board-Component View 8 Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B Solder Board-Component View 9 Solder Board-Component View 10 Model: 360M REPORT NO.: STR15088130I-1 FCC PART 15B Solder Board-Component View 11 Solder Board-Component View 12

RF Exposure Requirements Product Description: Tablet PC Model No.: 360M FCC ID: ZL9-360M According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth Tx frequency range: 2402~2480MHz Device category: Portable device Maximum Conducted Output Power: 4.977dBm Maximum Conducted Output Power: 3.145mW Minimum Distance: 5mm Limit: 10mW Source-based time-averaged Conducted output power is 3.145mW < 10 mW WIFI 2.4G Tx frequency range: 2412~2462MHz Device category: Portable device Maximum Conducted Output Power: 8.19dBm Maximum Conducted Output Power: 6.59mW Minimum Distance: 5mm Limit: 10mW Source-based time-averaged Conducted output power is 6.59mW < 10 mW WIFI 5.2G Tx frequency range: 5150-5250MHz Device category: Portable device Maximum Conducted Output Power: 8.43dBm Maximum Conducted Output Power: 6.97mW Minimum Distance: 5mm Limit: 7mW Source-based time-averaged Conducted output power is 6.97mW < 7 mW WIFI 5.8G Tx frequency range: 5.725-5.825MHz Device category: Portable device Maximum Conducted Output Power: 6.51dBm Maximum Conducted Output Power: 4.48mW Minimum Distance: 5mm Limit: 6mW Source-based time-averaged Conducted output power is 4.48mW < 6 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Model: 360M REPORT NO.: STR15088130I-5 PAGE 161 OF 222 FCC PART 15E Test mode: Transmitting Channel 5805MHz Horizontal No. Frequency Reading Correct Result Limit MarginDegree Height Remark (MHz) (dBuV/m) Factor(dB)(dBuV/m)(dBuV/m)(dB) (·) (cm) 1 38.8879 14.75 9.06 23.81 40.00 -16.19177 100 peak 2 103.8055 14.46 5.73 20.19 43.50 -23.3190 100 peak 3 513.6331 15.58 11.21 26.79 46.00 -19.21336 100 peak 4 734.4913 16.04 15.22 31.26 46.00 -14.74360 100 peak Model: 360M REPORT NO.: STR15088130I-5 PAGE 162 OF 222 FCC PART 15E Test Specification: Vertical No. Frequency Reading Correct Result Limit MarginDegree Height Remark (MHz) (dBuV/m) Factor(dB)(dBuV/m)(dBuV/m)(dB) (·) (cm) 1 41.1320 15.91 8.91 24.82 40.00 -15.18270 100 peak 2 377.2591 16.03 9.20 25.23 46.00 -20.77164 100 peak 3 739.6605 16.06 15.53 31.59 46.00 -14.41228 200 peak Model: 360M REPORT NO.: STR15088130I-5 PAGE 163 OF 222 FCC PART 15E For 802.11a Spurious Emission above 1GHz For the frequency band 5.15-5.25GHz(802.11a) Restricted Bandedge Peak No. Frequency Reading Correct Result Limit MarginDegree Height Remark (MHz) (dBuV/m) dB/m (dBuV/m)(dBuV/m)(dB) (°) (cm) 1 4740.500 29.65 30.41 60.06 74.00 -13.94360 100 peak Model: 360M REPORT NO.: STR15088130I-5 PAGE 164 OF 222 FCC PART 15E Restricted Bandedge Average No. Frequency Reading Correct Result Limit MarginDegree Height Remark (MHz) (dBuV/m) dB/m (dBuV/m)(dBuV/m)(dB) (°) (cm) 1 4949.800 16.13 30.71 46.84 54.00 -7.16 360 100 Ave Note: this EUT was tested in the low, high channel and the worst case position data was reported. Model: 360M REPORT NO.: STR15088130I-5 PAGE 165 OF 222 FCC PART 15E Restricted Band, Hormonics And Spurious Emissions Frequency MHz Detector Meter Reading dBuV Direction Degree Polar H / V Antenna Loss dB Cable loss dB Amplifier dB Correction Amplitude dBuV/m Limit dBuV/m Margin dB Low Channel (5180MHz) 15540 PK 50.8 360 V 40.7 10.9 39.6 62.8 74 -11.2 15540 PK 49.4 360 H 40.7 10.9 39.6 61.4 74 -12.6 15540 AV 35.6 360 V 40.7 10.9 39.6 47.6 54 -6.4 15540 AV 34.7 360 H 40.7 10.9 39.6 46.7 54 -7.3 High Channel (5240MHz) 15720 PK 51.1 360 V 40.7 10.9 39.6 63.1 74 -10.9 15720 PK 50.3 360 H 40.7 10.9 39.6 62.3 74 -11.7 15720 AV 35.4 360 V 40.7 10.9 39.6 47.4 54 -6.6 15720 AV 34.3 360 H 40.7 10.9 39.6 46.3 54 -7.7 Model: 360M REPORT NO.: STR15088130I-5 PAGE 166 OF 222 FCC PART 15E For the frequency band 5.725-5.825GHz (802.11a) Restricted Bandedge Peak No. Frequency Reading Correct Result Limit MarginDegree Height Remark (MHz) (dBuV/m) dB/m (dBuV/m)(dBuV/m)(dB) (°) (cm) 1 5859.660 30.88 31.23 62.11 74 -11.89 360 100 peak Model: 360M REPORT NO.: STR15088130I-5 PAGE 167 OF 222 FCC PART 15E Restricted Bandedge Average No. Frequency Reading Correct Result Limit MarginDegree Height Remark (MHz) (dBuV/m) dB/m (dBuV/m)(dBuV/m)(dB) (°) (cm) 1 5876.500 16.92 31.25 48.17 54 -5.83 360 100 Ave Note: this EUT was tested in the low, high channel and the worst case position data was reported. Model: 360M REPORT NO.: STR15088130I-5 PAGE 168 OF 222 FCC PART 15E Restricted Band, Hormonics And Spurious Emissions Frequency MHz Detector Meter Reading dBuV Direction Degree Polar H / V Antenna Loss dB Cable loss dB Amplifier dB Correction Amplitude dBuV/m Limit dBuV/m Margin dB Low Channel (5745MHz) 11490 PK 55.8 360 V 38.9 9.8 40.1 64.4 74 -9.6 11490 PK 54.5 360 H 38.9 9.8 40.1 63.1 74 -10.9 11490 AV 36.7 360 V 38.9 9.8 40.1 45.3 54 -8.7 11490 AV 35.0 360 H 38.9 9.8 40.1 43.6 54 -10.4 High Channel (5805MHz) 11610 PK 54.2 360 V 38.9 9.8 40.1 62.8 74 -11.2 11610 PK 53.1 360 H 38.9 9.8 40.1 61.7 74 -12.3 11610 AV 37.4 360 V 38.9 9.8 40.1 46.0 54 -8.0 11610 AV 36.3 360 H 38.9 9.8 40.1 44.9 54 -9.1 Model: 360M REPORT NO.: STR15088130I-5 PAGE 169 OF 222 FCC PART 15E 802.11n HT20 For the frequency band 5.15-5.25GHz(802.11n HT20) Restricted Bandedge Peak No. Frequency Reading Correct Result Limit MarginDegree Height Remark (MHz) (dBuV/m) dB/m (dBuV/m)(dBuV/m)(dB) (°) (cm) 1 4810.700 30.04 30.52 60.56 74.00 -13.44 360 100 peak Model: 360M REPORT NO.: STR15088130I-5 PAGE 170 OF 222 FCC PART 15E Restricted Bandedge Average No. Frequency Reading Correct Result Limit MarginDegree Height Remark (MHz) (dBuV/m) dB/m (dBuV/m)(dBuV/m)(dB) (°) (cm) 1 4945.900 16.13 30.71 46.84 54.00 -7.16 360 100 Ave Note: this EUT was tested in the low, high channel and the worst case position data was reported. Model: 360M REPORT NO.: STR15088130I-5 PAGE 171 OF 222 FCC PART 15E Restricted Band, Hormonics And Spurious Emissions Frequency MHz Detector Meter Reading dBuV Direction Degree Polar H / V Antenna Loss dB Cable loss dB Amplifier dB Correction Amplitude dBuV/m Limit dBuV/m Margin dB Low Channel (5180MHz) 15540 PK 50.9 360 V 40.7 10.9 39.6 62.9 74 -11.1 15540 PK 50.4 360 H 40.7 10.9 39.6 62.4 74 -11.6 15540 AV 34.5 360 V 40.7 10.9 39.6 46.5 54 -7.5 15540 AV 34.6 360 H 40.7 10.9 39.6 46.6 54 -7.4 High Channel (5240MHz) 15720 PK 50.3 360 V 40.7 10.9 39.6 62.3 74 -11.7 15720 PK 49.5 360 H 40.7 10.9 39.6 61.5 74 -12.5 15720 AV 34.2 360 V 40.7 10.9 39.6 46.2 54 -7.8 15720 AV 33.8 360 H 40.7 10.9 39.6 45.8 54 -8.2 Model: 360M REPORT NO.: STR15088130I-5 PAGE 172 OF 222 FCC PART 15E For the frequency band 5.725-5.825GHz (802.11n HT20) Restricted Bandedge Peak No. Frequency Reading Correct Result Limit MarginDegree Height Remark (MHz) (dBuV/m) dB/m (dBuV/m)(dBuV/m)(dB) (°) (cm) 1 5888.480 30.94 31.25 62.19 74 -11.81 360 100 peak Model: 360M REPORT NO.: STR15088130I-5 PAGE 173 OF 222 FCC PART 15E Restricted Bandedge Average No. Frequency Reading Correct Result Limit MarginDegree Height Remark (MHz) (dBuV/m) dB/m (dBuV/m)(dBuV/m)(dB) (°) (cm) 1 5878.040 16.92 31.25 48.17 54 -5.83 360 100 Ave Note: this EUT was tested in the low, high channel and the worst case position data was reported. Model: 360M REPORT NO.: STR15088130I-5 PAGE 174 OF 222 FCC PART 15E Restricted Band, Hormonics And Spurious Emissions Frequency MHz Detector Meter Reading dBuV Direction Degree Polar H / V Antenna Loss dB Cable loss dB Amplifier dB Correction Amp…

Text truncated - open the document above for the full version.

Model: 360M REPORT NO.: STR15088130I-5 PAGE 81 OF 222 FCC PART 15E 5785MHz 5805MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 82 OF 222 FCC PART 15E Test Mode: 802.11n-HT20 5180MHz 5200MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 83 OF 222 FCC PART 15E 5240MHz 5745MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 84 OF 222 FCC PART 15E 5785MHz 5805MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 85 OF 222 FCC PART 15E Test Mode: 802.11ac-HT20 5180MHz 5200MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 86 OF 222 FCC PART 15E 5240MHz 5745MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 87 OF 222 FCC PART 15E 5785MHz 5805MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 88 OF 222 FCC PART 15E 9. Conducted Spurious Emissions 9.1 Standard Applicable According to §15.407 (b) (b) Undesirable emission limits. Except as shown in paragraph (b)(7) of this section, the maximum emissions outside of the frequency bands of operation shall be attenuated in accordance with the following limits: (1) For transmitters operating in the 5.15-5.25 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. (2) For transmitters operating in the 5.25-5.35 GHz band: All emissions outside of the 5.15-5.35 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. (3) For transmitters operating in the 5.47-5.725 GHz band: All emissions outside of the 5.47-5.725 GHz band shall not exceed an e.i.r.p. of −27 dBm/MHz. (4) For transmitters operating in the 5.725-5.85 GHz band: All emissions within the frequency range from the band edge to 10 MHz above or below the band edge shall not exceed an e.i.r.p. of −17 dBm/MHz; for frequencies 10 MHz or greater above or below the band edge, emissions shall not exceed an e.i.r.p. of −27 dBm/MHz. 9.2 Test Procedure 1. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the spectrum analyzer via a RF combiner. 2. Set the spectrum analyzer as RBW = 100kHz/1MHz, VBW=300kHz/3MHz, Sweep = auto 3. Set the Lowest, Middle and Highest Transmitting Channel, observed the outside band of 30MHz to 40GHz, then mark the higher-level emission for comparing with the FCC rules. 9.3 Environmental Conditions Temperature: 21 C Relative Humidity: 54 ATM Pressure: 1011 mbar 9.4 Summary of Test Results/Plots Model: 360M REPORT NO.: STR15088130I-5 PAGE 89 OF 222 FCC PART 15E Emissions above 26.5GHz are attenuated more than 20dB below the permissible limits and test data are not reported. Antenna 1 802.11a 5180MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 90 OF 222 FCC PART 15E 5200MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 91 OF 222 FCC PART 15E 5240MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 92 OF 222 FCC PART 15E 5745MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 93 OF 222 FCC PART 15E 5785MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 94 OF 222 FCC PART 15E 5805MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 95 OF 222 FCC PART 15E 802.11n-HT20 5180MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 96 OF 222 FCC PART 15E 5200MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 97 OF 222 FCC PART 15E 5240MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 98 OF 222 FCC PART 15E 5745MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 99 OF 222 FCC PART 15E 5785MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 100 OF 222 FCC PART 15E 5805MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 101 OF 222 FCC PART 15E 802.11ac-HT20 5180MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 102 OF 222 FCC PART 15E 5200MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 103 OF 222 FCC PART 15E 5240MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 104 OF 222 FCC PART 15E 5745MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 105 OF 222 FCC PART 15E 5785MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 106 OF 222 FCC PART 15E 5805MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 107 OF 222 FCC PART 15E Antenna 2 802.11a 5180MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 108 OF 222 FCC PART 15E 5200MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 109 OF 222 FCC PART 15E 5240MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 110 OF 222 FCC PART 15E 5745MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 111 OF 222 FCC PART 15E 5785MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 112 OF 222 FCC PART 15E 5805MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 113 OF 222 FCC PART 15E 802.11n-HT20 5180MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 114 OF 222 FCC PART 15E 5200MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 115 OF 222 FCC PART 15E 5240MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 116 OF 222 FCC PART 15E 5745MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 117 OF 222 FCC PART 15E 5785MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 118 OF 222 FCC PART 15E 5805MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 119 OF 222 FCC PART 15E 802.11ac-HT20 5180MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 120 OF 222 FCC PART 15E 5200MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 121 OF 222 FCC PART 15E 5240MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 122 OF 222 FCC PART 15E 5745MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 123 OF 222 FCC PART 15E 5785MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 124 OF 222 FCC PART 15E 5805MHz Model: 360M REPORT NO.: STR15088130I-5 PAGE 125 OF 222 FCC PART 15E 10. Radiated Spurious Emissions 10.1 Measurement Uncertainty Based on NIS 81, The Treatment of Uncertainty in EMC Measurements, the best estimate of the uncertainty of a radiation emissions measurement is +5.10 dB. 10.2 Standard Applicable According to §15.407(b)(6), Unwanted emissions below 1 GHz must comply with the general field strength limits set forth in §15.209. Further, any U-NII devices using an AC power line are required to comply also with the conducted limits set forth in §15.207. According to §15.407(b)(7), The provisions of §15.205 apply to intentional radiators operating under this section. 789033 D02 General UNII Test Procedures New Rules v01 If radiated measurements …

Text truncated - open the document above for the full version.

Model: 360M REPORT NO.: STR15088130I-5 PAGE 1 OF 222 FCC PART 15E FCC Part 15E Measurement and Test Report For ELECTRONICS TECHNOLOGY(DONG GUAN) COMPANY LIMITED No.161, Xin Min Road, Tong Luo Wei Industrial Zone, Dong Guan, China FCC ID: ZL9-360M Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. FCC Rule(s): FCC Part 15E Product Description: Tablet PC Tested Model: 360M Report No.: STR15088130I-5 Tested Date: 2015-08-13 to 2015-08-29 Issued Date: 2015-08-29 Tested By: Lebron Wang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Model: 360M REPORT NO.: STR15088130I-5 PAGE 2 OF 222 FCC PART 15E TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ............................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................... 5 1.3 TEST METHODOLOGY ............................................................................................................................................. 5 1.4 TEST FACILITY ....................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 6 1.6 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 6 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 7 3. RF EXPOSURE ......................................................................................................................................................... 8 3.1 STANDARD APPLICABLE ......................................................................................................................................... 8 3.2 TEST RESULT.......................................................................................................................................................... 8 4. ANTENNA REQUIREMENT .................................................................................................................................. 9 4.1 STANDARD APPLICABLE ......................................................................................................................................... 9 4.2 EVALUATION INFORMATION .................................................................................................................................. 9 5. CONDUCTED EMISSIONS .................................................................................................................................. 10 5.1 MEASUREMENT UNCERTAINTY ............................................................................................................................ 10 5.2 TEST PROCEDURE ................................................................................................................................................. 10 5.3 BASIC TEST SETUP BLOCK DIAGRAM ................................................................................................................... 10 5.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 11 5.5 TEST RECEIVER SETUP ......................................................................................................................................... 11 5.6 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 11 5.7 CONDUCTED EMISSIONS TEST DATA .................................................................................................................... 11 6. POWER SPECTRAL DENSITY ........................................................................................................................... 14 6.1 STANDARD APPLICABLE ....................................................................................................................................... 14 6.2 TEST PROCEDURE ................................................................................................................................................. 14 6.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 15 6.4 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 15 7. EMISSION BANDWIDTH AND OCCUPIED BANDWIDTH ........................................................................... 35 7.1 STANDARD APPLICABLE ....................................................................................................................................... 35 7.2 TEST PROCEDURE ................................................................................................................................................. 35 7.3 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 37 7.4 SUMMARY OF TEST RESULTS/PLOTS .............…

Text truncated - open the document above for the full version.

Model: 360M REPORT NO.: STR15088130I-2/3/4/5 FCC PART 15.247/15E EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Model: 360M REPORT NO.: STR15088130I-2/3/4/5 FCC PART 15.247/15E Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (Above 1GHz)
