ZMF-KINBluetooth tag for tracking and monitoring assets

Trackunit Kin Trackunit Kin Technical User Manual Version 1.0, November 2020 Trackunit Kin Trackunit KIN, Technical Manual v1.0, November 2020 Page 2 Content Content ......................................................................................................... 1 Introduction .................................................................................................... 6 Bluetooth 5.2 & Bluetooth Low Energy (BLE) ................................................ 6 Related Information .......................................................................................................... 8 Safety first...................................................................................................... 8 Simple Guidelines ............................................................................................................ 8 Do Not Operate Where Prohibited ................................................................................... 8 Interference ...................................................................................................................... 8 Avoid Body Contact with Device during Operation ........................................................... 8 Qualified Service .............................................................................................................. 8 Water-Resistance ............................................................................................................. 8 Detailed Safety Information ............................................................................ 9 Exposure to Radio Frequency Signals ............................................................................. 9 Electronic Devices ............................................................................................................ 9 Pacemakers ..................................................................................................................... 9 Posted Facilities ............................................................................................................... 9 Potentially Explosive Atmospheres .................................................................................. 9 Specific Human Absorption Rates (SAR) ......................................................................... 9 Battery Safety Information .............................................................................................. 10 Delivered standard content .......................................................................... 10 Kin BLE Tag (Beacon) ................................................................................. 10 Kin Key Features ......................................................................................... 11 Installing the unit .......................................................................................... 12 Use location – Children not likely to be present ............................................................. 12 Wireless connectivity and product interoperability .......................................................... 12 Advertisement ................................................................................................................ 12 “Onboarding” ................................................................................................................. 13 Configuration .................................................................................................................. 14 Movement Detection (Advanced Sensors) ..................................................................... 14 Sensor Specifications. .................................................................................................... 14 Functionality check ...................................................................................... 14 Installation of Trackunit Kin .......................................................................... 15 Practical installation advice ............................................................................................ 15 Installation for insurance and anti-theft purpose ............................................................. 15 Troubleshooting ........................................................................................... 16 Liability ........................................................................................................................... 16 Warranty ...................................................................................................... 16 Technical Assistance/Support and spare parts ............................................ 16 Minimum Information Required for Technical Assistance ............................................... 17 Return Merchandise Authorization – RMA ..................................................................... 17 Specifications .............................................................................................. 17 Product specifications .................................................................................................... 17 Connections: ............................................................................................................... 18 External temperature ranges: ..................................................................................... 18 Bluetooth LE-specifications: ....................................................................................... 18 Trackunit Kin Trackunit KIN, Technical Manual v1.0, November 2020 Page 3 Power ............................................................................................................................. 18 LED ................................................................................................................................ 18 Mechanical specifications ........................................................................................... 20 Approvals and certificates .......................…

Text truncated - open the document above for the full version.

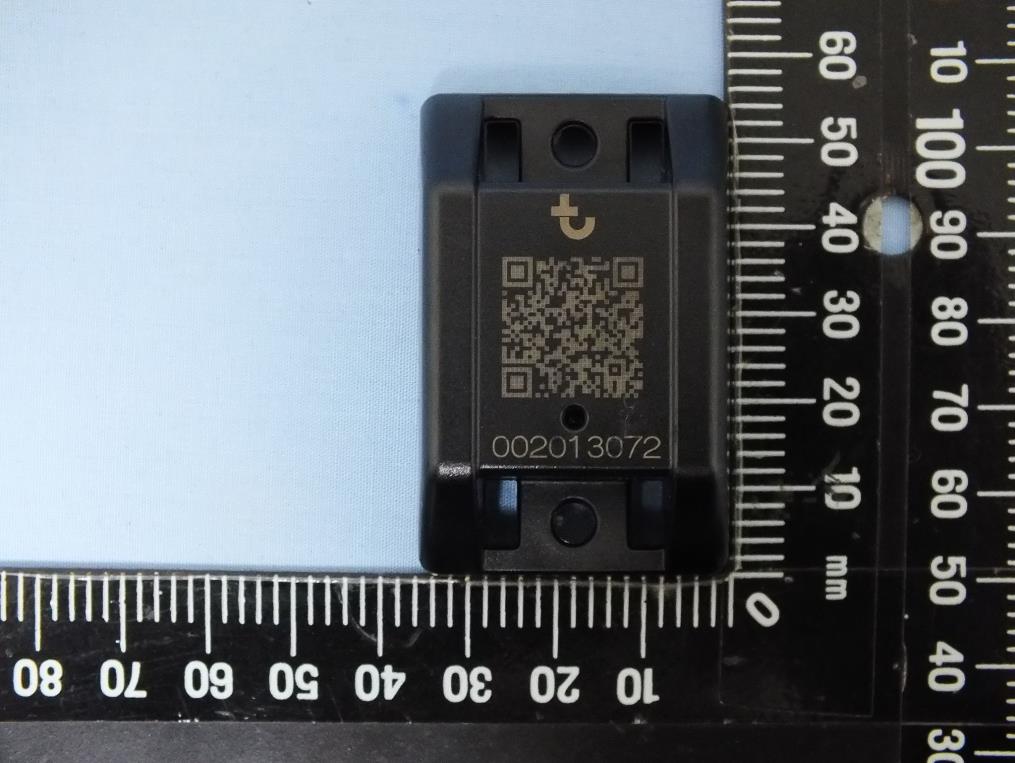

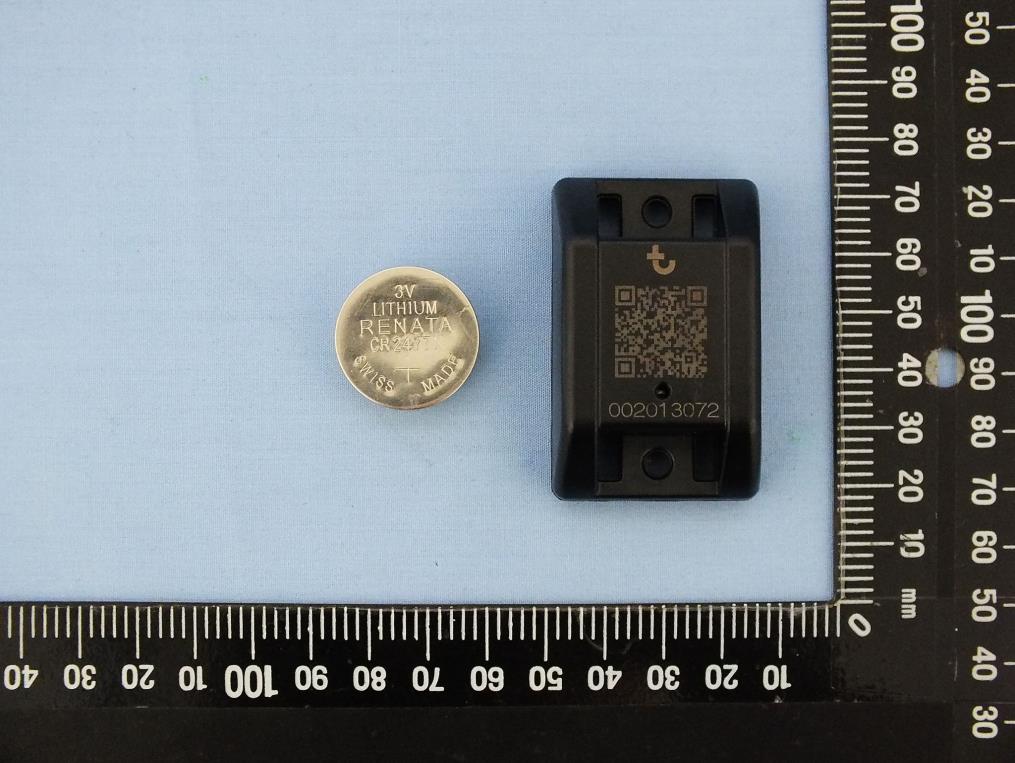

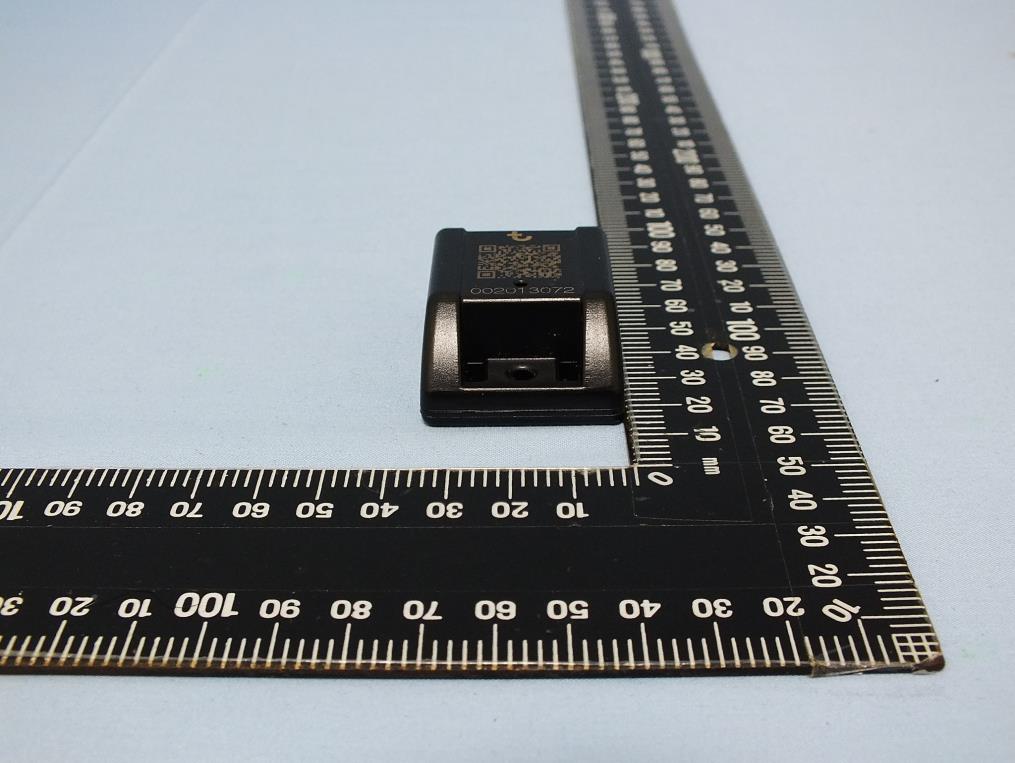

Project No.: 071402 Page No. : 1 of 9 Photographs of EUT Project No.: 071402 Page No. : 2 of 9 Project No.: 071402 Page No. : 3 of 9 Project No.: 071402 Page No. : 4 of 9 Project No.: 071402 Page No. : 5 of 9

Trackunit Aps ________________________________________________________________________________________________ Gasværksvej 24, DK-9000 Aalborg, +45 96 73 74 00 www.trackunit.com Kin labels for external marking Trackunit Kin is laser engraved directly on the front and on the back side of the product Front side with serial number. Back side with regulatory informastion

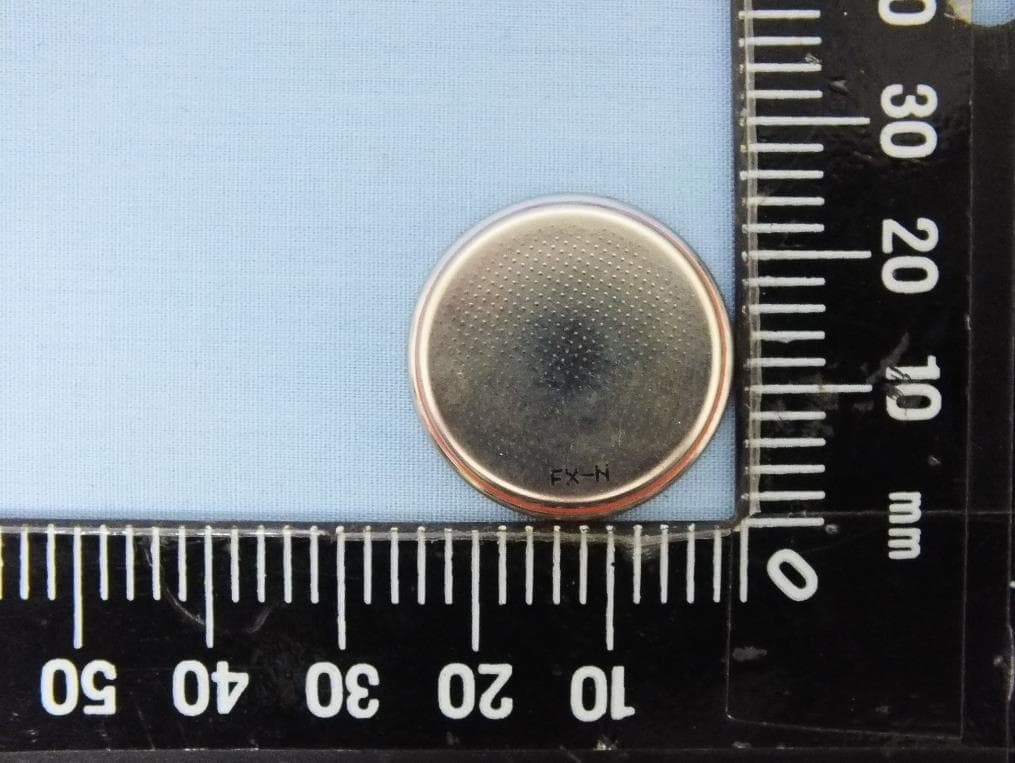

Project No.: 071402 Page No. : 6 of 9 Project No.: 071402 Page No. : 7 of 9 Project No.: 071402 Page No. : 8 of 9 Project No.: 071402 Page No. : 9 of 9

Report No.: FA071402 Page : 1 of 6 Report Version: Rev. 01 FCC RF Exposure Report FCC ID : ZMF-KIN Equipment : Bluetooth tag for tracking and monitoring assets Model No. : Kin Brand Name : Trackunit Applicant : Trackunit Aps Address : Gaesvaerksvej 24, 4 sal DK-9000 Aalborg Denmark Standard : 47 CFR FCC Part 2.1091 Received Date : Jul. 14, 2020 Tested Date : Sep. 16 ~ Sep. 18, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FA071402 Page : 2 of 6 Report Version: Rev. 01 Table of Contents 1 MPE EVALUATION OF MOBILE DEVICES ......................................................................................... 4 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE............................................. 4 1.2 MPE EVALUATION FORMULA ............................................................................................................. 4 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE ................................... 4 1.4 MEASUREMENT UNCERTAINTY ......................................................................................................... 4 1.5 MPE EVALUATION RESULTS .............................................................................................................. 5 2 TEST LABORATORY INFORMATION ................................................................................................. 6 Report No.: FA071402 Page : 3 of 6 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FA071402 Rev. 01 Initial issue Dec. 03, 2020 Report No.: FA071402 Page : 4 of 6 Report Version: Rev. 01 1 MPE EVALUATION OF MOBILE DEVICES 1.1 LIMITS FOR GENERAL POPULATION/UNCONTROLLED EXPOSURE Frequency Range (MHz) Power Density (mW /cm 2 ) Averaging Time (minutes) 300~1500 F/1500 30 1500~100000 1.0 30 1.2 MPE EVALUATION FORMULA Pd = 2 **4RPi Pt Where Pd= Power density in mW/cm 2 Pt= EIRP in mW Pi= 3.1416 R= Measurement distance 1.3 DEVIATION FROM TEST STANDARD AND MEASUREMENT PROCEDURE None 1.4 MEASUREMENT UNCERTAINTY The measurement uncertainties given below are based on a 95% confidence level (based on a coverage factor (k=2)). Parameters Uncertainty Conducted power ±0.808 dB Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FA071402 Page : 5 of 6 Report Version: Rev. 01 1.5 MPE EVALUATION RESULTS Frequency Range (MHz) Maximum Conducted Power (dBm) Rated Power (dBm) Antenna Gain (dBi) Distance (cm) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) *Ratio Pass / Fail 2402~2480 6.17 6.5 4 20 0.002 1 0.002 Pass *Ratio = Power density / Limit. Report No.: FA071402 Page : 6 of 6 Report Version: Rev. 01 2 Test laboratory information Established in 2012, ICC provides foremost EMC & RF Testing and advisory consultation services by our skilled engineers and technicians. Our services employ a wide variety of advanced edge test equipment and one of the widest certification extents in the business. International Certification Corp (EMC and Wireless Communication Laboratory), it is our definitive objective is to institute long term, trust-based associations with our clients. The expectation we set up with our clients is based on outstanding service, practical expertise and devotion to a certified value structure. Our passion is to grant our clients with best EMC / RF services by oriented knowledgeable and accommodating staff. Our Test sites are located at Linkou District and Kwei Shan District. Location map can be found on our website http://www.icertifi.com.tw. Linkou Kwei Shan Kwei Shan Site II Tel: 886-2-2601-1640 Tel: 886-3-271-8666 Tel: 886-3-271-8640 No. 30-2, Ding Fwu Tsuen, Lin Kou District, New Taipei City, Taiwan, R.O.C. No. 3-1, Lane 6, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C. No. 14-1, Lane 19, Wen San 3rd St., Kwei Shan District, Tao Yuan City 333, Taiwan, R.O.C.. If you have any suggestion, please feel free to contact us as below information Tel: 886-3-271-8666 Fax: 886-3-318-0155 Email: [email protected] ══END══

Report No.: FR071402 Page : 1 of 43 Report Version: Rev. 01 FCC Test Report FCC ID : ZMF-KIN Equipment : Bluetooth tag for tracking and monitoring assets Model No. : Kin Brand Name : Trackunit Applicant : Trackunit Aps Address : Gaesvaerksvej 24, 4 sal DK-9000 Aalborg Denmark Standard : 47 CFR FCC Part 15.247 Received Date : Jul. 14, 2020 Tested Date : Sep. 16 ~ Sep. 18, 2020 We, International Certification Corp., would like to declare that the tested sample has been evaluated and in compliance with the requirement of the above standards. The test results contained in this report refer exclusively to the product. It may be duplicated completely for legal use with the approval of the applicant. It shall not be reproduced except in full without the written approval of our laboratory. Reviewed by: Approved by: Along Chen / Assistant Manager Gary Chang / Manager Report No.: FR071402 Page : 2 of 43 Report Version: Rev. 01 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Local Support Equipment List ................................................................................................................ 7 1.3 Test Setup Chart .................................................................................................................................... 7 1.4 Test Equipment List and Calibration Data .............................................................................................. 8 1.5 Test Standards ....................................................................................................................................... 8 1.6 Reference Guidance .............................................................................................................................. 9 1.7 Deviation from Test Standard and Measurement Procedure ................................................................. 9 1.8 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Testing Facility...................................................................................................................................... 10 2.2 The Worst Test Modes and Channel Details ....................................................................................... 10 3 TRANSMITTER TEST RESULTS ........................................................................................................ 11 3.1 6dB and Occupied Bandwidth .............................................................................................................. 11 3.2 RF Output Power .................................................................................................................................. 16 3.3 Power Spectral Density ........................................................................................................................ 19 3.4 Emissions in Restricted Frequency Bands ........................................................................................... 23 3.5 Emissions in non-restricted Frequency Bands ..................................................................................... 39 4 TEST LABORATORY INFORMATION ............................................................................................... 43 Report No.: FR071402 Page : 3 of 43 Report Version: Rev. 01 Release Record Report No. Version Description Issued Date FR071402 Rev. 01 Initial issue Dec. 03, 2020 Report No.: FR071402 Page : 4 of 43 Report Version: Rev. 01 Summary of Test Results FCC Rules Test Items Measured Result 15.207 AC Power Line Conducted Emissions Note N/A 15.247(d) 15.209 Radiated Emissions [dBuV/m at 3m]: 7440.00MHz 52.97 (Margin -1.03dB) - AV Pass 15.247(b)(3) Maximum Output Power Power [dBm]: 6.24 Pass 15.247(a)(2) 6dB Bandwidth Meet the requirement of limit Pass 15.247(e) Power Spectral Density Meet the requirement of limit Pass 15.203 Antenna Requirement Meet the requirement of limit Pass N/A means Not Applicable. Note: The device consumes DC power from battery, so the test is not required. Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: The declared of product specification for EUT presented in the report are provided by the manufacturer, and the manufacturer takes all the responsibilities for the accuracy of product specification. Report No.: FR071402 Page : 5 of 43 Report Version: Rev. 01 1 General Description 1.1 Information 1.1.1 Specification of the Equipment under Test (EUT) RF General Information Frequency Range (MHz) Bluetooth Mode Ch. Freq. (MHz) Channel Number Data Rate 2400-2483.5 V5.2 LE 2402-2480 0-39 [40] 1 Mbps 2400-2483.5 V5.2 LE 2402-2480 0-39 [40] 2 Mbps Note: Bluetooth LE (Low energy) uses GFSK modulation. 1.1.2 Antenna Details Ant. No. Type Connector Gain (dBi) Remarks 1 SMD metal antenna N/A 4.0 --- 1.1.3 Power Supply Type of Equipment under Test (EUT) Power Supply Type 3.0 Vdc Lithium Metal battery 1.1.4 Accessories N/A Report No.: FR071402 Page : 6 of 43 Report Version: Rev. 01 1.1.5 Channel List Frequency band (MHz) 2400~2483.5 Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 37 2402 9 2422 18 2442 28 2462 0 2404 10 2424 19 2444 29 2464 1 2406 38 2426 20 2446 30 2466 2 2408 11 2428 21 2448 31 2468 3 2410 12 2430 22 2450 32 2470 4 2412 13 2432 23 2452 33 2472 5 2414 14 2434 24 2454 34 2474 6 2416 15 2436 25 2456 35 2476 7 2418 16 2438 26 245…
