ZMOFM101RGLLTE Module

FM101R-GL Hardware Guide V1.0 Disclaimer This document serves as a guide for the use of products. Customers must design their products according to the information provided in the document. The Company shall not be liable for any damage caused by failure to comply with relevant operation or design specifications or safety rules. Due to product version upgrade or other reasons, the Company reserves the right to modify any information in this document at any time without prior notice and any responsibility. Unless otherwise agreed, all statements, information and suggestions in this document do not constitute any express or implied guarantee. Trademark Statement The trademark is registered and owned by Fibocom Wireless Inc. Other trademarks, product names, service names and company names appearing in this document are owned by their respective owners. Copyright © Fibocom Wireless Inc. 2 Contact Information Website: https://www.fibocom.com Address: 10/F-14/F, Block A, Building 6, Shenzhen International Innovation Valley, Dashi First Road, Xili Community, Xili Subdistrict, Nanshan District, Shenzhen Tel: 0755-26733555 Safety Instructions Do not operate wireless communication products in areas where the use of radio is not recommended without proper equipment certification. These areas include environments that may generate radio interference, such as flammable and explosive environments, medical devices, aircraft or any other equipment that may be subject to any form of radio interference. The driver or operator of any vehicle shall not operate wireless communication products while controlling the vehicle. Doing so will reduce the driver's or operator's control and operation of the vehicle, resulting in safety risks. Wireless communication devices do not guarantee effective connection under any circumstances, such as when the (U) SIM card is invalid or the device is in arrears. In an emergency, please use the emergency call function when the device is turned on, and ensure that the device is located in an area with sufficient signal strength. Contents Contents Applicable Model ....................................................................................................... 3 Change History .......................................................................................................... 4 1 Foreword .................................................................................................................. 5 1.1 Introduction ...................................................................................................... 5 1.2 Reference Standard......................................................................................... 5 1.3 Related Documents ......................................................................................... 6 2 Overview .................................................................................................................. 7 2.1 Introduction ...................................................................................................... 7 2.2 Specification .................................................................................................... 7 2.2.1 RF Characteristic ....................................................................................... 7 2.3 Key Features ................................................................................................... 8 2.4 Application Block ............................................................................................ 10 2.5 Hardware Block Diagram ............................................................................... 10 2.6 Antenna Configuration ................................................................................... 11 3 Application Interface ............................................................................................. 13 3.1 M.2 Interface .................................................................................................. 13 3.1.1 Pin Map .................................................................................................... 13 3.1.2 Pin Definition ............................................................................................ 14 3.2 Power Supply ................................................................................................. 20 3.2.1 Power Supply ........................................................................................... 21 3.2.2 Logic Level ............................................................................................... 24 3.2.3 Power Consumption ................................................................................. 24 3.3 Control Signal ................................................................................................ 27 3.3.1 Module Start-Up ....................................................................................... 28 3.3.1.1 Start-up Circuit ................................................................................... 28 3.3.1.2 Start-up Timing Sequence .................................................................. 28 3.3.2 Module Shutdown .................................................................................... 29 3.3.3 Module Reset ........................................................................................... 30 3.4 USIM Interface ............................................................................................... 32 3.4.1 USIM Pins ................................................................................................ 32 Contents Copyright © Fibocom Wireless Inc. 1 3.4.2 USIM Interface Circuit .............................................................................. 33 3.4.2.1 N.C. SIM Card Slot ............................................................................. 33 3.4.2.2 N.O. SIM Card Slot ............................................................................ 33 3.4.3 USIM Hot-Plug .......…

Text truncated - open the document above for the full version.

Fibocom Wireless Inc. Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: ZMOFM101RGL [Fibocom Wireless Inc.] certifies that the equipment FCC ID: ZMOFM101RGL for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [Fibocom Wireless Inc.] certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Name:  Patrick Ma  Email: [email protected]...... Signature:  

Fibocom Wireless Inc. 1101, Tow er A, Building 6, Shenzhen International, Innovation Valle y, Dashi 1st Rd, Nanshan, ShenZhen, China Tel: +8675526733555 ; Fax: +86-755-26520841 Federal Communications Commission 7435 Oaklan d Mills Road Columbia MD 21046 Subject: Certification designating a U.S. agent for service of process pursuant to Part 2.911(d)(7) To whom it may concern, [Fibocom Wireless Inc. Grantee Code ZMO, FRN:0020891057] (“the applicant”) certifies that, as of the date of the filing of application, [Fibocom Wireless USA] (“the agent”) is designated as the U.S. agent for the purpose of accepting service of process on behalf of the applicant. The information of agent are: U.S. Agent: Fibocom Wireless USA FCC Registration Number (FRN): 0033437914 Physical U.S. address: 5909 Peachtree Dunwoody Rd Ste 910 Atlant a, GA 30328 United States Contact: Lei Yao Phone: +01 (469)463-6983 Email: [email protected] The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The agent accepts the designation by (the applicant) as the U.S. agent to accept service of process includes, but is not limited to, delivery of any correspondence, notices, orders, decisions, and requirements of administrative, legal, or judicial process related to Commission proceedings. Signed by the Applicant Signed by the Agent Name: Patrick Ma Email: [email protected] Date: April 21, 2023 Name: Lei Yao Email: [email protected] Date: April 21, 2023

Fibocom Wireless Inc. 1101, Tower A, Building 6, Shenzhen International Innovation Valley, Dashi 1st Rd, Nanshan, Shenzhen, China Date: 2023.8.2 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Request for Confidentiality FCC ID: ZMOFM101RGL To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. Exhibit Type Schematic Diagram Block Diagram BOM Operational Description Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. Exhibit Type External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Fibocom Wireless Inc. 1101, Tower A, Building 6, Shenzhen International Innovation Valley, Dashi 1st Rd, Nanshan, Shenzhen, China Date: 2023.8.2 Best Regards, Contact Person: Patrick Ma Email: [email protected] Tel: +86 15332358487

RF_160, Issue 04 Fibocom Wireless Inc. Declaration of Authorization We Name: Fibocom Wireless Inc. Address: 1101, Tower A, Building 6, Shenzhen International Innovation Valley, Dashi 1st Rd, Nanshan, Shenzhen, China City: Shenzhen Country: China Declare that: Name Representative of agent: Peter.Tan Agent Company name: SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Branch Address: 1/F, Unit D, Building 1, Kanghong Orange Science Park, No.137, Keyuan 3rd Road,,Fengdong New Town, Xi’ an, Shaanxi China City: Shanxi Country China is authorized to apply for Certification of the following product(s): Product description: LTE Module Type designation: FM101R-GL Trademark: Fibocom FCC ID: ZMOFM101RGL on our behalf. Sincerely yours, Contact Person: Patrick Ma Email: [email protected] Tel: +86 15332358487 Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

RF_734_02 04 April 16 Modular Approval Request FCC ID: ZMOFM101RGL Items to be covered by Single modular transmitters. Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes The EUT provides the RF shielding. See EUT photo. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over‐modulation. Yes The EUT has its buffered modulation. Data to the modulation circuit is buffered as described in the operational description provided with the application. 3. The modular transmitter must have its own power supply regulation. Yes The EUT has its own power supply regulation, please see the Schematic Diagram. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(b)(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Yes The EUT meets the FCC/ISED antenna requirements; unique antenna connector and photo of antenna are shown in the test report. 5. The modular transmitter must be tested in a stand‐alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Yes The EUT was tested with a test board, Please see test report and setup photo 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Yes The FCC ID is ZMOFM101RGL 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Yes The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual. 8. The modular transmitter must comply with any applicable Yes RF_734_02 04 April 16 RF exposure requirements. For example, FCC Rules in Sections 1.1310, 2.1091, 2.1093, and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance. Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The EUT complies with RF exposure requirement. Note: A limited modular approval (LMA) may be granted for single modular transmitters that comply partially with the requirements above. Name and surname of applicant (or authorized representative): Patrick Ma Signature: Date: 2023/08/02

Fibocom Wireless Inc. Statement Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: ZMOFM101RGL To Whom It May Concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance Info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely yours, Contact Person: Patrick Ma Email: [email protected] Tel: +86 15332358487

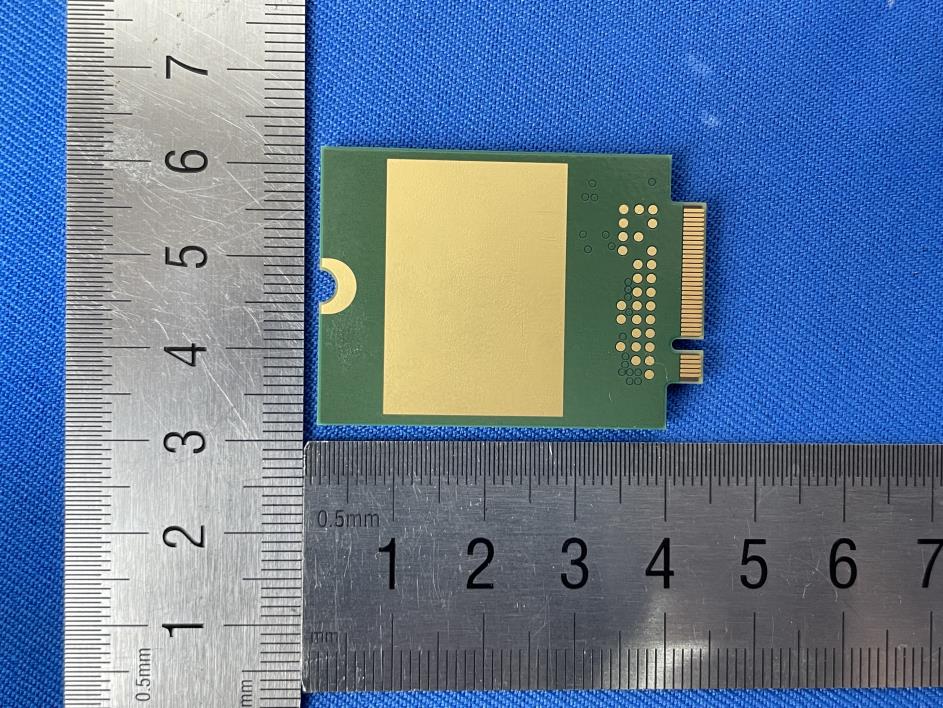

Page 1 of 1 1 Photographs - EUT Constructional Details LTE Module : FM101R-GL

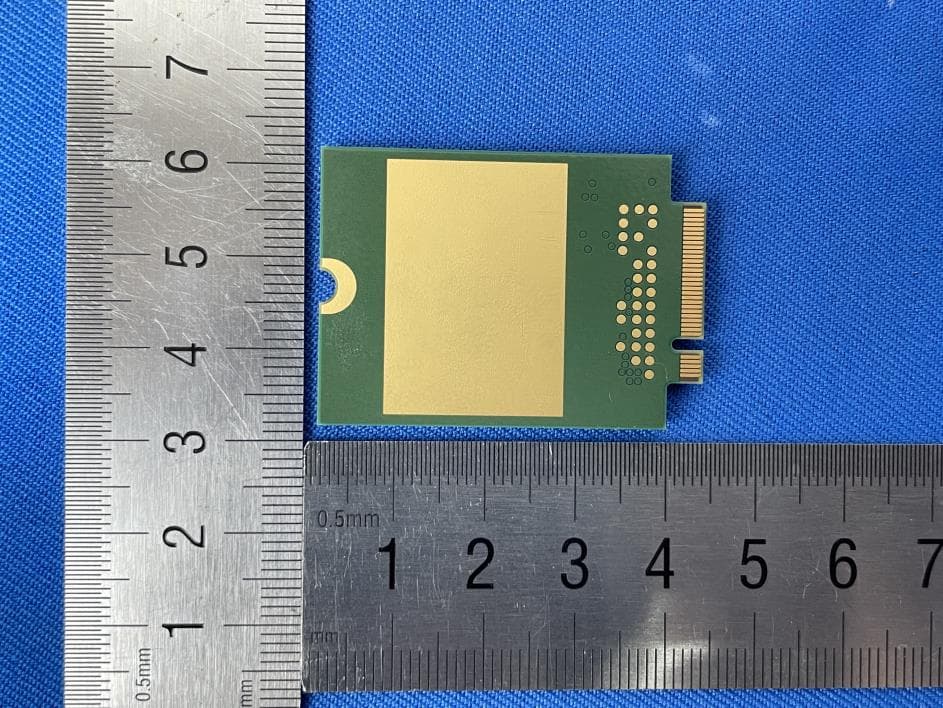

Page 1 of 1 1 Photographs - EUT Constructional Details Model No.(EUT): FM101R-GL

` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2306000327RG01 Rev.: 01 Page: 1 of 60 Authorized Signature: Peter Tan Regulatory Technical Manager TEST REPORT Application No.: XEWM2306000327RG Applicant: Fibocom Wireless Inc Address of Applicant: 1101, Tower A, Building 6, Shenzhen International Innovation Valley, Dashi 1st Rd, Nanshan, Shenzhen, China Manufacturer: Fibocom Wireless Inc Address of Manufacturer: 1101, Tower A, Building 6, Shenzhen International Innovation Valley, Dashi 1st Rd, Nanshan, Shenzhen, China EUT Description: LTE Module Model No.: FM101R-GL Trade Mark: Fibocom FCC ID: ZMOFM101RGL Standards: 47 CFR Part 2 47 CFR Part 22 47 CFR Part 24 47 CFR Part 27 47 CFR Part 90 47 CFR Part 96 Date of Receipt: 2023/06/25 Date of Test: 2023/06/25 to 2023/08/15 Date of Issue: 2023/08/15 Test Result : PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. ` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2306000327RG01 Rev.: 01 Page: 2 of 60 1 Version Revision Record Version Chapter Date Modifier Remark 01 2023/08/15 Original Prepared By (Leah Chen) / Test Engineer Checked By (Andy Yao) /Reviewer ` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2306000327RG01 Rev.: 01 Page: 3 of 60 Contents 1 Version .......................................................................................................................... 2 2 Test Summary ............................................................................................................... 5 2.1 UMTS Band 5/LTE Band 5/26(824~849 MHz) /LTE CA_5B ............................. 5 2.2 UMTS Band 2 /LTE Band 2 /25 ......................................................................... 6 2.3 UMTS Band 4 /LTE Band 4 /66 ......................................................................... 7 2.4 LTE Band 7/38/41/ LTE CA_7C/ LTE CA_38C/ LTE CA_41C .......................... 8 2.5 LTE Band 12/17 .............................................................................................. 10 2.6 LTE Band 13 ................................................................................................... 11 2.7 LTE Band 14 ................................................................................................... 12 2.8 LTE Band 26(814~824 MHz) .......................................................................... 14 2.9 LTE Band 30 ................................................................................................... 15 2.10 LTE Band 71 ................................................................................................... 17 2.11 LTE Band 48 ................................................................................................... 18 3 General Information ..................................................................................................... 20 3.1 Details of Client ............................................................................................... 20 3.2 Test Location .................................................................................................. 20 3.3 Test Facility ..................................................................................................... 20 3.4 General Description of EUT ............................................................................ 21 3.5 Test Mode ....................................................................................................... 23 3.6 Test Environment ............................................................................................ 23 3.7 Description of Support Units ........................................................................... 23 3.8 Technical Specification ................................................................................... 24 3.9 Test Frequencies ............................................................................................ 30 4 Description of Tests ..................................................................................................... 44 4.1 Conducted Output Power ................................................................................ 44 4.2 Effective (Isotropic) Radiated Power of Transmitter ........................................ 45 4.3 EIRP Power Density........................................................................................ 46 4.4 Occupied Bandwidth ....................................................................................... 47 4.5 Band Edge at Antenna Terminals ................................................................... 48 4.6 Spurious And Harmonic Emissions at Antenna Terminal ................................ 49 ` SGS-CSTC Standards Technical Services (Xi'an) Co., Ltd. Report No.: XEWM2306000327RG01 Rev.: 01 Page: 4 of 60 4.7 Peak-Average Ratio ........................................................................................ 50 4.8 Field Strength of Spurious Radiation............................................................... 51 4.9 Frequency Stability / Temperature Variation ................................................... 52 4.10 Test Setups ..................................................................................................... 53 4.10.1 Test Setup 1 ....................................................................................... 53 4.10.2 Test Setup 2 ....................................................................................... 53 4.10.3 Test Setup 3 ....................................................................................... 54 4.11 Test Conditions ............................................................................................... 55 5 Main Test Instruments ................................................................................................. 57 6 Measurement Uncertainty..................................................................…
