ZMOH35FWCDMA/GSM(GPRS) Dual-band wireless module

Fibocom Wireless Inc.
WCDMA/GSM(GPRS) Dual-band wireless module - FCC ID ZMOH35F - Fibocom Wireless Inc.
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Apr 29, 2014
Application Purpose
Original Equipment
Date of Application
Apr 27, 2014
Equipment Note
WCDMA/GSM(GPRS) Dual-band wireless module
Frequency Range
1852.40000000 - 1907.60000000
Company
Fibocom Wireless Inc.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

H350LGASerialsModule HardwareUserManual Version:V1.0.3 Date:2014-02-22 H350LGASerialsModuleHardwareUserManualPageof 432 ConfidentialMaterial ThisdocumentcontainsinformationhighlyconfidentialtoFibocomWirelessInc.(Fibocom).Fibocom offersthisinformationasaservicetoitscustomers,tosupportapplicationandengineeringeffortsthatuse theproductsdesignedbyFibocom.Theinformationprovidedisbaseduponrequirementsspecifically providedtoFibocombythecustomers.Allspecificationssuppliedhereinaresubjecttochange. DisclosureofthisinformationtootherpartiesisprohibitedwithoutthewrittenconsentofFibocom. Copyright Copy,Reproduce,Distributeand/orEditofthisdocumentorpartofitaswellasutilizationofitscontents andcommunicationthereoftootherswithoutexpressauthorizationareprohibited.Offenderswillbeheld liableforpaymentofdamages.Allrightscreatedbypatentgrantorregistrationofautilitymodelordesign patentarereserved.Copyright©2013FibocomWirelessInc.Allrightsreserved. TrademarksNotice TheFIBOCOMLogoisregisteredbyFibocomWirelessInc.Allotherproductorservicenamesorlogos arethepropertyoftheirrespectiveowners.Copyright©2013FibocomWirelessInc.Allrightsreserved. H350LGASerialsModuleHardwareUserManualPageof 433 FederalCommunicationCommissionInterferenceStatement ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference. (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesired operation. ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuant toPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful interferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradiofrequency energyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterference toradiocommunications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticular installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcan bedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrectthe interferencebyoneofthefollowingmeasures: -Reorientorrelocatethereceivingantenna. -Increasetheseparationbetweentheequipmentandreceiver. -Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. -Consultthedealeroranexperiencedradio/TVtechnicianforhelp. FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor compliancecouldvoidtheuser'sauthoritytooperatethisequipment. Thistransmittermustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaortransmitter. RFExposureCompliance: ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolledenvironment.The antenna(s)usedforthistransmittermustbeinstalledtoprovideaseparationdistanceofatleast20 conformallpersonsandmustnotbeco-locatedoroperatinginconjunctionwithanyotherantennaor transmitter. ThisdeviceisintendedonlyforOEMintegratorsunderthefollowingconditions: 1)Theantennamustbeinstalledsuchthat20cmismaintainedbetweentheantennaandusers. 2)Thetransmittermodulemaynotbeco-locatedwithanyothertransmitterorantenna. Aslongas2conditionsabovearemet,furthertransmittertestwillnotberequired.However,theOEM integratorisstillresponsiblefortestingtheirend-productforanyadditionalcompliancerequirements requiredwiththismoduleinstalled IMPORTANTNOTE: Intheeventthattheseconditionscannotbemet(forexamplecertainlaptopconfigurationsorco-location withanothertransmitter),thentheFCCauthorizationisnolongerconsideredvalidandtheFCCIDcan notbeusedonthefinalproduct.Inthesecircumstances,theOEMintegratorwillberesponsiblefor re-evaluatingtheendproduct(includingthetransmitter)andobtainingaseparateFCCauthorization. EndProductLabeling: Thistransmittermoduleisauthorizedonlyforuseindevicewheretheantennamaybeinstalledsuchthat 20cmmaybemaintainedbetweentheantennaandusers.Thefinalendproductmustbelabeledina visibleareawiththefollowingcontains: FCCID:ZMOH35F.Thegrantee'sFCCIDcanbeusedonlywhenallFCCcompliancerequirements H350LGASerialsModuleHardwareUserManualPageof 434 aremet. ManualInformationTotheEndUser: TheOEMintegratorhastobeawarenottoprovideinformationtotheenduserregardinghowtoinstallor removethisRFmoduleintheuser’smanualoftheendproductwhichintegratesthismodule. Theendusermanualshallincludeallrequiredregulatoryinformation/warningasshowinthismanual. H350LGASerialsModuleHardwareUserManualPageof 435 RevisionHistory VersionDateRemarks V1.0.02014-01-09InitialVersion V1.0.12014-01-15ModifiedPINdescriptiontable V1.0.22014-01-16Modifiedtunableantennalevel V1.0.32014-02-22AddH350-B50-10description ApplicabilityTable No.TypeNote 1H350-A50-10 2H350-A30-10 3H350-B50-10 4H350-B30-10 Herearethemodulecomparisons: ModelNo. GSM/GPRS/EDGE Band(MHz) WCDMA Band(MHz) HSDPA (Mbps) HSUPA (Mbps) H350-A50-10900/1800900/2100215.76 H350-A30-10900/1800900/21007.25.76 H350-B50-10850/1900850/1900215.76 H350-B30-10850/1900850/19007.25.76 H350LGASerialsModuleHardwareUserManualPageof 436 Contents 1Preface.......................................................................................................................................................................8 1.1Scope..............................................................................................................................................................8 1.2Standards.......................................................................................................................................................8 2Introduction..............................................................................................................................................................10 2.1Description...................................................................................................................................................10 2.2Specifications...............................................................................................................................................10 2.3Appear…

Text truncated - open the document above for the full version.

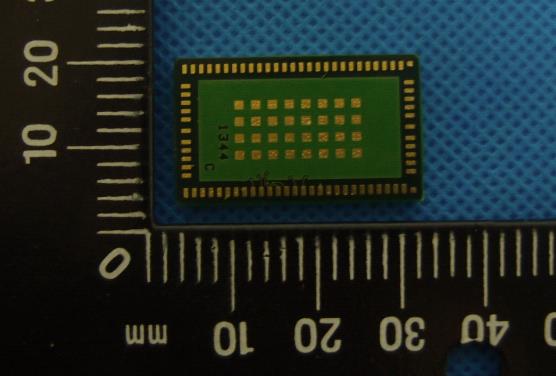

External Photos

External photo:

ID Label/Location Info

Label&Location:

Internal Photos

Internal photo

RF Exposure Info

SAR Test Report Report No.: 2014SAR0031 East China Institute of Telecommunications Page Number : 2 of 12 TEL: +86 21 63843300FAX:+86 21 63843301 Report Issued Date :April 4, 2014 Revision Version Report Number Revision Date Memo 2014SAR0031 00 2014-04-04 Initial creation of test report SAR Test Report Report No.: 2014SAR0031 East China Institute of Telecommunications Page Number : 3 of 12 TEL: +86 21 63843300FAX:+86 21 63843301 Report Issued Date :April 4, 2014 CONTENTS 1. TEST LABORATORY ........................................................................................................................ 4 1.1. TESTING LOCATION ........................................................................................................................ 4 1.2. TESTING ENVIRONMENT ............................................................................................................... 4 1.3. PROJECT DATA .................................................................................................................................. 4 1.4. SIGNATURE ......................................................................................................................................... 4 2. CLIENT INFORMATION ................................................................................................................... 5 2.1. APPLICANT INFORMATION ........................................................................................................... 5 2.2. MANUFACTURER INFORMATION ................................................................................................ 5 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................. 6 3.1. ABOUT EUT ......................................................................................................................................... 6 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ........................................ 6 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ........................................... 6 4. REFERENCE DOCUMENTS ............................................................................................................. 7 4.1. APPLICABLE STANDARDS .............................................................................................................. 7 4.2. TEST LIMITS ....................................................................................................................................... 7 5. TEST RESULTS ................................................................................................................................... 8 5.1. CONDUCTED RF POWER OUTPUT ............................................................................................... 8 5.2. CALCULATION INFORMATION .................................................................................................. 10 5.3. RESULT OF GSM835 ......................................................................................................................... 11 5.4. RESULT OF GSM1900 ....................................................................................................................... 11 5.5. RESULT OF WCDMA BAND II ....................................................................................................... 12 5.6. RESULT OF WCDMA BAND V ....................................................................................................... 12 SAR Test Report Report No.: 2014SAR0031 East China Institute of Telecommunications Page Number : 5 of 12 TEL: +86 21 63843300FAX:+86 21 63843301 Report Issued Date :April 4, 2014 2. Client Information 2.1. Applicant Information Company Name: Fibocom Wireless Inc. Address /Post: 5/F, Block A, Shekou Technology Building II, 1057 Nanhai Blvd, Nanshan, Shenzhen, China Country: China Telephone: 075526733555 Postal Code: 518067 Contact Wang Xuejuan 2.2. Manufacturer Information Company Name: Fibocom Wireless Inc. Address /Post: 5/F, Block A, Shekou Technology Building II, 1057 Nanhai Blvd, Nanshan, Shenzhen, China Country: China Telephone: 075526733555 Postal Code: 518067 Contact Wang Xuejuan SAR Test Report Report No.: 2014SAR0031 East China Institute of Telecommunications Page Number : 6 of 12 TEL: +86 21 63843300FAX:+86 21 63843301 Report Issued Date :April 4, 2014 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT EUT Description WCDMA/GSM(GPRS) Dual-band wireless module Model name H350,H350R GSM Frequency Band GSM835/GSM1900 WCDMA Frequency Band WCDMA band II/WCDMA band V Antenna Type External Antenna FCC ID: ZMOH35F Note: Photographs of EUT are shown in ANNEX A of this test report. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version: N01 IMEI:N/A V1.0.2 H350_V3H.00.03 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description Model SN Manufacturer AE1 Cable N/A N/A N/A AE2 N/A N/A N/A N/A *AE ID: is used to identify the test sample in the lab internally. SAR Test Report Report No.: 2014SAR0031 East China Institute of Telecommunications Page Number : 7 of 12 TEL: +86 21 63843300FAX:+86 21 63843301 Report Issued Date :April 4, 2014 4. Reference Documents 4.1. Applicable Standards The MPE report was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47 Part 2.1091. The limits standard is based on the Council Recommendation 1999/519/EC. FCC CFR 47, Part 2, FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS, Oct 1,2011 Section 2.1091 Radiofrequency radiation exposure evaluation: mobile devices, Oct 1,2011 4.2. Test Limits Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091…

Text truncated - open the document above for the full version.

Test Report

RF Test Report Report No.: 2014RFA0031 East China Institute of Telecommunications Page Number : 2 of 98 TEL: +86 21 63843300 FAX: +86 21 63843301 Report Issued Date :April 4, 2014 Revision Version Report Number Revision Date Memo 2014RFA0031 00 2014-04-04 Initial creation of test report RF Test Report Report No.: 2014RFA0031 East China Institute of Telecommunications Page Number : 3 of 98 TEL: +86 21 63843300 FAX: +86 21 63843301 Report Issued Date :April 4, 2014 CONTENTS 1. TEST LABORATORY ............................................................................................................... 5 1.1. TESTING LOCATION ............................................................................................................... 5 1.2. TESTING ENVIRONMENT ....................................................................................................... 5 1.3. PROJECT DATA ....................................................................................................................... 5 1.4. SIGNATURE ............................................................................................................................. 5 2. CLIENT INFORMATION ........................................................................................................... 6 2.1. APPLICANT INFORMATION ................................................................................................... 6 2.2. MANUFACTURER INFORMATION ......................................................................................... 6 3. EQUIPMENT UNDER TEST (EUT) AND ANCILLARY EQUIPMENT (AE) ............................ 7 3.1. ABOUT EUT ............................................................................................................................. 7 3.2. INTERNAL IDENTIFICATION OF EUT USED DURING THE TEST ....................................... 7 3.3. INTERNAL IDENTIFICATION OF AE USED DURING THE TEST ......................................... 7 3.4. STATEMENTS........................................................................................................................... 7 4. REFERENCE DOCUMENTS .................................................................................................... 8 4.1. REFERENCE DOCUMENTS FOR TESTING .......................................................................... 8 5. SUMMARY OF TEST RESULTS .............................................................................................. 9 6. TEST EQUIPMENTS UTILIZED ............................................................................................. 10 7. TEST ENVIRONMENT ........................................................................................................... 13 ANNEX A. MEASUREMENT RESULTS .................................................................................... 15 ANNEX A.1. OUTPUT POWER (§22.913(A)/§24.232(C)) ........................................................... 15 ANNEX A.2. 99%OCCUPIED BANDWIDTH (§2.1049(H)(I)) ....................................................... 18 ANNEX A.3. -26DB EMISSION BANDWIDTH(§22.917(B)/§24.238(B)) ..................................... 33 ANNEX A.4. BAND EDGE AT ANTENNA TERMINALS(§22.917(B)/§24.238(B)) ...................... 47 ANNEX A.5. FREQUENCY STABILITY (§2.1055/§24.235) ......................................................... 56 ANNEX A.6. CONDUCTED SPURIOUS EMISSION .................................................................... 62 RF Test Report Report No.: 2014RFA0031 East China Institute of Telecommunications Page Number : 4 of 98 TEL: +86 21 63843300 FAX: +86 21 63843301 Report Issued Date :April 4, 2014 ANNEX A.7. RADIATED................................................................................................................ 77 ANNEX A.8. CONDUCTED EMISSION (§15.107§15.207) .......................................................... 89 ANNEX B. DEVIATIONS FROM PRESCRIBED TEST METHODS .......................................... 98 RF Test Report Report No.: 2014RFA0031 East China Institute of Telecommunications Page Number : 6 of 98 TEL: +86 21 63843300 FAX: +86 21 63843301 Report Issued Date :April 4, 2014 2. Client Information 2.1. Applicant Information Company Name: Fibocom Wireless Inc. Address: 5/F, Block A, Shekou Technology Building II, 1057 Nanhai Blvd, Nanshan, Shenzhen, China Country: China Telephone: 075526733555 Postal Code: 518067 Contact Wang Xuejuan 2.2. Manufacturer Information Company Name: Fibocom Wireless Inc. Address: 5/F, Block A, Shekou Technology Building II, 1057 Nanhai Blvd, Nanshan, Shenzhen, China Country: China Telephone: 075526733555 Postal Code: 518067 Contact Wang Xuejuan RF Test Report Report No.: 2014RFA0031 East China Institute of Telecommunications Page Number : 7 of 98 TEL: +86 21 63843300 FAX: +86 21 63843301 Report Issued Date :April 4, 2014 3. Equipment Under Test (EUT) and Ancillary Equipment (AE) 3.1. About EUT EUT Description WCDMA/GSM(GPRS) Dual-band wireless module Model name H350,H350R FCC ID ZMOH35F Frequency GSM 850/1900; WCDMA Band II and V Extreme Temperature -10/+55°C Nominal Voltage 3.8V Extreme High Voltage 4.5V Extreme Low Voltage 3.3V Note: Photographs of EUT are shown in ANNEX A of this test report. 3.2. Internal Identification of EUT used during the test EUT ID* SN or IMEI HW Version SW Version Date of receipt N04 NA V1.0.2 H350_V3H.00.03 2014-03-25 *EUT ID: is used to identify the test sample in the lab internally. 3.3. Internal Identification of AE used during the test AE ID* Description SN AE1 RF cable --- AE2 Dummy Battery --- *AE ID: is used to identify the test sample in the lab internally. 3.4. Statements The product name H350 H350R, supporting GSM/GPRS/EGPRS/WCDMA/HSDPA/HSUPA, manufactured by Fibocom Wireless Inc. is a new product for testing. ECIT has verified that the compliance of the tested device specified in section 5 of this test report is successfully evaluated according to the procedure and test methods as defined in …

Text truncated - open the document above for the full version.

Test Setup Photos

FCC Part 22H-Test Photograph Description: ERP Test Setup Description: Substitution Antenna for ERP Test FCC Part 24E-Test Photograph Description: EIRP Test Setup Description: Substitution Antenna for EIRP Test

Contact Information

Applicant

Patrick Ma(Certification Director)
[email protected]+8675526733555Fax: +86-755-26520841

Technical Contact

East China Institute of TelecommunicationsLiu Jianquan
[email protected]86-21-63843300

7F, G Area, No. 668, Beijing East Road · Shanghai · China

Test Firm

East China Institute of TelecommunicationsJing Li
[email protected]862-163-8433

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
624E1.85 GHz - 1.91 GHz279.00 mW4M50F9W0.1 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Single Modular Approval. Power out is conducted at the antenna terminal. This device is to be used only for mobile and fixed application. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. OEM integrators must ensure that the end user has no manual instructions to remove or install the H350 module. For mobile and fixed operating configurations the antenna gain, including cable loss, must not exceed 2.5 dBi at 1900 MHz and 2.5 dBi at 850 MHz as defined in 2.1091 for satisfying RF exposure compliance. Under no condition may an antenna gain be used that would exceed the 7W erp Part 22 and the 2W eirp Part 24 power limits. The Grantee is responsible for providing the documentation required for modular use. This device contains GSM/WCDMA functions that are not operational in U.S. Territories. This filing is only applicable for 850 MHz Cell and 1900 MHz PCS operations.
