ZMOL610LALTE Cat1 & GSM Module

Fibocom Wireless Inc.

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Aug 17, 2020
Application Purpose: Original Equipment
Date of Application: Aug 17, 2020
Equipment Note: LTE Cat1 & GSM Module
Frequency Range: 1717.50000000 - 1772.50000000
Company: Fibocom Wireless Inc.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Draft FIBOCOML610-LAHardwareGuide Version:V1.1.1 Date:2020-05-29 ReproductionforbiddenwithoutFibocomWirelessInc.writtenauthorization-AllRightsReserved FIBOCOML610-LASeriesHardwareGuidePage2of 49 Applicabilitytype No.ProductmodelDescription 1L610-LAMAIN_ANT,FDD/TDD/GSM,WiFi-Scan,BT ReproductionforbiddenwithoutFibocomWirelessInc.writtenauthorization-AllRightsReserved FIBOCOML610-LASeriesHardwareGuidePage3of 49 Copyright Copyright©2020FibocomWirelessInc.Allrightsreserved. Withoutthepriorwrittenpermissionofthecopyrightholder,anycompanyorindividualisprohibitedto excerpt,copyanypartofortheentiredocument,ortransmitthedocumentinanyform. Notice Thedocumentissubjecttoupdatefromtimetotimeowingtotheproductversionupgradeorother reasons.Unlessotherwisespecified,thedocumentonlyservesastheuserguide.Allthestatements, informationandsuggestionscontainedinthedocumentdonotconstituteanyexplicitorimplicit guarantee. Trademark ThetrademarkisregisteredandownedbyFibocomWirelessInc. ReproductionforbiddenwithoutFibocomWirelessInc.writtenauthorization-AllRightsReserved FIBOCOML610-LASeriesHardwareGuidePage4of 49 Versions Document Version Prepared by Reviewed by Approved by UpdateDateDescription V1.0.0 Wang Yuanguang WangBoLiuKe2019-11-21Initialversion V1.0.1 Wang Yuanguang WangBoLiuKe2019-12-06AddedOPENpinmultiplexing V1.0.2 Wang Yuanguang WangBoLiuKe2019-12-12 Modifiedsomeissuesandadded pinsupportforI/Opowerdomain V1.0.3 Wang Yuanguang WangBoLiuKe2019-12-17Modifiedmodulethicknessissue V1.0.4 Wang Yuanguang WangBoLiuKe2019-12-31Addedpowerconsumptiondata V1.0.5 Wang Yuanguang WangBoLiuKe2020-01-15Modifiedsomeissues V1.0.6 Wang Yuanguang WangBoLiuKe2020-02-13 Modifiedpowerconsumption data V1.0.7 Wang Yuanguang WangBoLiuKe2020-03-06 Modifiedpowerconsumption data V1.0.8HeJiazhaoHeJiazhao Wang Hailiang 2020-04-17Standardizedformat V1.0.9 Wang Yuanguang WangBoLiuKe2020-05-07ModifiedStructuresize V1.1.0 Wang Yuanguang WangBoLiuKe2020-05-14AddNEWmodels V1.1.1 Wang Yuanguang WangBoLiuKe2020-05-29AddADCaccuracy ReproductionforbiddenwithoutFibocomWirelessInc.writtenauthorization-AllRightsReserved FIBOCOML610-LASeriesHardwareGuidePage5of 49 Contents 1Foreword ...................................................................................................................................... 7 1.1Introduction..................................................................................................................................7 1.2SafetyInstruction........................................................................................................................7 1.3ReferenceStandard .................................................................................................................... 8 1.4RelatedDocuments....................................................................................................................8 2ProductOverview......................................................................................................................9 2.1ProductIntroduction .................................................................................................................... 9 2.2ProductSpecifications................................................................................................................9 2.3HardwareDiagram....................................................................................................................10 3ApplicationInterface ............................................................................................................... 12 3.1LCC+LGAInterface..................................................................................................................12 3.1.1PinDistribution...........................................................................................................................12 3.1.2PinDefinition..............................................................................................................................13 3.1.3PinMultiplexing..........................................................................................................................21 3.2PowerSupply............................................................................................................................22 3.2.1PowerSupply.............................................................................................................................22 3.2.21.8VOutput................................................................................................................................23 3.2.3PowerConsumption.................................................................................................................23 3.3ControlSignal ............................................................................................................................ 24 3.3.1ModulePower-on......................................................................................................................25 3.3.1.1Power-onCircuitReference....................................................................................................................25 3.3.1.2Power-onTiming.......................................................................................................................................26 3.3.1.3AutoPower-on .......................................................................................................................................... 26 3.3.2ModuleShutdown......................................................................................................................27 3.3.2.1ShutdownTiming......................................................................................................................................27 3.3.3ModuleReset.............................................................................................................................27 3.3.3.1ResetCircuit...........................................................................................…

Text truncated - open the document above for the full version.

Cover Letter(s)

RF_734_02 04April16 ModularApprovalRequestFCC(KDB996369D01&Part15.212) FCCID:ZMOL610LA ItemstobecoveredbySinglemodulartransmitters. Answerfromapplicant 1.ThemodulartransmittermusthaveitsownRFshielding.Yes,pleaseseeexhibition externalphotos 2.Themodulartransmittermusthavebufferedmodulation/datainputs(ifsuch inputsareprovided)toensurethatthemodulewillcomplywithPart15 requirementsunderconditionsofexcessivedataratesorover-modulation. Yes,Themodularhasbuffer modulation/datainputs 3.Themodulartransmittermusthaveitsownpowersupplyregulation.Yes,pleaseseetheschem.pdf 4.ThemodulartransmittermustcomplywiththeantennarequirementsofSection 15.203and15.204(b)(c).Theantennamusteitherbepermanentlyattachedor employa“unique”antennacoupler(atallconnectionsbetweenthemoduleand theantenna,includingthecable). Yes,Therequirementsof antennaconnectorand spuriousemissionhavebeen fulfilled.Pleaserefertothe testreportexhibition. 5.Themodulartransmittermustbetestedinastand-aloneconfiguration,i.e.,the modulemustnotbeinsideanotherdeviceduringtesting.Thisisintendedto demonstratethatthemoduleiscapableofcomplyingwithPart15emissionlimits regardlessofthedeviceintowhichitiseventuallyinstalled. Yes,Pleaserefertothesetup photoexhibitionforthe stand-aloneconfiguration 6.Themodulartransmittermustbeequippedwitheitherapermanentlyaffixedlabel ormustbecapableofelectronicallydisplayingitsFCCidentificationnumberin accordancewith15.212(a)(1)(vi)(A)/(B). Yes,TheModulewillbelabel withitsownFCCID,andthe instructiononthelabelling ruleoftheendproducthas beenstatedintheuser manualofthis module.pleaserefertothe labelandusermanual exhibition. 7.Themodulartransmittermustcomplywithanyspecificruleoroperating requirementsapplicabletothetransmitterandthemanufacturermustprovide adequateinstructionsalongwiththemoduletoexplainanysuchrequirements.A copyoftheseinstructionsmustbeincludedintheapplicationforequipment authorization.Forexample,thereareverystrictoperationalandtiming requirementsthatmustbemetbeforeatransmitterisauthorizedforoperationunder Section15.231.Forinstance,datatransmissionisprohibited,exceptforoperation underSection15.231(e),inwhichcasethereareseparatefieldstrengthleveland timingrequirements.Compliancewiththeserequirementsmustbeassured. Yes,TherequiredFCCrulehas beenfulfilledandallthe instructionformaintaining compliancehavebeenclearly statedintheusermanual. 8.ThemodulartransmittermustcomplywithanyapplicableRFexposure requirements.Forexample,FCCRulesinSections1.1310,2.1091,2.1093,and specificSectionsofPart15,including15.319(i),15.407(f),15.253(f)and 15.255(g),requirethatUnlicensedPCS,UNIIandmillimeterwavedevices performroutineenvironmentalevaluationforRFExposuretodemonstrate compliance.Inaddition,spreadspectrumtransmittersoperatingunderSection 15.247arerequiredtoaddressRFExposurecompliance.Modulartransmitters approvedunderotherSectionsofPart15,whennecessary,mayalsoneedto addresscertainRFExposureconcerns,typicallybyprovidingspecificinstallation andoperatinginstructionsforusers,installersandotherinterestedpartiesto ensurecompliance. Yes,PleasereferexhibitionRF exposureforthecompliance ofMPERFexposurerule. RF_734_02 04April16 Note:Alimitedmodularapproval(LMA)maybegrantedforsinglemodulartransmittersthat complypartiallywiththerequirementsabove. Nameandsurnameofapplicant(orauthorizedrepresentative):LucyLiu Signature: Date:2020.8.7

Cover Letter(s)

Amendment Letter Timco Engineering, Inc. This is to request report update for FCC ID: ZMOL610LA, The Major change filed under this application and the relevant report numbers are as below: Original report number New report number Revise content ZR/2020/6001301 ZR/2020/6001301-1 1.Add test site Information in Test Summary, section 1.2 and 1.3. 2.Update equipment list in section 3. 3.Update the report NO. of appendix B in header with “-01”. 4. Add antenna height and angle for ‘Field Strength of Spurious Radiation’ in appendix B. Setup photo Add test location. Sincerely, (signature) (printed name) Derek Yang

External Photos

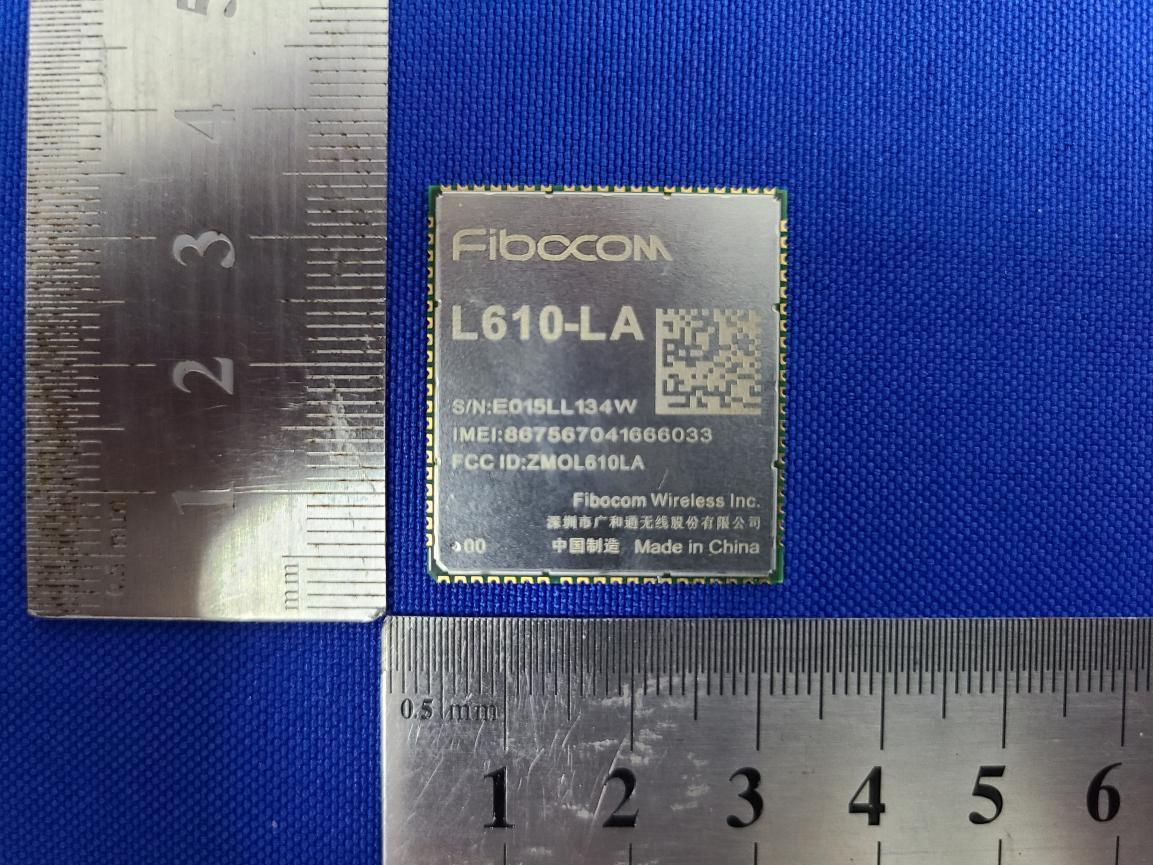

ExternalPhotos

Internal Photos

InternalPhotos

Parts List/Tune Up Info

FibocomwirelessInc. Tune-upprocedure Technology/BandMode TargetPowerandTolerance (dBm) GSM85032.5+1/-1 GSM90032.5+1/-1 GSM180029.5+1/-1 GSM190029.5+1/-1 GPRS85031.5+1/-1 GPRS90031.5+1/-1 GPRS180029+1/-1 GPRS190029+1/-1 LTE-Band1RMC23+1/-3 LTE–Band2RMC 23+1/-3 LTE–Band3RMC 23+1/-3 LTE–Band4RMC 23+1/-3 LTE–Band5RMC 23+1/-3 LTE–Band7RMC 23+1/-3 LTE–Band8RMC23+1/-3 LTE–Band28RMC23+1/-3 LTE–Band66RMC23+1/-3 FibocomwirelessInc.

RF Exposure Info

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6001303 Page: 1 of 7 Authorized Signature: Derek Yang Wireless Laboratory Manager Cover PRF Exposure Evaluation Report Application No.: ZR/2020/60013 Applicant: Fibocom Wireless Inc. Address of Applicant: 5/F,Tower A,Technology Building II,1057 Nanhai Avenue,Shenzhen,China Manufacturer: Fibocom Wireless Inc. Address of Manufacturer: 5/F,Tower A,Technology Building II,1057 Nanhai Avenue,Shenzhen,China EUT Description: LTE Cat1&GSM Module Model No.: L610-LA Trade Mark: Fibocom FCC ID: ZMOL610LA Standards: 47 CFR Part 2.1091 FCC KDB 447498 D01 v06 Date of Receipt: 2020/7/15 Date of Test: 2020/7/15 to 2020/8/10 Date of Issue: 2020/8/17 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: ZR/2020/6001303 Page: 2 of 7 1 Version Revision Record Version Chapter Date Modifier Remark 01 2020/8/17 Original Authorized for issue by: Mike Hu /Project Engineer David Chen /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Report No.: ZR/2020/6001303 Page: 3 of 7 Contents 1 VERSION ......................................................................................................................................................... 2 2 GENERAL INFORMATION ............................................................................................................................ 4 2.1 CLIENT INFORMATION ............................................................................................................................... 4 2.2 TEST LOCATION........................................................................................................................................ 4 2.3 TEST FACILITY .......................................................................................................................................... 4 2.4 GENERAL DESCRIPTION OF EUT .............................................................................................................. 5 3 RF EXPOSURE EVALUATION ..................................................................................................................... 6 3.1 RF EXPOSURE COMPLIANCE REQUIREMENT ............................................................................................ 6 3.1.1 Limits .................................................................................................................................................. 6 3.1.2 Test Procedure .................................................................................................................................. 7 3.1.3 EUT RF Exposure Evaluation ........................................................................................................... 7 SGS-CSTC Standards Technical Services Co., Ltd. Report No.: ZR/2020/6001303 Page: 4 of 7 2 General Information 2.1 Client Information Applicant: Fibocom Wireless Inc. Address of Applicant: 5/F,Tower A,Technology Building II,1057 Nanhai Avenue,Shenzhen,China Manufacturer: Fibocom Wireless Inc. Address of Manufacturer: 5/F,Tower A,Technology Building II,1057 Nanhai Avenue,Shenzhen,China 2.2 Test Location Company: SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Address: No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China Post code: 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 E-mail: [email protected] 2.3 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • CNAS (No. CNAS L2929) CNAS has accredited SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch EMC Lab to ISO/IEC 17025:2017 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1178. Test Firm Registration Number: 406779. • Industry Canada (IC) Two 3m Semi-anechoic chambers and the 10m Semi-anechoic chamber of SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch EMC Lab have been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 4620C-1, 4620C-2, 4620C-3. SGS-CSTC Standards Technical Services Co., Ltd. Report No.: ZR/2020/6001303 Page: 5 of 7 2.4 General Description of EUT EUT Description:: LTE Module Model No.: L610-LA Trade Mark: Fibocom Hardware Version: V1.1 Software Version: 16000.1000.00.06.10.02 Antenna Gain: GSM850: 1.5dBi; GSM1900: 0.9dBi; LTE Band 2: 0.9dBi; LTE Band 4: 1.3dBi; LTE Band 5: 1.5dBi; LTE Band 7: 2.3dBi; LTE Band 66: 1.4dBi; SGS-CSTC Standards Technical Services Co., Ltd. Report No.: ZR/2020/6001303 Page: 6 of 7 3 RF Exposure Evaluation 3.1 RF Exposure Compliance Requirement 3.1.1 Limits Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm2) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f2) 6 30-300 61.4 0.16…

Text truncated - open the document above for the full version.

Test Report

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6001301 Page: 1 of 66 Appendix B GSM 850 & 1900 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6001301 Page: 2 of 66 CONTENT Page 1. EFFECTIVE (ISOTROPIC) RADIATED POWER OUTPUT DATA .............................................................................................. 4 1.1. Test Result ............................................................................................................................................ 4 2. PEAK-TO-AVERAGE RATIO ...................................................................................................................................... 6 2.1. Test Result ............................................................................................................................................ 6 2.2. Part II - Test Plots ................................................................................................................................. 6 3. MODULATION CHARACTERISTICS.............................................................................................................................13 3.1. For GSM ...............................................................................................................................................13 3.1.1. Test Band = GSM 850 .....................................................................................................................13 3.1.1.1. Test Mode = GSM/TM1 ...............................................................................................................13 3.1.1.1.1. Test Channel = MCH ...............................................................................................................13 3.1.1.2. Test Mode = GSM/TM2 ...............................................................................................................14 3.1.1.2.1. Test Channel = MCH ...............................................................................................................14 3.1.2. Test Band = GSM 1900 ..................................................................................................................15 3.1.2.1. Test Mode = GSM/TM1 ...............................................................................................................15 3.1.2.1.1. Test Channel = MCH ...............................................................................................................15 3.1.2.2. Test Mode = GSM/TM2 ...............................................................................................................16 3.1.2.2.1. Test Channel = MCH ...............................................................................................................16 4. 26DB BANDWIDTH AND OCCUPIED BANDWIDTH ........................................................................................................17 4.1. Test Result ...........................................................................................................................................17 4.2. Test Plots .............................................................................................................................................17 5. BAND EDGE COMPLIANCE .....................................................................................................................................24 5.1. Test Result ...........................................................................................................................................24 5.2. Test Plots .............................................................................................................................................24 6. SPURIOUS EMISSION AT ANTENNA TERMINAL ............................................................................................................29 6.1. Test Plots .............................................................................................................................................29 7. FIELD STRENGTH OF SPURIOUS RADIATION ................................................................................................................60 7.1. Test Band = GSM 1900 ......................................................................................................................60 7.1.1. Test Channel = LCH ........................................................................................................................60 7.1.2. Test Channel = MCH .......................................................................................................................60 7.1.3. Test Channel = HCH .......................................................................................................................60 7.2. Test Band = GSM 850 .........................................................................................................................61 7.2.1. Test Channel = LCH ........................................................................................................................61 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6001301 Page: 3 of 66 7.2.2. Test Channel = MCH .......................................................................................................................61 7.2.3. Test Channel = HCH .......................................................................................................................62 8. FREQUENCY STABILITY ..........................................................................................................................................63 8.1. Frequency Error Vs Voltage ...............................................................................................................63 8.2. Frequency Error Vs Temperature .......................................................................................................64 SGS-CSTC Standards Technical Services Co., Ltd.…

Text truncated - open the document above for the full version.

Test Report

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6001301 Page: 1 of 74 Appendix B E-UTRA Band 2 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6001301 Page: 2 of 74 CONTENT 1 EFFECTIVE (ISOTROPIC) RADIATED POWER ............................................................................................................... 3 1.1. TEST RESULT ........................................................................................................................................................ 3 2. PEAK-TO-AVERAGE RATIO (CCDF) ........................................................................................................................... 11 2.1. TEST RESULT ...................................................................................................................................................... 11 2.2. TEST PLOTS ........................................................................................................................................................ 11 3. MODULATION CHARACTERISTICS .......................................................................................................................... 15 3.1. TEST MODE = LTE /TM1 20MHZ .......................................................................................................................... 15 3.1.1. TEST CHANNEL = MCH ..................................................................................................................................... 15 3.2. TEST MODE = LTE /TM2 20MHZ .......................................................................................................................... 16 3.2.1. TEST CHANNEL = MCH ..................................................................................................................................... 16 4. 26DB BANDWIDTH AND OCCUPIED BANDWIDTH .................................................................................................. 17 4.1. TEST RESULT ...................................................................................................................................................... 17 4.2. TEST PLOTS ........................................................................................................................................................ 18 5. BAND EDGE COMPLIANCE ..................................................................................................................................... 37 5.1. TEST RESULT ...................................................................................................................................................... 37 5.2. TEST PLOTS ........................................................................................................................................................ 38 6. SPURIOUS EMISSION AT ANTENNA TERMINAL ...................................................................................................... 63 6.1. TEST PLOTS ........................................................................................................................................................ 63 7. FIELD STRENGTH OF SPURIOUS RADIATION ........................................................................................................... 70 7.1. TEST MODE =LTE/TM1 20MHZ............................................................................................................................ 70 7.1.1. TEST CHANNEL = LCH ....................................................................................................................................... 70 7.1.2. TEST CHANNEL = MCH ..................................................................................................................................... 70 7.1.3. TEST CHANNEL = HCH ...................................................................................................................................... 71 8. FREQUENCY STABILITY ........................................................................................................................................... 72 8.1. FREQUENCY VS VOLTAGE ....................................................................................................................................... 72 8.2. FREQUENCY VS TEMPERATURE ................................................................................................................................ 72 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6001301 Page: 3 of 74 1 Effective (Isotropic) Radiated Power 1.1. Test Result Band Bandwidth Modulation Channel RB Configuration Conducted Power(dBm) EIRP (dBm) limit (dBm) Verdict Band2 1.4MHz QPSK 18607 1RB#5 23.04 23.94 33 PASS Band2 1.4MHz QPSK 18607 1RB#2 23.96 24.86 33 PASS Band2 1.4MHz QPSK 18607 1RB#0 23.94 24.84 33 PASS Band2 1.4MHz QPSK 18607 3RB#0 24.00 24.90 33 PASS Band2 1.4MHz QPSK 18607 3RB#1 23.73 24.63 33 PASS Band2 1.4MHz QPSK 18607 3RB#3 24.63 25.53 33 PASS Band2 1.4MHz QPSK 18607 6RB#0 22.56 23.46 33 PASS Band2 1.4MHz QPSK 18900 1RB#5 21.93 22.83 33 PASS Band2 1.4MHz QPSK 18900 1RB#0 22.19 23.09 33 PASS Band2 1.4MHz QPSK 18900 1RB#2 22.67 23.57 33 PASS Band2 1.4MHz QPSK 18900 3RB#3 22.72 23.62 33 PASS Band2 1.4MHz QPSK 18900 3RB#0 22.26 23.16 33 PASS Band2 1.4MHz QPSK 18900 3RB#1 22.73 23.63 33 PASS Band2 1.4MHz QPSK 18900 6RB#0 21.37 22.27 33 PASS Band2 1.4MHz QPSK 19193 1RB#5 21.50 22.40 33 PASS Band2 1.4MHz QPSK 19193 1RB#0 22.17 23.07 33 PASS Band2 1.4MHz QPSK 19193 1RB#2 22.48 23.38 33 PASS Band2 1.4MHz QPSK 19193 3RB#0 22.24 23.14 33 PASS Band2 1.4MHz QPSK 19193 3RB#1 22.19 23.09 33 PASS Band2 1.4MHz QPSK 19193 3RB#3 23.20 24.10 33 PASS Band2 1.4MHz QPSK 19193 6RB#0 20.97 21.87 33 PASS Band2 1.4MHz 16QAM 18607 1RB#5 22.39 23.29 33 PASS Band2 1.4MHz 16QAM 18607 1RB#2 23.26 24.16 33 PASS Band2 1.4MHz 16QAM 18607 1RB#0 23.20 24.10 33 PASS Band2 1.4MHz 16QAM 18607 3RB#3 23.76 24.66 33 PASS Band2 1.4…

Text truncated - open the document above for the full version.

Test Report

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6001301 Page: 1 of 77 Appendix B E-UTRA Band 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: ZR/2020/6001301 Page: 2 of 77 CONTENT 1 EFFECTIVE (ISOTROPIC) RADIATED POWER ............................................................................................................... 3 1.1. TEST RESULT ........................................................................................................................................................ 3 2. PEAK-TO-AVERAGE RATIO (CCDF) ........................................................................................................................... 11 2.1. TEST RESULT ...................................................................................................................................................... 11 2.2. TEST PLOTS ........................................................................................................................................................ 11 3. MODULATION CHARACTERISTICS .......................................................................................................................... 15 3.1. TEST MODE = LTE /TM1 20MHZ .......................................................................................................................... 15 3.1.1. TEST CHANNEL = MCH ..................................................................................................................................... 15 3.2. TEST MODE = LTE /TM2 20MHZ ..................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Patrick Ma(Certification Director)

[email protected]+8675526733555Fax: +86-755-26520841

Test Firm

SGS-CSTC Standards Technical Services Co., LtdDerek Yang

[email protected]+86 0135 6484 8721

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
17	27	1.72 GHz - 1.77 GHz	233.00 mW	6M89W7D	0.1 ppm

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Single Modular Approval. Approval is limited to OEM installation only. Compliance of this device in all final host configurations is the responsibility of the Grantee. This device is to be used only for mobile and fixed applications. OEM integrators must be provided labeling requirements for finished products. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device. Separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. Power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operated in conjunction with any other antenna or transmitter. The antenna installation and operating configurations of this transmitter, including any applicable source-based time-averaging duty factor, antenna gain, and cable loss must satisfy MPE categorical Exclusion Requirements of Part 2.1091. Users must be provided with instructions and transmitter operating conditions for satisfying RF exposure compliance. RF exposure compliance may need to be addressed at the time of licensing, as required by the responsible FCC bureau(s), including antenna co-location requirements of Part 1.1307(b)(3). The Antenna(s) used for this transmitter must not exceed a maximum gain as described in the filing. This device supports: LTE of 1.4, 3, 5, 10, 15, and 20 MHz bandwidth modes for LTE Band 2, 4 and 66; LTE of 1.4, 3, 5 and 10 MHz bandwidth modes for LTE Band 5; LTE of 5, 10, 15, and 20 MHz bandwidth modes for LTE Band 7.
