ZMOMC610LA20LTE Module

About This Document Copyright © Fibocom Wireless Inc. 1 MC610 Hardware Guide V1.2 Trademark Statement The trademark is registered and owned by Fibocom Wireless Inc. Other trademarks, product names, service names and company names appearing in this document are owned by their respective owners. Contact Information Website: https://www.fibocom.com Address: 10/F-14/F, Block A, Building 6, Shenzhen International Innovation Valley, Dashi First Road, Xili Community, Xili Subdistrict, Nanshan District, Shenzhen Tel: 0755-26733555 1 About This Document Copyright © Fibocom Wireless Inc. 3 1 About This Document 1.1 Description This document describes information on electrical characteristics, RF performance, structural dimension, application environment, etc. of the MC610 series wireless module. With the help of this document and other related documents, the application developer can quickly understand the hardware functions of MC610 series modules and develop the hardware of the product. 1.2 Safety Instructions Observing the following safety principles can ensure personal safety and be conducive to protecting products and work environment from potential damages. Product manufacture should communicate the following safety instructions to end users. If these safety principles are not followed, Fibocom Wireless Inc. will not be responsible for the consequences caused by incorrect use of users. Road safety first! When you are driving, do not use handheld mobile terminal equipment, even if it has a hands-free function. Please stop and then call! Please turn off the mobile terminal equipment before boarding. The wireless function of the mobile terminal is forbidden to be turned on in the aircraft to prevent interference with aircraft communications system. Ignoring the prompt may lead to flight unsafety and even violation of the law. Please pay attention to whether there are restrictions on the use of the mobile terminal equipment when in hospitals or health care facilities. RF interference may cause abnormal operation of medical devices. Therefore, it is possible to turn off the mobile terminal equipment. The mobile terminal equipment does not guarantee effective connection under any circumstances, for example, when the mobile terminal equipment is defaulted or (U) SIM is invalid. In case of the above situations in an emergency, remember to use the emergency call, and make sure your device is turned on and in an area of sufficient signal strength. Your mobile terminal equipment will receive and transmit RF signals when it is turned on. RF interference occurs when it is close to televisions, radios, computers or other electronic devices Keep the mobile terminal equipment away from flammable gases. Please turn off the mobile terminal equipment when it is near gas stations, oil depots, chemical plants or explosive workplaces. There are potential safety hazards in the operation of electronic devices in any potential explosion hazard area. 1 About This Document Copyright © Fibocom Wireless Inc. 4 1.3 References This product is designed with reference to the following standards: ⚫3GPP TS 51.010-1 V10.5.0: Mobile Station (MS) conformance specification; Part 1: Conformance specification ⚫3GPP TS 36.521-1 V13.6.0: User Equipment (UE) conformance specification; Radio transmission and reception; Part 1: Conformance testing ⚫3GPP TS 21.111 V10.0.0: USIM and IC card requirements ⚫3GPP TS 51.011 V4.15.0: Specification of the Subscriber Identity Module -Mobile Equipment (SIM-ME) interface ⚫3GPP TS 31.102 V10.11.0: Characteristics of the Universal Subscriber Identity Module (USIM) application ⚫3GPP TS 31.11 V10.16.0: Universal Subscriber Identity Module (USIM) Application Toolkit(USAT) ⚫3GPP TS 36.124 V10.3.0: Electro Magnetic Compatibility (EMC) requirements for mobile terminals and ancillary equipment ⚫3GPP TS 27.007 V10.0.8: AT command set for User Equipment (UE) ⚫3GPP TS 27.005 V10.0.1: Use of Data Terminal Equipment - Data Circuit terminating Equipment (DTE -DCE) interface for Short Message Service (SMS) and Cell Broadcast Service (CBS) 1.4 Related Documents ⚫Fibocom_MC610_ADP User Guide ⚫FIBOCOM_MC610_SMT Design Guide ⚫FIBOCOM_Design Guide_RF Antenna ⚫FIBOCOM_MC610_AT Commands ⚫FIBOCOM_MC610 GPIO Function Multiplexing ⚫FIBOCOM_MC610_Reference Design 2 Product Overview Copyright © Fibocom Wireless Inc. 5 2 Product Overview 2.1 Product Introduction MC610 series module is a kind of broadband wireless terminal product suitable for TDD-LTE/FDD-LTE multiple network systems and multiple bands. Item LTE FDD LTE TDD GSM ANT MC610 （LA） Band 1, 2, 3, 4, 5, 7, 8, 28, 66 Band 38, 40, 41 850/900/1800/1900 Main MC610 has 4MB Flash+8MB RAM, The support for Open functionality should be determined based on the specific model. 2.2 Product Specification Table 1.Product specification Operating band See Section 2.1 for details. Data transmission LTE FDD Rel.13 DL/UL 10.3 Mbps (20M) /5.1 Mbps (10M) LTE TDD Rel.13 9.1Mbps DL/3.1Mbps UL GPRS 85.6Kbps DL/85.6Kbps UL Power 3.4 V to 4.3 V (recommended value: 3.8 V) Temperature Normal operation: -35°C to +75°C Extended operation: -40°C to +85°C Storage: -40°C to +90°C Power consumption Sleep mode: 2.2mA Physical characteristics Package: LCC 52PIN+LGA 76PIN Dimensions: 24.2 mm × 26.2 mm × 2.1 mm Weight: about 2 g. Interface Antenna Antenna: Main set ×1 Functional interface USIM3.0V/1.8V ×2 USB2.0 × 1 2 Product Overview Copyright © Fibocom Wireless Inc. 6 System state indicator ADCx4, UARTx3, I2C, SPI, KEY, SPK, MIC, HEADMIC, HP, SDIO Software Protocol stack Embedded TCP/IP and UDP/IP protocol stack AT command 3GPP TS 27.007 and 27.005, and proprietary FIBOCOM AT Firmware update USB Voice service HR, FR, EFR, AMR, caller display, call transfer, call holding, call waiting, multi-party call, etc. SMS business Point-to-point MO, MT, cell broadcast, support Text and PDU mode 1、When the temperature exceeds the normal operating temperature range of -30°C to +75°C, the RF performance of the module …

Text truncated - open the document above for the full version.

Fibocom Wireless Inc. 1101,Tower A, Building 6, Shenzhen International, Innovation Valley, Dashi 1st Rd, Nanshan, ShenZhen, China Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 09-27-2024 SUBJECT: To Whom It May Concern: FCC ID: ZMOMC610LA2 0 I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(b), the responsible party is either the Manufacturer or if the product is imported the Importer. Regards, Fibocom Wireless Inc. ------------------------------- Patrick Ma

Rev 11/20/07 Fibocom Wireless Inc. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: (ZMOMC610LA20). Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Parts List, Tune Up Info Block Diagram, Schematics, Operational Description, BOM Tune Up The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Sincerely, (signature) (printed name) Patrick Ma

D:\CCC,SRRC,NAL_Project\MC610-GL-20-00\FCC\MC610-LA-20-00\签字文件\签字文件\Modular Approval Letter_140225.docx Revision: 140225 Page 1 of 2 Approved By: G Greene MODULAR APPROVAL LETTER FCC ID：ZMOMC610LA20 Modular Approval Requirement Yes (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes, please see exhibition external photos (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Yes, the modular has buffer modulation/data inputs (iii) The modular transmitter must have its own power supply regulation. Yes, please see the schematics (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Yes, the requirements of antenna connector and spurious emission have been fulfilled. Please refer to the test report. (v) The modular transmitter must be tested in a stand- alone configuration Yes, please refer to the setup photos (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Yes, the module will be label with it own FCC ID, and the instruction on the labeling rule of the end product has been stated in the user manual of this module. (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes, the required FCC rule has been fulfilled and all the instruction for maintaining compliance have been clearly stated in the user manual (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes, please refer exhibition RF exposure of MPE RF exposure rule. D:\CCC,SRRC,NAL_Project\MC610-GL-20-00\FCC\MC610-LA-20-00\签字文件\签字文件\Modular Approval Letter_140225.docx Revision: 140225 Page 2 of 2 Approved By: G Greene Name and surname of applicant(or authorized representative): Date:09-27-2024 Name: Patrick Ma Signature:

Fibocom Wireless Inc. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Date: 09-27-2024 SUBJECT: FCC Application for (ZMOMC610LA20) To Whom It May Concern: We, the undersigned, hereby authori ze _ _Jim Huang____ at _ Sushi TOWE Wireless Testing(Shenzhen)Co.,Ltd.__________________ on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by ___Jim Huang____ on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, (Must be signed by the person that is listed on the FCC Website) Patrick Ma

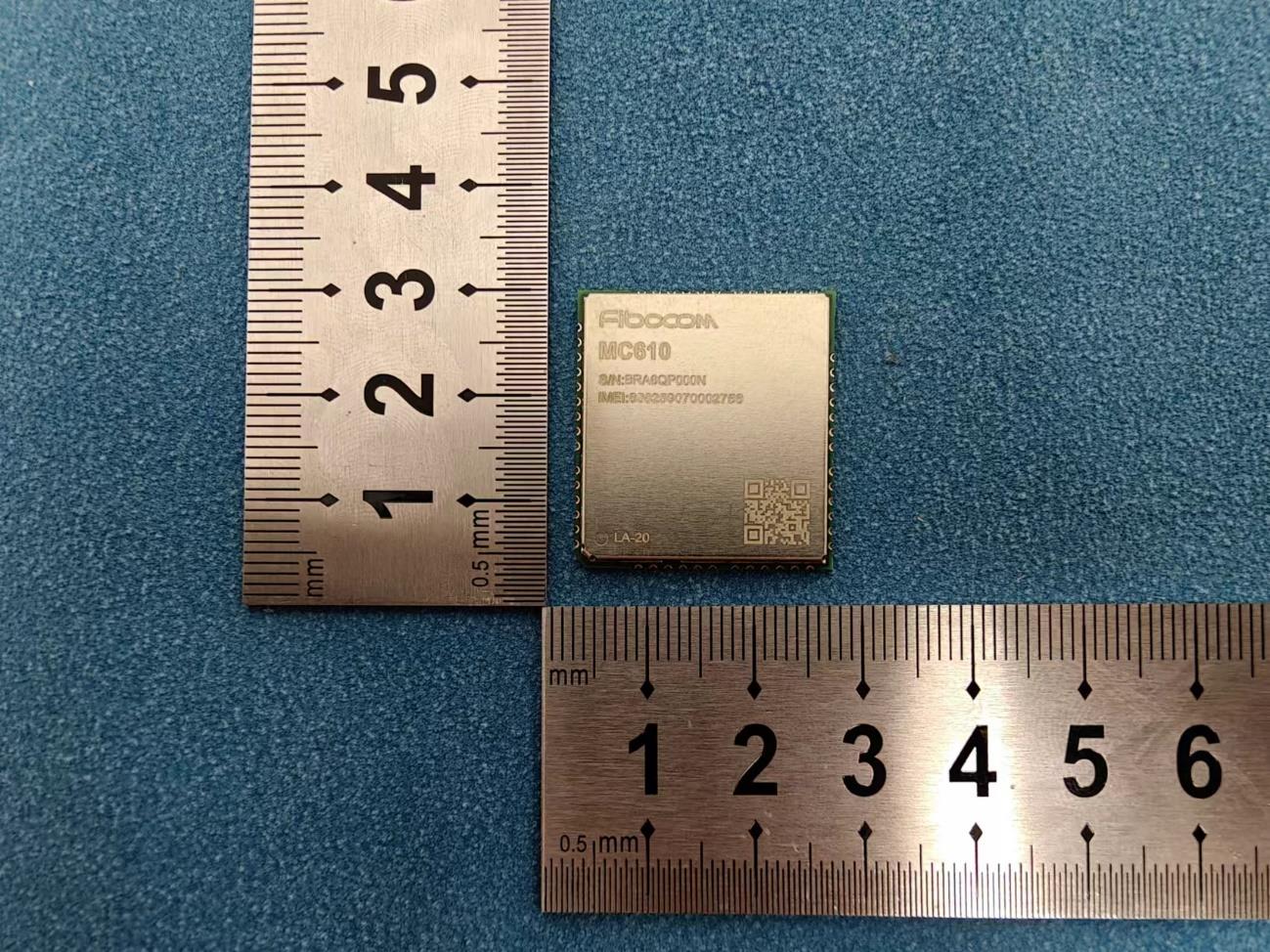

Sushi TOWE Wireless Testing (Shenzhen) Co., Ltd. Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Page 1 / 3 External photos Sushi TOWE Wireless Testing (Shenzhen) Co., Ltd. Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Page 2 / 3 Sushi TOWE Wireless Testing (Shenzhen) Co., Ltd. Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Page 3 / 3

Sushi TOWE Wireless Testing (Shenzhen) Co., Ltd. Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Page 1 / 1 Internal photos

Sushi TOWE Wireless Testing (Shenzhen) Co., Ltd. Report No.: TCWA24070017902 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. TEST REPORT Applicant: Fibocom Wireless Inc. EUT Description: LTE Module Model: MC610 Brand: Fibocom FCC ID: ZMOMC610LA20 Standards: FCC 47 CFR Part 2.1091 Date of Receipt: 2024/08/28 Date of Issue: 2024/09/18 TOWE. tested the above equipment in accordance with the requirements set forth in the above standards. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. the results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein. It is the manufacturer's responsibility to assure that additional production units of the model are manufactured with identical electrical and mechanical components. All sample tested were in good operating condition throughout the entire test program. Measurement Uncertainties are published for informational purposes only and were not taken into account unless noted otherwise. without written approval of TOWE, the test report shall not be reproduced except in full. Huangkun Approved By: ChenChengfu Reviewed By: Page 2 / 8 Report No.: TCWA24070017902 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Revision History Rev. Issue Date Description Revised by 01 2024/09/18 Original ChenChengfu Page 3 / 8 Report No.: TCWA24070017902 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Table of Contents 1 General Description .............................................................................................................................. 4 1.1 Lab Information ...................................................................................................................... 4 1.1.1 Testing Location ................................................................................................................ 4 1.1.2 Test Facility / Accreditations ............................................................................................. 4 1.2 Client Information ................................................................................................................... 4 1.2.1 Applicant ............................................................................................................................ 4 1.2.2 Manufacturer ..................................................................................................................... 4 1.3 General Description of EUT................................................................................................... 5 2 Maximum Permissible RF Exposure ................................................................................................... 6 2.1 RF Exposure Limit Introduction ........................................................................................... 6 2.2 Equations ................................................................................................................................ 7 3 RF Exposure Results ............................................................................................................................ 8 3.1 Standalone Exposure Calculations ...................................................................................... 8 Page 4 / 8 Report No.: TCWA24070017902 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. 1 General Description 1.1 Lab Information 1.1.1 Testing Location These measurements tests were conducted at the Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. facility located at F401 and F101, Building E, Hongwei Industrial Zone, Liuxian 3rd Road, Bao'an District, Shenzhen, China. The measurement facility is compliant with the test site requirements specified in ANSI C63.4-2014 Tel.: +86-755-27212361 Contact Email: [email protected] 1.1.2 Test Facility / Accreditations A2LA (Certificate Number: 7088.01) This laboratory is accredited in accordance with the recognized International Standard ISO/IEC 17025:2017 General requirements for the competence of testing and calibration laboratories. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer to joint ISO-ILAC-IAF Communiqué dated April 2017). FCC Designation No.: CN1353 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. has been recognized as an accredited testing laboratory. Designation Number: CN1353. ISED CAB identifier: CN0152 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0152 Company Number: 31000 1.2 Client Information 1.2.1 Applicant Applicant: Fibocom Wireless Inc. Address: 1101,T…

Text truncated - open the document above for the full version.

Page 1 / 12 Report No.: TCWA24070017901 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Appendix-A GSM Effective (Isotropic) Radiated Power Output Data Test Result Band Channel Slot Power(dBm) ERP(dBm) Limit(dBm) Verdict GPRS850 128 1 34.09 32.43 38.45 PASS GPRS850 190 1 33.76 32.10 38.45 PASS GPRS850 251 1 33.66 32.00 38.45 PASS GPRS850 128 2 32.67 31.01 38.45 PASS GPRS850 190 2 32.95 31.29 38.45 PASS GPRS850 251 2 33.32 31.66 38.45 PASS GPRS850 128 3 30.61 28.95 38.45 PASS GPRS850 190 3 30.92 29.26 38.45 PASS GPRS850 251 3 31.18 29.52 38.45 PASS GPRS850 128 4 28.72 27.06 38.45 PASS GPRS850 190 4 29.05 27.39 38.45 PASS GPRS850 251 4 29.19 27.53 38.45 PASS Band Channel Slot Power(dBm) EIRP(dBm) Limit(dBm) Verdict GPRS1900 512 1 30.83 31.83 33.01 PASS GPRS1900 661 1 31.38 32.38 33.01 PASS GPRS1900 810 1 31.31 32.31 33.01 PASS GPRS1900 512 2 29.80 30.80 33.01 PASS GPRS1900 661 2 30.32 31.32 33.01 PASS GPRS1900 810 2 30.14 31.14 33.01 PASS GPRS1900 512 3 28.75 29.75 33.01 PASS GPRS1900 661 3 29.20 30.20 33.01 PASS GPRS1900 810 3 29.09 30.09 33.01 PASS GPRS1900 512 4 27.01 28.01 33.01 PASS GPRS1900 661 4 27.56 28.56 33.01 PASS GPRS1900 810 4 27.47 28.47 33.01 PASS Page 2 / 12 Report No.: TCWA24070017901 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Peak-to-Average Ratio(CCDF) Test Result Band Channel Result(dB) Limit(dB) Verdict GPRS850 128 8.98 13 PASS GPRS850 190 9.72 13 PASS GPRS850 251 9.93 13 PASS GPRS1900 512 9.75 13 PASS GPRS1900 661 9.49 13 PASS GPRS1900 810 9.48 13 PASS Page 3 / 12 Report No.: TCWA24070017901 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Test Graphs GPRS850-128-5-PASS GPRS850-190-5-PASS GPRS850-251-5-PASS GPRS1900-512-0-PASS GPRS1900-661-0-PASS GPRS1900-810-0-PASS Page 4 / 12 Report No.: TCWA24070017901 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. 26dB Bandwidth and Occupied Bandwidth Test Result Band Channel Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict GPRS850 128 0.23316 0.3034 --- PASS GPRS850 190 0.23659 0.3086 --- PASS GPRS850 251 0.23708 0.3006 --- PASS GPRS1900 512 0.23639 0.3011 --- PASS GPRS1900 661 0.23442 0.3052 --- PASS GPRS1900 810 0.23591 0.3058 --- PASS Page 5 / 12 Report No.: TCWA24070017901 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Test Graphs GPRS850-128-5-PASS GPRS850-190-5-PASS GPRS850-251-5-PASS GPRS1900-512-0-PASS GPRS1900-661-0-PASS GPRS1900-810-0-PASS Page 6 / 12 Report No.: TCWA24070017901 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Band Edge Test Graphs GPRS850-128-5-PASS GPRS850-251-5-PASS GPRS1900-512-0-PASS GPRS1900-810-0-PASS Page 7 / 12 Report No.: TCWA24070017901 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Conducted Spurious Emission Test Graphs GPRS850-128-5-0.009~0.15MHz-PASS GPRS850-128-5-0.15~30MHz-PASS GPRS850-128-5-30~1000MHz-PASS GPRS850-128-5-1000~10000MHz-PASS GPRS850-190-5-0.009~0.15MHz-PASS GPRS850-190-5-0.15~30MHz-PASS Page 8 / 12 Report No.: TCWA24070017901 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. GPRS850-190-5-30~1000MHz-PASS GPRS850-190-5-1000~10000MHz-PASS GPRS850-251-5-0.009~0.15MHz-PASS GPRS850-251-5-0.15~30MHz-PASS GPRS850-251-5-30~1000MHz-PASS GPRS850-251-5-1000~10000MHz-PASS Page 9 / 12 Report No.: TCWA24070017901 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic…

Text truncated - open the document above for the full version.

Page 1 / 21 Report No.: TCWA24070017901 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Appendix-B LTE Band2 Effective (Isotropic) Radiated Power Output Data Test Result Band Bandwidth Modulation Channel RB Configuration Result (dBm) EIRP (dBm) Limit (dBm) Verdict Band2 1.4MHz QPSK 18607 1RB#0 23.46 24.46 33.01 PASS Band2 1.4MHz QPSK 18607 6RB#0 22.43 23.43 33.01 PASS Band2 1.4MHz QPSK 18607 1RB#2 23.73 24.73 33.01 PASS Band2 1.4MHz QPSK 18607 1RB#5 22.78 23.78 33.01 PASS Band2 1.4MHz QPSK 18900 1RB#0 23.36 24.36 33.01 PASS Band2 1.4MHz QPSK 18900 6RB#0 22.91 23.91 33.01 PASS Band2 1.4MHz QPSK 18900 1RB#2 23.64 24.64 33.01 PASS Band2 1.4MHz QPSK 18900 1RB#5 22.79 23.79 33.01 PASS Band2 1.4MHz QPSK 19193 1RB#0 22.37 23.37 33.01 PASS Band2 1.4MHz QPSK 19193 6RB#0 22.41 23.41 33.01 PASS Band2 1.4MHz QPSK 19193 1RB#2 22.93 23.93 33.01 PASS Band2 1.4MHz QPSK 19193 1RB#5 22.01 23.01 33.01 PASS Band2 1.4MHz 16QAM 18607 1RB#0 22.61 23.61 33.01 PASS Band2 1.4MHz 16QAM 18607 6RB#0 21.46 22.46 33.01 PASS Band2 1.4MHz 16QAM 18607 1RB#2 23.10 24.10 33.01 PASS Band2 1.4MHz 16QAM 18607 1RB#5 22.18 23.18 33.01 PASS Band2 1.4MHz 16QAM 18900 1RB#0 22.77 23.77 33.01 PASS Band2 1.4MHz 16QAM 18900 6RB#0 21.93 22.93 33.01 PASS Band2 1.4MHz 16QAM 18900 1RB#2 23.02 24.02 33.01 PASS Band2 1.4MHz 16QAM 18900 1RB#5 22.03 23.03 33.01 PASS Band2 1.4MHz 16QAM 19193 1RB#0 21.66 22.66 33.01 PASS Band2 1.4MHz 16QAM 19193 6RB#0 21.62 22.62 33.01 PASS Band2 1.4MHz 16QAM 19193 1RB#2 22.28 23.28 33.01 PASS Band2 1.4MHz 16QAM 19193 1RB#5 21.36 22.36 33.01 PASS Band2 3MHz QPSK 18615 1RB#0 23.30 24.30 33.01 PASS Band2 3MHz QPSK 18615 15RB#0 22.46 23.46 33.01 PASS Band2 3MHz QPSK 18615 1RB#8 23.82 24.82 33.01 PASS Band2 3MHz QPSK 18615 1RB#14 22.30 23.30 33.01 PASS Band2 3MHz QPSK 18900 1RB#0 23.33 24.33 33.01 PASS Band2 3MHz QPSK 18900 15RB#0 22.96 23.96 33.01 PASS Band2 3MHz QPSK 18900 1RB#8 23.84 24.84 33.01 PASS Band2 3MHz QPSK 18900 1RB#14 22.20 23.20 33.01 PASS Band2 3MHz QPSK 19185 1RB#0 23.18 24.18 33.01 PASS Band2 3MHz QPSK 19185 15RB#0 22.13 23.13 33.01 PASS Band2 3MHz QPSK 19185 1RB#8 23.29 24.29 33.01 PASS Band2 3MHz QPSK 19185 1RB#14 21.51 22.51 33.01 PASS Page 2 / 21 Report No.: TCWA24070017901 Sushi TOWE Wireless Testing(Shenzhen) Co., Ltd. Email: [email protected] Tel.: +86-755-27212361 TOWE-QP-15-F05 Rev.1.1 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from TOWE. Band2 3MHz 16QAM 18615 1RB#0 22.70 23.70 33.01 PASS Band2 3MHz 16QAM 18615 15RB#0 21.53 22.53 33.01 PASS Band2 3MHz 16QAM 18615 1RB#8 23.11 24.11 33.01 PASS Band2 3MHz 16QAM 18615 1RB#14 21.59 22.59 33.01 PASS Band2 3MHz 16QAM 18900 1RB#0 22.73 23.73 33.01 PASS Band2 3MHz 16QAM 18900 15RB#0 22.04 23.04 33.01 PASS Band2 3MHz 16QAM 18900 1RB#8 23.10 24.10 33.01 PASS Band2 3MHz 16QAM 18900 1RB#14 21.55 22.55 33.01 PASS Band2 3MHz 16QAM 19185 1RB#0 22.58 23.58 33.01 PASS Band2 3MHz 16QAM 19185 15RB#0 21.24 22.24 33.01 PASS Band2 3MHz 16QAM 19185 1RB#8 22.71 23.71 33.01 P…

Text truncated - open the document above for the full version.
