ZMYM4G-641M4G-641 LTE FDD MODULE

MitraStar Technology Corporation

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Dec 09, 2013
Application Purpose: Original Equipment
Date of Application: Dec 08, 2013
Equipment Note: M4G-641 LTE FDD MODULE
Frequency Range: 782.00000000 - 782.00000000
Company: MitraStar Technology Corporation
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

© 2012 MitraStar Technology Corp. All Rights Reserved. Ver. 1.2 Ŷ 3GPPTS 36.521 Compliant (LTE FDD) Ŷ R8. Software upgradable to R9 Ŷ FDD Dual Band Band 13 Band 4 Ŷ Standard mPCIe minicard Form Factor Ŷ 23dBm Transmission Power Wireless Broadband LTE Solutions MitraStar M4G-641 LTE FDD Module Band 13 & Band 4 supported Field Proved LTE Technology M4G-641 is based on Altair Semiconductor’s high performance LTE chipsets of FourGee3100 baseband and FourGee6202 RFIC chip. It supports 3GPP R8 and R9 upgradable without hardware change. It supports LTE connection using single software and implements a high performance MIMO receiver. Altair FourGee 3100/6202 LTE chipset is Verizon Wireless pre-certified to run over Verizon’s 4G LTE network. Fast Hook Up Standard Minicard Interface M4G-641 adapts the standard mini-PCIe minicard with 52 pin connector. The dimension is 51(L) x 30(W) x 5(H)mm. Both sides have components. Two antenna connectors are provided. The operation temperature ranged from -30°C to 60°C. Easy Enable with Hostless Driver Support M4G-641 supports hostless driver architecture on Linux and Windows. The advantage of this kind of driver requires a lower-end process to establish LTE connection and run traffic through LTE network. This will let most lower-end machine-to-machine applications to use 4G wireless broadband LTE high speed network in the first moment. © 2012 MitraStar Technology Corp. All Rights Reserved. Ver. 1.2 Specifications LTE Air Interface Ŷ 3GPPTS 36.521 Compliant R8 compliance Software upgradeable to R9. Ŷ Duplex mode: FDD Ŷ Band 13 Uplink 777-787MHz Downlink 746-756MHz Ŷ Band 4 Uplink 1710-1755 MHz Downlink 2110-2155 MHz Ŷ Channel Bandwidth: 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz and 20MHz. Ŷ Modulation: Uplink QPSK, 16QAM Downlink QPSK, 16QAM, 64QAM Ŷ Transmsit Power : 23±1 dBm Ŷ Receive Sensitivity: -97dBm @ QPSK 1/2. 10MHz channel bandwidth Ŷ Antenna: Two antenna connectors Main RF for transmit & receive Auxiliary RF for receive diversity Hardware Specifications Ŷ mini-PCIe minicard 52 connector (work in USB mode) Ŷ LED : Power/ LTE connection status through minicard interface Ŷ SIM card though mini-card interface Power Specification Ŷ Input Voltage: 3.3V ± 9% Ŷ Power consumption : Average power consumption 3 W Physical Specifications Ŷ Dimension: 51(L) x 30(W) x 5(H)mm Ŷ Weight: 12g Environmental Specifications Ŷ Operation Temperature: -30 oC ~ 60oC Ŷ Operation Humidity : 10% ~ 90% Ŷ Storage Temperature: -30oC ~ 70oC Ŷ Storage Humidity: 10% ~ 95% OS Support Ŷ Linux Ŷ Microsoft Windows Certification Ŷ FCC Ŷ RoHS © 2012 MitraStar Technology Corp. All Rights Reserved. Ver. 1.2 Pin Assignment Pin Number Minicard Standard Pin Define I/O MitraStar LTE module Pin Definition I/O Description 1 WAKE_N O NC - No Connect 2 3V3_Vaux I 3V3_Vaux I Main Board for Module +3V3 System 3 COEX1/NC I/O BUZZER_CTL O USB Mode: no used OP Mode: RSSI Signal Monitor by Voice 4 GND I GND I Ground 5 COEX2/NC I/O RSSI_LED_0 O USB Mode: no used OP Mode: RSSI Signal Monitor by LED 6 1.5V I NC - No Connect 7 CLKREQ_N O LAN_RESET O OP Mode: Rest PHY IC USB Mode: no used 8 UIM_PWR O UIM_PWR O For SIM Slot (Card) Power +1.8V/+3.0V 9 GND I GND I Ground 10 UIM_DATA I/O UIM_DATA I/O SIM Data Signal 11 REF_CLK- I NC - No Connect 12 UIM_CLK O UIM_CLK O SIM Clock Signal 13 REF_CLK+ I NC - No Connect 14 UIM_RST O UIM_RST O SIM Reset Signal 15 GND I GND I Ground 16 UIM_VPP O NC - No Connect 17 UIM_C8 NA NC - No Connect 18 GND I GND I Ground 19 UIM_C4 NA NC - No Connect 20 W_DISABLE_N I W_DISABLE_N I USB Mode: Active Low Signal. System Can Be Use This Signal to Disable Radio Operation. Pull-up Resistor on The Card. (Feature Support) Low: Idle/Sleep Mode High: Operation Mode OP Mode: no used 21 GND I GND I Ground 22 PERST_N I PERST_N I USB Mode: Reset Module OP Mode: no used 23 PERn0 I/O RMII_RXCTL I OP Mode: RMII Interface USB Mode: no used 24 3V3_Vaux I 3V3_Vaux I Main Board for Module +3V3 System 25 PERp0 I/O RMII_TXCTL O OP Mode: RMII Interface USB Mode: no used 26 GND I GND I Ground © 2012 MitraStar Technology Corp. All Rights Reserved. Ver. 1.2 Pin Number Minicard Standard Pin Define I/O MitraStar LTE module Pin Definition I/O Description 27 GND I GND I Ground 28 1.5V I NC - No Connect 29 GND I GND I Ground 30 SMB_CLK I RMII_MDIO I/O OP Mode: RMII Interface USB Mode: no used 31 PETn0 I/O RMII_RXD0 I OP Mode: RMII Interface USB Mode: no used 32 SMB_DATA I/O RMII_MDC O OP Mode: RMII Interface USB Mode: no used 33 PETp0 I/O RMII_RXD1 I OP Mode: RMII Interface USB Mode: no used 34 GND I GND I Ground 35 GND I GND I Ground 36 USB_D- I/O USB_D- I/O OP Mode: no used USB Mode: Data Interface 37 GND I GND I Ground 38 USB_D+ I/O USB_D+ I/O OP Mode: no used USB Mode: Data Interface 39 3V3_Vaux I 3V3_Vaux-PA I Main Board for PA Power +3V3 (+23dBm) or +4V2 (+26dBm) 40 GND I GND I Ground 41 3V3_Vaux I 3V3_Vaux-PA I Main Board for PA Power +3V3 (+23dBm) or +4V2 (+26dBm) 42 LED_WWAN_N O RSSI_LED_1 X USB Mode: no used OP Mode: RSSI Signal Monitor by LED 43 GND I GND I Ground 44 LED_WLAN_N O RSSI_LED_2 O USB Mode: no used OP Mode: RSSI Signal Monitor by LED 45 NC X RMII_CLK O OP Mode: RMII Interface USB Mode: no used 46 LED_WPAN_N O NC - No Connect 47 NC X RMII_TXD0 O OP Mode: RMII Interface USB Mode: no used 48 1.5V I NC - No Connect 49 NC X RMII_TXD1 O OP Mode: RMII Interface USB Mode: no used 50 GND I GND I Ground 51 NC X NC - No Connect 52 3V3_Vaux I 3V3_Vaux-PA I Main Board for PA Power +3V3 (+23dBm) or +4V2 (+26dBm) © 2012 MitraStar Technology Corp. All Rights Reserved. Ver. 1.2 Connector Figure 1 Module Connectors Physical Dimension Figure 2 Mechanical Drawing (unit: mm) © 2012 MitraStar Technology Corp. All Rights Reserved. Ver. 1.2 Manual Information to the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulator…

Text truncated - open the document above for the full version.

Cover Letter(s)

Date: November 22, 2013 Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request regarding application for certification of FCC ID: ZMYM4G-641 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request Permanent Confidential treatment of information accompanying this application as outlined below: Schematics Block Diagram Operation Description Parts List Tune up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments from a maximum of 180 days External Photos Internal Photos Test Setup Photos User Manual The application contains technical information, which MitraStar Technology Corporation deems to be trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. Sincerely, ___________________ Yi Wang Section Manager MitraStar Technology Corporation

Cover Letter(s)

MitraStar Technology Corporation No. 6, Innovation Rd II, Science-Based Industrial, Hsin-Chu, Taiwan Tel: 886-3-5777998 ; Fax: 886-3-5788837 Date: December 9, 2013 Module Approval Checklist FCC ID: ZMYM4G-641 Item Requirements EUT 1. The modular transmitter must have its own RF shielding. The module is equipped with its own shielding case. 2. The modular transmitter must have buffered modulation / data inputs. The module has buffer modulation / data inputs. 3. The modular transmitter must have its own power supply regulation. The module has its own power supply regulation. 4. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), Not applicable to licensed modules. 5. The modular transmitter must be tested in a stand-alone configuration. The module was tested on evaluation board, and it’s not inside of another device during testing 6. The modular transmitter must be labeled with its own FCC ID number. The module transmitter will be labeled with its own FCC ID, and for OEM integration the integration manual contains labeling instructions for the host device per Part 15.212 (vi) 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The module approved transmitter complies with all applicable rules and the integration manual contains any specific requirements addressed to the integrator and/or to the end-user of the final end-product. 8. The modular transmitter must comply with any applicable RF exposure requirement. Compliance with RF exposure requirement is addressed in RF Exposure report.

Cover Letter(s)

Date: December 6, 2013 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: ZMYM4G-641 To Whom It May Concern: We, MitraStar Technology Corporation, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Sincerely yours, ___________________ YI Wang Section Manager MitraStar Technology Corporation

Cover Letter(s)

Date: November 22, 2013 Power of Attorney To whom it may concern, Please be notified that I, MitraStar Technology Corporation, have designated Jones Tsai in Sporton International Inc. as the person being responsible for this project and to sign the form 731 and other documentation. Any and all acts carried out by Jones Tsai in Sporton International Inc. on the matters of relating to all processes required in the FCC approval and any communication needed with the national authority, shall have the same legal authority as acts on our own behalf. We further certifies that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002 (b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. 835(a). This authorization is limited to the product of as following: FCC ID: ZMYM4G-641 If you have any acknowledgement and response, please send it to Sporton International Inc. directly. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, ___________________ YI Wang Section Manager MitraStar Technology Corporation

External Photos

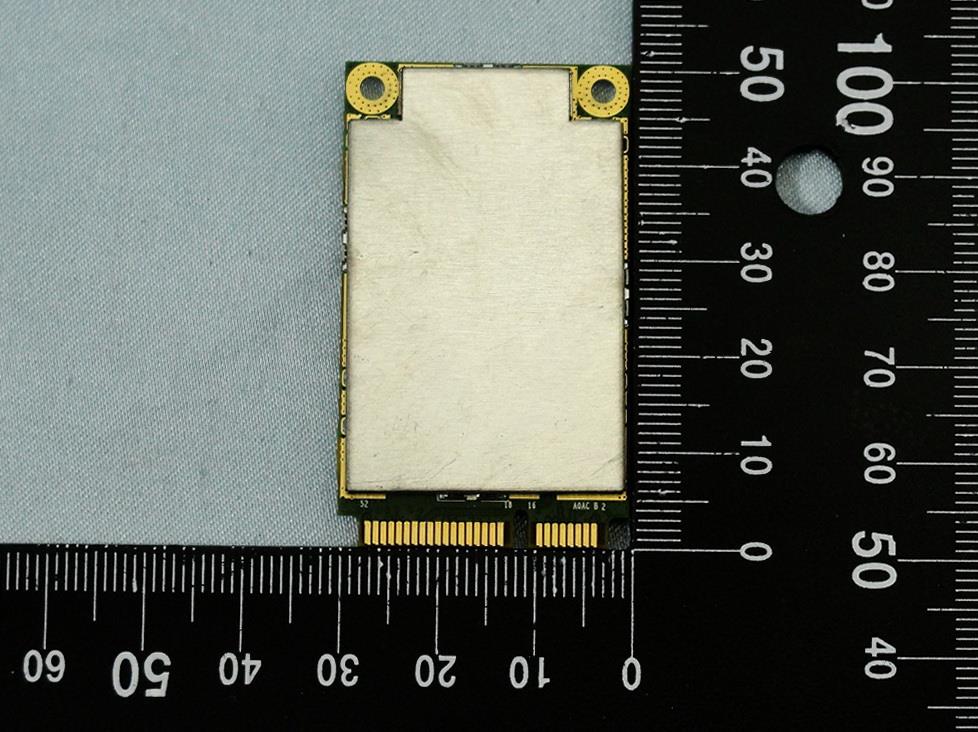

Photographs of EUT Report No.: EP3O1724 Brand Name: MitraStar / Model Name: M4G-641 SPORTON INTERNATIONAL INC. Page Number : 1 of 10 TEL : 886-3-327-3456 Report Issued Date : Nov. 25, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 1. External Photograph of EUT Photographs of EUT Report No.: EP3O1724 Brand Name: MitraStar / Model Name: M4G-641 SPORTON INTERNATIONAL INC. Page Number : 2 of 10 TEL : 886-3-327-3456 Report Issued Date : Nov. 25, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 720510

ID Label/Location Info

Label Drawing and Location FCC ID: ZMYM4G-641 M4G-641 LTE FDD module FCC ID: ZMYM4G-641 Model: M4G-641

Internal Photos

Photographs of EUT Report No.: EP3O1724 Brand Name: MitraStar / Model Name: M4G-641 SPORTON INTERNATIONAL INC. Page Number : 3 of 10 TEL : 886-3-327-3456 Report Issued Date : Nov. 25, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 2. Internal Photograph of EUT Photographs of EUT Report No.: EP3O1724 Brand Name: MitraStar / Model Name: M4G-641 SPORTON INTERNATIONAL INC. Page Number : 4 of 10 TEL : 886-3-327-3456 Report Issued Date : Nov. 25, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 Photographs of EUT Report No.: EP3O1724 Brand Name: MitraStar / Model Name: M4G-641 SPORTON INTERNATIONAL INC. Page Number : 5 of 10 TEL : 886-3-327-3456 Report Issued Date : Nov. 25, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 Photographs of EUT Report No.: EP3O1724 Brand Name: MitraStar / Model Name: M4G-641 SPORTON INTERNATIONAL INC. Page Number : 6 of 10 TEL : 886-3-327-3456 Report Issued Date : Nov. 25, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 Photographs of EUT Report No.: EP3O1724 Brand Name: MitraStar / Model Name: M4G-641 SPORTON INTERNATIONAL INC. Page Number : 7 of 10 TEL : 886-3-327-3456 Report Issued Date : Nov. 25, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 Photographs of EUT Report No.: EP3O1724 Brand Name: MitraStar / Model Name: M4G-641 SPORTON INTERNATIONAL INC. Page Number : 8 of 10 TEL : 886-3-327-3456 Report Issued Date : Nov. 25, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 Photographs of EUT Report No.: EP3O1724 Brand Name: MitraStar / Model Name: M4G-641 SPORTON INTERNATIONAL INC. Page Number : 9 of 10 TEL : 886-3-327-3456 Report Issued Date : Nov. 25, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 Photographs of EUT Report No.: EP3O1724 Brand Name: MitraStar / Model Name: M4G-641 SPORTON INTERNATIONAL INC. Page Number : 10 of 10 TEL : 886-3-327-3456 Report Issued Date : Nov. 25, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 720510

RF Exposure Info

SPORTON INTERNATIONAL INC. Page Number : 1 of 9 TEL : 886-3-327-3456 Report Issued Date : Dec. 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 RF Exposure Evaluation Report Report No. : FA3O1724 RF Exposure Evaluation Report APPLICANT : MitraStar Technology Corporation EQUIPMENT : M4G-641 LTE FDD module BRAND NAME : MitraStar MODEL NAME : M4G-641 FCC ID : ZMYM4G-641 STANDARD : 47 CFR Part 2.1091 We, SPORTON INTERNATIONAL INC., would like to declare that the device has been evaluated in accordance with 47 CFR Part 2.1091, and pass the limit. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. Page Number : 2 of 9 TEL : 886-3-327-3456 Report Issued Date : Dec. 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 RF Exposure Evaluation Report Report No. : FA3O1724 Table of Contents 1. ADMINISTRATION DATA ........................................................................................................................... 4 1.1. Testing Laboratory ............................................................................................................................. 4 1.2. Applicant ............................................................................................................................................ 4 1.3. Manufacturer ...................................................................................................................................... 4 2. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 5 3. MAXIMUM RF AVERAGE OUTPUT POWER AMONG PRODUCTION UNITS ........................................ 5 4. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 7 5. RADIO FREQUENCY RADIATION EXPOSURE EVALUATION ............................................................... 8 5.1. Standalone Power Density Calculations............................................................................................ 8 5.2. Collocated Power Density Calculations ............................................................................................. 8 SPORTON INTERNATIONAL INC. Page Number : 3 of 9 TEL : 886-3-327-3456 Report Issued Date : Dec. 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 RF Exposure Evaluation Report Report No. : FA3O1724 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA3O1724 Rev. 01 Initial issue of report Dec. 09, 2013 SPORTON INTERNATIONAL INC. Page Number : 4 of 9 TEL : 886-3-327-3456 Report Issued Date : Dec. 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 RF Exposure Evaluation Report Report No. : FA3O1724 1. Administration Data 1.1. Testing Laboratory Test Site SPORTON INTERNATIONAL INC. Test Site Location No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. TEL: +886-3-327-3456 FAX: +886-3-328-4978 1.2. Applicant Company Name MitraStar Technology Corporation Address No. 6, Innovation Rd II, Science-Based Industrial, Hsin-Chu, Taiwan 1.3. Manufacturer Company Name MitraStar Technology Corporation Address No. 6, Innovation Rd II, Science-Based Industrial, Hsin-Chu, Taiwan SPORTON INTERNATIONAL INC. Page Number : 5 of 9 TEL : 886-3-327-3456 Report Issued Date : Dec. 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 RF Exposure Evaluation Report Report No. : FA3O1724 2. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type M4G-641 LTE FDD module Brand Name MitraStar Model Name M4G-641 FCC ID ZMYM4G-641 IMEI Code 355968050000776 Wireless Technology and Frequency Range LTE Band 13: 779.5 MHz ~ 784.5 MHz LTE Band 4: 1710.7 MHz ~ 1754.3 MHz Mode •LTE: QPSK, 16QAM HW Version ACB EUT Stage Production Unit Remark: The above EUT's information was declared by manufacturer. Please refer to the specifications or user's manual for more detailed description. 3. Maximum RF average output power among production units LTE Band 4 average power(dBm) Modulation BW (MHz) RB size Target MPR Power QPSK 20 ≤ 18 0 24.0 QPSK 20 > 18 1 24.0 16QAM 20 ≤ 18 1 24.0 16QAM 20 > 18 2 24.0 QPSK 15 ≤ 16 0 24.0 QPSK 15 > 16 1 24.0 16QAM 15 ≤ 16 1 24.0 16QAM 15 > 16 2 24.0 QPSK 10 ≤ 12 0 24.0 QPSK 10 > 12 1 24.0 16QAM 10 ≤ 12 1 24.0 16QAM 10 > 12 2 24.0 QPSK 5 ≤ 8 0 24.0 QPSK 5 > 8 1 24.0 16QAM 5 ≤ 8 1 24.0 16QAM 5 > 8 2 24.0 QPSK 3 ≤ 4 0 24.0 QPSK 3 > 4 1 24.0 16QAM 3 ≤ 4 1 24.0 16QAM 3 > 4 2 24.0 QPSK 1.4 ≤ 5 0 24.0 QPSK 1.4 > 5 1 24.0 16QAM 1.4 ≤ 5 1 24.0 16QAM 1.4 > 5 2 24.0 SPORTON INTERNATIONAL INC. Page Number : 6 of 9 TEL : 886-3-327-3456 Report Issued Date : Dec. 09, 2013 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : ZMYM4G-641 RF Exposure Evaluation Report Report No. : FA3O1724 LTE Band 13 average power(dBm) Modulation BW (MHz) RB size Target MPR Power QPSK 10 ≤ 12 0 24.0 QPSK 10 > 12 1 24.0 16QAM 10 ≤ 12 1 24.0 16QAM 10 > 12 2 24.0 QPSK 5 ≤ 8 0 24.0 QPSK 5 > 8 1 24.0 16QAM 5 ≤ 8 1 24.0 16QAM 5 > 8 2 24.0 The table below summarized necessary items addressed in KDB 941225 D05 v02. FCC ID ZMYM4G-641 EUT M4G-641 LTE FDD module Operating Frequency Range of each LTE transmission band LTE Band 13: 779.5 MHz ~ 784.5 MHz LTE Band 4: 1710.7 MHz ~ 1754.3 MHz Channel Bandwidth LTE Band 13: 5MHz, 10MHz LTE Band 4: 1.4MHz, 3MHz, 5MHz, 10MHz, 15MHz, 20MHz Transmission (H, M, L) channel numbers and frequencies in each LTE band Band 13 Bandwidth 5 MHz Bandwidth 10 MHz Channel # Frequency (MHz) Channel # Frequency (MHz) L 23205 779.5 23230 782 M 23230 782 H 23255 784.5 LTE Band 4 Bandwidth 1.4 MHz Bandwidth 3 MHz Bandwidth 5 MHz Bandwi…
