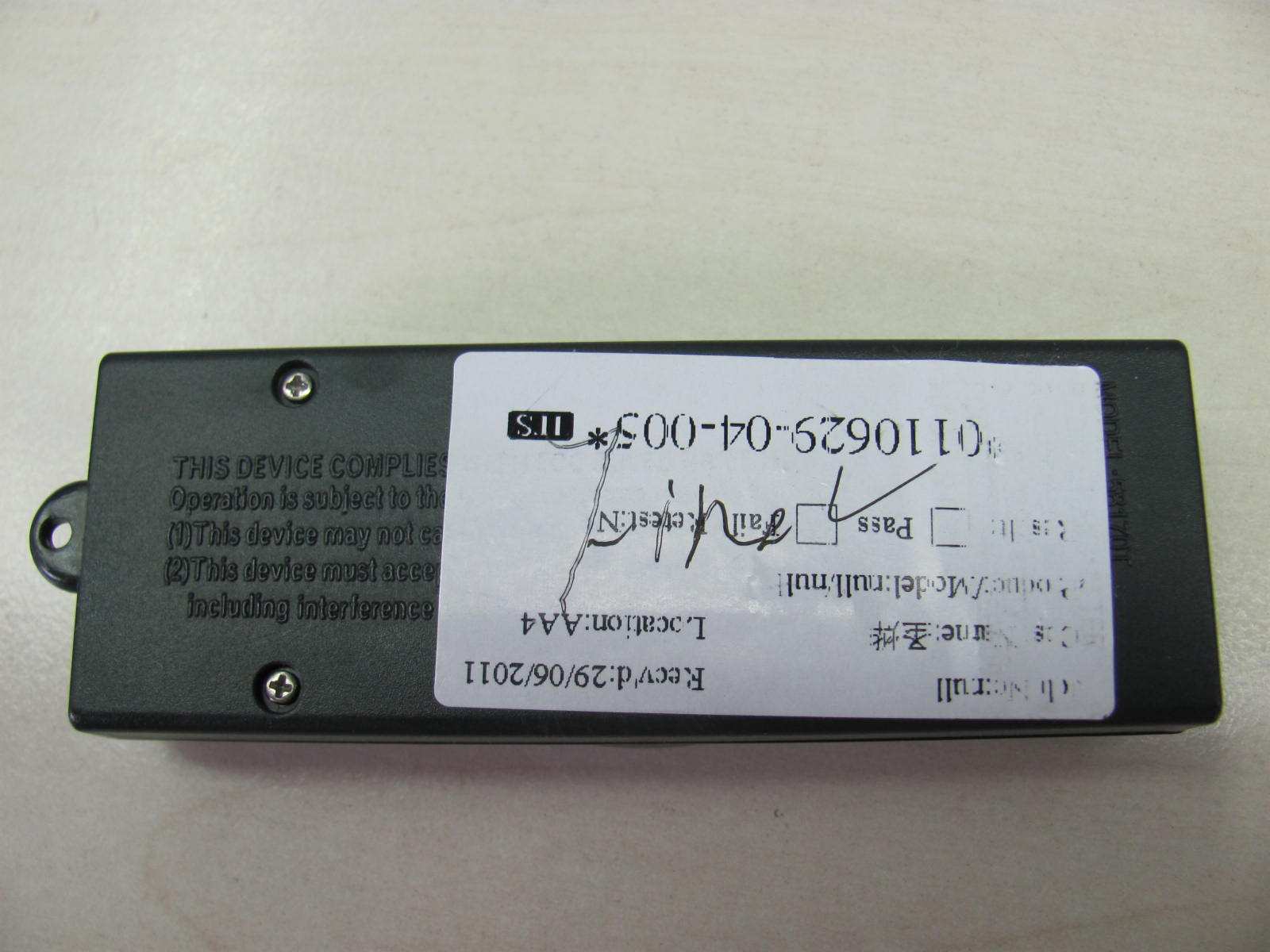

FCC ID: ZNE-NBFS0609 Page 1 of 2 FCC ID Label FCC ID: ZNE-NBFS0609 Page 2 of 2 EUT Size: 95mm * 34mm

FCC ID: ZNE-NBFS0609 Page 1 of 3 Internal Picture FCC ID: ZNE-NBFS0609 Page 2 of 3 FCC ID: ZNE-NBFS0609 Page 3 of 3

FCC ID: ZNE-NBFS0609 Page 1 of 19 EMC TEST REPORT No. SH11041089-001 Applicant : NINGBO FENGSHENG ELECTRONICS CO.,LTD. North Guangming Road, Simen Town, Yuyao City, Zhejiang, China Manufacturer : NINGBO FENGSHENG ELECTRONICS CO.,LTD. North Guangming Road, Simen Town, Yuyao City, Zhejiang, China Equipment : Radio Transmitter Type/Model : 58170T SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2009): Radio Frequency Devices ANSI C63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz RSS-210 Issue 8 (December 2010): Low-power Licence-exempt Radiocommunication Devices (All Frequency Bands): Category I Equipment RSS-Gen Issue 3 (December 2010): General Requirements and Information for the Certification of Radiocommunication Equipment Date of issue: July 27, 2011 Prepared by: Reviewed by: Wakeyou Wang (Project Engineer) Daniel Zhao (Reviewer) FCC ID: ZNE-NBFS0609 Page 2 of 19 Description of Test Facility Name: Intertek Testing Services Ltd. Shanghai ETL Semko Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 IC Assigned Code: 2042B-1 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 FCC ID: ZNE-NBFS0609 Page 3 of 19 Content SUMMARY ..........................................................................................................................................................1 DESCRIPTION OF TEST FACILITY..........................................................................................................................2 1. GENERAL INFORMATION.............................................................................................................................4 1.1 Applicant Information.................................................................................................. 4 1.2 Identification of the EUT ............................................................................................. 4 1.3 Technical specification ................................................................................................ 5 1.4 Mode of operation during the test / Test peripherals used ............................................ 5 2. TEST SPECIFICATION...................................................................................................................................6 2.1 Instrument list .............................................................................................................. 6 2.2 Test Standard ............................................................................................................... 6 3. FUNDAMENTAL & SPURIOUS EMISSION & RESTRICT BAND RADIATED EMISSION....................................8 3.1 Test limit...................................................................................................................... 8 3.2 Test Configuration ....................................................................................................... 9 3.3 Test procedure and test setup ....................................................................................... 9 3.4 Test protocol .............................................................................................................. 10 4. DEACTIVATING TIME.................................................................................................................................11 4.1 Test limit.................................................................................................................... 11 4.2 Test Configuration ..................................................................................................... 12 4.3 Test procedure and test setup ..................................................................................... 12 4.4 Test protocol .............................................................................................................. 12 5. POWER LINE CONDUCTED EMISSION.........................................................................................................13 5.1 Limit .......................................................................................................................... 13 5.2 Test configuration ...................................................................................................... 13 5.3 Test procedure and test set up .................................................................................... 14 5.4 Test protocol .............................................................................................................. 15 6. EMISSION BANDWIDTH..............................................................................................................................16 6.1 Test limit.................................................................................................................... 16 6.2 Test Configuration ..................................................................................................... 16 6.3 Test procedure and test setup ..................................................................................... 16 6.4 Test protocol .............................................................................................................. 17 7. OCCUPIED BANDWIDTH.............................................................................................................................18 7.1 Test limit.................................................................................................................... 18 7.2 Test Configuration ..................................................................................................... 18 7.3 Test procedure and test setup ..................................................................................... 18 7.4 Test protocol .......................................…

Text truncated - open the document above for the full version.

FCC ID: ZNE-NBFS0609 Page 1 of 13 Test Data FCC ID: ZNE-NBFS0609 Page 2 of 13 1. Fundamental & Spurious Emission & Restrict band radiated emission Horizontal 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x x x x x x x x x x x x MES ww0630tx_H1_red MES ww0630tx_H1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: ZNE-NBFS0609 Page 3 of 13 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M 402M 404M 406M 408M 410M Frequency [Hz] MES ww0630TXLH_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: ZNE-NBFS0609 Page 4 of 13 1000-5000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 2G 3G 4G 5G Frequency [Hz] x x x x x x x x x x x x x x x MES ww0630tx_HH1_red MES ww0630tx_HH1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: ZNE-NBFS0609 Page 5 of 13 Vertical 30-1000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 30M 50M 70M 100M 200M 300M 500M 700M 1G Frequency [Hz] x x x x x x x x x x x x x x x x MES ww0630tx_V1_red MES ww0630tx_V1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: ZNE-NBFS0609 Page 6 of 13 Restrict band 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 399.9M 402M 404M 406M 408M 410M Frequency [Hz] MES ww0630TXLV_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: ZNE-NBFS0609 Page 7 of 13 1000-5000MHz 0 10 20 30 40 50 60 70 80 Level [dBμV/m] 1G 2G 3G 4G 5G Frequency [Hz] x x x x x x x x x x x x x x MES ww0630tx_VV1_red MES ww0630tx_VV1_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: ZNE-NBFS0609 Page 8 of 13 2. Deactivating time Ref 87 dBμVAtt 10 dB * A PS 3DB RBW 100 kHz VBW 300 kHz AC Center 433.92 MHz700 ms/ SWT 7 s *1 PK VIEW -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 68.07 dBμV 436.500000 ms 1 Delta 1 [T1 ] -48.06 dB 263.500000 ms Date: 27.JUL.2011 11:42:00 FCC ID: ZNE-NBFS0609 Page 9 of 13 3. Emission bandwidth Ref 87 dBμVAtt 10 dB * A PS Center 433.92 MHzSpan 300 kHz30 kHz/ AC * RBW 10 kHz VBW 30 kHz SWT 5 ms 3DB 1 PK VIEW -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 68.85 dBμV 433.920000000 MHz ndB [T1] 20.00 dB BW 52.200000000 kHz T1 Temp 1 [T1 ndB] 48.69 dBμV 433.893600000 MHz T2 Temp 2 [T1 ndB] 49.04 dBμV 433.945800000 MHz Date: 27.JUL.2011 11:43:07 FCC ID: ZNE-NBFS0609 Page 10 of 13 4. Occupied bandwidth Ref 87 dBμVAtt 10 dB * A PS Center 433.92 MHzSpan 300 kHz30 kHz/ * 3DB RBW 3 kHz VBW 10 kHz SWT 35 ms AC 1 PK VIEW -10 0 10 20 30 40 50 60 70 80 1 Marker 1 [T1 ] 68.42 dBμV 433.920000000 MHz OBW 54.000000000 kHz T1 Temp 1 [T1 OBW] 37.47 dBμV 433.893000000 MHz T2 Temp 2 [T1 OBW] 37.29 dBμV 433.947000000 MHz Date: 27.JUL.2011 11:44:05 FCC ID: ZNE-NBFS0609 Page 11 of 13 5. Duty Cycle A PS 3DB RBW 100 kHz VBW 300 kHz DC Ref 70 dBμVAtt 0 dB Center 433.92 MHz10 ms/ SWT 100 ms *1 SA VIEW -30 -20 -10 0 10 20 30 40 50 60 70 1 Marker 1 [T1 ] 36.18 dBμV 29.600000 ms 1 Delta 1 [T1 ] 0.11 dB 38.400000 ms Date: 19.MAY.2011 09:17:40 FCC ID: ZNE-NBFS0609 Page 12 of 13 A PS RBW 100 kHz VBW 300 kHz DC Ref 70 dBμVAtt 0 dB Center 433.92 MHz800 μs/ SWT 8 ms 3DB *1 SA VIEW -30 -20 -10 0 10 20 30 40 50 60 70 1 Marker 1 [T1 ] 51.11 dBμV 3.624000 ms 1 Delta 1 [T1 ] -3.71 dB 880.000000 μs Date: 19.MAY.2011 09:21:50 FCC ID: ZNE-NBFS0609 Page 13 of 13 A PS RBW 100 kHz VBW 300 kHz DC Ref 70 dBμVAtt 0 dB Center 433.92 MHz800 μs/ SWT 8 ms 3DB *1 SA VIEW -30 -20 -10 0 10 20 30 40 50 60 70 1 Marker 1 [T1 ] 53.09 dBμV 4.792000 ms 1 Delta 1 [T1 ] 0.22 dB 288.000000 μs Date: 19.MAY.2011 09:22:16 All the Duty cycle of keys was assessed, and the worst test data were listed here: The worst Duty cycle = (20*0.88+5*0.288)/38.4=0.4958

FCC ID: ZNE-NBFS0609 Page 1 of 7 Test Setup FCC ID: ZNE-NBFS0609 Page 2 of 7 1. Radiated Emission 30MHz-1000MHz, X axis FCC ID: ZNE-NBFS0609 Page 3 of 7 30MHz-1000MHz, Y axis FCC ID: ZNE-NBFS0609 Page 4 of 7 30MHz-1000MHz, Z axis FCC ID: ZNE-NBFS0609 Page 5 of 7 Higher than 1GHz, X axis FCC ID: ZNE-NBFS0609 Page 6 of 7 Higher than 1GHz, Y axis FCC ID: ZNE-NBFS0609 Page 7 of 7 Higher than 1GHz, Z axis
