ZNPSLD001AWireless Module

5GHz wireless Module SL-D001A Specification Latest 802.11a Wi-Fi Technology SL-D001 is an Wi-Fi USB module, which is backward compatible with 802.11a standard. With advanced 2T2R MIMO technology, SL-D001 delivers ultimate wireless data rate for up to 300Mbps. It is designed properly for any wireless enabled devices with standard USB 2.0 Type A. Secure Wireless Connection SL-D001 also features advanced WEP encryption, WPA, and WPA2 to help to protect data over wireless communication without sacrificing the performance. Feature ■ Chipsets: Ralink RT3572 ■ Compliant with 802.11a Band standard ■ Interface: USB 2.0 ■ Antenna: Integrated ■ Speeds up to 300Mbps ■ Advanced security: 64/128-bits WEP, WPA, WPA2 ■ Support Windows 2000/ XP/Win CE/ Vista/ Win7, Linux, MAC 2 Specifications This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. Standard 802.11a Chipset Mac/BB/RF Ralink RT3572 Operating Frequency 802.11a ISM Band: 5.745 ~ 5.825GHz Modulation 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM) Antenna Gain 1.0dBi Output Power(max.) 802.11a: 10dBm 802.11a HT20: 10dBm 802.11a HT40: 10dBm Receive Sensitivity 802.11a: -72dBm ±2dBm 802.11a HT20: -68dBm ±2dBm 802.11a HT40 : -65dBm ±2dBm Power consumption Continue TX Max 400mA@2TX Continue RX Max 250mA@2RX Operating Voltage DC 5V ± 10% Environmental Temperature Range 0 ~ 60°C (Operating) -20 ~ 70°C (Storing) Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing) Software Driver Windows 2000/XP/ WinCE/ Vista,/ Win7, Linux, MAC Security 64/128-bits WEP, WPA, WPA2 3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. Due to missing shielding the module is strictly limited to integration by the Grantee himself or his dedicated OEM Integrator. Any changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment. USER MANUAL OF THE END PRODUCT: In the user manual of the end product, the end user has to be informed that the equipment complies with FCC radio-frequency exposure guidelines set forth for an uncontrolled environment. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the user manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following" Contains TX FCC ID: ZNPSLD001A ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. CE Mark Warning This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

Page 1 of 1 Shenzhen Century Xinyang Tech Co., Ltd Add: Room3001~3002, East Tower 30/F, Nanshan Software Park, Shenzhen, China Tel: +86-755-26616600 Fax: +86-755-26616600 ext: 816 Web: www.sztianhao.com Email: [email protected] Contact Person: Wiley Tsai Phone: 134 1012 0209 2012-06-20 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: ZNPSLD001A We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Contact Person: Wiley Tsai Address: Room3001~3002, East Tower 30/F, Nanshan Software Park, Shenzhen, China Tel: +86-755-26616600 Fax: +86-755-26616600 ext: 816 E-mail: [email protected]

Applicant/Grantee Shenzhen Century Xinyang Tech Co., Ltd FCC ID: ZNPSLD001A Section 15.212 Modular Transmitters Request for Modular Approval ■ Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The radio portion of module has been shielded, please see exhibition external photo. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Buffered Data input stage has been integrated in chip(RT5372). Y 3 The modular transmitter must have its own power supply regulation. The on board power IC RT5372 convert 5.0V DC to WiFi Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. EUT is equipped with an onboard PCB antenna，Detail pleas reference internal photo. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Pleas reference exhibition test setup photo for the stand-alone test configuration. Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: “ZNPSLD001A” or “Contains FCC ID: “ZNPSLD001A.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The instruction on the labeling rule of the end product has been stated in the user manual of this module, please also see the exhibition label sample. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The required FCC rule has been fulfilled and all the instruction for maintaining compliance has been clearly stated in the user manual. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Due to Low Output Power, the device meets FCC RF Exposure exemption Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. Contact Person: Wiley Tsai Address: Room3001~3002, East Tower 30/F, Nanshan Software Park, Shen…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZNPSLD001A Report No.: LCS120524110QF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZNPSLD001A Report No.: LCS120524110Q This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size: 1.2cm(L)x1.0cm(W) Label Location Trade Name: Model: SLD001A FCC ID: ZNPSLD001A

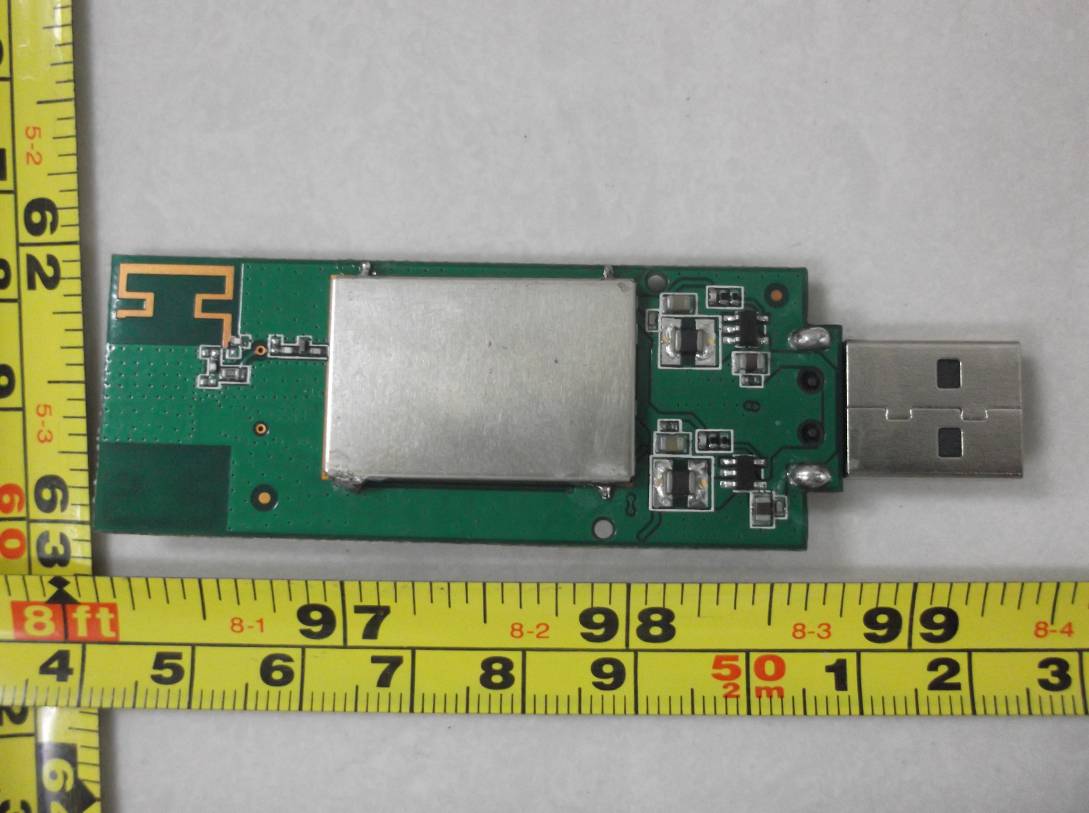

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZNPSLD001A Report No.: LCS120524110QF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 Antenna Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZNPSLD001A Report No.: LCS120524110QF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZNPSLD001A Report No.: LCS120524110QF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZNPSLD001A Report No.: LCS120524110QF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 83 FCC CFR47 PART 15 SUBPART C（15.247） CERTIFICATION TEST REPORT For Shenzhen Century Xinyang Tech Co., Ltd Wireless Module Model No.: SL-D001A Prepared for : Shenzhen Century Xinyang Tech Co., Ltd Address : Room 3001-3002, East Tower 30/F, Nanshan Software Park, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : May 24, 2012 Number of tested samples : 1 Serial number : Prototype Date of Test : May 24, 2012 – June 28, 2012 Date of Report : June 28, 2012 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZNPSLD001A Report No.: LCS120524110QF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 83 TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. .............. : LCS120524110QF Date of Issue ................................ : June 28, 2012 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1F., Xingyuan Industrial Park, Tongda Road, Bao’an Blvd., Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name....................... : Shenzhen Century Xinyang Tech Co., Ltd Address ........................................ : Room 3001～3002, East Tower 30/F, Nanshan Software Park, Shenzhen, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C: 2011, ANSI C63.4 Test Report Form No................. : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Wireless Module Trade Mark .................................. : Manufacturer................................ : Shenzhen Century Xinyang Tech Co., Ltd Model/ Type reference................. : SL-D001A Ratings ......................................... : DC 5V, Current: 500mA Result ......................................... : Positive Compiled by: Supervised by: Approved by: Ada Liang / File administrators Vito Cao/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZNPSLD001A Report No.: LCS120524110QF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 83 EMC -- TEST REPORT Test Result: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS120524110QF June 28, 2012 Date of issue Type / Model........................... : SL-D001A EUT......................................... : Wireless Module Applicant............................... : Shenzhen Century Xinyang Tech Co., Ltd Address.................................. : Room 3001～3002, East Tower 30/F, Nanshan Software Park, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Century Xinyang Tech Co., Ltd Address................................... : Room 3001～3002, East Tower 30/F, Nanshan Software Park, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Century Xinyang Tech Co., Ltd Address................................... : Room 3001～3002, East Tower 30/F, Nanshan Software Park, Shenzhen, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZNPSLD001A Report No.: LCS120524110QF This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 83 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ...........................................................................................................................5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS............................................................................................. 5 1.3. EXTERNAL I/O CABLE.......................................................................................................................................... 5 1.4. DESCRIPTION OF TEST FACILITY........................................................................................................................... 5 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY............................................................................................ 6 1.6. MEASUREMENT UNCERTAINTY.........................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZNPSLD001A Report No.: LCS120524110QF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emission Measurement Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZNPSLD001A Report No.: LCS120524110QF ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4
