Page 0 of 51 www.LINSAYdigital.com V-5HD User Manual 5” Tablet PC ANDROID Page 1 of 51 www.LINSAYdigital.com FCC Class B: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. NOTICE: 1. The changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the Emission limits. 3. The manufacture is not responsible for any radio or tv interference caused by unauthorized modification to the equipment. It is the responsibilities of the user to correct such interference. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Page 2 of 51 www.LINSAYdigital.com Catalogue 1. Basic Functions..............................................................................................................................4 1.1 Hardware Configurations..........................................................................................4 1.2 Software Configurations...........................................................................................4 2. Descriptions of device............................................................................................... .................... .5 2.1TouchScreen..........................................................................................................6 2.2 Home Key..............................................................................................................6 2.3 ChargingIndicator...................................................................................................6 2.4 BackKey................................................................................................................6 2.5 Mic Hole................................................................................................................6 2.6 T-FlashCard...........................................................................................................6 2.7 MiniUSB.................................................................................................................6 2.8 PowerSupplySwitch.................................................................................................6 2.9 Earjack..................................................................................................................6 3. First-timeUse.............................................................................................................................. ....6 3.1Battery Management and Charging..............................................................................6 3.2Open/Close MID Device............................................................................................6 3.3Connect to PC.........................................................................................................6 4. Basic Operationsof Device................................................................ .............................................6 4.1 Description of Main Interface .....................................................................................6 4.2 Description of Menu Interface....................................................................................8 4.3 Description of Status Bar.........................................................................................8 4.4Use Touch Screen....................................................................................................8 5. Basic Settings of Device.............................................................. ...................................................9 5.1Wireless Control.....................................................................................................10 5.2Sound and Display.................................................................................................11 5.3Safty and Location.................................................................................................12 5.4Applications..........................................................................................................13 5.5SD Card and MID Storage........................................................................................13 5.6Date and Time........................................................................................................14 5.7Region and Text.....................................................................................................14 5.8Touch Screen Calibration.........................................................................................15 5.9USB Model Selection..............................................................................................15 6. Softwa…

Text truncated - open the document above for the full version.

AmeliaWorldCorporation 11601BiscayneBlvd,unit200AMiami,phone:(305)848-3602/3603FloridaUSA FCC10:ZNYV-5HD POWEROF ATTORNEY 2011-11-1 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD 21046 To WhomIt MayConcern: We,theundersigned,herebyauthorizeSEM.TestComplianceServiceCo.,Ltd. JandySo on ourbehalf,to applyto theFederalCommunicationsCommissionon our equipment.Anyandallactscarriedoutby SEM.TestComplianceServiceCo.,Ltd. JandySo on ourbehalfshallhavethesameeffectas actsof ourown. Thisis to advisethatwe arein fullcompliancewiththeAnti-DrugAbuseAct. We,AmeliaWorldCorporation,arenotsubjectto a denialof federalbenefits pursuantto Section5301of theAnti-DrugActof 1988,21 USC853a,andno party to theapplicationis subjectto a denialof federalbenefitspursuantto that section. Sincerely, . t AmeliaWorldCorporation < y

Amelia World Corporation Model:V-5HD REPORT NO.: STR11108219I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZNYV-5HD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Amelia World Corporation Model:V-5HD REPORT NO.: STR11108219I-1 FCC PART 15.247 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: ZNYV-5HD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

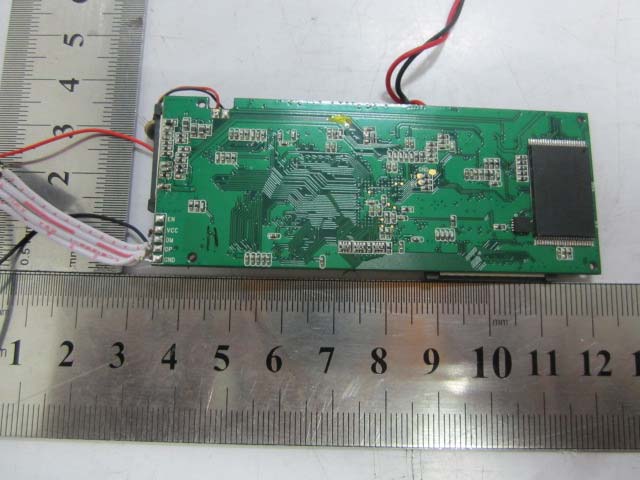

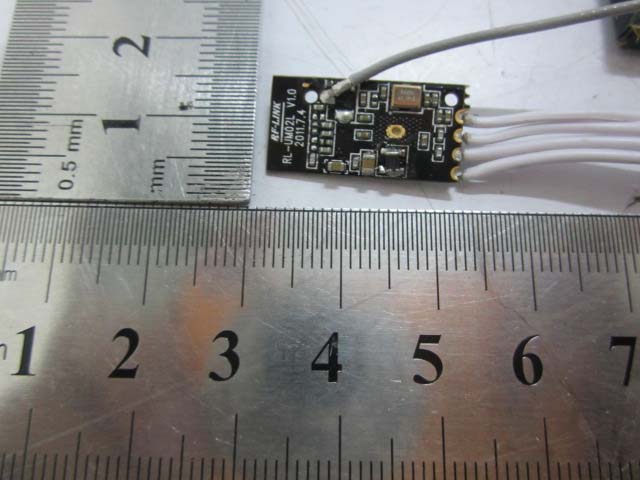

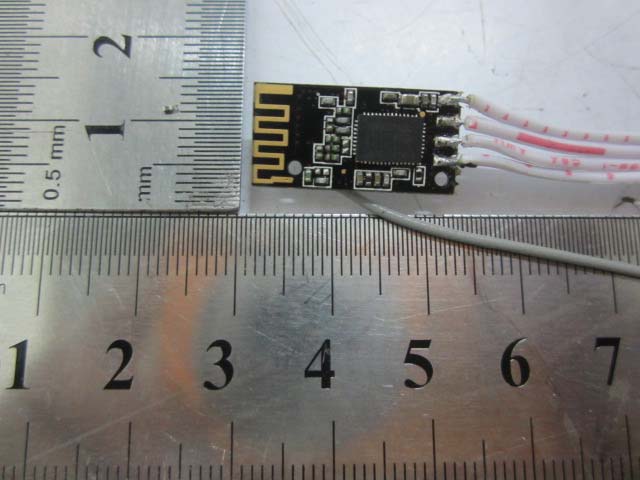

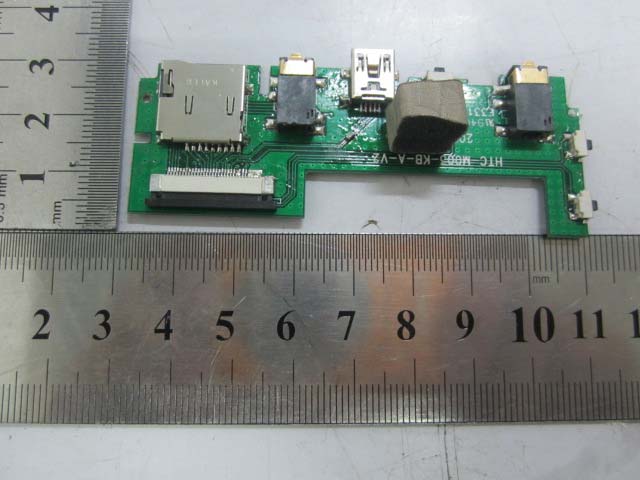

Amelia World Corporation Model:V-5HD REPORT NO.: STR11108219I-1 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 Amelia World Corporation Model:V-5HD REPORT NO.: STR11108219I-1 FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Amelia World Corporation Model:V-5HD REPORT NO.: STR11108219I-1 FCC PART 15.247 Solder Board-Component View 4 Solder Board-Component View 5 Amelia World Corporation Model:V-5HD REPORT NO.: STR11108219I-1 FCC PART 15.247 Solder Board-Component View 6

Operational Description 1. The RK2818 chip is master micro controller, the oscillator component X1 generated a frequency of 24MHz as base clock frequency, them RK2818 is a center processing unit which the master frequency of running speed is 533MHz, with 256MHz DRAM and 4GB flash, and TF card, one mini USB port for connect to PC. 2. The WiFi module base on 802.11b/g/n WIFI wireless technolgy, the 40MHz clock frequency input to chip as base clock frequency, and use the high-frequency from 2412MHz to 2462MHz as carrier frequency for 802.11b/g/n(HT20), the high-frequency from 2422MHz to 2452MHz as carrier frequency for 802.11n(HT40), the CCK, BPSK, QPSK modulation type be used. 3. The work voltage is DC 3.7V, supply by battery, with a DC 5V power adaptor. Circuit Description Press starting up key for long(10-20seconds),to U14 till start.Firstly U14 Pin6 start,delayed 20MS U14 Pin17 、 20start.During starting U14 Pin8 keep Low Electrify lever.After U14 start finish,U14 Pin8 keep 100MS around Low Electronic lever,finish that electrify on U1 CPU clear Zero,same time U14 Pin8 keep High electrify situation,after U1 clear Zero, immediately pull up U14 Pin5,lock U14 in work situation,U1 start finish to work situation. U1 sound signal via U24 dispose,U23 signal zoom in to SP2 、 P1 、 P14 out-put; sound signal via U30 light backlight,via LCD1 connect TFT screen display video information,via U4 connect Touch Pad achieve touch function;U1 via C37 connect WIFI module—RTL8188 achieve wireless internet function.

RF Exposure Requirements Product Description: MID Model No.: V-5HD FCC ID: ZNYV-5HD Acorrding to the KDB-447498, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Tx frequency range: 2412~2462MHz Antenna-to-tissue separation: <20 cm Maximum Conducted Output Power: 11.78dBm (at the 2412MHz channel of 802.11b mode) Antenna Gain: 1 dBi Maximum Output Power: 18.967 mW Maximum Duty Factor: 100% 60/f(GHz) mW = 24.8756 mW Source-based time-averaged conducted output power is 18.967 mW =< 60/f Therefore, the transmitter comply with the RF exposure requirements and the SAR is not required.

Wednesday, July 28, 2010 1.2 RK2816_REF MAIN/CAMERA Modify Date: Page Total: Page Num: File: Title: Create Date: REV: ̧£ÖÝÈðо΢μç×ÓÓÐÏÞ¹«Ë¾ JTAG interface A B C D 5 4 3 2 1 D C B A 1 2 3 4 5 5 6 5 5 5 5 6 7 7 5,6,7 5,6,7 5 5 4 5 4 5 6 5 5 7 6 5 5 5 5 ÓÃ2816ʱÌù0R ESC ̧ ́ÓÃÈí¼þÉý¼¶° ́¼ü£º ÏμͳΠ́ÉÏμçÇ°£¬° ́סESC ²åUSBÏß,RECORVER¼ì²âμÍ × ̬́¼ ́½øÈëÉý¼¶Ä£Ê½ 0.27 0.54 0.27 0.54 5 5 R7 10K TP6 TDO TP7 RTCK TP11 GND TP1 TCK R9 10K C1 18P R6 10K R4 4K7 R12 6K8 R8 44R2 TP10 UART1_TX TP4 TDI C2 18P R5 4K7 TP2 nTRST TP5 TMS R2 10K X1 24M R10 NC TP9 UART1_RX H18 HSAD_I_D0 H16 HSAD_I_D1 J18 HSAD_I_D2 J16 HSAD_I_D3 L18 HSAD_I_D4 J14 HSAD_I_D5 L16 HSAD_I_D6 K15 HSAD_I_D7 M13 HSADC_I_D8 K16 HSADC_I_D9 L14 GPS_CLK/HSAD_CLK D12 VIP_DIN7 B12 VIP_DIN6 E12 VIP_DIN5 D13 VIP_DIN4 E11 VIP_DIN3 E13 VIP_DIN2 F11 VIP_DIN1 F12 VIP_DIN0 B13 PF6/VIP_CLKOUT A18 VIP_CLKI G12 VIP_HREF C13 VIP_VSYNC F16 NC8 F14 NC9 P18 NC22 K13 NC21 L17 NC20 E16 NC10 K12 HSADC_Q_D7 M17 HSADC_Q_D6 J17 HSADC_Q_D5 J15 HSADC_Q_D4 K18 HSADC_Q_D3 J13 HSADC_Q_D2 H17 HSADC_Q_D1 J12 HSADC_Q_D0 F15 NC11 E15 NC12 H12 NC13 D16 NC14 G13 NC15 E14 NC16 F13 NC17 D15 NC18 K17 HSADC_Q_D8/SM_WEN C16 PE0/VIP_LD0 C15 PF5/PWM3/VIP_LD1 D14 PH6/VIP_LD2 C14 PH7/VIP_LD3 K14 HSADC_Q_D9/SM_OEN U1-E RK2816 B17 PWR_GOOD B16 RTCINT_OUT C17 XIN32K C18 XOUT32K R12 VBUS P12 ID U12 RKELVIN T15 OTG_DRVVBUS U11 DP V11 DM N18 XIN24M M18 XOUT24M G15 NPOR G18 TEST H13 EXTCLK H15 BTMODE E9 OPMODE0 C10 OPMODE1 H14 EWAKEUP_POWER G17 EWAKEUP_STOP U14 VGATE_EFUSE T14 FSOURCE_EFUSE B10 TCK E10 TRST_N C11 TDI D10 TMS A10 TDO D9 RTCK M15 PF1/UART1_TX/CX_T1_PWM L13 PF0/UART1_RX/CX_T0_PWM R15 I2C0_SDA/PE4 P13 I2C0_SCL/PE5 G11 PWM0/PF2 N7 PE3/SPI_RXD/FLASH_CS6 R8 PF7/SPI_TXD/FLASH_CS7 N8 PE2/SPI_SSIN/FLASH_CS5 P6 PE1/SPI_CLKI/FLASH_CS4 L12 PE6/UART1_SIR_IN/I2C1_SDA R18 PE7/UART1_SIR_OUT/I2C1_SCL T18 PB2/UART0_CTS L15 PB3/UART0_RTS A12 PA2 A11 PA3 T13 SARADC_AIN0 U13 SARADC_AIN1 V13 SARADC_AIN2 N17 PA1 M14 PA0 U1-D RK2816 1 T8 1 VCC 2 P65 3 P64 4 P63 5 P62 6 P61 7 P60 8 GND U3 HT8070 E:LIYÉ£ ̧ñSG245SG245Á¢ÏîËμÃ÷SG245V1.0_0718.DSN C92 CAP_NP_7 104 D:COMPANYORCADRK2806RK2806_REF_SCH_V1.3.DSN R33 RESISTOR_0 10R C95 CAP_NP 105 1 RESERVED 2 N/C 3 AVDD 4 AVSS 5 INT 6 SCL 7 SDA 8 DVSS 9 DVDD 10 N/C 11 NC 12 N/C U19 MMA7660FC_1 MMA7660FC R61 RESISTORB 0R/NC R50 RESISTORB NC P7 CAP_NP_0 PAD P10 CAP_NP_0 PAD P9 CAP_NP_0 PAD P8 CAP_NP_0 PAD R57 RESISTORB NC/0R(16) R210 RESISTORB NC/0R(16) R211 RESISTORB NC/0R(16) R11 SMALL_R1 1K R87 SMALL_R1 10K C134 SMALL_CAP 102 D3 DIODE_BI-DIR_TRIG ESD R167 SMALL_R1 1.2K R169 SMALL_R1 1.5K 1 3 2 Q5 8050 1 2 R93 10K 1 T1 P1 CAP_NP_0 PAD P2 CAP_NP_0 PAD P3 CAP_NP_0 PAD VCCIO VCCIO VCCIO DM LED_PWM0 VBUS_DET DP OTG_DRVVBUS USB_ID I2C0_SDA I2C0_SCL I2C1_SDA I2C1_SCL BAT_DET KEY1OUT NPOR RECOVER PLAY_ON_IDLE PF5 SPK_CTL TOUCH_INT PWR_ON CHG_OK A12 A11 UART1_RX A12 OTG_DRVVBUS DM A11 PLAY_ON_IDLE BAT_DET DP KEY1OUT USB_ID USB_ID TCK RTCK TDO UART1_TX TMS VBUS_DET LED_PWM0 SPK_CTL VDD TOUCH_INT I2C1_SCL TDI I2C0_SDA CHG_OK NTRST RECOVER PF5 I2C1_SDA I2C0_SCL UART1_RX UART1_RX PWR_ON UART1_TX UART1_TX VDD I2C1_SCL I2C0_SDA I2C1_SDA I2C0_SCL GSENSOR_INT A12 A11 VCCIO TOUCH_CS GND GND VCCIO GND GND GSENSOR_INT I2C1_SDA I2C1_SCL VDD VCCIO VCCIO GND KEY1OUT RECOVER RECOVER KEY1 KEY2 PLAY_ON PLAY_ON PWM Wednesday, July 28, 2010 NAND/SD/KEY 1.2 RK2816_REF Modify Date: Page Total: Page Num: File: Title: Create Date: REV: ̧£ÖÝÈðо΢μç×ÓÓÐÏÞ¹«Ë¾ 1.μ±Ñ¡ÔñÓÃ1ƬDDRIIоƬʱ£¬½ÓRK2816μÍλÊý¾Ý£¬ÇÒÈÝÁ¿Ñ¡ÔñΪ64MX16£» 2.Ñ¡ÓÃÁ½Æ¬DDRIIоƬʱ£¬ÈÝÁ¿Ñ¡ÔñΪ32Mx16¡£ A B C D 5 4 3 2 1 D C B A 1 2 3 4 5 6 6 6 6 6 6 6 3 3 G8 DQ0 G2 DQ1 H7 DQ2 H3 DQ3 H1 DQ4 H9 DQ5 F1 DQ6 F9 DQ7 C8 DQ8 C2 DQ9 D7 DQ10 D3 DQ11 D1 DQ12 D9 DQ13 B1 DQ14 B9 DQ15 K2 CKE L8 CS# K9 ODT K7 RAS# L7 CAS# K3 WE# A1 VDD E1 VDD J9 VDD M9 VDD R1 VDD A9 VDDQ C1 VDDQ C3 VDDQ C7 VDDQ C9 VDDQ E9 VDDQ G1 VDDQ G3 VDDQ G7 VDDQ G9 VDDQ J1 VDDL A2 NC E2 NC M8 A0 M3 A1 M7 A2 N2 A3 N8 A4 N3 A5 N7 A6 P2 A7 P8 A8 P3 A9 M2 A10 P7 A11 R2 A12 R8 RFU/A13 L2 BA0 L3 BA1 L1 RFU/BA2 J8 CK K8 CK# F3 LDM B3 UDM F7 LDQS E8 LDQS# B7 UDQS A8 UDQS# A7 VSSQ B2 VSSQ B8 VSSQ D2 VSSQ D8 VSSQ E7 VSSQ F2 VSSQ F8 VSSQ H2 VSSQ H8 VSSQ J7 VSSDL A3 VSS E3 VSS J3 VSS N1 VSS P9 VSS R7 RFU R3 RFU J2 VREF U6 DDRII-32x16 R29 0R C24 104 C25 104 R17 4K7 C26 104 C17 226 D4 MEM_DM0 A1 MEM_D0 B2 MEM_D1 C3 MEM_D2 B1 MEM_D3 C2 MEM_DQS0M C1 MEM_DQS0P L5 MEM_VREF D3 MEM_D4 F3 MEM_D5 E4 MEM_D6 D2 MEM_D7 E3 MEM_DM1 E2 MEM_D8 D1 MEM_D9 F4 MEM_D10 E1 MEM_D11 F2 MEM_DQS1M F1 MEM_DQS1P G2 MEM_D12 G4 MEM_D13 G1 MEM_D14 G3 MEM_D15 N2 MEM_BA0 U1 MEM_WEN T1 MEM_CASN M4 MEM_RASN T2 MEM_CSN1 M3 MEM_CSN0 U3 MEM_ODT1 R2 MEM_ODT0 T3 MEM_OPEN3 P2 MEM_OPEN2 N3 MEM_OPEN1 V2 MEM_OPEN0 R3 MEM_DM2 P7 FLASH_D0 V3 MEM_D24 U4 MEM_D25 R6 MEM_D26 T5 MEM_D27 V4 MEM_DQS3M U5 MEM_DQS3P V5 MEM_D28 R7 MEM_D29 F5 MEM_A14 R1 MEM_BA1 M2 MEM_BA2 P1 MEM_CKE_LPDDR N1 MEM_CKE L1 MEM_CLK L2 MEM_CLKN M1 MEM_A0 K1 MEM_A1 K2 MEM_A2 J1 MEM_A3 J2 MEM_A4 H4 MEM_A5 H3 MEM_A6 K3 MEM_A7 J3 MEM_A8 H1 MEM_A9 L4 MEM_A10 L3 MEM_A11 H2 MEM_A12 G5 MEM_A13 U2 MEM_DQS2P V6 MEM_DM3 U7 MEM_D23 R5 MEM_D22 R4 MEM_D21 P4 MEM_D20 V1 MEM_DQS2M P3 MEM_D19 T4 MEM_D18 T7 MEM_D17 N4 MEM_D16 P9 FLASH_D1 U6 MEM_D31 T6 MEM_D30 V7 FLASH_D2 U8 FLASH_D3 V8 FLASH_D4 N9 FLASH_D5 T8 FLASH_D6 M9 FLASH_D7 V9 PA7/FLASH_CS3 T9 PA6/FLASH_CS2 U9 FLASH_CS0 N10 PA5/FLASH_CS1 P10 FLASH_RDN V10 FLASH_WRN U10 FLASH_CLE T10 FLASH_ALE R10 FLASH_WP M10 FLASH_RDY G16 EXTMSDR_SEL G14 EXTDDR_SEL B11 ST0_CSN A9 SM_A15 C9 SM_A10 D11 PF4/PWM2/NAND_SEL U1-B RK2816 R18 4K7 C28 104 C31 104 R21 4K7 C18 226 C27 104 R19 4K7 C19 226 C30 104 C34 104 G8 DQ0 G2 DQ1 H7 DQ2 H3 DQ3 H1 DQ4 H9 DQ5 F1 DQ6 F9 DQ7 C8 DQ8 C2 DQ9 D7 DQ10 D3 DQ11 D1 DQ12 D9 DQ13 B1 DQ14 B9 DQ15 K2 CKE L8 CS# K9 ODT K7 RAS# L7 CAS# K3 WE# A1 VDD E1 VDD J9 VDD M9 VDD R1 VDD A9 VDDQ C1 VDDQ C3 VDDQ C7 VDDQ C9 VDDQ E9 VDDQ G1 VDDQ G3 VDDQ G7 VDDQ G9 VDDQ J1 VDDL A2 NC E2 NC M8 A0 M3 A1 M7 A2 N2 A3 N8 A4 N3 A5 N7 A6 P2 A7 P8 A8 P3 A9 M2 A10 P7 A11 R2 A12 R8 RFU/A13 L2 BA0 L3 BA1 L1 RFU/BA2 J8 CK K8 CK# F3 LDM B3 UDM …

Text truncated - open the document above for the full version.

Amelia World Corporation Model:V-5HD REPORT NO.: STR11108219I-1 PAGE 1 OF 77 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Amelia World Corporation 11601 Biscayne Blvd. Unit 200A, Miami, Florida, 33181, USA FCC ID: ZNYV-5HD Report Concerns: Original Report Equipment Type: MID Model: V-5HD Report No.: STR11108219I-1 Test Date: 2011-10-27 to 2011-11-16 Issue Date: 2011-11-17 Tested By: Jason Jiang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: SEM.Test Compliance Service Co., Ltd 3/F, Jinbao Commerce Building, Xin'an Fanshen Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . Amelia World Corporation Model:V-5HD REPORT NO.: STR11108219I-1 PAGE 2 OF 77 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 TEST METHODOLOGY.............................................................................................................................................3 1.4 TEST FACILITY.......................................................................................................................................................4 1.5 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.6 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.7 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. CONDUCTED EMISSIONS ....................................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 TEST EQUIPMENT LIST AND DETAILS.....................................................................................................................6 3.3 TEST PROCEDURE...................................................................................................................................................6 3.4 BASIC TEST SETUP BLOCK DIAGRAM.....................................................................................................................6 3.5 ENVIRONMENTAL CONDITIONS..............................................................................................................................7 3.6 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................7 3.7 CONDUCTED EMISSIONS TEST DATA......................................................................................................................7 4. §15.203 - ANTENNA REQUIREMENT................................................................................................................10 4.1 STANDARD APPLICABLE.......................................................................................................................................10 4.2 TEST RESULT........................................................................................................................................................10 5. POWER SPECTRAL DENSITY ...........................................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................12 6. 6-DB BANDWIDTH ................................................................................................................................................19 6.1 STANDARD APPLICABLE.......................................................................................................................................19 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................19 6.3 TEST PROCEDURE.................................................................................................................................................19 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................19 6.5 SUMMARY OF TEST RESULTS/PLOTS...........................................................................…

Text truncated - open the document above for the full version.

Amelia World Corporation Model:V-5HD REPORT NO.: STR11108219I-1 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conduction Emission Test Setup Radiation Emission Test Setup (30MHz to 1GHz) Amelia World Corporation Model:V-5HD REPORT NO.: STR11108219I-1 FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
