ZOM-90000047802.11b/g/n (2.4GHz only) Module

Page 1 of 6 802.11b/g/n Module Model 900-00047 a. That module is limited to OEM installation ONLY. b. That module is limited to installation in mobile or fixed applications, according to Part 2.1091(b). c.That separate approval is required for all other operating configurations, including portable configurations instructions to remove or Version Description Date 1.0 Initial Release 11/22/2014 d.The OEM integrator is responsible for ensuring that the end-user has no manual instructions to remove or install module. e.The module is limited to installation in mobile or fixed applications install module. Note: with respect to Part 2.1093 and different antenna configurations. Page 2 of 6 Connection Pin-out Page 3 of 6 Dimensions All dimensions in millimetres Page 4 of 6 Regulatory and Safety Information FCC Compliance Statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Any changes or modifications not expressly approved by C2 Development, Inc. could void the user’s authority to operate the 900-00047 module. OEM Labeling Requirements NOTICE: The OEM must make sure that FCC labeling requirements are met. This includes a clearly visible label on the exterior of the final product housing that displays the contents shown in this label. MANUFACTURERS NAME BRAND NAME OR TRADE NAME Contains FCC ID: ZOM-90000047 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Industry Canada Compliance Statement: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). Son fonctionnement est soumis aux deux conditions suivantes: (1) cet appareil ne doit pas provoquer d'interférences et (2) cet appareil doit accepter toute interférence, y compris celles pouvant causer un mauvais fonctionnement de l'appareil. RF Exposure Statement: The user is cautioned to maintain a 20cm (8 inch) from the product to ensure compliance with RF exposure requirements. European Union – Disposal Information: According to local laws and regulations, your product should be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. Some collection points accept products for free. The separate collection and recycling of your product at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. CE Declaration of Conformity: The equipment complies with the RF Exposure Requirement 1999/5/EEC, Council Recommendation on the limitation of exposure of the general public to electromagnetic fields (0-300 GHz). This equipment meets the following conformance standards: EN 300 328, EN 301 489-17, EN 60950 CE Declaration of Conformity in Languages of the European Community: Česky [Czech]: C2 Development, Inc. tímto prohlašuje, že tento zařízení je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1999/5/ES. Dansk [Danish]: Undertegnede C2 Development, Inc. erklærer herved, at følgende udstyr Enhed overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF. Deutsch [German]: Hiermit erklärt C2 Development, Inc., dass sich das Gerät in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet. Eesti [Estonian]: Käesolevaga kinnitab C2 Development, Inc. seadme vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. Page 5 of 6 English: Hereby, C2 Development, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español [Spanish]: Por medio de la presente C2 Development, Inc. declara que el dispositivo cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. Ελληνική [Greek]: ΜΕ ΤΗΝ ΠΑΡΟΥΣΑC2 Development, Inc. ΔΗΛΩΝΕΙ ΟΤΙ συσκευή ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ. Français [French]: Par la présente C2 Development, Inc. déclare que l'appareil est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian]: Con la presente C2 Development, Inc. dichiara che questo dispositivo è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE. Latviski [Latvian]: Ar šo C2 Development, Inc. deklarē, ka ierīce atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem noteikumiem. Lietuvių [Lithuanian]: Šiuo C2 Development, Inc. deklaruoja, kad šis prietaisas atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas. Nederlands [Dutch]: Hierbij verklaart C2 Development, Inc. dat het toestel apparaat in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Malti [Maltese]: Hawnhekk, C2 Development, Inc., jiddikjara li dan apparat jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 1999/5/EC. Magyar [Hungarian]: Alulírott, C2 Development, Inc. nyilatkozom, hogy a eszköz megfelel a vonatkozó alapvetõ követelményeknek és …

Text truncated - open the document above for the full version.

C2 Development, Inc. Address: 1606 Golden Aspen Drive, Suite 106, Ames, Iowa, United States, 50010 Tel: 515-233-5105-101 2014-12-03 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD We, C2 Development, Inc. declare that this EUT (FCC ID: ZOM-90000047) doesn’t have Ad Hoc mode function on“non-US/Canada frequencies”. In addition. The frequency selection feature is disabled by firmware for devices marked to the US/Canada. For DTS part of this device, only channels 1-11 will be used in North America, Country code selection is disabled. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, Client’s name / title : Christian J. Clough/ President Contact information / address : 1606 Golden Aspen Drive, Suite 106, Ames, Iowa, United States, 50010 Tel: 515-233-5105-101

C2 Development, Inc. Address: 1606 Golden Aspen Drive, Suite 106, Ames, Iowa, United States, 50010 Tel: 515-233-5105-101 2014-12-04 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZOM-90000047 We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Christian J. Clough/ President Contact information / address : 1606 Golden Aspen Drive, Suite 106, Ames, Iowa, United States, 50010 Tel: 515-233-5105-101

C2 Development, Inc. FCC ID: ZOM-90000047 POWER OF ATTORNEY 2014-12-04 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen LCS Compliance Testing Laboratory Ltd. (MR. Gavin Liang, Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Shenzhen LCS Compliance Testing Laboratory Ltd. (MR. Gavin Liang, Manager) on our behalf shall have the same effect as acts of our own. This authorization expires on (2015-12-03). This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, (C2 Development, Inc.), are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Client’s name / title : Christian J. Clough/ President Contact information / address : 1606 Golden Aspen Drive, Suite 106, Ames, Iowa, United States, 50010 Tel: 515-233-5105-101 E-Mail: [email protected]

Applicant/Grantee C2 Development, Inc. FCC ID: ZOM-90000047 Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval ■ Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The shielding is on the host platform N 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Buffered Data input stage has been integrated in chip(RT5350SF). Y 3 The modular transmitter must have its own power supply regulation. The IC RT5350SF offer the power for the whole module Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. EUT is equipped with an onboard PCB antenna，Detail please reference internal photo. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting Please reference exhibition test setup photo for the stand-alone test configuration. Y equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: “ZOM-90000047” or “Contains FCC ID: “ZOM-90000047.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. The instruction on the labeling rule of the end product has been stated in the user manual of this module, please also see the exhibition label sample. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The required FCC rule has been fulfilled and all the instruction for maintaining compliance has been clearly stated in the user manual. Y 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. For the max output power is 28.2mw and the antenna gain is 2.0dBi so the EIRP of the module is 44.7mw, due to Low Output Power, the device meets FCC RF Exposure exemption Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. Client’s name / title : Christian J. Clough/ Pr…

Text truncated - open the document above for the full version.

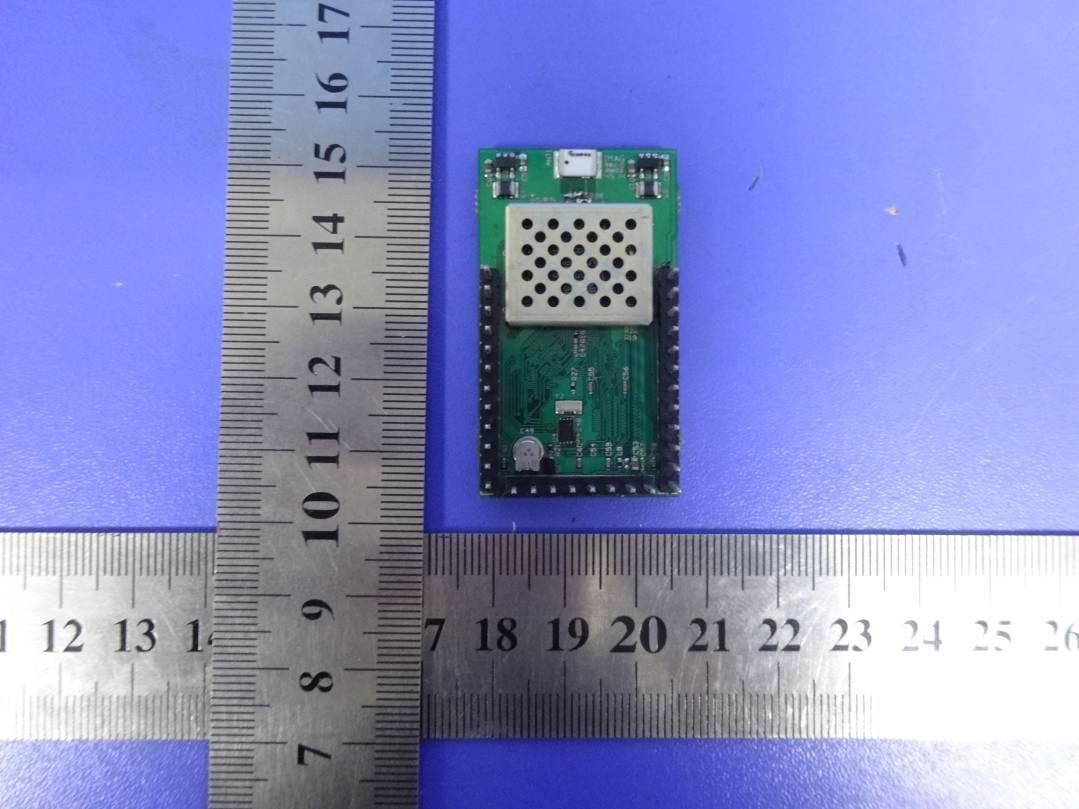

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZOM-90000047 Report No.:LCS1411130523E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1.EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: ZOM-90000047 Report No.:LCS1411130523E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: 2x1.0cm Sample “CONTAINS FCC ID” for Typical Host Label And Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZOM-90000047 Report No.:LCS1411130523E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1.INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZOM-90000047 Report No.: LCS1411130523E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 8. RADIO FREQUENCY EXPOSURE 8.1．Limit According to §1.1310 and §2.1091 RF exposure is calculated. Table: Limits for General Population/Uncontrolled Exposure F = frequency in MHz * = Plane-wave equivalent power density Maximum Permissible Exposure S = PG/4πR 2 S = Power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna. Note: 1. Manufacturer declared that the maximum antenna gain is 2.0dBi for TX. 2. Only record worst case data. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZOM-90000047 Report No.: LCS1411130523E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 802.11b Conducted Peak output Power in dBm 14.50 dBm Max. Conducted Peak output Power in mW 28.20. mW MPE limit for uncontrolled exposure at prediction frequency 1 mW/cm 2 Prediction frequency 2012 MHz Antenna Gain(typical) 3.0 dBi Antenna Gain(numeric) 2.0 Prediction distance 2.12 cm 8.2 Test Results The power density level worst case at 2.12 cm is below the uncontrolled exposure limit.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZOM-90000047 Report No.: LCS1411130523E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 53 FCC TEST REPORT For C2 Development, Inc. 802.11b/g/n (2.4GHz only) Module Model No.: 900-00047 Prepared for : C2 Development, Inc. Address : 1606 Golden Aspen Drive, Suite 106, Ames, Iowa, United States, 50010 Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Date of receipt of test sample : November 22, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : November 22, 2014- December 03, 2014 Date of Report : December 03, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZOM-90000047 Report No.: LCS1411130523E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 53 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247): 2013 Report Reference No. .............. : LCS1411130523E Date of Issue ................................ : December 03, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao'an Avenue, Bao'an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : C2 Development, Inc. Address ........................................ : 1606 Golden Aspen Drive, Suite 106, Ames, Iowa, United States, 50010 Test Specification Standard ....................................... : FCC CFR 47 PART 15 C(15.247): 2013 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : 802.11b/g/n (2.4GHz only) Module Trade Mark .................................. : N/A Model/ Type reference ................. : 900-00047 Ratings ......................................... : DC 5V Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZOM-90000047 Report No.: LCS1411130523E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 53 FCC -- TEST REPORT Type / Model........................... : 900-00047 EUT......................................... : 802.11b/g/n (2.4GHz only) Module Applicant............................... : C2 Development, Inc. Address.................................. : 1606 Golden Aspen Drive, Suite 106, Ames, Iowa, United States, 50010 Telephone............................... : / Fax.......................................... : / Manufacturer........................ : C2 Development, Inc. Address................................... : 1606 Golden Aspen Drive, Suite 106, Ames, Iowa, United States, 50010 Telephone............................... : / Fax.......................................... : / Factory................................... : C2 Development, Inc. Address................................... : 1606 Golden Aspen Drive, Suite 106, Ames, Iowa, United States, 50010 Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1411130523E December 03, 2014 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: ZOM-90000047 Report No.: LCS1411130523E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 53 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 5 1.3. EXTERNAL I/O CABLE .......................................................................................................................................... 5 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................... 6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................ 6 1.6. MEASUREMENT UNCERTAINTY ............................................................................................................................ 7 1.7. DESCRIPTION OF TEST MODES ...................................................................................................................…
