ZOQAI-111Verizon Connect Battery Powered Equipment Asset Tracker

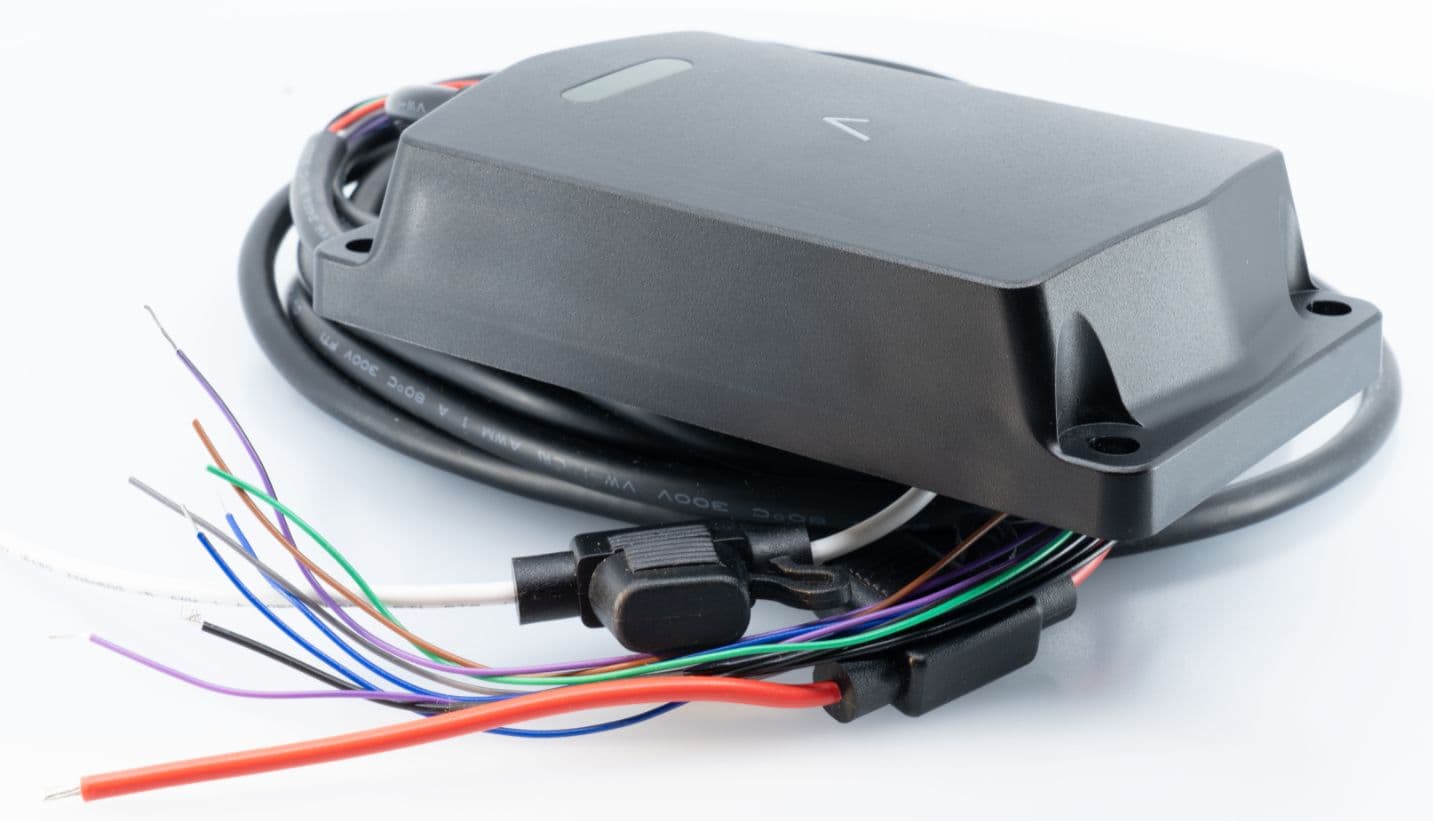

Install the Equipment Asset Tracker (EAT) | guide for pro installer partners This installation guide provides comprehensive “before you get started” information. It is intended for Verizon Connect professional installer partners who are not yet familiar with installing this specific device or may need a review of such knowledge. Installers already well-versed in the installation of this specific device may opt to proceed to the Reveal Hardware Installer app and follow the process outlined there. In this article: • Product overview o Identifying the EAT device o Device label o Status button o Status LEDs • What to bring • What's in the box • Reveal Hardware Installer App • Wiring the device • Mounting the device Product overview The Equipment Asset Tracker (EAT) is designed by Verizon Connect and replaces the CalAmp TTU- 2830. The EAT device offers: • I/O leads o 2 Digital inputs for sensors such as boom and PTO o 1 digital output capable of triggering a relay • Long life, replaceable backup battery pack. How to replace EAT battery pack • Optimized internal antenna design for improved signal reception • Status button that wakes the device, initiates the status test and prompts the device to send a report. • LED status indicators for Battery, Network, and GPS • 2-wire or 3-wire installation options Identifying the EAT device Before getting started, be aware that there are two Verizon Connect devices that look alike, EAT and EAT-B. This installation guide deals with the EAT device. The EAT device is powered by the equipment, that is, the asset, and therefore has a power cable attached to it. If the device you are installing does not have the cable. then it is the EAT-B device, not the EAT device. If you are installing the EAT-B device, refer instead to the Verizon Connect Equipment Asset Tracker- Battery installation guide Device label The label with S/N and IMEI barcodes is found on the side of the device, which allows it to be read even after mounting. You will scan the label when instructed in the Reveal Hardware Installer app, or if the scan should fail, enter the IMEI. The text on the device label is small, so if difficult to read, you can refer to the enlarged label found on the box that came with the device. The box label is also scannable. Status button • For a new device out of the box or a device that has had the battery replaced, the status button turns the device on. For a new device, press the button twice: First to power on, then press it again to light the LEDs and connect to network. • For a device already in operation, the button wakes up the device. • Whenever the status button is pressed, the device: o Performs status checks for device battery level, network connection and GPS. o When connected to both the network and GPS, the device then sends a location update (check-in) to Reveal, in addition to its usual check-in schedule. The status button does not turn the device off, which is why we don’t call it a power button. Should there be a reason to take the device out of operation, the device’s back cover can be removed, and the battery pack disconnected. Status LEDs The device runs a status test for Battery, Network, and GPS whenever the status button is pressed. Status test results are displayed on the status LEDs as described below. The LEDs stay lit only for a brief duration. However, the test can be repeated by pressing the status button again, which is useful for determining the best place on the asset to mount the device. I C O N N A M E S T A T U S Battery • 1 flash = 10-25% full • 2 flashes = 25 - 50% full • 3 flashes = 50 - 75% full • 4 flashes = 75 - 100% full Network • Slow flash: device is seeking network. • Solid: network connection acquired • Fast flash: network connection failed. GPS • Slow flash: device is seeking GPS. • Solid: GPS location acquired. • Fast flash: GPS location failed. I C O N N A M E S T A T U S Bluetooth At this time, the device does not support any Bluetooth features. This status LED can be disregarded until further notice. What to bring • Cordless drill with metric and standard bits. For mounting hardware sizes, see What's in the box. • Safety glasses or other eye protection • Marker for marking where holes will be drilled • If drilling a pass-through hole, a grommet and silicone to seal the grommet. (Use a polyurethane based silicone instead of those with acid based curing agents to avoid corroding metal surfaces). • 2mm hex head driver or allen key (to remove device back cover if battery pack needs to be connected) • Ring terminals • Butt connectors • Protective wire loom • Dielectric grease • Super 33 or better electrical tape • 16-18 gauge wire to extend connections, if needed • Wire ties • The Reveal Hardware Installer App What's in the box • EAT Device with attached 15’ harness • 4 x self-drilling screws for metal: standard 5/16” hex head, number 12 size, 1 inch long • 4 x bolts: Serrated-flange 5/16” hex head, 10-32 thread, 1 ¼ inch long, .19 inch screw width • 4 x locknuts 3/8” head • 4 x washers, flat type Depending on where the device is to be mounted, you will use either the screws or the bolts with lock nuts and washers. If using the screws, pre-drilling the holes is recommended. Reveal Hardware Installer App The Reveal Hardware Installer App replaces the VZ Check App. Download the Reveal Hardware Installer app from either Google Play Reveal Hardware Installer for Android or the App Store Reveal Hardware Installer for iOS. Using the Reveal Hardware Installer App, prior to mounting the device on the asset, you will: 1. Select the work order and then scan the device barcode or enter the device ESN. 2. Select Multi PWRD Asset Devices from the list. (Note that the selection applies to all asset trackers, for powered or non-powered assets.) 3. Test the device for network connectivity and GPS location fix. (See sections on Status Button and Status LEDs). 4. Select the wiring method (2-wire or 3-wire). (See Wiring the device.) 5. En…
