ZPD-TSZ7FST19LDLED lamp

R冒商”’ Smart LED Bulb 3. Make sure your wifi is 2.4G. Enter Wi Fi Information 专 w;a.,., 8 h皿 M 囚WARNING • Notforeme咱encylighting • Risk of electric shock • Riskof fire • Risk of burns • Do not use where directly exposed to 呐，ater • Not for use in totally enclosed luminaries • Do not use with medi臼land life-suppo此inst阳ments D。NOTUSE WITH STANDARD DIMMERS 4. Done. Enjoy you「timewith APP control. 丙工一三U再 E画 Added rFi…n ＂＇、t刻’“dedtue嗨$“＂＂ rm团团�盟， Follow the available instructions and resources to set up your sma同device. Download the Join in Home APP from App Store or Google Play. Scan the QR code to downl。ad E盟国 ·罩蜘明 I ν Compatible with Amazon Alexa and Google Assistant Follow the steps in the Amazon Alexa or Google Home app to connect the Joinin Home app or select "Third-Pa即VoiceSe『vices" in the Join in Home app. Rated v。ltage120V AC F陪quency 60Hz Rated p。,wer 7W (60W Equivalent) Color Temperature 2700K Lu min。us Flux 800LM CRI 80 Rated Life 15000H s。cketTypeE26 Working Temperature 20°C－40＇℃ Create an account in Joinin Home App. �三三� Register ..，，栩reel.Ill且�and缸皿且主皿国 。 食Cannotconnect to your wi－币 network. 1.Please make sure your Wi-Fi router is unde「the2.4GHz se忧ingand the entered router passwo时is correct. 2.lf Wi-Fi signal is too weak, reset your Wi-Fi router and t『y again. 3.Please enable the Joinin Home App to get your local location and Bluetooth. 食Setupis not working properly. 1.Clean all apps that a陀running in the background then reopen the Joinin Home App. 2.Uninstall and 『·einstallthe Join in Home App then repeat the setup process. E温Z且I.El且imillili.国国 � f 1 l ＝�：h黠 引二川 Power switch for the lamp or light fixture must be ON 1. Remove power to bulb ( turn o忏 light switch) fo川sec.,add power for 1 sec.(turn on lightswitch) 2. Cycle five times. Bulb will be in ON position and begins flashing quickly. 食Thebulb is not responding to Joinin Home App. 1.Delete the original connection reco时in the app and陪peat the connection process回． 2.Check if the bulb is turned o仔． If yes, turn it on and wait until the bulb reconnects with the Wi-Fi network automatically. 3.Check if there a陪 problemswith your internet connection.if necessary ，， 陪臼tyour Wi-Fi router and try again 1. ClickAdd Device o「the+at the upper right corner. ⑨ 。 白Add』＇＇＂ 日 C隐晦S帽、． 1111 0 ® 』｝伽 食Homenetwork is 5GHz. The wall penetration capability of 5.0GHz is wea阳rthan 2.4GHz w怕ich me唱nsthat the outdoor signal of 5.0GHz is worse 2.4GHz. The用fore, most smart devices support 2.4GHz networks or dual-f1陪quency networ<S of 2.4GHz and 5.0GHz. 1.lf you are using a dual-band route「 (2.4GHz and 5GHz frequency share a Wi-Fi account.), youαn connect the device using the AP mode. 2.0r you can log in to the management page of your router and change the SSI D of the 2.4GHz and 5GHz networks to di仔·erentiatethem 2. System will auto scan the sma吐device. Add Ma阴阳＂＇ ． 二...... i u ...叫 且 町咱也 胆叫阳叫 蛐 。ddl。n Sh。uld you experience any issues while。perating any of our products, you can di用ctly阻ach。utto 。urCu目。mer Supp。此via Am缸。n Or回＠阻。r you can send y。urinqui叩to。urOfficial Cust。mer Supp 。 rt at: 回[email protected] @ + 1 (626)328-6250 Monday - Friday from 9:00AM - 5:0日PM(P"η �司:In'回?m'elllllll FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located for operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation

Xiamen Topstar Lighting Co., Ltd. Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Xiamen Topstar Lighting Co., Ltd. Address: 676 Meixi Avenue, Tong’an District, Xiamen, Fujian, 361100, China. Product Name: LED lamp FCC ID : ZPD-TSZ7FST19LD Model(s): TSZ7FST19-LD, TSZ7FST19-LD-1 2.911(d)(5)(i) Equipment Type We, [Xiamen Topstar Lighting Co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Nanc y Na Date: Feb. 14, 2023 Title and Company name: Certified engineer; Xiamen Topstar Lighting Co., Ltd NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the 2.911 (d)(5)(i) Eq uipment Typ e Attestation v1.2

Xiamen Topstar Lighting Co., Ltd. Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Xiamen Topstar Lighting Co., Ltd. Address: 676 Meixi Avenue, Tong’an District, Xiamen, Fujian, 361100, China. Product Name: LED lamp FCC ID : ZPD-TSZ7FST19LD Model(s): TSZ7FST19-LD, TSZ7FST19-LD-1 2.911(d)(5)(ii) Applicant filing We, [Xiamen Topstar Lighting Co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified N O TE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Nanc y Na Date: Feb. 14, 2023 Title and Company name: Certified engineer; Xiamen Topstar Lighting Co., Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the 2.911 (d)(5)(ii) Applicant Attestation v1.2

Xiamen Topstar Lighting Co., Ltd. Section 2.911(d)(7) USA Agent for Service of Process Company name: Xiamen Topstar Lighting Co., Ltd. Address: 676 Meixi Avenue, Tong’an District, Xiamen, Fujian, 361100, China. Product Name: LED lamp FCC ID : ZPD-TSZ7FST19LD Model(s): TSZ7FST19-LD, TSZ7FST19-LD-1 2.911(d)(7) USA Designated Agent for Service of Process We, [Xiamen Topstar Lighting Co., Ltd.] (“the applicant”) designate [Chargenetic, INC] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We Acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We Acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Chargenetic, INC Address: 10010 Nicollet Lake Ln, Katy, TX 77494, USA FRN: 0033431669 Contact Name: Vincent Shao Telephone No: 001 626 899 6253 Email: [email protected] Applicant Company name: Xiamen Topstar Lighting Co., Ltd. Address: 676 Meixi Avenue, Tong’an District, Xiamen, Fujian, 361100, China. FCC Grantee Code: ZPD Contact Name: Nanc y Na Telephone No: +86-592-7263847 Email: [email protected] Signature: Title: CEO Signature: Title: Certified engineer Date: 2023/2/22 Date: 2023/2/22 2.911 (d)(7)USA Agent v1.3 Xiamen Topstar Lighting Co., Ltd. NO TE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/ 02/06/2022-28263/ prot ecting-agai nst-nation al-security-threats-to-the-communications-supply-chai n-through-the 2.911 (d)(7)USA Agent v1.3

< Xiamen Topstar Lighting Co., Ltd. > Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD21046 Date: Feb. 14, 2023 Subject; Request for Long Term Confidentiality FCC ID: ZPD-TSZ7FST19LD To Whom It May Concern, P ursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up P rocedure It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Nancy Na Title : Certified engineer

Xiamen Topstar Lighting Co., Ltd. Letter of Authorization Company: Xiamen Topstar Lighting Co., Ltd. Address: 676 Meixi Avenue, Tong’an District, Xiamen, Fujian, 361100, China. Product name: LED lamp Trade name: N/ A Model name: TSZ7FST19-LD, TSZ7FST19-LD-1 FCC Identifier: ZPD-TSZ7FST19LD We authorize MiCOM LabsInc, 575 Boulder Court, Pleasanton, California94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM LabsInc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: Nancy Na Date: Feb. 14, 2023 Title: Certified engineer Signature of applicant:

Model Difference Declaration To Whom It May Concern, We, Xiamen Topstar Lighting Co., Ltd. Product Name: LED lamp Trade Mark: N/A Model Name: TSZ7FST19-LD, TSZ7FST19-LD-1 All model’s the function, software and electric circuit are the same, only with a product color and model named different. Test sample model: TS Z7FST19-LD. Please contact me if you have any question. Name: Nancy Na Date: Feb. 14, 2023 Title : Certified engineer Signature of applicant:

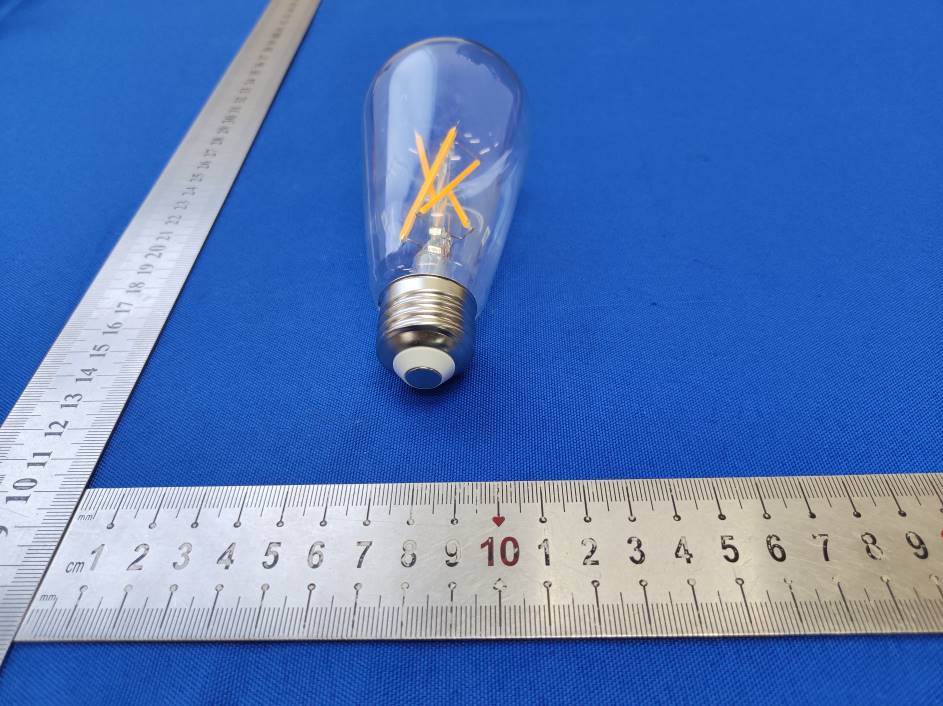

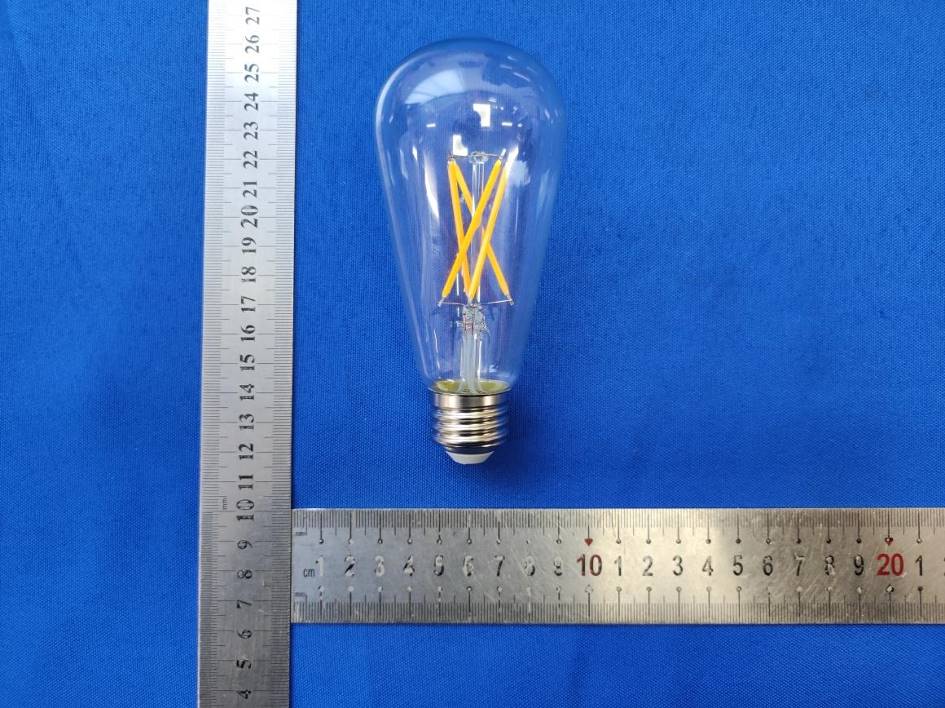

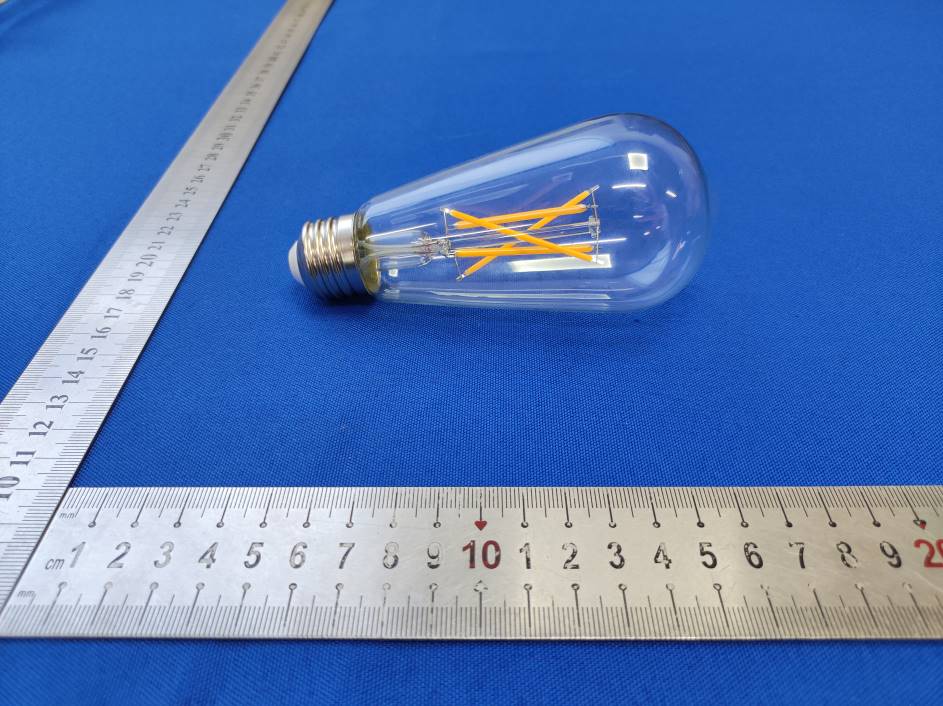

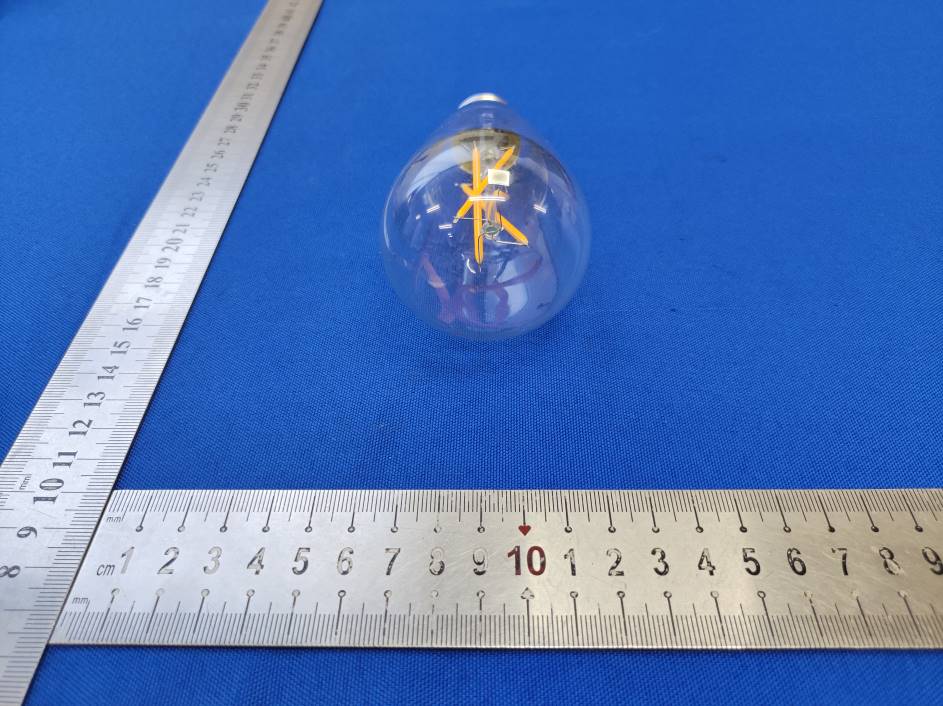

Model: TSZ7FST19-LD Model: TSZ7FST19-LD Model: TSZ7FST19-LD

FCC ID LABEL: Label Location:

Model: TSZ7FST19-LD Model: TSZ7FST19-LD Model: TSZ7FST19-LD Model: TSZ7FST19-LD Antenna

MPE ESTIMATION FCC ID: ZPD-TSZ7FST19LD 1. Limit for General Population/Uncontrolled Exposures Frequency Power Density(mW/cm2) Averaging Time(minutes) 300MHz-1.5GHz F/1500 30 1.5GHz-100GHz 1.0 30 Note: F= Frequency in MHz 2. Estimation Result Mode Max PK Output Power(dBm) Tune Up Power(dBm) Max Tune Up Power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE (mW/cm²) 11b 17.46 17±1(18) 63.10 2.4 1.7378 0.021814 11g 14.65 15±1(16) 39.81 2.4 1.7378 0.013764 11n/HT20 12.76 13±1(14) 25.12 2.4 1.7378 0.008684 11n/HT40 10.13 10±1(11) 12.59 2.4 1.7378 0.004352 Note: Note: The estimation distance is 20cm. Note: PK Output power=conducted power. Conducted power see the test report UNIA23020613ER-61, antenna gain=2.4dBi. ------The End------

CBLC5 Antenna test report Product Name: CBLC5 Antenna Type: Monopole antenna Writer: Yinhua Zhang Ma xi mum Gain：2.69dBi Efficiency:68.39% CB LC5 Antenna test report Version 1.0.0 Date：2020-11-24 NO：0000000001 Ante nna Test Report Global Inte lligent Platform CBLC5 Antenna test report Content 1. G enera l Des c rip t io n...........................................................................3 2. Technical Information........................................................................3 3. Test Standards ...................................................................................3 4. Test Item ...........................................................................................4 5. Test Pho to .........................................................................................4 Appen dix A Antenna Dimension .........................................................5 App en dix B S11/VSWR........................................................................5 App en dix C Gain and Efficiency...........................................................6 App en dix D Radiation Pattern(1D and 3D).............................................7 Appen dix E Test Setup Photo ................................................................9 CBLC5 Antenna test report 1. General Description EUT Name CBLC5 Antenna Wireless type WIFI Antenna Type Monopole antenna Dimensions Appendix A 2. Technical Information Frequency Range 2402MHz~2480MHz Test Frequency 2400,2410......2500MHz 3. Te st Standards Identity Document Title IEEE 149-1979 IEEE Standard Test Procedures for Antennas CBLC5 Antenna test report 4.Test Item Report Section Description Appendix B S11/VSWR Appendix C Gain and Efficiency Appendix D Radiation Pattern（1D and 3D） 5.Test Photo Report Section Description Appendix E Test Setup Photo CBLC5 Antenna test report Appendix A Antenna Dimension Appendix B S11/VSWR Frequency (MHz) 240024502500 Return Loss-8.6-9.5-1 2.3 CBLC5 Antenna test report Appendix C Gain and Efficiency Frequency (MHz) Efficiency(%) Gain（dBi） 2400 61.38 1.87 2410 63.24 2.02 2420 62.81 2.03 2430 62.81 1.93 2440 62.09 1.98 2450 59.02 1.79 2460 61.66 2.13 2470 64.86 2.4 2480 67.45 2.53 2490 68.39 2.69 2500 63.53 2.24 CBLC5 Antenna test report Appendix D Radiation Pattern(1D and 3D) CBLC5 Antenna test report CBLC5 Antenna test report Appendix E Test Setup Photo

Page 1 of 76 Report No.: UNIA23020613ER-61 FCC RADIO TEST REPORT FCC ID: ZPD-TSZ7FST19LD Sample： LED lamp Trade Mark： N/A Main Model： TSZ7FST19-LD Additional Model： TSZ7FST19-LD-1 Report No.： UNIA23020613ER-61 Prepared for Xiamen Topstar Lighting Co., Ltd. 676 Meixi Avenue, Tong’an District, Xiamen, Fujian, 361100, C hi na. Prepared by Shenzhen United Testing Technology Co., Ltd. 2F, Annex Bldg, Jiahuangyuan Tech Park, #365 Baotian 1 Rd, Tiegang C ommuni ty, Xi xi ang Str, Bao'an D i stri ct, Shenzhen, C hi na Page 2 of 76 Report No.: UNIA23020613ER-61 TEST RESULT CERT IFICAT ION Applicant................................ : Xiamen Topstar Lighting Co., Ltd. Address ................................... : 676 Meixi Avenue, Tong’an District, Xiamen, Fujian, 361100, China. Manufacturer ......................... : Xiamen Topstar Lighting Co., Ltd. Address ................................... : 676 Meixi Avenue, Tong’an District, Xiamen, Fujian, 361100, China. Product description Product .................................... : LED lamp Trade Mark .............................. : N/A Model Name............................ : TSZ7FST19-LD, TSZ7FST19-LD-1 Test Methods ......................... : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of UNI, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test .......................................... : Date (s) of performance of tests ............ : Feb. 06, 2023 ~ Feb. 09, 2023 Date of Issue .......................................... : Feb. 09, 2023 Test Result ............................................. : Pass Prepared by: Kahn yang/Supervisor Reviewer: Kelly Cheng/Supervisor Approved & Authorized Signer: Liuze/Manager Page 3 of 76 Report No.: UNIA23020613ER-61 Table of Contents Page 1 TEST SUMMARY 5 1.1 TEST PROCEDURES AND RESULTS 5 1.2 TEST FAC IL IT Y 6 1.3 MEAS UREME NT UNCERTAINTY 7 1.4 ENVIRONMENTAL CONDITIONS 7 2 GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF EUT 8 2.2 CARRIER FREQUENCY OF CHANNELS 9 2.3 TEST MODE 10 2.4 DESCRIPTION OF THE TEST MODES 10 2.5 TEST SETUP 11 2.6 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL 11 2.7 MEASUREMENT INSTRUMENTS LIST 12 3 CONDUCTED EMISSION 13 3.1 TEST LIMIT 13 3.2 TEST SETUP 13 3.3 TEST PROCEDURE 14 3.4 TEST RESULT 14 4 RADIATED EM IS S IO N 17 4.1 TEST LIMIT 17 4.2 TEST SETUP 18 4.3 TEST PROCEDURE 19 4.4 TEST RESULT 19 5 OCCUPIED BANDWIDTH 42 5.1 TEST LIMIT 42 5.2 TEST PROCEDURE 42 5.3 EQUIP ME NT USED 42 5.4 TEST RESULT 42 6 POWER SPECTRAL DENS ITY 51 6.1 TEST LIMIT 51 6.2 TEST PROCEDURE 51 6.3 EQ UIP ME NT USED 51 6.4 TEST RESULT 51 7 PEAK OUTPUT POWER 60 Page 4 of 76 Report No.: UNIA23020613ER-61 Table of Contents Page 7.1 TEST LIMIT 60 7.2 TEST PROCEDURE 60 7.3 EQUIP ME NT USED 60 7.4 TEST RESULT 60 8 OUT OF BAND EMISS IONS 61 8.1 TEST LIMIT 61 8.2 TEST SETUP 61 8.3 TEST PROCEDURE 61 8.4 TEST RESULT 61 9 ANTE NNA REQUIREMENT 74 10 PHOTO OF TES T 75 10.1 R AD IATED E MISS IO N 75 10.2 CONDUCTED EMISSION 76 Page 5 of 76 Report No.: UNIA23020613ER-61 1 TEST SUMMARY 1.1 TEST PROCEDURES AND RESULTS Item FCC Rules Description Of Test Result 1 FCC Part 15.207 Conducted Emission Pass 2 FCC Part 15.209(a) Radiated Emission Pass 3 FCC Part 15.247(a)(2) Occupied Bandwidth Pass 4 FCC Part 15.247(e) Power Spectral Density Pass 5 FCC Part 15.247(b) Peak Output Power Pass 6 FCC Part 15.247(d) Out Of Band Emissions Pass 7 FCC Part 15.247(d) Conducted Spurious Emission Pass 8 FCC Part 15.203 Antenna Requirement Pass Page 6 of 76 Report No.: UNIA23020613ER-61 1.2 TEST FACILITY Test Firm : Shenzhen United Testing Technology Co., Ltd. Address : 2F, Annex Bldg, Jiahuangyuan Tech Park, #365 Baotian 1 Rd, Tiegang Community, Xixiang Str, Bao'an District, Shenzhen, China The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19.The testing quality system of our laboratory meets w ith ISO /IEC-17025 requirements. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: A2LA Certificate Number: 4747.01 The EMC Laboratory has been accredited by A2LA, and in compliance with ISO/IEC 17025:2017 General Requirements for testing Laboratories. FCC Registration Number: 0027159896 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. IC Registration Number: 21947 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. Page 7 of 76 Report No.: UNIA23020613ER-61 1.3 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. A. Conducted Measurement: Test Site Method Measurement Frequency Range U, (dB) UNI ANSI 9kHz ~ 150kHz 2.96 150kHz ~ 30MHz 2.44 B. Radiated Measurement: Test Site Method Measurement Frequency Range U, (dB) UNI ANSI 9kHz ~ 30MHz 2.50 30MHz ~ 1000MHz 4.80 1000MHz ~ 18000MHz 4.13 C. RF Conducted Method: Item Measurement Uncertainty Uncertainty of total RF power, conducted U c = ±0.8 dB Uncertainty of RF power density, conducted U c = ±2.6 dB Uncertainty of spurious emissions, conducted U c = ±2 % Uncertainty of Occupied Channel Bandwidth U c = ±2 % 1.4 ENVIRONMENTAL CONDITIONS During the measurement the environmental conditions were within the listed ranges: Temperature: 15~35 °C Relative Humidity: 30~60 % Ai…

Text truncated - open the document above for the full version.

Model: TSZ7FST19-LD Radiated Emission test Model: TSZ7FST19-LD Conducted Emission test
