ZPFS-1000K2.4G Wireless Keyboard

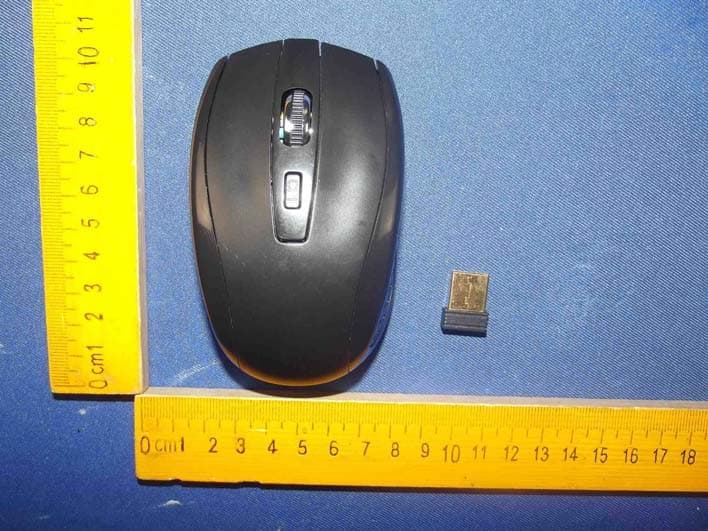

- 1 - 2.4GHz wireless keyboard & Mouse Kit S-1000K （1） 2.4GHz WIRELESS OPTICAL MOUSE USER MANUAL COMPLIANCE WITH FCC REGULATIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE - 2 - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FUNCTIONS AND CONTROLS Item Description 1 Left Button 2 Scroll Wheel with Button (Middle Button): for Windows based PC only 3 Right Button 4 Power Switch - ON: turns Mouse on. - OFF: turns Mouse off (recommended when not in use). 5 Optical Sensor System: red light will be emitted when power is turned on 6 Battery Compartment: hidden underneath cover and holds 2 x AAA batteries (not included) 7 USB Receiver Storage Compartment: hidden underneath Battery Compartment Cover. Always store the USB Receiver in this compartment when not in use. 8 USB Receiver GETTING STARTED - 3 - Installing/Replacing Batteries This Wireless Optical Mouse operates on two ‘AAA' (UM-4) size batteries (not included). 1. Slide Power Switch to “OFF”. 2. Remove the battery compartment cover located at the bottom cabinet. 3. Remove all old batteries at the same time (if any). 4. Following the polarity diagram shown inside the battery compartment, insert two fresh ‘AAA' (UM-4) size alkaline batteries or Ni-MH rechargeable batteries (not included). 5. Replace the battery compartment cover making sure it is securely closed. 6. Slide Power Switch to “ON” to use. IMPORTANT : Be sure that the batteries are installed correctly. Wrong polarity may damage the unit. 7. When the mouse response or cursor movement slows down noticeably, the batteries are becoming weak and need to be replaced. Please remove all the old batteries and replace with fresh good quality alkaline or NiMH batteries as soon as possible. WARNINGS!  Batteries must be installed or replaced by an adult.  The use of good quality alkaline batteries is recommended.  Place batteries based on the polarity shown on the battery compartment.  Only use the recommended type of batteries.  Non rechargeable batteries are not to be recharged  Rechargeable batteries are only to be charged under adult supervision  Rechargeable batteries are to be removed before being charged.  DO NOT mix different types of batteries together.  DO NOT mix new and old batteries together.  If you do not use the product for an extended period of time, we recommend that you take out the batteries. Remove exhausted batteries from the product. Battery leak may cause damage.  DO NOT short circuit the terminals of the battery.  DO NOT throw batteries into an open flame. They may explode.  Keep the packaging for future reference as it contains important information Installing of the USB Receiver (Compatible with OS: Windows 2000/XP/Vista/7 and Mac OS X 10.5 – 10.6) 1. Remove the Battery Compartment Cover and carefully slide out the USB Receiver from its designated compartment adjacent to the battery compartment. 2. Insert the USB Receiver of the Optical Mouse directly into a USB port (USB 1.1-3.0) of your computer running on either Windows or Mac OS. 3. Your USB Receiver will be automatically installed by the plug and play function of the Windows or Mac OS. Note: There is no need to remove the USB Receiver from the USB port of your computer even after turning off unless you need to free up the USB port for other device. OPERATING INSTRUCTIONS Left Button Use this button to select an item from a pop up or pull down menu or to click a function button. Right Button Use this button to access the quick menu of a related function. - 4 - Scroll Wheel with Button (Middle Button) – Middle Button for Windows Only 1. Under normal operation, rotate the Scroll Wheel for fast browsing up/down in an internet browser and in other document files. 2. For Windows users only: To enable smooth auto scrolling, press the Scroll Wheel Button. A double arrow icon, showing the anchor point, and a floating arrow icon, showing the current mouse position, will appear. To scroll up/down, move the mouse until the floating arrow icon becomes an up/down arrow. The farther away the floating arrow is from the anchor point, the faster the scrolling speed. Press the Middle Button again to exit the auto scroll function when you have finished. Sleep Mode When the mouse is left idle for 8 minutes, it will enter sleep mode for battery power saving. Press the Left, Right or Scroll Wheel Button to wake up the Mouse and resume normal operation. Manual Pairing This product features auto ID pairing function. The USB Rec…

Text truncated - open the document above for the full version.

[company header optional] Authorization Letter Number: CF101 Version: V01 Date: 01-02-2010 We, (the approval holder) Company name Shenzhen Eastech Co., Ltd. Addresss Block A, Baizhushan Industrial Park, Shajing Street, Bao’an District City Shenzhen Country China declare that the following representative (agent): Name (person) Daniel Zhu Company name Anbotek Compliance Laboratory Limited Addresss 1/F, 1 /Build, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District City Shenzhen Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description 2.4GHz Wireless Keyboard Type or Model(s) S-1000K, EK-814W, EK-815W, EK-830W, EK-838W, EK-839W Tradename or Brand(s) N.A. We also authorize Teleconformity to process this application. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen 2012-6-04 Anny Xi Sales Shenzhen Eastech Co., Ltd.

[company header optional] FCC Confidentiality Request Number: CF303 Version: V01 Date: 01-02-2010 To the FCC and FCC TCB handling this application for certification Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Shenzhen Eastech Co., Ltd. Addresss Block A, Baizhushan Industrial Park, Shajing Street, Bao’an District City Shenzhen Country China request non-disclosure and confidential treatment for our certification under: Grantee Code Product Number FCC ID: ZPF S-1000K of the following materials submitted within this certification application: (please cross what is applicable, or add other documents) √ Cricuit Description √ Block Diagram √ Schematic Diagram PCB layout Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. Attestation: City and Country: Date: Name: (this must be a person) Function: Signature: (or official company stamp) Shenzhen 2012-6-04 Anny Xi Sales Shenzhen E astech Co., L td.

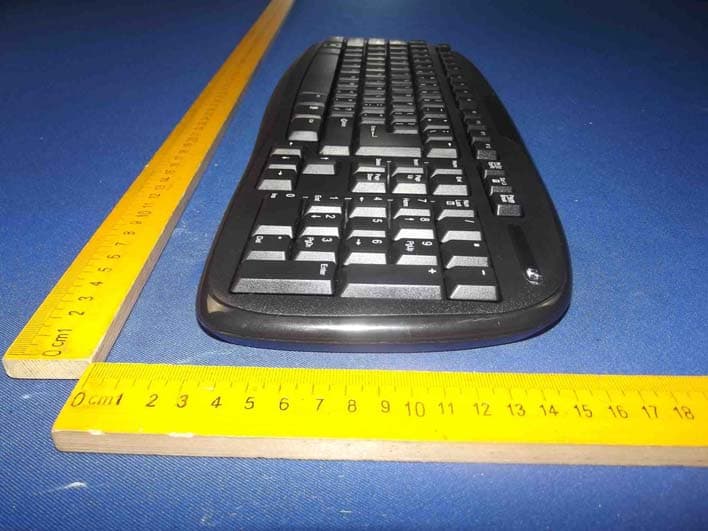

Page 23 of 25 FCC ID: ZPFS-1000K Anbotek Compliance Laboratory Limited Report No.201205793F Figure 1 The EUT-Front View Figure 2 The EUT-Back View

Page 24 of 25 FCC ID: ZPFS-1000K Anbotek Compliance Laboratory Limited Report No.201205793F Figure 3 The EUT-Inside View Figure 4 The EUT-Inside View Page 25 of 25 FCC ID: ZPFS-1000K Anbotek Compliance Laboratory Limited Report No.201205793F Figure 5 PCB of the EUT Front View Figure 6 PCB of the EUT Back View

Page 1 of 25 FCC ID: ZPFS-1000K Anbotek Compliance Laboratory Limited Report No.201205793F FCC TEST REPORT for Shenzhen Eastech Co., Ltd. 2.4GHz Wireless Keyboard Model No.: S-1000K, EK-814W, EK-815W, EK-830W, EK-838W, EK-839W Report Number : 201205793F Date of Test : May 22~29, 2012 Date of Report : May 30, 2012 Prepared for : Shenzhen Eastech Co., Ltd. Address : Block A, Baizhushan Industrial Park, Shajing Street, Bao’an District, Shenzhen City, Guangdong Province, China Tel: (86) 755-27487645 Fax: (86) 755-27487699 Prepared By : Anbotek Compliance Laboratory Limited Address : 1/F, 1 /Building, SEC Industrial Park, No. 4 Qianhai Road, Nanshan District, Shenzhen, 518054, China Tel: (86) 755-26014771 Fax: (86) 755-26014772 Page 2 of 25 FCC ID: ZPFS-1000K Anbotek Compliance Laboratory Limited Report No.201205793F TABLE OF CONTENTS Description Page Test Report 1. GENERAL INFORMATION .........................................................................................................4 1.1.Description of Device (EUT).....................................................................................................................4 1.2.Auxiliary Equipment Used during Test .....................................................................................................5 1.3.Description of Test Facility .......................................................................................................................6 1.4.Measurement Uncertainty..........................................................................................................................6 2. MEASURING DEVICE AND TEST EQUIPMENT.................................................................... 7 3. TEST PROCEDURE ....................................................................................................................... 8 4. CONDUCTED LIMITS .................................................................................................................. 9 4.1. Block Diagram of Test Setup ...................................................................................................................9 4.2. Power Line Conducted Emission Measurement Limits (15.207) .............................................................9 4.3. Configuration of EUT on Measurement ...................................................................................................9 4.4. Operating Condition of EUT ....................................................................................................................9 4.5. Test Procedure ........................................................................................................................................10 4.6. Power Line Conducted Emission Measurement Results ........................................................................10 5. RADIATION INTERFERENCE.................................................................................................. 13 5.1. Requirements (15.249, 15.209): .............................................................................................................13 5.2. Test Configuration:.................................................................................................................................13 5.3 Test Procedure .........................................................................................................................................14 5.4 Test Results..............................................................................................................................................14 6. OCCUPIED BANDWIDTH..........................................................................................................18 6.1. Requirements (15.249): ..........................................................................................................................18 6.2. Test Procedure ........................................................................................................................................18 6.3. Test Configuration:.................................................................................................................................18 6.4. Test Results.............................................................................................................................................18 7. PHOTOGRAPH............................................................................................................................. 21 7.1. Photo of Power Line Conducted Emission Measurement ......................................................................21 7.2. Photo of Radiation Emission Test ..........................................................................................................21 APPENDIX I (Photos of EUT) (3 Pages) Page 3 of 25 FCC ID: ZPFS-1000K Anbotek Compliance Laboratory Limited Report No.201205793F TEST REPORT Applicant : Shenzhen Eastech Co., Ltd. Manufacturer : Shenzhen Eastech Co., Ltd. EUT : 2.4GHz Wireless Keyboard Model No. : S-1000K, EK-814W, EK-815W, EK-830W, EK-838W, EK-839W Serial No. : N/A Rating : DC 5V Trade Mark : N/A Measurement Procedure Used: FCC Part15 Subpart C, Paragraph 15.207, 15.249 & 15.209 The device described above is tested by Anbotek Compliance Laboratory Limited to determine the maximum emission levels emanating from the device and the severe levels of the device can endure and its performance criterion. The measurement results are contained in this test report and Anbotek Compliance Laboratory Limited is assumed full of responsibility for the accuracy and completeness of these measurements. Also, this report shows that the EUT (Equipment Under Test) is technically compliant with the FCC Part 15 Subpart C requirements. This report applies to above tested sample only and shall not be reproduced in part without written approval of Anbotek Compliance Laboratory Limited Date of Test : May 22~29, 2012 Prepared by : (Engineer / Andy Chen) Reviewer : (Proje…

Text truncated - open the document above for the full version.

Page 21 of 25 FCC ID: ZPFS-1000K Anbotek Compliance Laboratory Limited Report No.201205793F 7. PHOTOGRAPH 7.1. Photo of Power Line Conducted Emission Measurement 7.2. Photo of Radiation Emission Test
