ZPJ-FUSIONG1-WMG1G4 Fusion

Fusion User Manual COBAN £ Technologies Inc. 11375 W. Sam Houston Parkway S. # 800 Houston, TX 77031 Tel: 1-281-925-0488 Fax: 1-281-925-0535 http://www.cobantech.com Fusion User Manual Version Q4 2013 www.cobantech.com Page 2 of 27 Introduction The Coban Fusion mobile recorder is the front line of the Digital Video Management System (DVMS). The mobil recorder allows users to record two channels of audio and two channels of video streams simultaneously to the in-car CPU. This information is stored in the Mobile Hard Disk Drive until it can be transferred to the BOClient. This manual addresses the steps needed to properly use the Mobile recording system. Log In to the Fusion Mobile Recorder 1. After the mobile recording system has been powered up, the Mobile Start Recorder Software will initiate and display the Officer Log-In screen. Note:The officer ID should be automatically entered into the appropriate field from information input during MHDD checkout. If not, enter the appropriate Officer ID. 2. Tap the Password button to display the Virtual Keypad. 3. Type your password using the Virtual Keypad then tap OK. 4. Tap Login. 5. The System Time and Date screen will appear. Change the system time and date if it is incorrect using the appropriate arrow keys. 6. Take note of the estimated remaining recording time.Storage remaining for video recording is displayed above the OKbutton. Note:A warning prompt will be displayed if available recording time is under 4 hours. 7. Tap OK.  Fusion User Manual Version Q4 2013 www.cobantech.com Page 3 of 27 NOTE:A successful Login will show the Officer ID number on the bottom right of the Camera View screen. Minimize/Maximize the Application Window 1. Tap the application icon to minimize the window. 2. Tap Hide Camera View to minimize the application window and access the desktop. Fusion User Manual Version Q4 2013 www.cobantech.com Page 4 of 27 3. Tap the application icon to return to the Camera View Screen. Fusion User Manual Version Q4 2013 www.cobantech.com Page 5 of 27 Camera View Screen Thisscreen displays the camera input and providesoptions for the user to start recording, create bookmarks, take snapshots of the video and other functions.It also provides iconsthatreflect the light bar status, radar gun reading, GPS indicator (if installed), and the in-carmicrophone ON / OFF status.At the bottom of this screen, it shows the Pre-EventBuffering time, which indicates the length of video that is being pre-recorded prior to User pressing theRecord button.   Camera Preview Video Logs Playback Function Record Buttons Function Buttons Date and Time Mic Icon Buffer Setting Minimize/Enlarge Button Snapshot Function Recording Indicators Light Bar Indicator Secondary Camera View Fusion User Manual Version Q4 2013 www.cobantech.com Page 6 of 27 Camera Preview–The camera preview displays the image as seen through the camera lens. The defualt image is set as the front facing camera in most cases. For TopCam user, tap the camear view to toggle between enlarged and normal view (see page ??? for more information on this fuction.) Video Log - The Video Log documents readings and status from various devices such as, light bar status, microphone status, bookmark, etc. Snapshot Function–Tapping the snapshot icon will take a JPG freeze frame image of the video at that point in time. A preview of the snapshot will be displayed immediately beneath the snapshot icon for fifteen seconds (see page for more information on snapshot function.) Minimize/Enlarge Button – The minimize/enlarge button will minimize or enlarge the mobile recorder application and allow users the ability to access other programs on the computer. Recording Indicators–The recording indicators blink red to signify which camera is recording. If not cameras are recording the recording indicators do not blink. When there is only onecamerainstalled on the vehicle, the user will not see a C1 and C2 camera indicator. Users can tap on the recording indicators to make that cameras view active on the Camera Preview. Date and Time – The Data and Time display is set during the officer log in sequence and continuously displays the current date and time. Buffer Setting – The Pre-Event buffer is set by the System Administrator through Coban’sBOCllient application. The Pre-Event Buffer display is a reminder to the user that all recordings are provided with a set pre-event recording. This buffer can be adjusted through BOClient or in some cases through mobile recorder. Mic Icon – The wireless microphone icon will blink when the wireless microphone is recording audio. Light Bar Indicator – the light bar indicator will blink when the vehicles light bar is activated. Function Buttons–The function buttons provide users the access to greater functionality, including: The Menu button provides useraccess to Camera View, Playback,Switch User, or Exit. (Please referto Page 16 for moredetails) Bookmark Iocn – Tap the bookmark icon to set a mark in a video for ???? Auto Zoom - When pressed, will automatically zoom the camera, pause for 3 seconds and zoom back toUser’s original zoom setting. There isno need to manually disengage. Press CameraControl to access Zoom, Brightness& Focus Control. The More button allows user to access additional enhancement options.(Please refer to Page 9 for more detail) Secondary Camera View - SIf installed, will be configured asC2 (camera 2) a second image will appear below the primary camera image next to the C2 icon. Playback Functions - Allows user to playback previously recorded video, enter / edit video event data, send selected video wirelessly (if wireless option is purchased) and manually retain video. (Please referto Page 17 for moredetails) Record Buttons - User may initiate recording by pressing the wireless microphone, turning on thelight bar or siren (if equipped as a system trigger), or pressing the“RecordButtons” on thescreen. Radar SpeedReading:If installed, T=Target Speedand P=Pursuit…

Text truncated - open the document above for the full version.

a''''!e-\e 'r] 1g', v:tEU lrv Request for Confidentiality Date: Nov"11,2013 Federal Communications Commission Authorization and Evaluation Division Subject: Gonfidentiality Request regarding Application for certification of FCG lD: ZPJ- FUSIONGl.WMGl Gentlemen: Pursuant to Section 0.457 and 0.459 of the Commission's Rules, we hereby request confidenlial treatment of information accompanying this application as outlined below: a Block Diagram a Schematics Diagram a OperationalDescription The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, COBAN Technologies, lnc. 11375 West Sam Houston South. Suite 800 Houston. TX77031 Tel: (281) 925-0488 COBAN Technologies, Inc. 11375 W. Sam Houston Pkwy.5., Suite 800 Houston, TX7703! wwrv. cobantech.com Tel: 281-925-0488 Fax: 281-925-0535

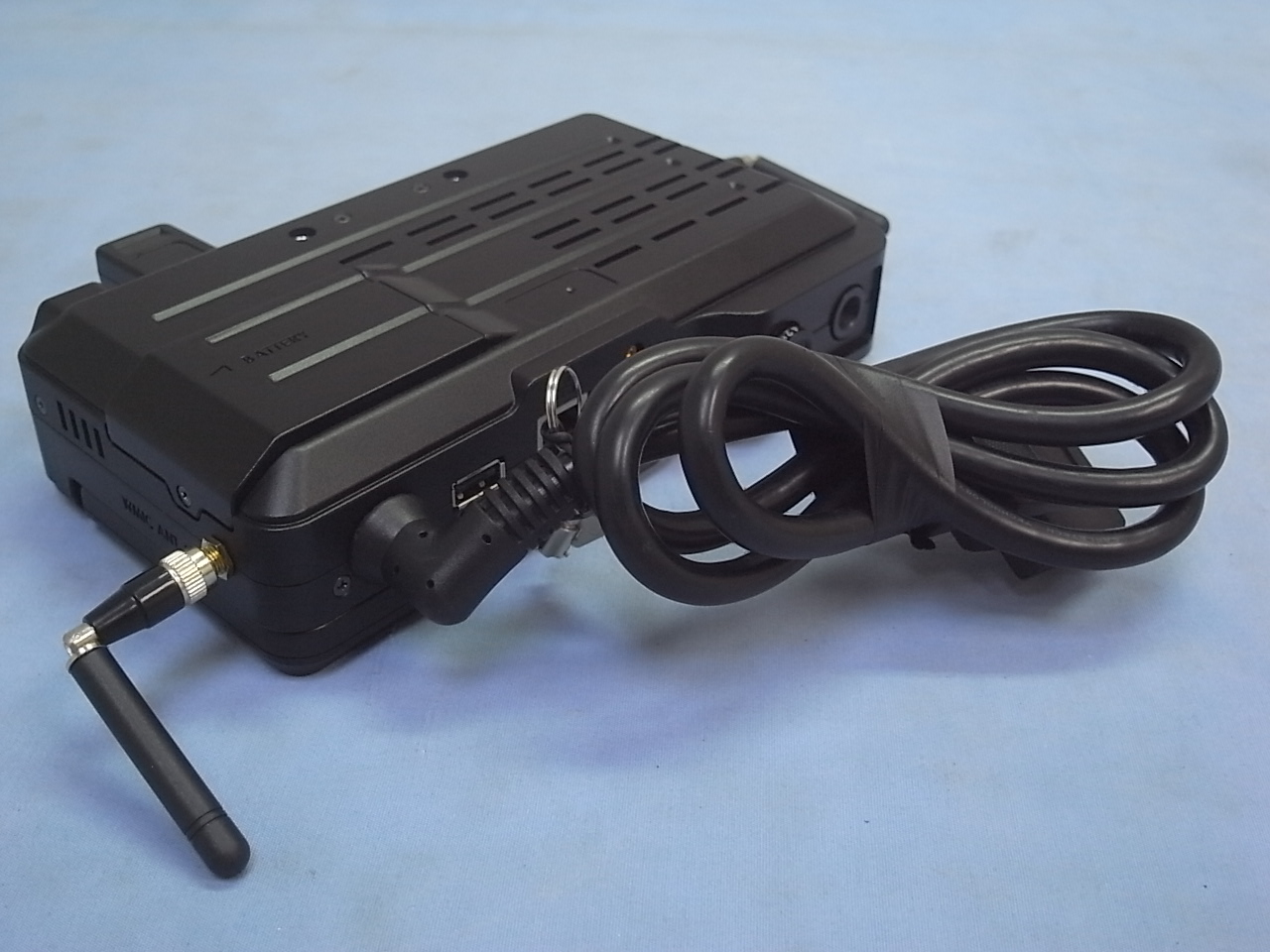

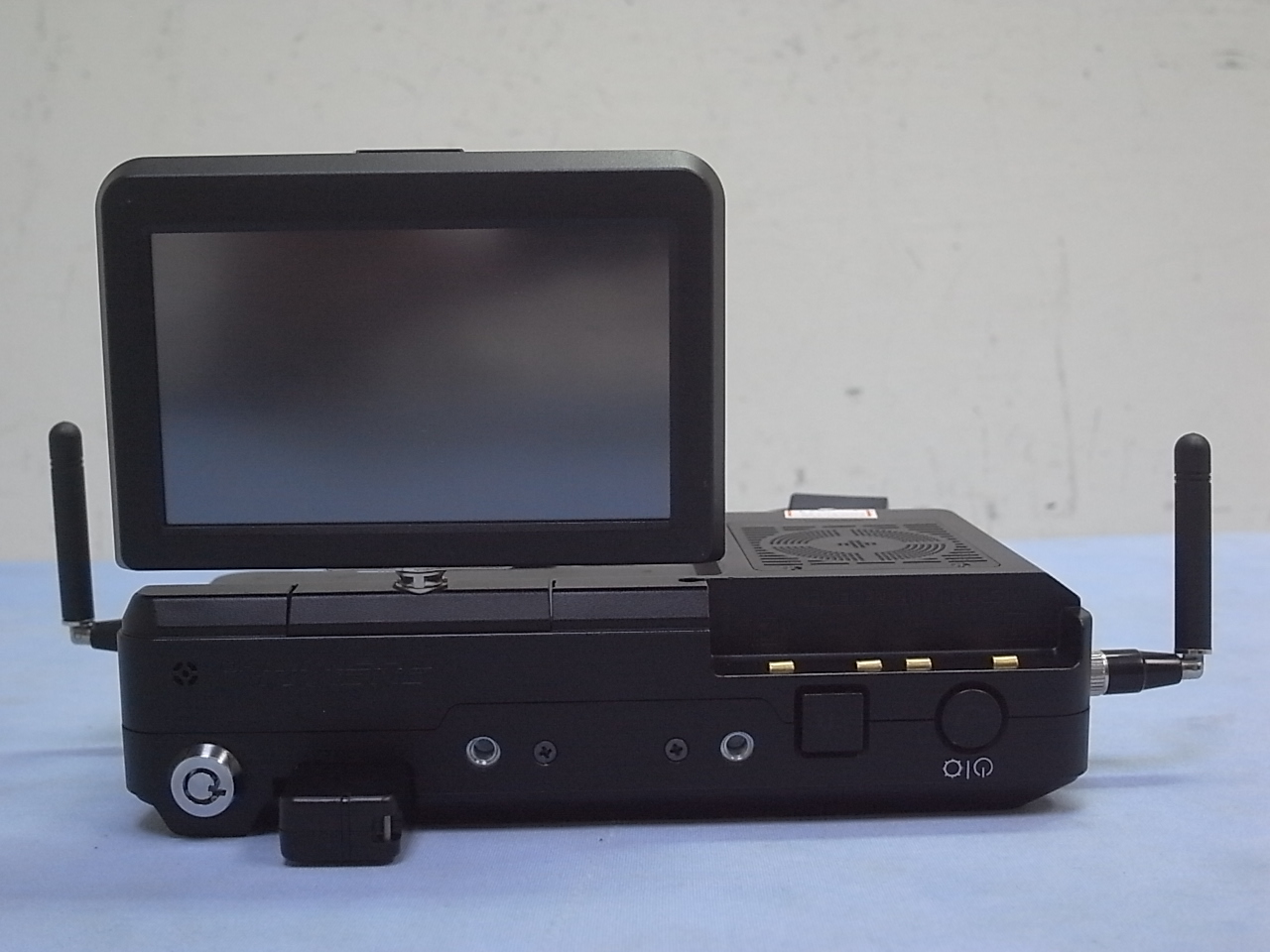

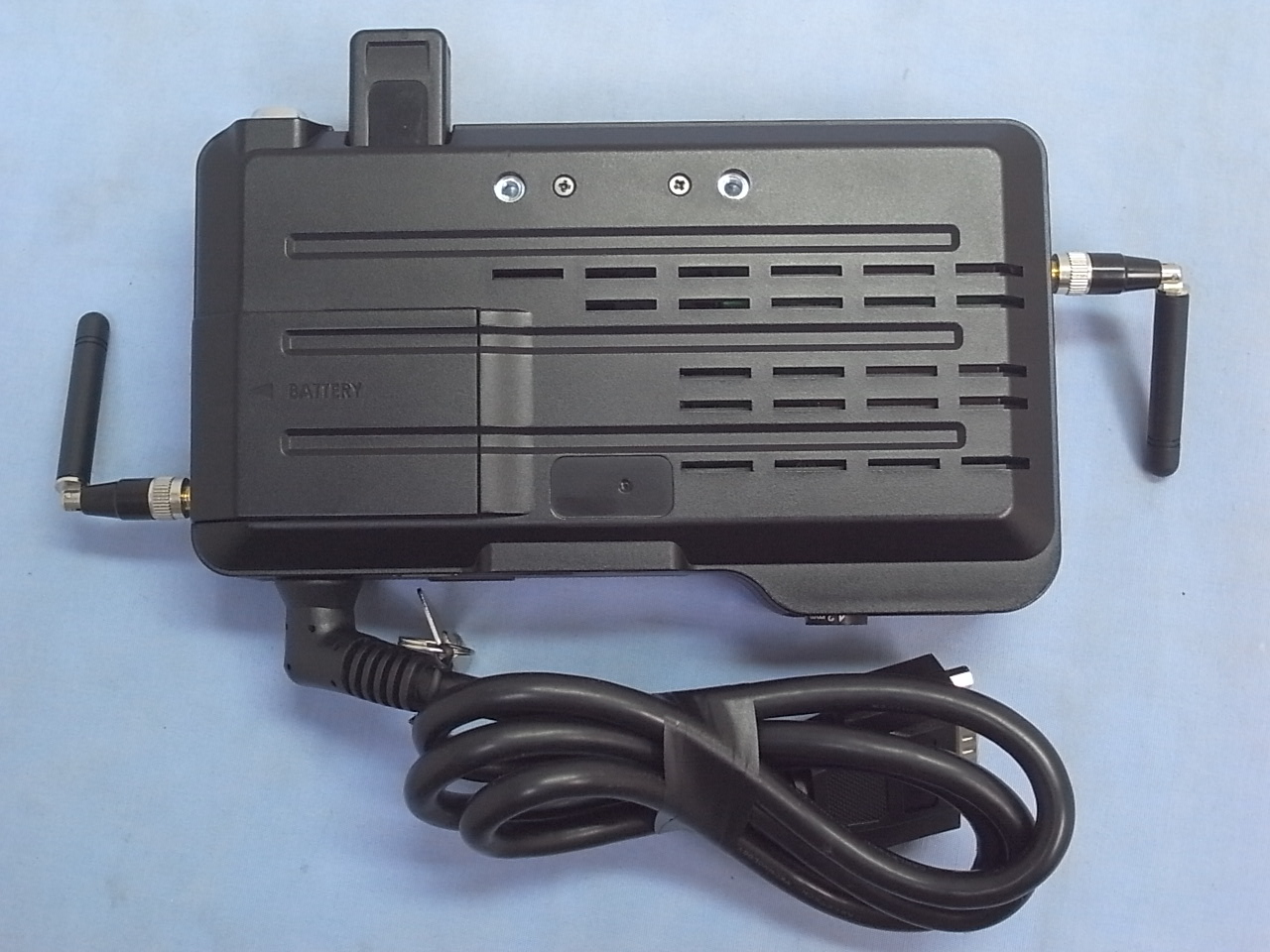

COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 EUT External Photos Photo 1 General Appearance (Front & Side View) Photo 2 General Appearance (Back & Side View) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 3 General Appearance (Front View) Photo 4 General Appearance (Back View) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 5 General Appearance (Side View) Photo 6 General Appearance (Side View) ANT. 2 ANT. 1 COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 7 General Appearance (Bottom View) Photo 8 General Appearance (Top View) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 9 General Appearance (Top View, I/O Ports) Photo 10 General Appearance (LCD Panel)

COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 ID Label Location z Label Placement Location (Back View of EUT) z ID Label Format ID Label Placement Location

COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 EUT Internal Photos Photo 11 Internal View (Removed Battery Cover) Photo 12 Internal View (Battery) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 13 Internal View Photo 14 Internal View (Removed Internal Boards) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 15 Internal View (Control Board, Front View) Photo 16 Internal View (Control Board, Back View) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 17 Internal View (RF Board, Front View With Removed Shielded Cover) Photo 18 Internal View (RF Board, Front View) ANT. 1 ANT. 2 ANT. 2 ANT. 1 COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 19 Internal View (RF Board, Back View) Photo 20 Internal View COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 21 Internal View (Transcend SSD Card, Front View) Photo 22 Internal View (Transcend SSD Card, Back View) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 23 Internal View (Apacer SSD Card, Front View) Photo 24 Internal View (Apacer SSD Card, Back View) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 25 Internal View (Main Board, Front View With Removed Shielded Cover) Photo 26 Internal View (Main Board, Front View) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 27 Internal View (Main Board, Back View) Photo 28 Internal View (Control Board) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 29 Internal View (Control Board) Photo 30 Internal View COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 31 Internal View (Control Board, Back View) Photo 32 Internal View (Control Board, Front View) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 33 Internal View Photo 34 Internal View (LCD Panel, Front View) COBAN Technologies, Inc. G4 Fusion FCC ID : ZPJ-FUSIONG1-WMG1 Photo 35 Internal View (LCD Panel, Back View)

Maximum Permissive Exposure FCC ID: ZPJ-FUSIONG1-WMG1 Product Name: G4 Fusion Model No: SYSFS-01 COBAN Technologies, Inc. declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. Based on safety distance 20cm, the antenna gain is 3.58 dBi, and the power output is 0.06368mW, the power density is 0.0000288 mW/cm^2. RF Exposure Calculations: S = (P * G) / (4* π * r^2) or r = (P * G) / (4 * π * S) Where S = Power Density in mW/cm^2 P = 18.04dBm = 0.06368mW G = 3.58dBi = 2.280 Numerical r = 20cm S = 0.06368*2.280 / 4*π* 20^2 = 0.0000288mW/cm^2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation

FCC ID: ZPJ-FUSIONG1-WMG1 Page 1 of 41 AUDIX Technology Corporation Report No. EM-F1020842 APPLICATION FOR CERTIFICATION On Behalf of COBAN Technologies, Inc. G4 Fusion Model No. : SYSFS-01 FCC ID : ZPJ-FUSIONG1-WMG1 Brand : COBAN Prepared for : COBAN Technologies, Inc. 11375 W. Sam Houston Pkwy.5., Suite 800 Houston, TX7703 Prepared by : AUDIX Technology Corporation EMC Department No. 53-11, Dingfu, Linkou Dist., New Taipei City 244, Taiwan, R.O.C. Tel : (02) 2609-9301, 2609-2133 Fax: (02) 2609-9303 File Number C1M1311055 Report Number EM-F1020842 Date of Test Nov. 11 ~ 13, 2013 Date of Report Nov. 14, 2013 FCC ID: ZPJ-FUSIONG1-WMG1 Page 2 of 41 AUDIX Technology Corporation Report No. EM-F1020842 TABLE OF CONTENTS Description Page TEST REPORT CERTIFICATION ................................................................................................ 4 1. GENERAL INFORMATION .................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Tested Supporting System Details ................................................................................................... 6 1.3. Description of Test Facility ............................................................................................................. 6 1.4. Measurement Uncertainty ................................................................................................................ 7 2. CONDUCTED EMISSION MEASUREMET ........................................................................ 8 3. RADIATED EMISSION MEASUREMENT ......................................................................... 9 3.1. Test Equipment ................................................................................................................................ 9 3.2. Test Setup ........................................................................................................................................ 9 3.3. Radiated Emission Limits (§15.209) ............................................................................................. 11 3.4. Operating Condition of EUT ......................................................................................................... 11 3.5. Test Procedure ............................................................................................................................... 12 3.6. Test Results .................................................................................................................................... 13 4. 6dB BANDWIDTH MEASUREMENT ................................................................................ 20 4.1. Test Equipment .............................................................................................................................. 20 4.2. Block Diagram of Test Setup......................................................................................................... 20 4.3. Specification Limits [§15.247(a)(2)] ............................................................................................. 20 4.4. Operating Condition of EUT ......................................................................................................... 20 4.5. Test Procedure ............................................................................................................................... 20 4.6. Test Results .................................................................................................................................... 21 5. MAXIMUM PEAK OUTPUT POWER MEASUREMENT .............................................. 24 5.1. Test Equipment .............................................................................................................................. 24 5.2. Block Diagram of Test Setup......................................................................................................... 24 5.3. Specification Limits (§15.247(b)-(3)) ............................................................................................ 24 5.4. Operating Condition of EUT ......................................................................................................... 24 5.5. Test Procedure ............................................................................................................................... 24 5.6. Test Results .................................................................................................................................... 25 6. EMISSION LIMITATIONS MEASUREMENT ................................................................. 26 6.1. Test Equipment .............................................................................................................................. 26 6.2. Block Diagram of Test Setup......................................................................................................... 26 6.3. Specification Limits (§15.247(c)) .................................................................................................. 26 6.4. Operating Condition of EUT ......................................................................................................... 26 6.5. Test Procedure ............................................................................................................................... 26 6.6. Test Results .................................................................................................................................... 27 7. BAND EDGES MEASUREMENT ........................................................................................ 33 7.1. Test Equipment .............................................................................................................................. 33 7.2. Block Diagram of Test Setup...........................................................................................…

Text truncated - open the document above for the full version.

FCC ID: ZPJ-FUSIONG1-WMG1 Page 40 of 41 AUDIX Technology Corporation Report No. EM-F1020842 10. PHOTOGRAPHS 10.1. Photos of Radiated Measurement at Semi-Anechoic Chamber 10.1.1. Frequency Below 1GHz 10.1.2. Frequency Above 1GHz FCC ID: ZPJ-FUSIONG1-WMG1 Page 41 of 41 AUDIX Technology Corporation Report No. EM-F1020842 10.2. Photo of Section RF Conducted Measurement
