ZPP-EX971101Pearl II Wireless

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). FCC Radiation Exposure Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

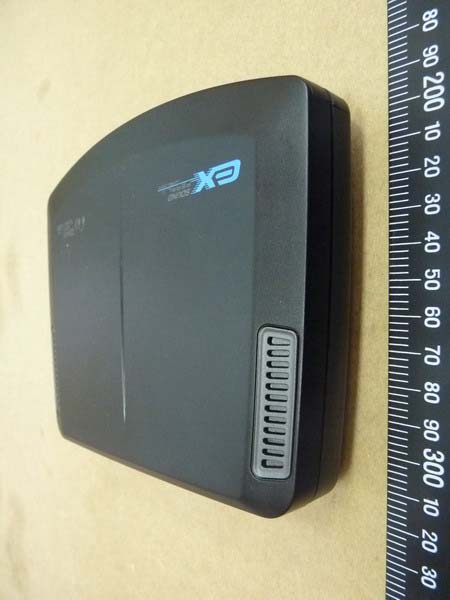

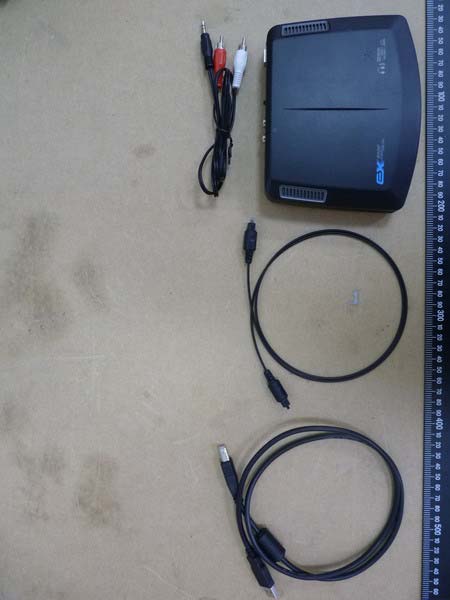

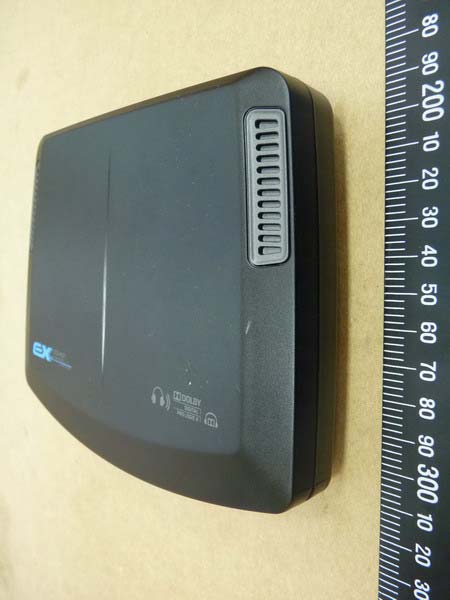

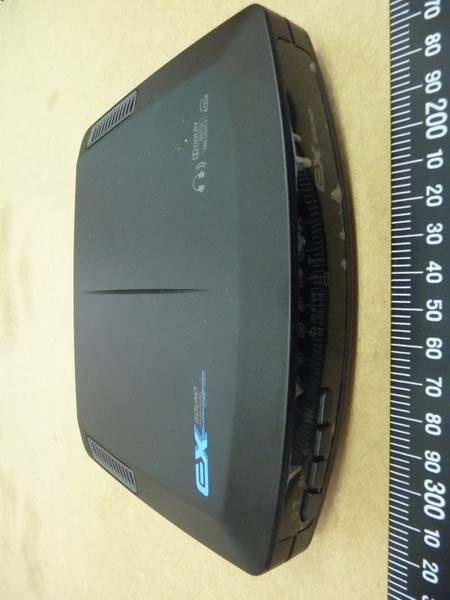

Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 25 of 41 External Photos Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 26 of 41 Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 27 of 41 Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 28 of 41 Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 29 of 41 Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 30 of 41 Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 31 of 41

Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 32 of 41 Internal Photos Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 33 of 41 Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 34 of 41

MPE Prediction FCC Rule: 15.247(b)(5) Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See §1.1307(b)(1) of this Chapter. LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm2) Average time (minutes) (A)Limits For Occupational / Control Exposures 30-300 61.4 0.613 1.0 6 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 PG S = -------------- 4πR² where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 10.16 (dBm) Maximum peak output power at antenna input terminal: 10.375 (mW) Antenna gain(maximal): 2.08 (dBi) Prediction distance: 20 (cm) Prediction frequency: 2476 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1.0 (mW/cm²) Power density at prediction frequency: 0.00333 (mW/cm²)

of Applicant: VTECH Technology Corp. Address:12F-1, No.99, Sec. 2, Zhongshan N. RD. Taipei 104, Taiwan(R.O.C) Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21106-11600-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART15 SUBPART C TESTREPORT for Pearl II Wireless Model No.: EXSD9711 FCC ID: ZPP-EX971101 Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Page1 of 47 TABLE OF CONTENTS 1GENERAL INFORMATION ..........................................................................................................2 1.1 N OTES..........................................................................................................................................2 1.2 T ESTING LABORATORY................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 D ETAILS OF APPROVAL HOLDER...................................................................................................3 1.4 A PPLICATION DETAILS.................................................................................................................4 1.5 G ENERAL INFORMATION OF TEST ITEM........................................................................................4 1.6 T EST STANDARDS.........................................................................................................................5 2TECHNICAL TEST .........................................................................................................................6 2.1 S UMMARY OF TEST RESULTS........................................................................................................6 2.2 T EST ENVIRONMENT....................................................................................................................6 2.3 T ESTEQUIPMENT LIST.................................................................................................................7 2.4 G ENERAL TESTPROCEDURE......................................................................................................10 3TEST RESULTS (ENCLOSURE) ................................................................................................12 3.1 P EAKOUTPUT POWER (TRANSMITTER) ......................................................................................13 3.2 E QUIVALENT ISOTROPIC RADIATED POWER................................................................................16 3.3 RF E XPOSURE COMPLIANCE REQUIREMENTS............................................................................16 3.4 T RANSMITTER RADIATEDEMISSIONS IN RESTRICTED BANDS....................................................17 3.5 S PURIOUSEMISSIONS(TX) .........................................................................................................18 3.6 R ADIATEDEMISSION ON THE BAND EDGE..................................................................................22 3.7 M INIMUM 6 DBBANDWIDTH.....................................................................................................24 3.8 P EAKPOWER SPECTRAL DENSITY.............................................................................................27 3.9 R ADIATEDEMISSIONS FROM DIGITALPART..............................................................................30 3.10 P OWER LINE CONDUCTED EMISSION.........................................................................................43 APPENDIX ..............................................................................................................................................47 Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Page2 of 47 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Specific Conditions: Usage of the hereunder tested device in combination with other integrated or external antennas requires at least additional output power measurements, spurious emission measurements, conducted emission measurements (AC supply lines) and radio frequency exposure evaluations for each individual configuration performed, for certification by FCC. Tester: July 15, 2011 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: July 15, 2011 Chang Tse-Ming Date WTS Name Signature Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Page3 of 47 1.2 Testing laboratory 1.…

Text truncated - open the document above for the full version.

Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 35 of 41 Set Up Photo of Radiated Emission Ipod Mode Digital part below 1GHz Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 36 of 41 Digital part above 1GHz Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 37 of 41 Optical Mode Digital part_below 1GHz Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 38 of 41 Digital part_above 1GHz Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 39 of 41 RF Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 40 of 41 Set Up Photo of Conducted Emission Ipod Mode Registration number: W6M21106-11600-C-1 FCC ID: ZPP-EX971101 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix page 41 of 41 Optical Mode
