1 EXSOUND Sailfish User Guide 2 Sailfish Manual Table Of Contents Package Contents ...................................................................................................................... 2 Safety Notice .............................................................................................................................. 3 Product Features........................................................................................................................ 3 Hardware Diagram ..................................................................................................................... 3 Product Operation ...................................................................................................................... 5 LED Indicator.............................................................................................................................. 6 Special Note ............................................................................................................................... 6 Important Information ................................................................................................................. 7 Package Contents 1.One EXSOUND SailFish Headset 2.One Micro USB Charging Cabl e 3. One Carry Bag 4. One Operatio n Manual 3 Safety Notice Warning: Continued exposure to high volumes of noise in headsets can cause long-term hearing damage. Your ears will adapt to loud volume levels over time and damage your hearing even if you don't feel any discomfort. Maintain the volume at an adequate level is important while using the headset. The louder the sound is, the less time it takes to affect your hearing. It is recommended that before putting the headset on, turn the volume down completely, then slowly increase it to a moderate and comfortable level. Product Features Compatible with most Bluetooth™ enabled music players & A2DP enabled devices such as Apple i-devices, Android smart phones, Tablets, laptops, etc... 1. Built-in audio power amplifier and microp hone  Manage your music player directly from the headset with control functions such as Play/Pause, Next/Previou s track, and vol ume adjustm ent  Industrial, trendy, and neat design. Comfortable to wear for long pe riod of time  Foldable design for saving storage space and easy to carry out when on the mo ve  10M transmission distance Long-lasting Lithium battery. More than 24 hours Talk/Music Time (When full charging )  FCC & CE Certification. ROHS Compliant Hardware Diagram Product Features: EXSOUND Sailfish – High performance supreme sound quality Bluetooth™ stereo headset. Foldable design for carry-and-go! 1 2 4 1.High quality & soft material headband 2. Ease to adjust to fit in head sha pe 3. SW3 Button 4. SW2 Button 5. SW1 Button 6 . V olume Up 7.Pause/Play 8.Volume Do wn 9.Previous Trac k 10. Power ON/OFF, Pick Up Phone Call 11. Next Track 12. LED Indicator 13. Chargin g Port 3 4 5 6 7 8 9 10 11 12 13 5 Product Operation 1. Charging the Battery 1) To charge the SailFish, plug in the USB end to any power source with USB port such as power adapter or comp uter 2) Plug the micro USB end of the cable into the charging port on your Sailfish. 3) LED indicator will display red light while charging, and will shut off when chargi ng is complete 2. T urning On/Off the head set T o turn on Sa ilFish, press sw1 for 3 seconds and you will hear “Power On”. To turn off the headset, press sw1 for 6 seconds and you will hear “Power Off” 3. Pairing the Head set with Smartphones, Tablets, or other Bluetooth™ devi ces 1) Before pairing, please make sure the SailFish is turned off and the Bluetooth™ function of the device that you wish to p air is ac tivated. 2) Head set: To pair, press sw1 for 6 seconds to activate the pairing mode of the headset. LED indicator on the headset will blink blue and green light alternately to indicate the pairing mode 3)On the dev ice, search and select “EXSOUND SailFish” in the available devices lis t. 4) Head set: Once the headset is paired, you will hear “pairing completed” and LED indicator will then remain blue light ** If the same device has ever been paired with the headset before, just press sw1 for 2 seconds to turn on the power then the headset will pair with the device automatically 4. Adjusting the Volume To change the volume of the music or call, turn up to increase the volume, and turn down to decrease 5. Listening To Music 1) Turn on any application or software that you wish to play the music on your Smartphone/Tabl et/Laptop 2) Head set: Press SW2 Button to play music. Press SW2 Button again to pause. 3) Head set: Turn Up SW1 once to select next song. Turn down SW1once to select previous song. 6. Call Handling 1) To answer a call with the head set : Press SW1 once when you hear an incoming call 2) To end a call : During an ongoing call, pr ess SW1 once to hang up 3) To reject a call: Press SW1 for 2 Seconds when you hear an incoming call 7. Choos e Language 1) To enter language selection mode, press SW3 for 3 second s. 2) Turn SW1 Up /Down to select language. 3) Press SW1 to select the desire language 6 LED Indicator FunctionOpera t ion LED Color Power On Press SW1 for 3 seconds Green (flash 3 times then remain light-blue) Pairing Press SW1 for 6 seconds Flash blue and green light alternately Charging Connect with Micro USB Red Playing Music Green Pause Press SW2 for Pause/Play Blue Incoming call Cyan (with cycle flash) Pick Up Phone Call Press SW1 Blue (Every 5 Seconds will flash twice) Access Denial Press SW1 for 2 Seconds Hang Up Phone Call Press SW1 Power Off Press SW1 for 6 Seconds Green (flash 3 times) DisconnectedCyan Choose Language Mode Press SW3 for 2 Seconds Select Language Adjust SW1 Up/Down Battery Exhausts Red (with cycle flash) Special Note 1.Battery Warranty : 6 Months 2. To keep headset working normally, please charge the headset regularly with the idle time less than 1 month. 3. When using the headset with laptop or Blu…

Text truncated - open the document above for the full version.

RF_160, Issue 02 Declaration of Authorization We Name: VTECH Technology Corp. Address: 12F-1, No.99, Sec. 2, Zhongshan N. RD. City: Taipei 104, Country: Taiwan(R.O.C) Declare that: Name Representative of agent: Chang Tse-Ming (1) Agent Company name: Worldwide Testing Services (Taiwan) Co., Ltd. Address: 6F., No. 58, Lane 188, Ruey Kuang Road, Neihu, City: Taipei 114, Country TAIWAN is authorized to apply for FCC Certification of the following product(s): Product description: SAILFISH Type designation: SAILFISH Trademark: EXSOUND on our behalf. Date: March 10, 2014 City: Taipei Name: Kenneth Pan (2) Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 10-Aug-09 RF_501, Issue 5 Page 1 of 1 Company Name: VTECH Technology Corp. Address : 12F-1, No.99, Sec. 2, Zhongshan N. RD. City: Taipei 104, Country: Taiwan(R.O.C) To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: ZPPEX980301 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

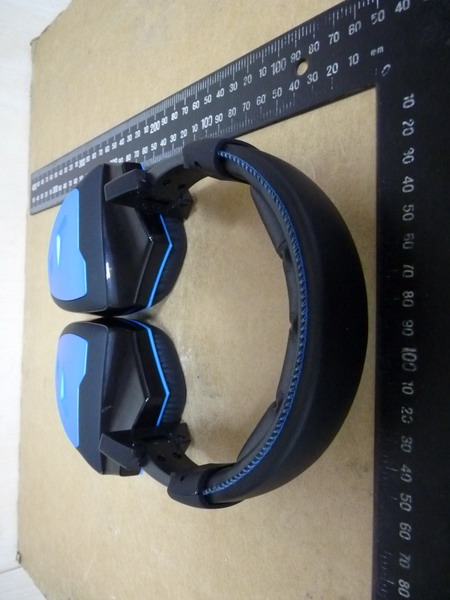

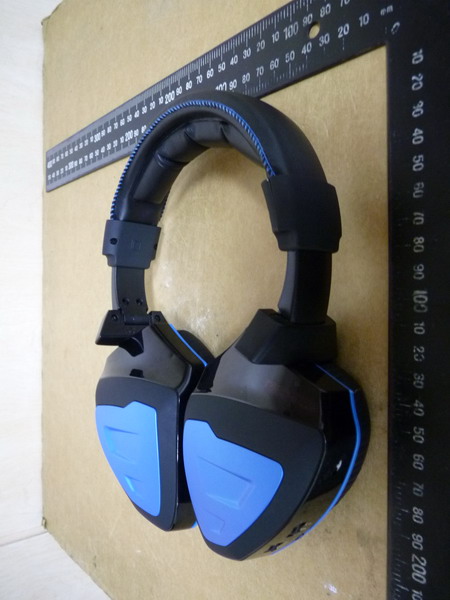

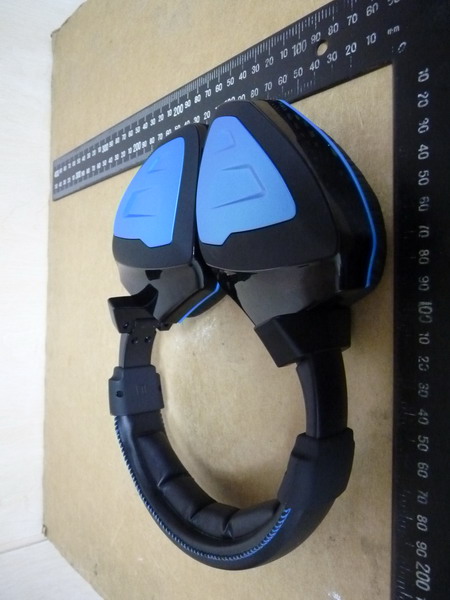

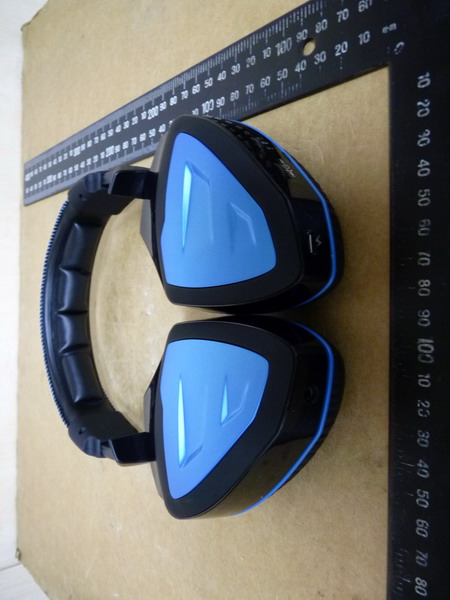

Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 1 of 23 Appendix Photos 1. External Photos 2. Internal Photos 3. Set Up Photo of Radiated Emission 4. Set Up Photo of Conducted Emission Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 2 of 23 External Photos Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 3 of 23 Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 4 of 23 Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 5 of 23 Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 6 of 23 Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 7 of 23

Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 8 of 23 Internal Photos Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 9 of 23 Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 10 of 23 Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 11 of 23 Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 12 of 23 Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 13 of 23 Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 14 of 23 Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 15 of 23

Equivalent isotropic radiated power FCC Rule: 15.247(b)(3) EIRP = max. conducted output power + antenna gain EIRP = 5.95 dBm + (1.87 dBi) = 7.82 dBm Limit: EIRP = +36 dBm for Antenna gain <6dBi Test equipment used: ETSTW-RE 055 RF Exposure Compliance Requirements Conclusion: No Evaluation required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Conducted Power 5.95 dBm (3.9355 mW) EIRP Power 7.82 dBm (6.0534 mW)  The antenna is PCBA antenna, antenna gain is 1.87 dBi. Threshold for no SAR evaluation is 24.58 mW. Conclusion: No SAR evaluation required since Transmitter output power is below FCC threshold.

of Applicant: VTECH Technology Corp. Address: 12F-1, No.99, Sec. 2, Zhongshan N. RD. Taipei 104, Taiwan(R.O.C) Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21401-13780-C-1 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for SAILFISH Model No.: SAILFISH FCC ID: ZPPEX980301 Registration number: W6M21401-13780-C-1 FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 45 TABLE OF CONTENTS 1 GENERAL INFORMATION ...................................................................................................... 2 1.1 Notes .................................................................................................. 2 1.2 Testing laboratory .................................................................................................. 3 1.2.1 Location .................................................................................................. 3 1.2.2 Details of accreditation status .............................................................................................. 3 1.3 Details of approval holder .................................................................................................. 3 1.4 Application details .................................................................................................. 4 1.5 General information of Test item......................................................................................... 4 1.6 Test standards .................................................................................................. 5 2 TECHNICAL TEST .................................................................................................................... 6 2.1 Summary of test results .................................................................................................. 6 2.2 Test environment .................................................................................................. 6 2.3 Test Equipment List .................................................................................................. 7 2.4 General Test Procedure .................................................................................................. 9 3 TEST RESULTS (ENCLOSURE) ............................................................................................ 11 3.1 Peak Output Power (transmitter) ....................................................................................... 12 3.2 RF Exposure Compliance Requirements ........................................................................... 16 3.3 Out of Band Radiated Emissions ....................................................................................... 16 3.4 Transmitter Radiated Emissions in restricted Bands ......................................................... 17 3.5 Spurious emissions (tx) ................................................................................................ 18 3.6 Carrier Frequency Separation ............................................................................................ 21 3.7 Number of Hopping Frequencies....................................................................................... 24 3.7.1 Pseudorandom Frequency Hopping Sequence................................................................... 26 3.7.2 Coordination of hopping sequences to other transmitters ................................................. 26 3.7.3 System Receiver Hopping Capability ................................................................................ 26 3.8 Time of Occupancy (Dwell Time) ..................................................................................... 27 3.9 20dB Bandwidth ................................................................................................ 33 3.9.1 System Receiver Input Bandwidth .................................................................................... 36 3.10 Band-edge Compliance of RF Emissions .......................................................................... 37 3.11 Radiated Emissions from Receiver Section of Transceiver............................................... 42 3.12 Power Line Conducted Emission....................................................................................... 43 Appendix..........................................................................................................45 Registration number: W6M21401-13780-C-1 FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 45 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: February 27, 2014 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: February 27, 2014 Kevin Wang Date WTS Name Signature R…

Text truncated - open the document above for the full version.

Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 16 of 23 Set Up Photo of Radiated Emission EMI Battery-BT Mode Below 1GHz Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 17 of 23 Above 1GHz Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 18 of 23 Battery-Line in Mode Below 1GHz Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 19 of 23 Above 1GHz Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 20 of 23 Charge-Line in Mode Below 1GHz Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 21 of 23 Above 1GHz Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 22 of 23 RF Registration number: W6M21401-13780-FCC FCC ID: ZPPEX980301 Worldwide Testing Services(Taiwan) Co., Ltd. Appendix Page 23 of 23 Set Up Photo of Conducted Emission
