ZQ8RC305ARemote Control

The Instruction for DirecTV RC71 Manual Pairing (Manual RF Activation) 1. Install the remote with batteries and approach it to the STB. 2. Press & Hold MUTE & ENTER keys until the green LED stop blink. Manual UnPairing (Manual RF Deactivation) 1. Press & Hold MUTE & SELECT keys. Release the keys until the LED blinks twice. 2. Key in 9 - 8 - 7. FCC statement: This device complies with Part 15 of the FCC Rules. Its operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

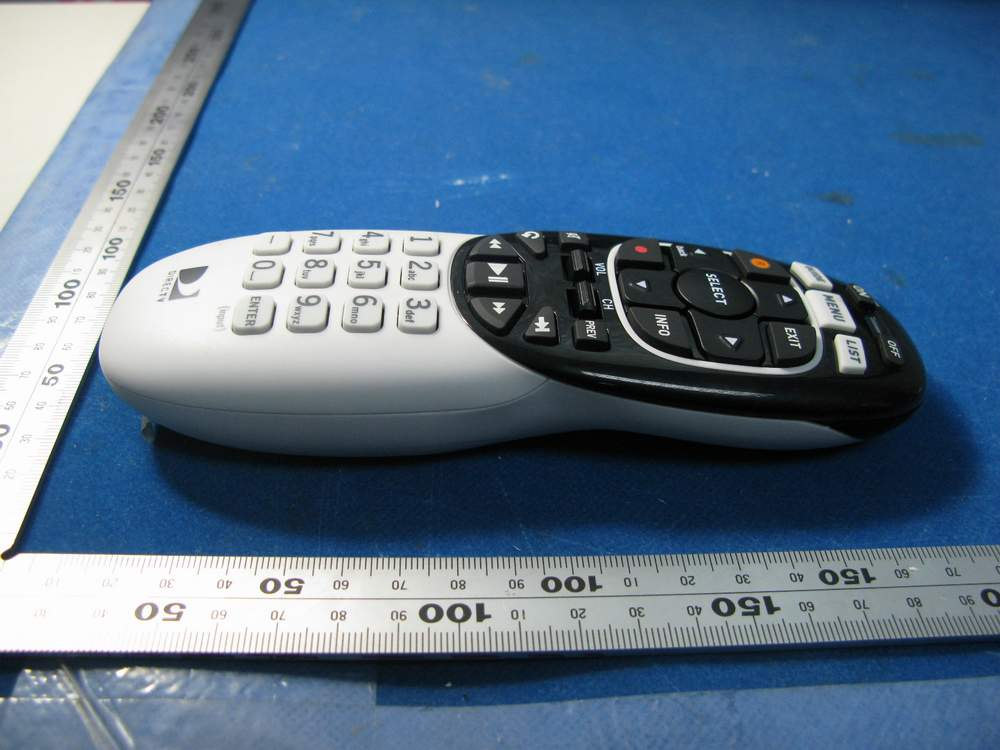

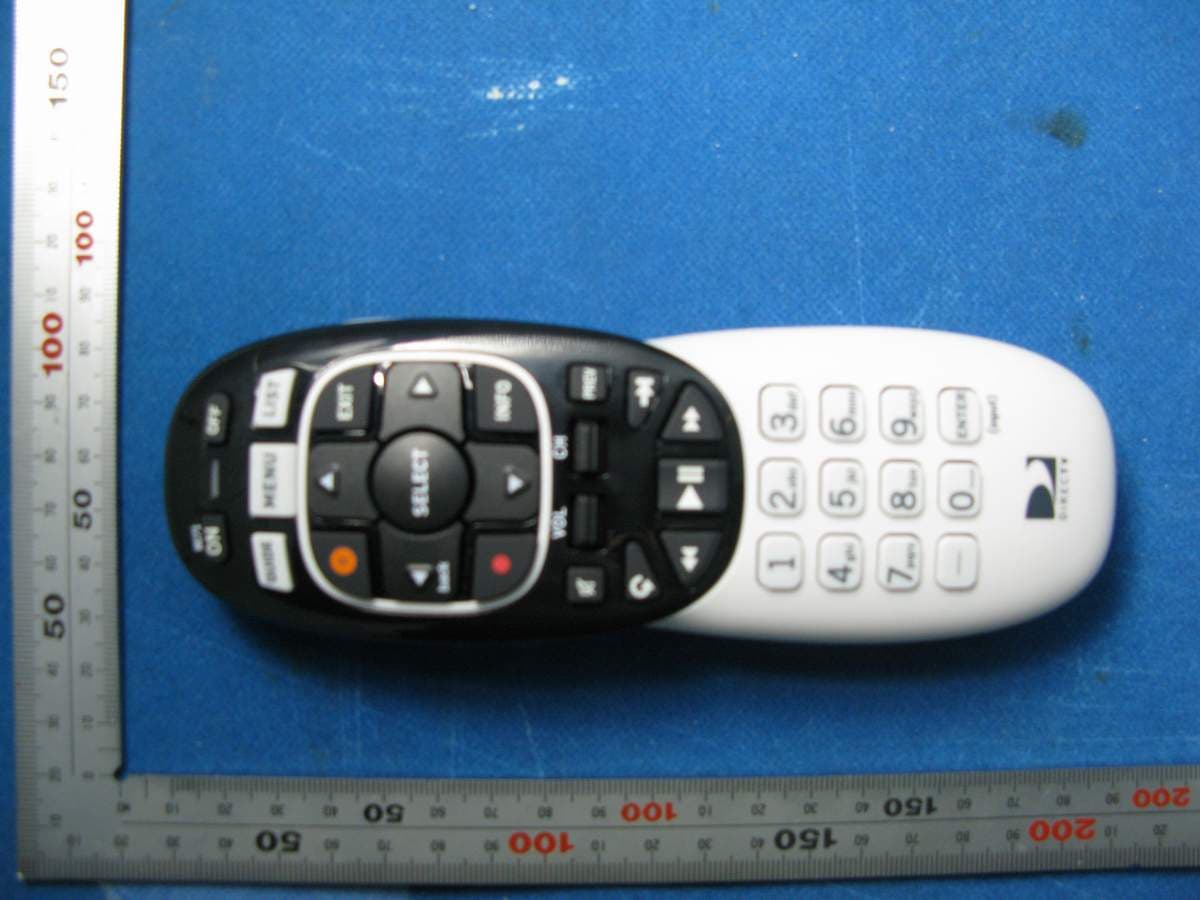

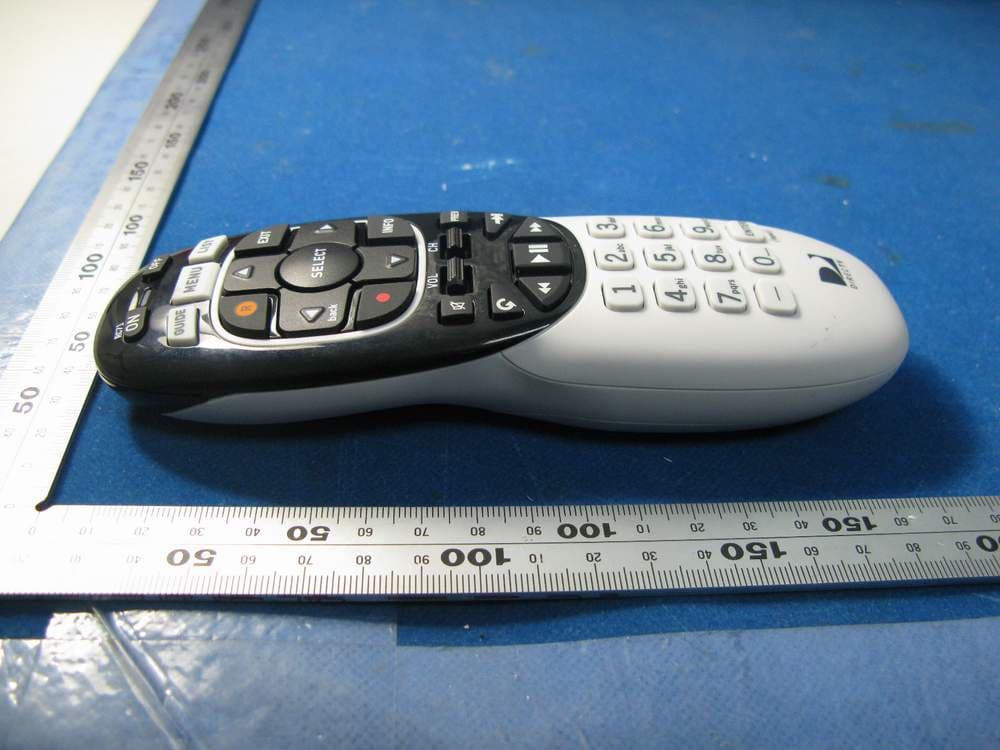

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 1 of 6 EUT External Photos Applicant: Philips Electronics (Suzhou) Co., Ltd Address of Applicant: 209 ZhuYuan Road, Building B-3rd, 19∼21 floor, Suzhou new district, Suzhou Equipment Under Test (EUT): EUT Name: Remote Control Model No: RC3053701/01BR Remark: Final customer Model No. is DIRECTV RC71 FCC ID: ZQ8RC305A SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 2 of 6 1 Contents Page 1 CONTENTS..........................................................................................................2 2 EXTERNAL PHOTOS........................................................................................3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 3 of 6 2 External Photos Front View Rear View SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 4 of 6 Top View Bottom View SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 5 of 6 Left Side View Right Side View SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 6 of 6 Battery View THE END

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 1 of 5 EUT Internal Photos Applicant: Philips Electronics (Suzhou) Co., Ltd Address of Applicant: 209 ZhuYuan Road, Building B-3rd, 19∼21 floor, Suzhou new district, Suzhou Equipment Under Test (EUT): EUT Name: Remote Control Model No: RC3053701/01BR Remark: Final customer Model No. is DIRECTV RC71 FCC ID: ZQ8RC305A SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 2 of 5 1 Contents Page 1 CONTENTS..........................................................................................................2 2 INTERNAL PHOTOS.........................................................................................3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 3 of 5 2 Internal Photos Uncovered View 1 Uncovered View 2 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 4 of 5 PCB-1 View 1 PCB-1 View 2 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 5 of 5 PCB-2 View 1 PCB-2 View 2 THE END

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. FCC ID: ZQ8RC305A 588 West Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5655 [email protected] Report No.: SHEM130200023601 Page: 1 of 25 Tony Wu E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only FCC TEST REPORT Application No. : SHEM1302000236RF Applicant: Philips Electronics (Suzhou) Co.,Ltd 209 ZhuYuan Road, Building B-3rd, 19∼21 floor, Suzhou new district, Suzhou FCC ID: ZQ8RC305A Fundamental Frequency : 2425MHz-2475MHz Equipment Under Test (EUT): EUT Name: Remote Control Brand Name: Not supplied by the client Model No: RC3053701/01BR Remark: Final customer Model No. is DIRECTV RC71 Standards: CFR 47 FCC PART 15 SUBPART C, Section 15.249, ANSI C63.10: 2009 Date of Receipt: Jan. 13, 2013 Date of Test: Jan. 15, 2013 to Feb. 25, 2013 Date of Issue: Mar. 12, 2013 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. FCC ID: ZQ8RC305A Report No.: SHEM130200023601 Page: 2 of 25 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only Version Revision Record Version Chapter Date Modifier Remark 00 / Mar. 01, 2013 / Original 01 5.2.2, 5.2.4 Mar. 12, 2013 Jim Update duty cycle from -20dB to - 20.35dB. Authorized for issue by: Jim Xu Engineer Print Name Date(Feb. 25, 2013) Amy Wang Clerk Print Name Date(Mar. 12, 2013) Keny Xu Reviewer Print Name Date(Mar. 12, 2013) SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. FCC ID: ZQ8RC305A Report No.: SHEM130200023601 Page: 3 of 25 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Test Summary Test Standard Paragraph Result Antenna requirement Section 15.203 PASS Flied Strength of Fundamental Section 15.249 (a) PASS Flied Strength of Unwanted Emission…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 1 of 3 Test Setup Photos Applicant: Philips Electronics (Suzhou) Co., Ltd Address of Applicant: 209 ZhuYuan Road, Building B-3rd, 19∼21 floor, Suzhou new district, Suzhou Equipment Under Test (EUT): EUT Name: Remote Control Model No: RC3053701/01BR Remark: Final customer Model No. is DIRECTV RC71 FCC ID: ZQ8RC305A SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 2 of 3 1 Contents Page 1 CONTENTS...........................................................................................................2 2 TEST SETUP PICTURES...................................................................................3 2.1 Radiated Emission Test Setup................................................................3 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Page 3 of 3 2 TEST SETUP PICTURES 2.1 Radiated Emission Test Setup 30M-1GHz Above 1GHz THE END
