ZQAT20Home Monitoring Device

Learning Thermostat Installation Guide Compatibility Go to nest.com/works to make sure Nest will work in your home and find out if you’ll need Nest Concierge professional installation. Watch the video Before you install Nest, watch the installation video at nest.com/support Questions? Visit support or give us a call at 855-4MY-NEST. Contents Display Screws for Steel Plate Wall Screws BaseNest Screwdriver Optional Trim PlateSteel Plate 1. Switch off power This protects you and avoids blowing a fuse. Adjust the temperature on your old thermostat to make sure your system is off. 2. Remove cover Some covers pop off, while others need to be unscrewed. CAUTION: Do not connect Nest to high voltage wires. 4. Remove any jumper wires Jumper wires are short wires between two connectors. Nest doesn’t need them. An R wire can go into either Rc or Rh. 3. Check your system If your old thermostat is labeled 110V or 220V or has thick wires with wire nuts, your system is high voltage. Not sure? Contact support. Breaker BoxSwitch 5. Label wires Peel off the blue labels and attach them to your wires. 6. Disconnect wires and remove base 7. Mark where screws will go Use the bubble level to make sure Nest is level. Tip: Take a picture of the wires on your old thermostat to help you remember. Tip: Wrap the wires around a pencil to keep them from falling into the wall. Use trim plate if needed You can cover up holes or marks left by your old thermostat with the optional trim plate. Place the trim plate on the wall and put the base on top so they snap together, then screw them both to the wall. The trim plate can be found in the bottom of the Nest box. Mounting Nest on an electrical box Electrical boxes aren’t common, but if you have one, secure the steel plate to the electrical box with two of the short steel plate screws. Insert the steel plate screws into the long slots on the steel plate. Use the other two short steel screws to attach the Nest base and trim plate to the steel plate. Optional in most homes Optional in most homes 9. Connect wires After all wires are connected, make sure they’re flush with the wall. 10. Attach display Press the display until it clicks into place. 8. Attach base 11. Switch power back on Breaker BoxSwitch Recycle your old thermostat: see nest.com/responsibility Please recycle Nest’s 100% recyclable packaging For more information visit nest.com or call 855-4MY-NEST (855-469-6378) 12. Setup and Nest Account Nest will turn on and start setup. Turn the ring and press to select. Connect Nest to Wi-Fi during setup, then visit nest.com/home to create a Nest Account so you can control Nest from anywhere. Federal Communications Commission (FCC) Compliance Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Change or modifications that are not expressly approved by the manufacturer could void the user’s authority to operate the equipment. RF Exposure Information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm during normal operation. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB- 003 du Canada. This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Industry Canada (IC) Compliance Notice: IC Radiation Exposure Statement:

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 1 Rev 3.0 8/30/2012 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SPORTON International Inc. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Name: Home Monitoring Device Model Number: 02A FCC ID: ZQAT20 We affirm that between SIEMIC and SPORTON International Inc., any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Signature Name / title: Wayne Hsu / Vice Manager Contact information / address: No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. / Tel: 886-3-327-3456 / FAX: 886-3-327-0973

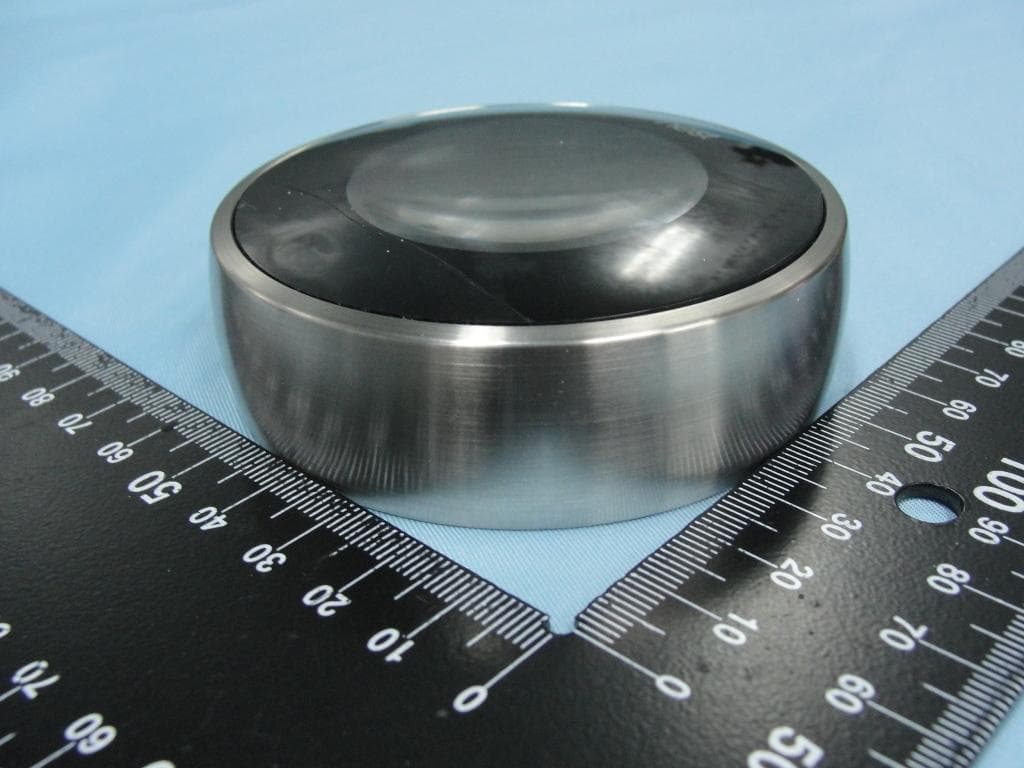

TEST REPORT SPORTON International Inc. PAGE NUMBER : B1 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Aug. 29, 2012 FAX : 886-3-327-0973 APPENDIX B. Photographs of EUT

FCC ID: ZQAT20 FCC ID printed on back cover of device

FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B2 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Aug. 29, 2012 FAX : 886-3-327-0973 Battery 1 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B3 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Aug. 29, 2012 FAX : 886-3-327-0973 Battery 2 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B4 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Aug. 29, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B5 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Aug. 29, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B6 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Aug. 29, 2012 FAX : 886-3-327-0973 FCC TEST REPORT SPORTON International Inc. PAGE NUMBER : B7 OF B7 TEL : 886-3-327-3456 ISSUED DATE : Aug. 29, 2012 FAX : 886-3-327-0973

SPORTON INTERNATIONAL INC. Page No. : 1 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC TEST REPORT Report No. : FR272106 1 Human Exposure Assessment 1.1 Maximum Permissible Exposure 1.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 SPORTON INTERNATIONAL INC. Page No. : 2 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC TEST REPORT Report No. : FR272106 RF Field Strength Limits for Controlled Use Devices (Controlled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 600 4.9 - 6 1-10 600/ƒ 4.9/ƒ - 6 10-30 60 4.9/ƒ - 6 30-300 60 0.163 10* 6 300-1500 3.54 ƒ 0.5 0.0094 ƒ 0.5 ƒ/30 6 1500-15000 137 0.364 50 6 15000-150000 137 0.364 50 616000/ƒ 1.2 150000-300000 0.354 ƒ 0.5 9.4 x 10-4 ƒ 0.5 3.33 x 10-4 ƒ 616000/ƒ 1.2 RF Field Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Range (MHz) Electric Field (V/m rms) Magnetic Field (A/m rms) Power Density (W/m2) Averaging Time (minutes) 0.003-1 280 2.19 - 6 1-10 280/ƒ 2.19/ƒ - 6 10-30 28 2.19/ƒ - 6 30-300 28 0.073 2* 6 300-1500 1.585 ƒ 0.5 0.0042 ƒ 0.5 ƒ/150 6 1500-15000 61.4 0.163 10 6 15000-150000 61.4 0.163 10 616000/ƒ 1.2 150000-300000 0.158 ƒ 0.5 4.21 x 10 -4 ƒ 0.5 6.67 x 10 -5 ƒ 616000/ƒ 1.2 Note 1: ƒ is frequency in MHz. Note 2: For the applicable limit, see IC RSS-102 1.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   SPORTON INTERNATIONAL INC. Page No. : 3 of 3 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC TEST REPORT Report No. : FR272106 1.1.3 Result of Maximum Permissible Exposure Transmitter Chains & Receiver Chains Information IEEE Std. 802 Protocol Number of Transmit Chains (N TX ) Number of Receive Chains (N RX ) Correlation Signals with Multiple N TX RF Output Power (dBm) Co-location 802.11b 1 1 N/A 25.52 N/A 802.11g 1 1 N/A 22.98 N/A 802.11n (HT20) 1 1 N/A 21.60 N/A 802.15.4 1 1 N/A 27.21 N/A Note 1: Co-location, Co-location is generally defined as simultaneously transmitting (co-transmitting) antennas within 20 cm of each other. (i.e., EUT has simultaneously co-transmitting that operating 2.4GHz and 5GHz.) Note 2: RF output power specifies that Maximum Peak Conducted Output Power. Worst Maximum RF Output Power Result Exposure Environment General Population / Uncontrolled Exposure Separation Distance (cm) 20 Modulation Mode N TX RF Output Power (dBm) Conducted Power Gain (dBi) EIRP Power PD (S) (mW/cm²) 11B-20M 1 25.52 -1.37 24.15 0.0518 11G-20M 1 22.98 -1.37 21.61 0.0288 11N2.4G-20M 1 21.60 -1.37 20.23 0.0210 ZIGBEE-OQPSK 1 27.21 -2.56 24.65 0.0764 Maximum Permissible Exposure Limit (mW/cm²) 1 Note 1: N TX = Number of Transmit Chains

SPORTON INTERNATIONAL INC. Page No. : 1 of 48 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Report No. : FR272106AZ FCC Test Report Equipment : Home Monitoring Device Brand Name : Nest Model No. : 02A FCC ID : ZQAT20 Standard : 47 CFR FCC Part 15.247 Frequency Range : 2400 MHz – 2483.5 MHz Applicant : Nest Labs Inc 900 Hansen Way, Palo Alto California, 94304 Manufacturer : Pegatron Corporation No. 400, Sec. 7, Chengde Rd., Beitou District, Taipei City 11262 Taiwan The product sample received on Jul. 20, 2012 and completely tested on Aug. 23, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager SPORTON INTERNATIONAL INC. Page No. : 2 of 48 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Report No. : FR272106AZ Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories ............................................................................................................................................ 7 1.3 Support Equipment ................................................................................................................................. 7 1.4 Testing Applied Standards ..................................................................................................................... 7 1.5 Testing Location Information .................................................................................................................. 7 1.6 Measurement Uncertainty ...................................................................................................................... 8 2 TEST CONFIGURATION OF EUT ........................................................................................................ 9 2.1 The Worst Case Modulation Configuration ............................................................................................ 9 2.2 Test Channel Frequencies Configuration ............................................................................................... 9 2.3 The Worst Case Measurement Configuration ...................................................................................... 10 2.4 Test Setup Diagram ............................................................................................................................. 12 3 TRANSMITTER TEST RESULT .......................................................................................................... 14 3.1 AC Power-line Conducted Emissions .................................................................................................. 14 3.2 6dB Bandwidth ..................................................................................................................................... 19 3.3 RF Output Power .................................................................................................................................. 22 3.4 Power Spectral Density ........................................................................................................................ 25 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 27 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 32 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 46 5 CERTIFICATION OF TAF ACCREDITATION ..................................................................................... 48 APPENDIX A. TEST PHOTOS ....................................................................................................................... A6 APPENDIX B. PHOTOGRAPHS OF EUT ...................................................................................................... B7 SPORTON INTERNATIONAL INC. Page No. : 3 of 48 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Report No. : FR272106AZ Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna RequirementAntenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions 3.970MHz: 35.71dBuV (10.29dB) - AV 42.45dBuV (13.55dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth: 1.23 MHz ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm]: 27.21 Power [dBm]: 30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/3kHz]: 7.74 PSD [dBm/3kHz]: 8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2484.02MHz: 51.10dB Restricted Bands [dBuV/m at 3m]: 2483.52MHz 72.89 (Margin 1.11dB) - PK Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 4880.00MHz 73.48 (Margin 0.52dB) - PK 35.84(Margin18.16dB) - AV Non-Restricted Bands: > 20 dBc Restricted Bands: FCC 15.209 Complied SPORTON INTERNATIONAL INC. Page No. : 4 of 48 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Report No. : FR272106AZ Revision History Report No. Version Description Issued Date FR272106AZ Rev. 01 Initial issue of report Aug. 29, 2012 2500-2690 SPORTON …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page No. : 1 of 81 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Report No. : FR272106AC FCC Test Report Equipment : Home Monitoring Device Brand Name : Nest Model No. : 02A FCC ID : ZQAT20 Standard : 47 CFR FCC Part 15.247 Applicant : Nest Labs Inc 900 Hansen Way, Palo Alto California, 94304 Manufacturer : Pegatron Corporation No. 400, Sec. 7, Chengde Rd., Beitou District, Taipei City 11262 Taiwan The product sample received on Jul. 20, 2012 and completely tested on Aug. 13, 2012. We, SPORTON, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2009 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Wayne Hsu / Assistant Manager SPORTON INTERNATIONAL INC. Page No. : 2 of 81 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Report No. : FR272106AC Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information.............................................................................................................................................. 5 1.2 Accessories ............................................................................................................................................ 8 1.3 Support Equipment ................................................................................................................................. 8 1.4 Testing Applied Standards ..................................................................................................................... 8 1.5 Testing Location Information .................................................................................................................. 8 1.6 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION OF EUT ...................................................................................................... 10 2.1 The Worst Case Modulation Configuration .......................................................................................... 10 2.2 Test Channel Frequencies Configuration ............................................................................................. 10 2.3 The Worst Case Power Setting Parameter .......................................................................................... 11 2.4 The Worst Case Measurement Configuration ...................................................................................... 12 2.5 Test Setup Diagram ............................................................................................................................. 14 3 TRANSMITTER TEST RESULT .......................................................................................................... 16 3.1 AC Power-line Conducted Emissions .................................................................................................. 16 3.2 6dB Bandwidth ..................................................................................................................................... 21 3.3 RF Output Power .................................................................................................................................. 28 3.4 Power Spectral Density ........................................................................................................................ 37 3.5 Transmitter Radiated Bandedge Emissions ......................................................................................... 44 3.6 Transmitter Radiated Unwanted Emissions ......................................................................................... 53 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 79 5 CERTIFICATION OF TAF ACCREDITATION ..................................................................................... 81 APPENDIX A. TEST PHOTOS ....................................................................................................................... A6 APPENDIX B. PHOTOGRAPHS OF EUT ...................................................................................................... B7 SPORTON INTERNATIONAL INC. Page No. : 3 of 81 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC Test Report Report No. : FR272106AC Summary of Test Result Conformance Test Specifications Report Clause Ref. Std. Clause Description Measured Limit Result 1.1.2 15.203 Antenna Requirement Antenna connector mechanism complied FCC 15.203 Complied 3.1 15.207 AC Power-line Conducted Emissions 3.970MHz: 35.71dBuV (10.29dB) - AV 42.45dBuV (13.55dB) - QP FCC 15.207 Complied 3.2 15.247(a) 6dB Bandwidth 6dB Bandwidth Unit [MHz] 11B-20M: 14.44 11G-20M: 16.41 11N2.4G-20M: 17.63 ≥500kHz Complied 3.3 15.247(b) RF Output Power (Maximum Peak Conducted Output Power) Power [dBm] 11B-20M: 25.52 11G-20M: 22.98 11N2.4G-20M: 21.60 Power [dBm] 30 Complied 3.4 15.247(d) Power Spectral Density PSD [dBm/3kHz] 11B-20M: -4.57 11G-20M: -12.03 11N2.4G-20M: -13.14 PSD [dBm/3kHz] 8 Complied 3.5 15.247(c) Transmitter Radiated Bandedge Emissions Non-Restricted Bands: 2399.82MHz: 31.65dB Restricted Bands [dBuV/m at 3m]: 2493.80MHz: 60.48 (Margin 13.52dB) - PK 53.85 (Margin 0.15dB) - AV Non-Restricted Bands: > 20 dB Restricted Bands: FCC 15.209 Complied 3.6 15.247(c) Transmitter Radiated Unwanted Emissions Restricted Bands [dBuV/m at 3m]: 4824.00MHz: 58.46 (Margin 15.54dB) – PK 52.05 (Margin 1.95dB) - AV Non-Restricted Bands: > 20 dB Restricted Bands: FCC 15.209 Complied SPORTON INTERNATIONAL INC. P…

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page No. : 1 of 13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC TEST REPORT Report No. : FR272106 Co-location Report SPORTON INTERNATIONAL INC. Page No. : 2 of 13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC TEST REPORT Report No. : FR272106 1 TEST RESULT 1.1 Radiated Emissions Measurement 1.1.1 Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(kHz) 300 0.490~1.705 24000/F(kHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 1.1.2 Measuring Instruments and Setting Please refer to section 2 of equipments list in this report. The following table is the setting of spectrum analyzer and receiver. Spectrum Parameter Setting Attenuation Auto Start Frequency 1000 MHz Stop Frequency 10th carrier harmonic RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 1MHz / 1MHz for peak Receiver Parameter Setting Attenuation Auto Start ~ Stop Frequency 9kHz~150kHz / RB 200Hz for QP Start ~ Stop Frequency 150kHz~30MHz / RB 9kHz for QP Start ~ Stop Frequency 30MHz~1000MHz / RB 120kHz for QP SPORTON INTERNATIONAL INC. Page No. : 3 of 13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC TEST REPORT Report No. : FR272106 1.1.3 Test Procedures 1. Configure the EUT according to ANSI C63.4. The EUT was placed on the top of the turntable 0.8 meter above ground. The phase center of the receiving antenna mounted on the top of a height-variable antenna tower was placed 3 meters far away from the turntable. 2. Power on the EUT and all the supporting units. The turntable was rotated by 360 degrees to determine the position of the highest radiation. 3. The height of the broadband receiving antenna was varied between one meter and four meters above ground to find the maximum emissions field strength of both horizontal and vertical polarization. 4. For each suspected emissions, the antenna tower was scan (from 1 M to 4 M) and then the turntable was rotated (from 0 degree to 360 degrees) to find the maximum reading. 5. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function with specified bandwidth under Maximum Hold Mode. 6. For emissions above 1GHz, use 1MHz VBW and RBW for peak reading. Then 1MHz RBW and 10Hz VBW for average reading in spectrum analyzer. 7. When the radiated emissions limits are expressed in terms of the average value of the emissions, and pulsed operation is employed, the measurement field strength shall be determined by averaging over one complete pulse train, including blanking intervals, as long as the pulse train does not exceed 0.1 seconds. As an alternative (provided the transmitter operates for longer than 0.1 seconds) or in cases where the pulse train exceeds 0.1 seconds, the measured field strength shall be determined from the average absolute voltage during a 0.1 second interval during which the field strength is at its maximum value. 8. If the emissions level of the EUT in peak mode was 3 dB lower than the average limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions which do not have 3 dB margin will be repeated one by one using the quasi-peak method for below 1GHz. 9. For testing above 1GHz, the emissions level of the EUT in peak mode was lower than average limit (that means the emissions level in peak mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 10. In case the emission is lower than 30MHz, loop antenna has to be used for measurement and the recorded data should be QP measured by receiver. High – Low scan is not required in this case. SPORTON INTERNATIONAL INC. Page No. : 4 of 13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC TEST REPORT Report No. : FR272106 1.1.4 Test Setup Layout For radiated emissions below 30MHz For radiated emissions above 30MHz Above 10 GHz shall be extrapolated to the specified distance using an extrapolation factor of 20 dB/decade from 3m to 1m. Distance extrapolation factor = 20 log (specific distance [3m] / test distance [1m]) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor [9.54 dB]. 1.1.5 Test Deviation There is no deviation with the original standard. 1.1.6 EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. 3 or 1m SPORTON INTERNATIONAL INC. Page No. : 5 of 13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC TEST REPORT Report No. : FR272106 1.1.7 Results of Radiated Emissions (9kHz~30MHz) Final Test Date Aug. 09, 2012 Test Site No. 03CH02-HY Temperature 23°C Humidity 59% Test Engineer Hsiao Freq. Level Over Limit Limit Line Remark (MHz) (dBuV) (dB) (dBuV) - - - - See Note Note: The amplitude of spurious emissions that are attenuated by more than 20 dB below the permissible value has no need to be reported. Distance extrapolation factor = 40 log (specific distance / test distance) (dB); Limit line = specific limits (dBuV) + distance extrapolation factor. SPORTON INTERNATIONAL INC. Page No. : 6 of 13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC TEST REPORT Report No. : FR272106 1.1.8 Results of Radiated Emissions (30MHz~1GHz) Final Test Date Aug. 09, 2012 Test Site No. 03CH02-HY Temperature 23°C Humidity 59% Test Engineer Hsiao Configuration TX 11b 2437MHz and Zigbee 2440 MHz (Battery : ALT) Horizontal SPORTON INTERNATIONAL INC. Page No. : 7 of 13 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 FCC TEST REPORT Report No. …

Text truncated - open the document above for the full version.

SPORTON INTERNATIONAL INC. Page No. : 1 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 F FCC TEST REPORT Report No. : FR272106AC Appendix A. Test Photos SPORTON INTERNATIONAL INC. Page No. : 2 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX : 886-3-327-0973 F FCC TEST REPORT Report No. : FR272106AC 1 Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW SPORTON INTERNATIONAL INC. Page No. : 3 of 6 TEL : 886-3-327-3456 Report Version : Rev. 01 FAX…
