FCC ID Label Sample for FCC ID: ZQJ591R49_ FCC ID: ZQJ591R49 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Circuit Description The brief circuit description is listed as follows: -Q7 and associated circuit act as Super-regenerative Receiver. SCRX3A and associated circuit act as Decoder Q1, Q6, Q5 and associated circuit act as Motor 1 Driver. Q3, Q2, Q4 and associated circuit act as Motor 2 Driver. Antenna Used: A permanent wire antenna has been used
19200-49M-RX-SCHEMATIC.sch-1 - Tue Jul 12 11:52:37 2011

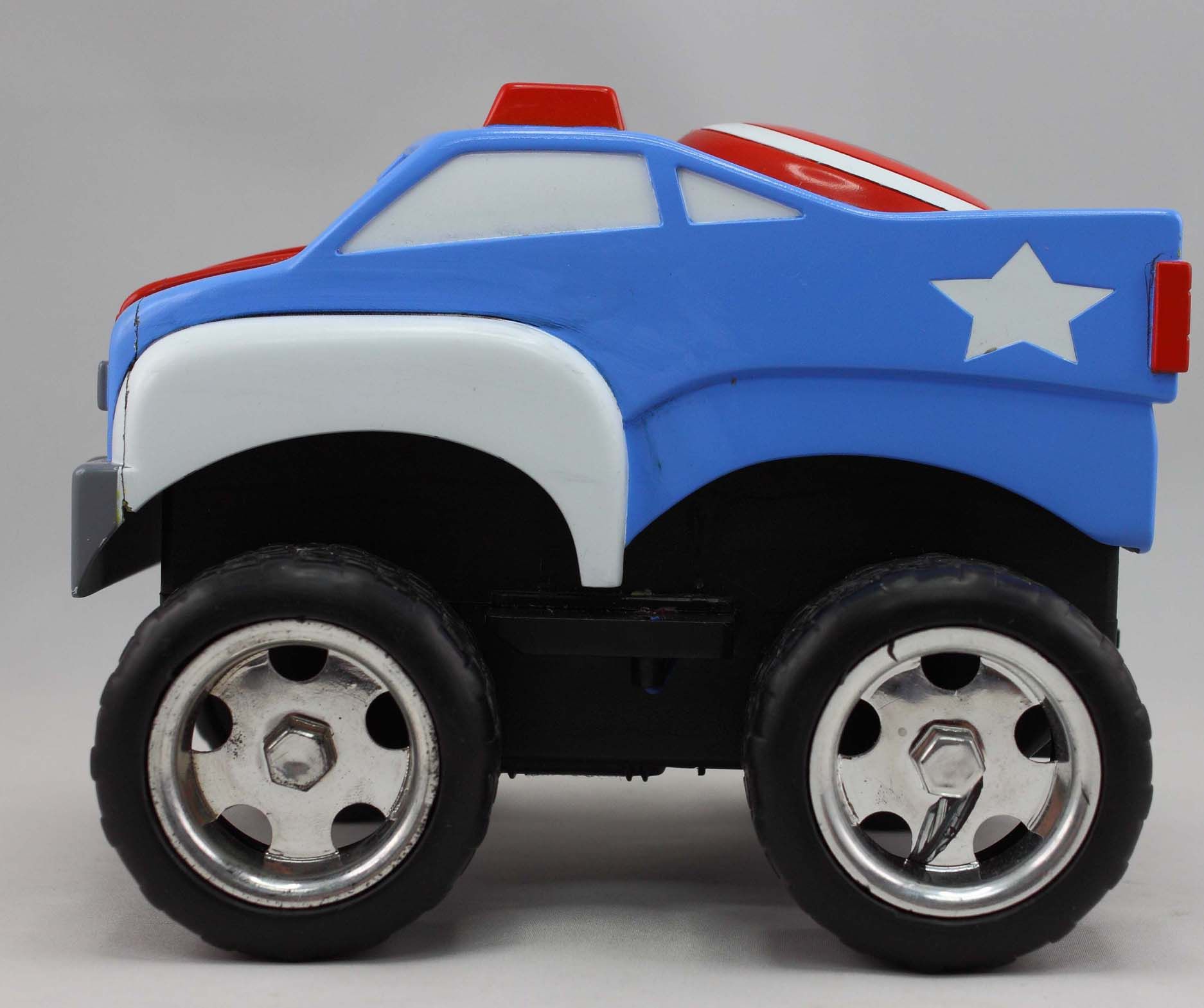

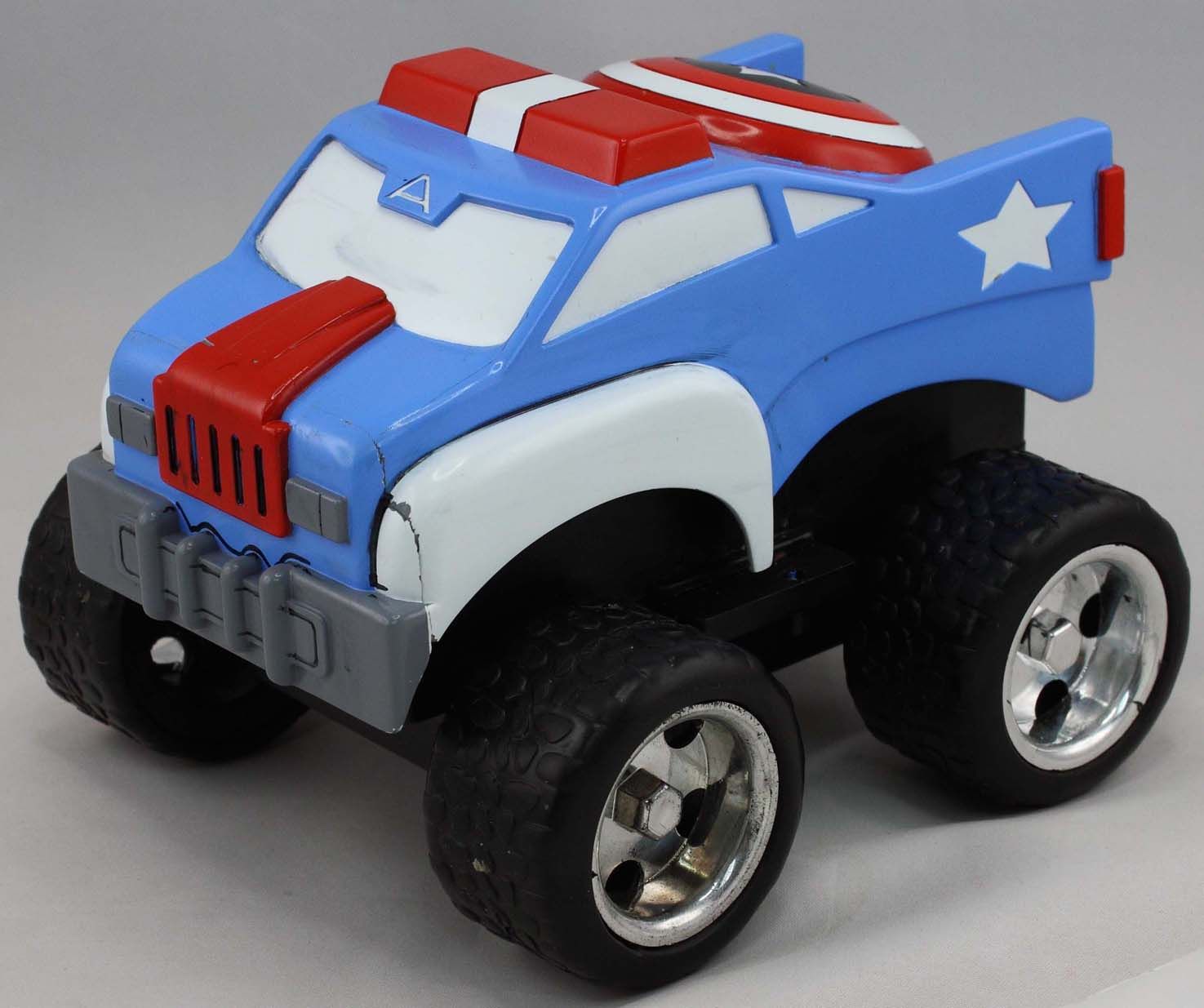

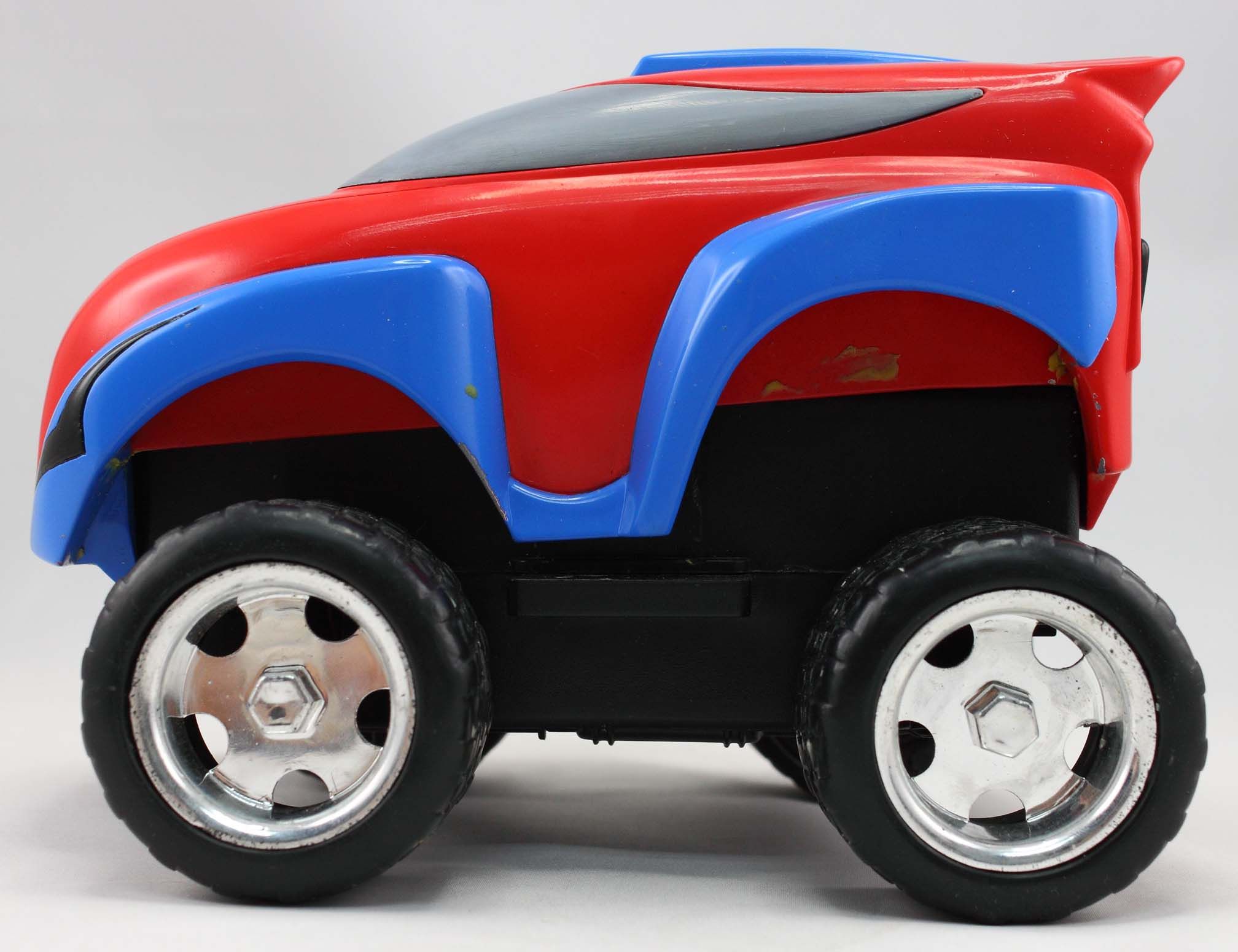

FCC PART 15 B SUBPART B RECEIVER TEST REPORT Applicant BOLD WELL INDUSTRIAL LTD. Address ROOM 1371, 13/F., KITEC 1 TRADEMART DRIVE KOWLOON BAY HONG KONG FCC ID ZQJ591R49 Product Description 49 MHZ REMOTE CONTROL RECEIVER Date Sample Received 7/6/2011 Date Tested 7/8/2011 Tested By Nam Nguyen β John A. Day Approved By Mario R. de Aranzeta Report Number 1498HT11TestReport.doc Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. 849 NW State Road 45 Newberry, Fl 32669 USA Phone: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com Certificate # 0955-01 APPLICANT: BOLD WELL INDUSTRIAL LTD. FCC ID: ZQJ591R49 REPORT: B\BOLD_WELL\1498HT11\1498HT11TestReport.doc Page 2 of 10 rev 2 mdea 09.20.2008 TABLE OF CONTENTS GENERAL REMARKS ................................................................................................................. 3 REPORT SUMMARY ................................................................................................................... 4 TEST ENVIRONMENT ................................................................................................................ 4 TEST SETUP SUMMARY ............................................................................................................ 4 DUT SPECIFICATION ................................................................................................................. 5 TEST EQUIPMENT LIST ............................................................................................................. 6 TEST PROCEDURES .................................................................................................................. 7 RADIATED SPURIOUS EMISSIONS ........................................................................................... 8 POWER LINE CONDUCTED INTERFERENCE ............................................................................ 9 RADIATED EMISSIONS TEST SETUP PHOTO.......................................................................... 10 APPLICANT: BOLD WELL INDUSTRIAL LTD. FCC ID: ZQJ591R49 REPORT: B\BOLD_WELL\1498HT11\1498HT11TestReport.doc Page 3 of 10 rev 2 mdea 09.20.2008 GENERAL REMARKS The attached report shall not be reproduced except in full without the written permission of Timco Engineering Inc. The test results relate only to the items tested. Summary The device under test does: fulfill the general approval requirements as identified in this test report not fulfill the general approval requirements as identified in this test report Attestations This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: 7/8/11 APPLICANT: BOLD WELL INDUSTRIAL LTD. FCC ID: ZQJ591R49 REPORT: B\BOLD_WELL\1498HT11\1498HT11TestReport.doc Page 4 of 10 rev 2 mdea 09.20.2008 REPORT SUMMARY Disclaimer The test results only relate to the item tested. Applicable Rule(s) Pt 15.109, Pt 15.107, ANSI C63.4: 2003 Related Report None TEST ENVIRONMENT Test Facility Timco Engineering, Inc. 849 NW State Road 45 Newberry, FL 32669 USA. Test Condition in the laboratory Temperature: 26ΒΊC Relative humidity: 50% TEST SETUP SUMMARY Test Setup Diagram/ Description The DUT was placed on the turntable per setup per ANSI C63.4: 2003. A test set up photo is provided for clarification. Deviation from the standard/procedure No deviation Modification of DUT No modification APPLICANT: BOLD WELL INDUSTRIAL LTD. FCC ID: ZQJ591R49 REPORT: B\BOLD_WELL\1498HT11\1498HT11TestReport.doc Page 5 of 10 rev 2 mdea 09.20.2008 DUT SPECIFICATION DUT Description 49 MHZ REMOTE CONTROL RECEIVER FCC ID ZQJ591R49 DUT Power Source 110β120Vac/50β 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Laboratory Test Conditions Temperature: 26ΒΊC Humidity: 55% Modifications to DUT: No Yes (explanation below) APPLICANT: BOLD WELL INDUSTRIAL LTD. FCC ID: ZQJ591R49 REPORT: B\BOLD_WELL\1498HT11\1498HT11TestReport.doc Page 6 of 10 rev 2 mdea 09.20.2008 TEST EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/10/10 5/10/12 AC Voltmeter HP 400FL 2213A14499 CAL 6/12/11 6/12/13 Antenna: Dipole Kit Electro- Metrics TDA-30/1-4 153 CHAR 8/10/09 8/10/11 Antenna: Passive Loop EMC Test Systems EMCO 6512 9706-1211 CAL. 8/1/09 8/2/11 Frequency Counter HP 5385A 2730A03025 CAL 9/4/09 9/4/11 Hygro- Thermometer Extech 445703 0602 CAL 6/15/11 6/15/13 Modulation Analyzer HP 8901A 3435A06868 CAL 8/26/09 8/26/11 Digital Multimeter Fluke FLUKE-77 35053830 CAL 11/18/09 11/18/11 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 11/21/09 11/21/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 11/22/09 11/22/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 11/21/09 11/21/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 11/24/09 11/24/11 Temperature Chamber Tenney Engineering TTRC 11717-7 CHAR 4/25/10 4/25/12 APPLICANT: BOLD WELL INDUSTRIAL LTD. FCC ID: ZQJ591R49 REPORT: B\BOLD_WELL\1498HT11\1498HT11TestReport.doc Page 7 of 10 rev 2 mdea 09.20.2008 TEST PROCEDURES Power line conducted Emission: The test procedure used was ANSI C63.4-2003. The spectrum was scanned from 0.15 to 30 MHz. Radiation Interference: The test procedure useβ¦
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15B | 49.86 MHz - 49.86 MHz | - |

49.82-49.90 MHz WIRELESS R/C TOY-TX
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
26.96-27.28 MHz WIRELESS R/C TOY-TX
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
