ZQJ591T4949.82-49.90 MHz WIRELESS R/C TOY-TX
Bold Well Industrial Ltd.
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Jul 25, 2011
- Application Purpose
- Original Equipment
- Date of Application
- Jul 25, 2011
- Equipment Note

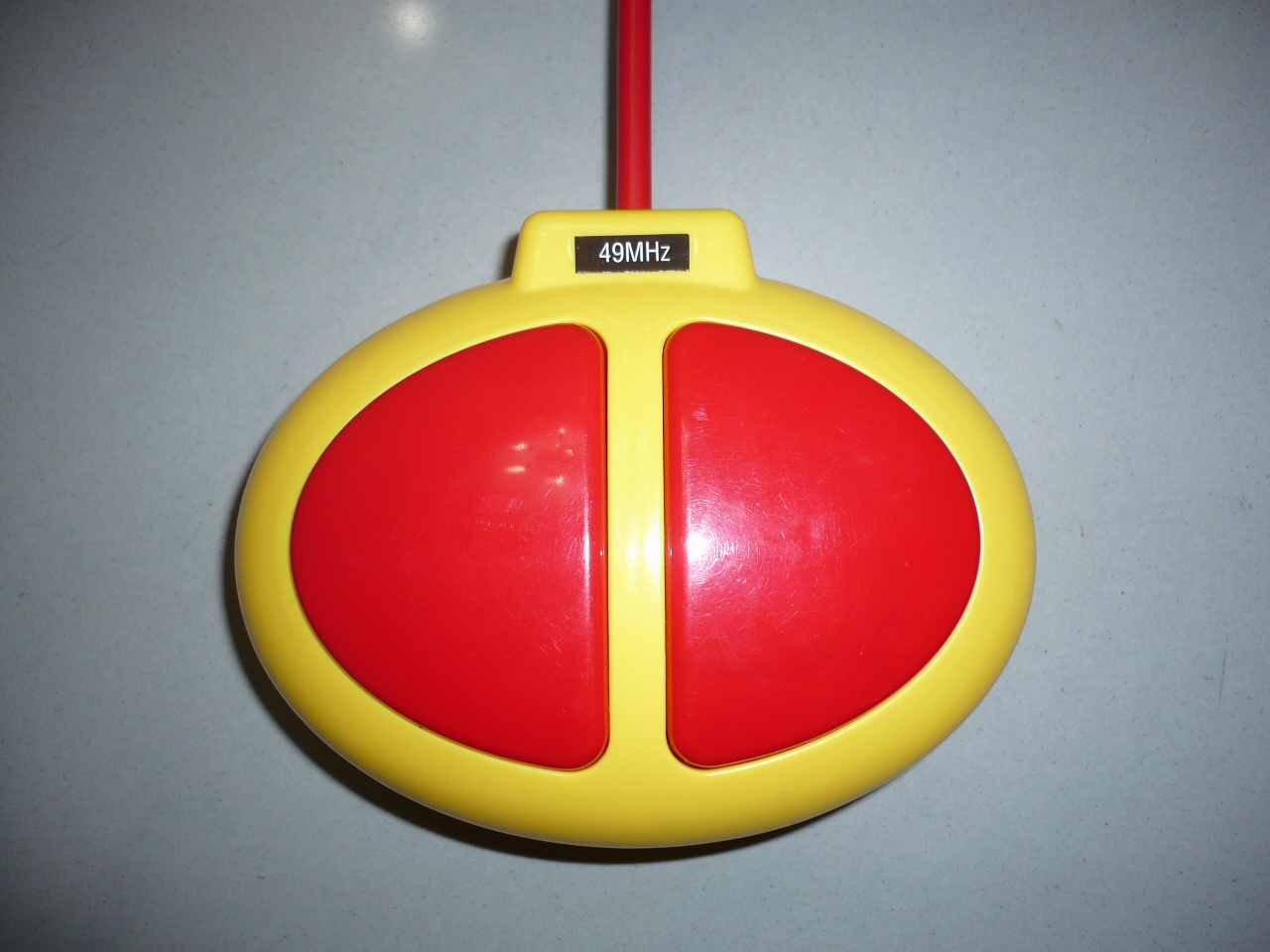

- 49.82-49.90 MHz WIRELESS R/C TOY-TX
- Frequency Range
- 49.86000000 - 49.86000000
- Company
- Bold Well Industrial Ltd.
- Country
- Hong Kong
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Block Diagram
94-XT-00291 -.s ch -1 - Tue J ul 1 2 1 1:4 3:5 1 2 01 1
ID Label/Location Info
FCC ID Label Sample for FCC ID: ZQJ591T49_ FCC ID: ZQJ591T49
Operational Description
Circuit Description X1 the 49.86 MHz crystal oscillator drives the base of Q1 the final/ buffer amplifier. The output of Q1 has the matching network consisting of T1, C1, C2, and L1 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna used A permanent wire antenna has been used
Contact Information
Applicant
Patrick To(Product Manager)
Test Firm
Timco Engineering, Inc.Bruno Clavier
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 49.86 MHz - 49.86 MHz | - |
