ZQO-CX8703FJukeBlox Networked Media Module

Preliminary Data Sheet: CX Series JukeBlox Networked Media Modules dat_CX860_CX870_1_7_datasheet_c.doc PRELIMINARY - CONFIDENTIAL Version 1.7 – May 13 th 2011 - Page 1 of 23 JukeBlox Networked Media Module CX Series Preliminary Datasheet Complete audio networking system on a small module Integrated Ethernet + USB2.0 WiFi-certified 802.11b/g (optional) Built-in strip antenna Optional 2X Diversity Antenna Glueless audio, video and control ports FCC certified Ideal for enabling network and USB audio playback for iPod docks, audio systems, AV Receivers, active speaker systems, internet radios, network playback adaptors Preliminary Data Sheet: CX Series JukeBlox Networked Media Modules dat_CX860_CX870_1_7_datasheet_c.doc PRELIMINARY - CONFIDENTIAL Version 1.7 – May 13 th 2011 - Page 2 of 23 Table of Contents 1. Introduction 4 2. Block Diagram 4 3. Board Pictures 5 3.1 Top View of CX870 5 3.2 Bottom View of CX870 5 4. Ordering Guide 6 5. Electrical Specifications 6 5.1 Absolute Maximum Ratings 7 5.2 Operating Conditions 7 5.3 WiFi Specification (CX870 only) 7 6. Regulatory Compliance and Quality 8 6.2 Environmental Test 9 6.3 ESD and Transient Test (Applies to LAN and USB external connections only) 9 6.4 Magnetic Field Test 9 6.5 MTBF 9 6.6 Mechanical Specifications 9 6.7 Module Quality 9 Preliminary Data Sheet: CX Series JukeBlox Networked Media Modules dat_CX860_CX870_1_7_datasheet_c.doc PRELIMINARY - CONFIDENTIAL Version 1.7 – May 13 th 2011 - Page 3 of 23 7. Board Dimensions and Weight 10 7.1 Top & Bottom View of CX870 module 10 7.2 Side View of CX870 module 10 7.3 3D View of CX870 module 11 7.4 Module weight 11 8. Connectors and Connections 12 8.1 WLAN UFL Antenna Connector (optional) 12 8.1.1 Coaxial antenna connector dimensions 12 8.2 Module Connectors 12 8.2.1 Pin Descriptions 13 8.2.2 Connector PIN Assignments 17 8.2.3 GPIO Assignments 19 9. Application Guidelines 19 9.1 Power Supply sequencing and Reset Timing 19 9.1.1 Power up, Reset and Power Down Timing 20 9.2 RF Considerations 20 10. Revision Control 21 Module Revision History 23 Trademarks 23 Warranty Limitations 23 Preliminary Data Sheet: CX Series JukeBlox Networked Media Modules dat_CX860_CX870_1_7_datasheet_c.doc PRELIMINARY - CONFIDENTIAL Version 1.7 – May 13 th 2011 - Page 4 of 23 1. Introduction The CX-series module is a single-board networked media player module, based on BridgeCo’s DM860 and DM870 media processors, and enables fast product developments with Ethernet, USB and optional WiFi connectivity. The module connects to standard legacy components in various audio, video/LCD and control formats. 2. Block Diagram Ethernet Transceiver DM860 or DM870 256 Mbit SDRAM RJ-45 + Transformer Mem. Bus USB GPIO 24.000 MHz NAND-Flash 2.4 GHz RF transceiver 802.11 RMII I2C 32.768 kHz RTC Clock USB Type-A UART 3.3V JukeBlox Networked Media Module – CX Series 1.2V UART GPIO DAC PCB Antenna RF Amp. ANT switch Ext. Antenna PWM DAC 1.9V Flash NOR-Flash I2C Apple Co- processor I2C JTAG I2C JTAG LCD 3x6bit RGB Display SSM 4/8bit MMC SD-Card RST Reset In Video Out Audio I/O A/D, D/A S/PDIF CCIR-656 AV Ports SPI SPI Ctrl. Host Controller/ LCD setup PCB Antenna Ext. Antenna Note: Choice of antenna is a build option, see Ordering Guide. Preliminary Data Sheet: CX Series JukeBlox Networked Media Modules dat_CX860_CX870_1_7_datasheet_c.doc PRELIMINARY - CONFIDENTIAL Version 1.7 – May 13 th 2011 - Page 5 of 23 3. Board Pictures Please note that the below pictures show the prototype version of the layout, and do not include the RF and top shields that will be present on production modules. Pictures of production version modules will be added as soon as possible. Also, please note that the 64-pin connector mounted on the module is the male gender. 3.1 Top View of CX870 3.2 Bottom View of CX870 802.11b/g front-end PCB antenna External Antenna Connectors BridgeCo processor Ethernet PHY FLASH Media connector LCD connector Low density connector SDRAM PCB antenna Preliminary Data Sheet: CX Series JukeBlox Networked Media Modules dat_CX860_CX870_1_7_datasheet_c.doc PRELIMINARY - CONFIDENTIAL Version 1.7 – May 13 th 2011 - Page 6 of 23 4. Ordering Guide Part Number BridgeCo IC’s WiFi (on- module PCB diversity) Ext. Diversity Antennas (UFL Conn.) Ethernet USB Host Low density 64-pin Conn. Media 120-pin Conn. LCD Conn. 32MByte SDRAM 16MByte SDRAM 1Gbit NAND FLASH 8MByte NOR FLASH Top Module Shield CX870-3A DM870+T6201 X (X)* X X X X X X X CX870-3B DM870+T6201 X X X X X X X CX870-3D DM870+T6201 X (X)* X X X X X X CX870-3F DM870+T6201 X X X X X X X CX870-3G DM870+T6201 X X X X X X CX870-3H DM870+T6201 X X X X X X X CX870-3I DM870+T6201 X X X X X X CX870-3J DM870+T6201 X X X X X X Note: Please note that the Apple Authentication Coprocessor will not be provided on the CX module. The Apple Authentication Coprocessor should be provided on the product motherboard, connected to the SDA, SCL signals from the CX module. Note: Shaded rows indicate Custom or Obsolete configuration - NOT TO BE USED FOR NEW/STANDARD MP DESIGNS. * Connector on board, but requires board modification to enable the connector 5. Electrical Specifications Parameter State Model Voltage Symbol min. typ. max. Units Power Supply Input Voltage VIN 3.0 1.08 1.8 3.3 1.2 1.9 3.6 1.32 2.0 V V V Logic Input high voltage V IH 1.7 5.5 V Logic Input low voltage V IL -0.3 0.7 V Logic Input threshold voltage V IT 1.29 1.39 1.5 V Schmitt-trigger input low to high threshold voltage V IT+ 1.58 1.65 1.71 V Schmitt-trigger input high to low threshold voltage V IT- 0.95 1.01 1.06 V Logic Output high voltage V OH 2.4 V Logic Output low voltage V OL 0.4 V Logic Low-level output current (V OL =0.4V) I OL -9.6 -15.6 -19.3 mA Logic High-level output current (V OH =2.4V) I OH 11.1 22.5 35.3 mA 3.3 I3.3 60 78 mA 1.2 I1.2 32 42 mA Reset State 1.9 I1.9 18 23 mA 3.3 I3.3 185 241 mA 1.2 I1.2 337 438 mA Operating in idle state 1.9 I1.9 257 334 mA 3.3 I3.3 240 312 mA 1.2 I1.2 347 451 mA Current Consumption Playback over WiF…

Text truncated - open the document above for the full version.

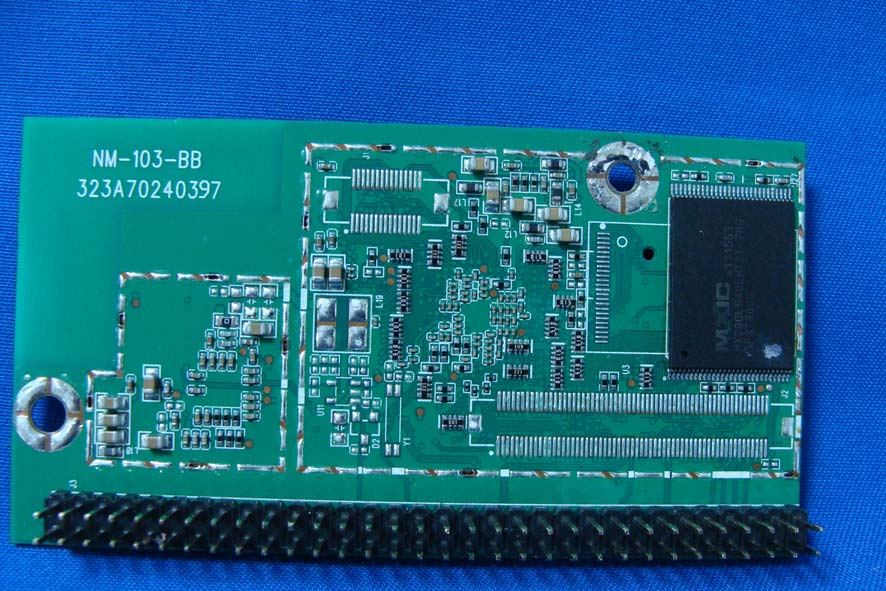

Report No.: 117131R-RFUSP42V01 Page : 1 of 4 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo

STANDARD MICROSYSTEMS CORPORATION FCC ID.: ZQO-CX8703F 3930, EAST RAY ROAD SUITE 200, PHOENIX, ARIZONA, 85044-7176,UNITED STATES Tel : (480) 759-0200 FCC ID Label The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 117131R-RFUSP42V01 Page : 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 117131R-RFUSP42V01 Page : 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 117131R-RFUSP42V01 Page : 4 of 4 (7) EUT Photo

Report No. 117131R-RFUSP42V01 Page : 7 of 70 1.2. Operational Description The EUT is a JukeBlox Networked Media Module, This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps and the device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b). The device provided of eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps the device of RF carrier is BPSK, QPSK, 16QAM and 64QAM (IEEE 802.11g). This JukeBlox Networked Media Module, compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the JukeBlox Networked Media Module Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network.

Report No. 117131R-RFUSP42V01 Page: 1 of 3 RF Exposure Evaluation declaration Product Name JukeBlox Networked Media Module Model No. CX870-3F FCC ID ZQO-CX8703F Applicant STANDARD MICROSYSTEMS CORPORATION Address 3930, EAST RAY ROAD SUITE 200, PHOENIX, ARIZONA, 85044-7176,UNITED STATES Date of Receipt June 28, 2011 Date of Declaration July 14, 2011 Report No. 117131R-RFUSP42V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 117131R-RFUSP42V01 Page: 2 of 3 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 117131R-RFUSP42V01 Page: 3 of 3 1.3. Test Result of RF Exposure Evaluation Product : JukeBlox Networked Media Module Test Item : RF Exposure Evaluation Test Site : No.3 OATS External Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 3.91 dBi in logarithm scale. 802.11b Output Power Into Antenna & RF Exposure Evaluation Distance (3.91 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 127.9381 0.062623 6 2437.00 130.6171 0.063934 11 2462.00 131.5225 0.064377 802.11g Output Power Into Antenna & RF Exposure Evaluation Distance (3.91 dBi): Channel Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm2) 1 2412.00 263.6331 0.129042 6 2437.00 258.2260 0.126395 11 2462.00 208.4491 0.102031 The distance r (4 th column) calculated from the Fries transmission formula is far shorter than 20 cm separation requirement.

Report No. 117131R-RFUSP42V01 Page : 1 of 70 Test Report Product Name JukeBlox Networked Media Module Model No CX870-3F FCC ID. ZQO-CX8703F Applicant STANDARD MICROSYSTEMS CORPORATION Address 3930, EAST RAY ROAD SUITE 200, PHOENIX, ARIZONA, 85044-7176,UNITED STATES Date of Receipt June 28, 2011 Issue Date July 18, 2011 Report No. 117131R-RFUSP42V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 117131R-RFUSP42V01 Page : 2 of 70 Test Report Certification Issue Date: July 18, 2011 Report No.: 117131R-RFUSP42V01 Product Name JukeBlox Networked Media Module Applicant STANDARD MICROSYSTEMS CORPORATION Address 3930, EAST RAY ROAD SUITE 200, PHOENIX, ARIZONA, 85044-7176,UNITED STATES Manufacturer DONG GUAN G-COM COMPUTER CO., LTD Model No. CX870-3F FCC ID. ZQO-CX8703F EUT Rated Voltage DC 3.3V EUT Test Voltage AC 120V/60Hz Trade Name PICO Module Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2010 ANSI C63.4: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Adm. Specialist / Rita Huang ) Tested By : ( Engineer / Vincent Chu ) Approved By : ( Manager / Vincent Lin ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 117131R-RFUSP42V01 Page : 3 of 70 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................14 3.1. Test Equipment............................................................................................................................14 3.2. Test Setup ....................................................................................................................................14 3.3. Limits ..........................................................................................................................................14 3.4. Test Procedure .............................................................................................................................14 3.5. Uncertainty ..................................................................................................................................14 3.6. Test Result of Peak Power Output...............................................................................................15 4. Radiated Emission .....................................................................................................................17 4.1. Test Equipment............................................................................................................................17 4.2. Test Setup ....................................................................................................................................18 4.3. Limits ..........................................................................................................................................19 4.4. Test Procedure .............................................................................................................................20 4.5. Uncertainty ..................................................................................................................................20 4.6. Test Result of Radiated Emission................................................................................................21 5. RF antenna conducted test........................................................................................................29 5.1. Test Equipment.................................................................…

Text truncated - open the document above for the full version.

Report No.: 117131R-RFUSP42V01 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 117131R-RFUSP42V01 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 117131R-RFUSP42V01 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
