ZQO-CX8703I

MICROCHIP TECHNOLOGY INC.

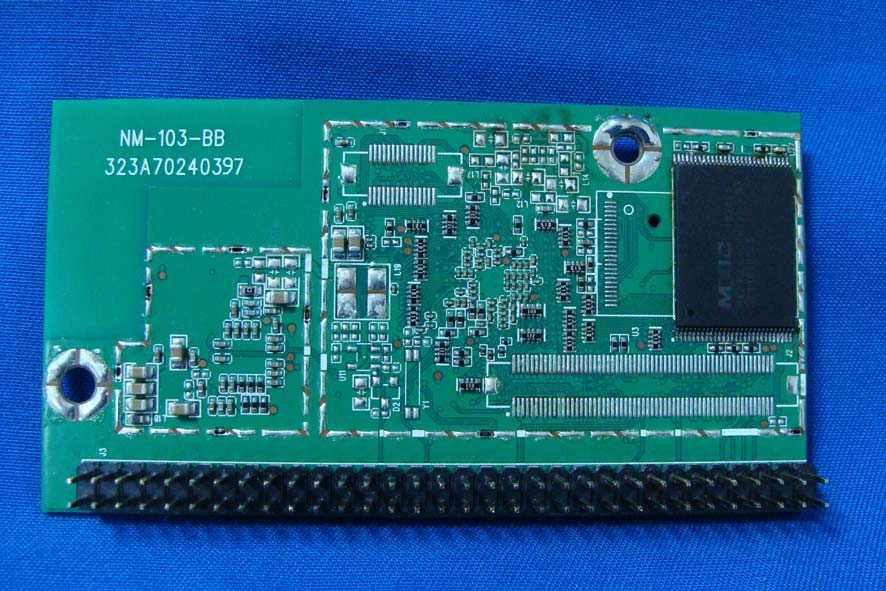

JukeBlox Networked Media Module

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Jul 24, 2011
Application Purpose: Original Equipment
Date of Application: Jul 21, 2011
Equipment Note: JukeBlox Networked Media Module
Frequency Range: 2412.00000000 - 2462.00000000
Company: MICROCHIP TECHNOLOGY INC.
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

External Photos

ID Label/Location Info

Internal Photos

Operational Description

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

STEVE CALDWELL(VICE PRESIDENT)

[email protected](480)792-7464Fax: (480)792-4112

Technical Contact

QuieTek Corporation

[email protected]

Taiwan

Test Firm

DEKRA TESTING AND CERTIFICATION CO., LTD. LinKouMirenda Liao

[email protected]+886-2-2602-7968Fax: +886-2-2602-3286

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	278.60 mW

Modular Type

Limited Single Modular Approval

Confidentiality

Long Term

Grant Notes

Power output listed is conducted. This grant is valid only when the module is sold to OEM integrators and must be installed by the OEM or OEM integrators in devices that provide regulated 3.3 Vdc to the module, to guarantee stable power supply according to the requirements of DA-00-1407. The antennas used for this transmitter as shown in this filing must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users may not be provided with the module installation instructions. OEM integrators and end-users must be provided with transmitter operating conditions for satisfying RF exposure compliance.
