ZQUCHC-S6245-5Digital Photo Printer

http://www.sinfo-t.jp Operation Manual Digital Photo Printer 日本語 CHC-S6245 English FCC WARNING FCC WARNINGFCC WARNING FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: Note:Note: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Handling of this Manual Handling of this ManualHandling of this Manual Handling of this Manual 1. All rights reserved. No part of this operation manual covered by the copyright herein maybe reproduced or copied in any form or by any means, including translation, without the written permission of SINFONIA TECHNOLOGY Co., Ltd. 2. The specifications in this operation manual are subject to change without prior notice. 3. In case of having any difficulties or finding the fault in this manual, your information to SINFONIA TECHNOLOGY will be highly appreciated. Introduction IntroductionIntroduction Introduction This manual describes detailed instructions for handling of and basic operation of Digital Photo Printer CHC-S6245. We will describe this product as “the printer” in the manual. Read this manual thoroughly to understand how to install and operate the printer before using it. ● Keep this manual near the printer and operators can refer to this manual periodically. ● In case, lost or damaged this manual, contact your dealers. ● In the case of transfer, do not forget to put this manual together with the printer. Notice CONTENTS PREFACE Chapter 1. Important Safety Instruction Chapter 1. Important Safety InstructionChapter 1. Important Safety Instruction Chapter 1. Important Safety Instruction ・・・・・・・・・・・・・・・・・ 1-1 Environments ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 1-1 Handling Instruction ・・・・・・・・・・・・・・・・・・・・・・・・・・ 1-2 Handling Instruction for Consumable and Printed Output ・・・・・・ 1-3 Chapter 2. Installing and Set Up Chapter 2. Installing and Set UpChapter 2. Installing and Set Up Chapter 2. Installing and Set Up ・・・・・・・・・・・・・・・・・・・・・ 2-1 Unpacking and Checking the Accessories ・・・・・・・・・・・・・・・・ 2-1 Parts Name and Function ・・・・・・・・・・・・・・・・・・・・・・・・ 2-2 Printer Status Lamps Name and Printer Status ・・・・・・・・・・・・ 2-3 Fixing A n t i - t i p P l a t e ・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-3 Connecting Power Cable ・・・・・・・・・・・・・・・・・・・・・・・・・ 2-4 Connecting USB Cable ・・・・・・・・・・・・・・・・・・・・・・・・・ 2-4 Installing Paper Guide ・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-4 Setting Ink Ribbon ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-5 Loading Paper ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-6 Installing Dust Box ・・・・・・・・・・・・・・・・・・・・・・・・・・ 2-7 Transporting the Printer ・・・・・・・・・・・・・・・・・・・・・・・・ 2-7 Chapter 3. Routine Maintenance Chapter 3. Routine MaintenanceChapter 3. Routine Maintenance Chapter 3. Routine Maintenance ・・・・・・・・・・・・・・・・・・・・・ 3-1 Cleaning of Thermal Head, Platen ・・・・・・・・・・・・・・・・・・・ 3-1 Cleaning of Outer Cover ・・・・・・・・・・・・・・・・・・・・・・・・・ 3-2 Cleaning of Filter ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 3-2 Chapter 4. Error Handling Chapter 4. Error HandlingChapter 4. Error Handling Chapter 4. Error Handling ・・・・・・・・・・・・・・・・・・・・・・・・ 4-1 Printer Status Lamps are displayed in red ・・・・・・・・・・・・・・・・ 4-1 Failure Symptoms ・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 4-1 Paper Jam ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 4-2 Power Supply Interrupted during Printing ・・・・・・・・・・・・・・・ 4-2 When the Ribbon is snapped ・・・・・・・・・・・・・・・・・・・・・・・ 4-2 Chapter 5. Chapter 5. Chapter 5. Chapter 5. In order to more comfortably In order to more comfortablyIn order to more comfortably In order to more comfortably use use use use ・・・・・・・・・・・・・・・・ 5-1 Paper Pre-Cut function can be turned off through the printer driver・・・ 5-1 For longer Printer usage ・・・・・・・・・・・・・・・・・・・・・・・・・ 5-1 After AfterAfter After- -- -sales Service sales Servicesales Service sales Service ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 5-1 Chapter 1. Important Safety Instruction 1-1 This manual provides detailed instructions for the safety use of the printer. Read this manual before operating the printer to ensure to have proper use. ◆In this manual, there are notes that require special attention. ◆For your safety operation, Safety notices are separated as follows; ◆ It is difficult to forecast all the danger in setting and use of the printer. Therefore, warnings in this Operation Manual, in the other documents on the printer cannot cover all the cases. In case of performing the operation or maintenance which are not described in this manual, all the concern for the safety have to be taken care of at the customer side. ◆ Operations and the notification for the maintenance described in this manual and other documents are for the proper use of the printer. In case of using the printer for the other purpose, all the concern for the safety has to be taken care of …

Text truncated - open the document above for the full version.

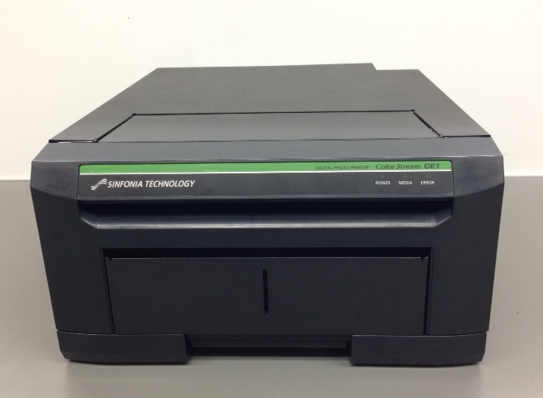

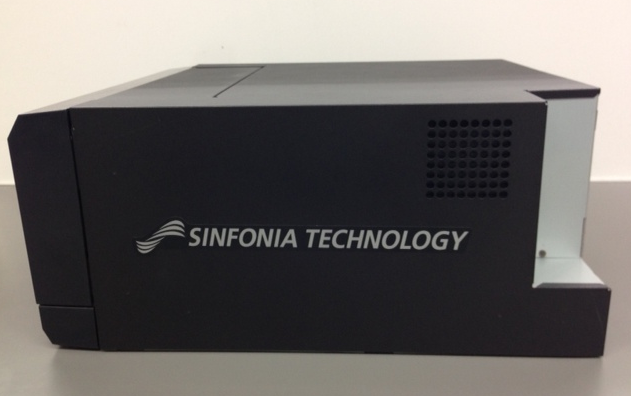

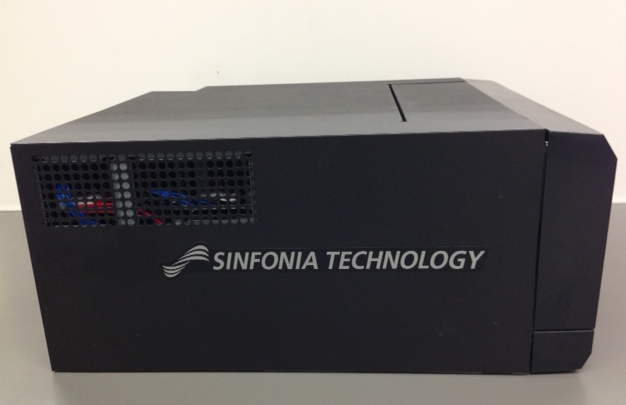

CHC-S6245-5 Product Photo (external 1 of 2)

CHC-S6245-5 Product Photo (external 2 of 2) Rear side

CHC-S6245-5 Product Photo (inside 1 of 4) Antenna Board(Front side) Antenna Board (Rear side) Antenna Board Main Co ntro l Bo ard CHC-S6245-5 Product Photo (inside 2 of 4) Rear side Main Co ntro l Bo ard RFID LSI CN13 CHC-S6245-5 Product Photo (inside 3 of 4) Left side Antenna Board CHC-S6245-5 Product Photo (inside 4 of 4) IC_Tag (Front side) IC_Tag (Rear side) IC Tag is installe d in the Ink Ribbon, and this IC Tag is use d fo r Te st.

Test report No. : 10003538H-C-R1 Page : 2 of 22 Issued date : March 11, 2013 Revised date : March 12, 2013 FCC ID : ZQUCHC-S6245-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 REVISION HISTORY Original Test Report No.: 10003538H-C Revision Test report No. Date Page revised Contents - (Original) 10003538H-C March 11, 2013- - 1 10003538H-C-R1 March 12, 2013P5 Correction of Worst margin (Conducted emission) 1 10003538H-C-R1 March 12 ,2013P17, 18Correction of Humidity 1 10003538H-C-R1 March 12, 2013P16 Correction of test data Test report No. : 10003538H-C-R1 Page : 3 of 22 Issued date : March 11, 2013 Revised date : March 12, 2013 FCC ID : ZQUCHC-S6245-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ................................................................................................... 4 SECTION 2: Equipment under test (E.U.T.) ..................................................................................... 4 SECTION 3: Test specification, procedures & results ...................................................................... 5 SECTION 4: Operation of E.U.T. during testing .............................................................................. 8 SECTION 5: Conducted emission ..................................................................................................... 10 SECTION 6: Radiated emission (Fundamental, Spurious Emission and Spectrum Mask ) ....... 11 SECTION 7: Other test ...................................................................................................................... 12 APPENDIX 1: Data of EMI test ........................................................................................................ 13 Conducted emission .............................................................................................................................................................. 13 Fundamental emission and Spectrum Mask....................................................................................................................... 14 Spurious emission ................................................................................................................................................................. 15 20dB Bandwidth ................................................................................................................................................................... 17 99% Occupied Bandwidth ................................................................................................................................................... 18 Frequency Tolerance ............................................................................................................................................................ 19 APPENDIX 2: Test instruments ........................................................................................................ 20 APPENDIX 3: Photographs of test setup ......................................................................................... 21 Conducted emission .............................................................................................................................................................. 21 Radiated emission ................................................................................................................................................................. 22 Test report No. : 10003538H-C-R1 Page : 4 of 22 Issued date : March 11, 2013 Revised date : March 12, 2013 FCC ID : ZQUCHC-S6245-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : SINFONIA TECHNOLOGY CO.,LTD. Address : 100 Takegahana-cho, Ise-shi, Mie-ken, 516-8550 JAPAN Telephone Number : +81 596 36 1286 Facsimile Number : +81 596 36 3884 Contact Person : Tsutomu Inagaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Digital Photo Printer Model No. : CHC-S6245-5 Serial No. : Refer to Section 4, Clause 4.2 Rating : AC 100-240V Receipt Date of Sample : Janaury 19, 2013 Country of Mass-production : Malaysia Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product description Model No: CHC-S6245-5 (referred to as the EUT in this report) is the Digital Photo Printer. Feature of EUT: Clock frequency(ies) in the system : 480MHz (Max) Radio Specification Radio Type : Transceiver Frequency of Operation : 13.56MHz Modulation : ASK Power Supply (radio part input) : DC 3.3V Antenna type : Pattern Antenna Test report No. : 10003538H-C-R1 Page : 5 of 22 Issued date : March 11, 2013 Revised date : March 12, 2013 FCC ID : ZQUCHC-S6245-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : Test specification: FCC Part 15 Subpart C: 2012, final revised on December 27, 2012 and effective January 28, 2013 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.225 : Operation within the band 13.110-14.010MHz * The revision on December 27, 2012 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 [QP] 5.2dB 19.12625MHz, L [AV] 7.7dB 19.12625MHz, L CompliedConducted <IC>RSS-Gen 7.2.2 <IC>RSS-Gen 7.2.2 Electric Fie…

Text truncated - open the document above for the full version.

Test report No. : 10003538H-C-R1 Page : 21 of 22 Issued date : March 11, 2013 Revised date : March 12, 2013 FCC ID : ZQUCHC-S6245-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 3: Photographs of test setup Conducted emission Photo 1 Photo 2 Test report No. : 10003538H-C-R1 Page : 22 of 22 Issued date : March 11, 2013 Revised date : March 12, 2013 FCC ID : ZQUCHC-S6245-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission Photo 1 Photo 2 End of Report
