ZQUDP-1045-5Digital Photo Printer

SINFONIA TECHNOLOGY CO., LTD.

Click to zoom

Application Details

Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant: Aug 10, 2011
Application Purpose: Original Equipment
Date of Application: Aug 10, 2011
Equipment Note: Digital Photo Printer
Frequency Range: 13.56000000 - 13.56000000
Company: SINFONIA TECHNOLOGY CO., LTD.
Country: Japan

Documents & Files

Select a file to view

ID Label/Location Info

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

First edition ： Aug 8, 2011 Latest edition ： Revision ： Digital Photo Printer DP1045 Operation Manual http://www.sinfo-t.jp Handling of this Manual 1. All rights reserved. No part of this operation manual covered by the copyright herein maybe reproduced or copied in any form or by any means, including translation, without the written permission of SINFONIA TECHNOLOGY Co., Ltd. 2. The specifications in this operation manual are subject to change without prior notice. 2. In case of having any difficulties or finding the fault in This manual, your information to SINFONIATECHNOLOGY will be highly appreciated. FCC WARNING FCC WARNINGFCC WARNING FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note: Note:Note: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This device complies with Industry Canada licenceexempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Introduction This manual describes detailed instructions for handling of and basic operation of Digital Photo Printer DP1045. We will describe this product as “the printer” in the manual. Read this manual thoroughly to understand how to install and operate the printer before using it. ● Keep this manual near the printer and operators can refer to this manual periodically. ● In case, lost or damaged this manual, contact your dealers. ● In the case of transfer, do not forget to put this manual together with the printer. Notice CONTENTS PREFACE Chapter 1. Important Safety Instruction Chapter 1. Important Safety InstructionChapter 1. Important Safety Instruction Chapter 1. Important Safety Instruction11 Environments12 Handling Instruction13 Handling Instruction Continued from previous page14 Handling Instruction for Consumable and Printed Output15 Chapter 2. Installing and Set Up Chapter 2. Installing and Set UpChapter 2. Installing and Set Up Chapter 2. Installing and Set Up21 Unpacking and checking the accessories21 Parts Name and Function23 Connecting Power Cord 24 Connecting USB Cable 25 Installing Dust Box25 Loading Paper26 Loading Ink Ribbon27 Transporting the Printer29 Chapter 3. Operation Panel Chapter 3. Operation PanelChapter 3. Operation Panel Chapter 3. Operation Panel 31 Operation Panel31 LCD Display 32 User Set Up Mode33 Chapter 4. Routine Maintenance Chapter 4. Routine MaintenanceChapter 4. Routine Maintenance Chapter 4. Routine Maintenance41 Cleaning of Thermal Head, Platen Roller, Pinch Roller,Cleaning Roller41 Cleaning of Outer Cabinet44 Cleaning of Filter44 Chapter 5. Error Handling Chapter 5. Error HandlingChapter 5. Error Handling Chapter 5. Error Handling51 Error Message and Corrective Action51 Failure Symptoms53 Upper (R/L) Jam54 Lower Jam56 Power Supply Interrupted during Printing58 When the ribbon is snapped …

Text truncated - open the document above for the full version.

External Photos

DP-1045-5 Product Photo (external 1of2) DP-1045-5 Product Photo (external 1of2)DP-1045-5 Product Photo (external 1of2) DP-1045-5 Product Photo (external 1of2) Overall view 1 Overall view 2 DP-1045-5 Product Photo (external 2of2) DP-1045-5 Product Photo (external 2of2)DP-1045-5 Product Photo (external 2of2)DP-1045-5 Product Photo (external 2of2)

Internal Photos

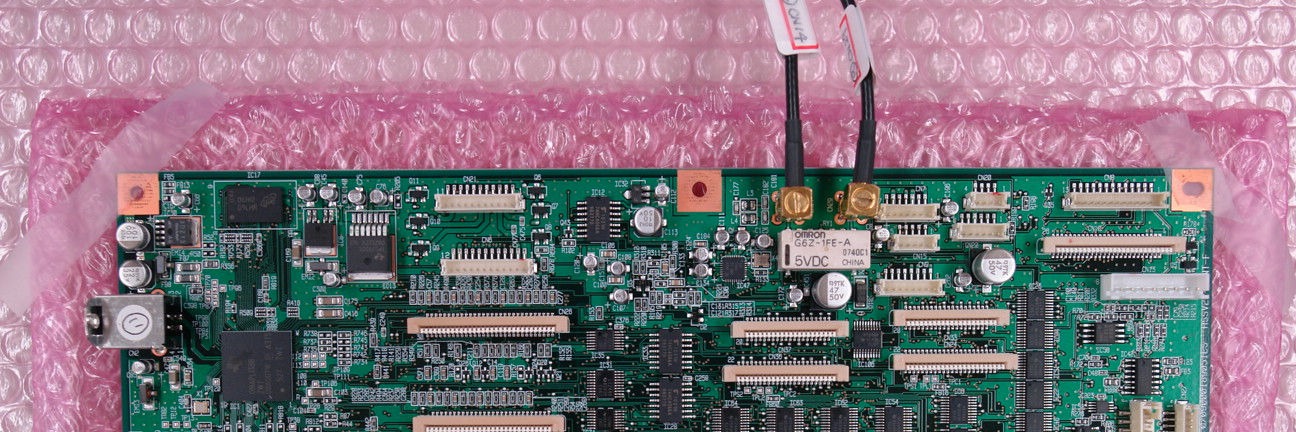

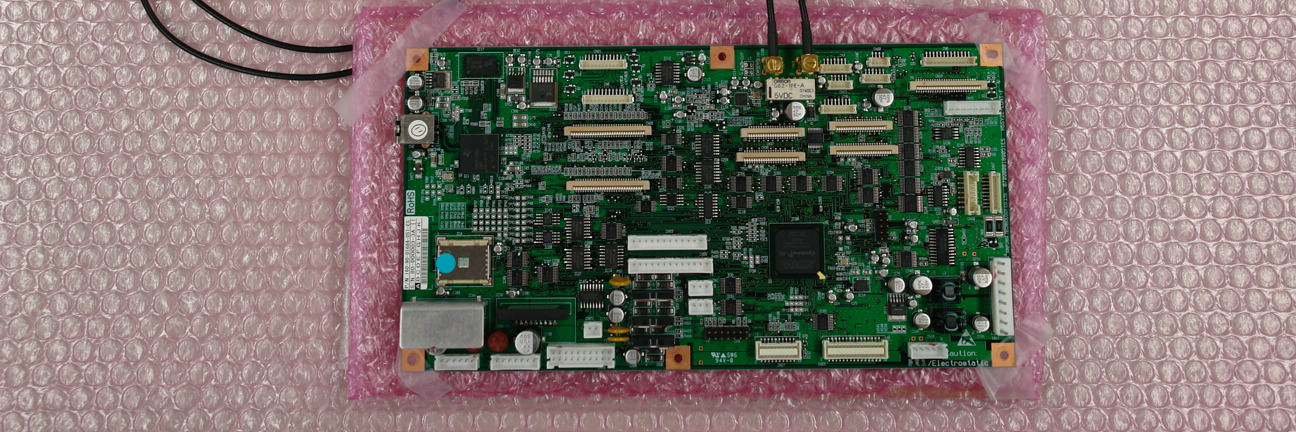

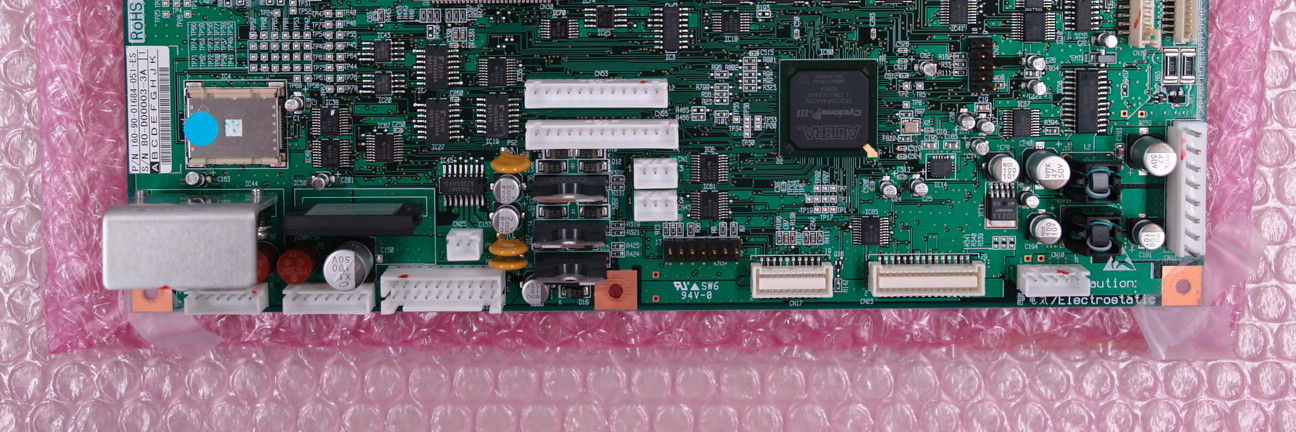

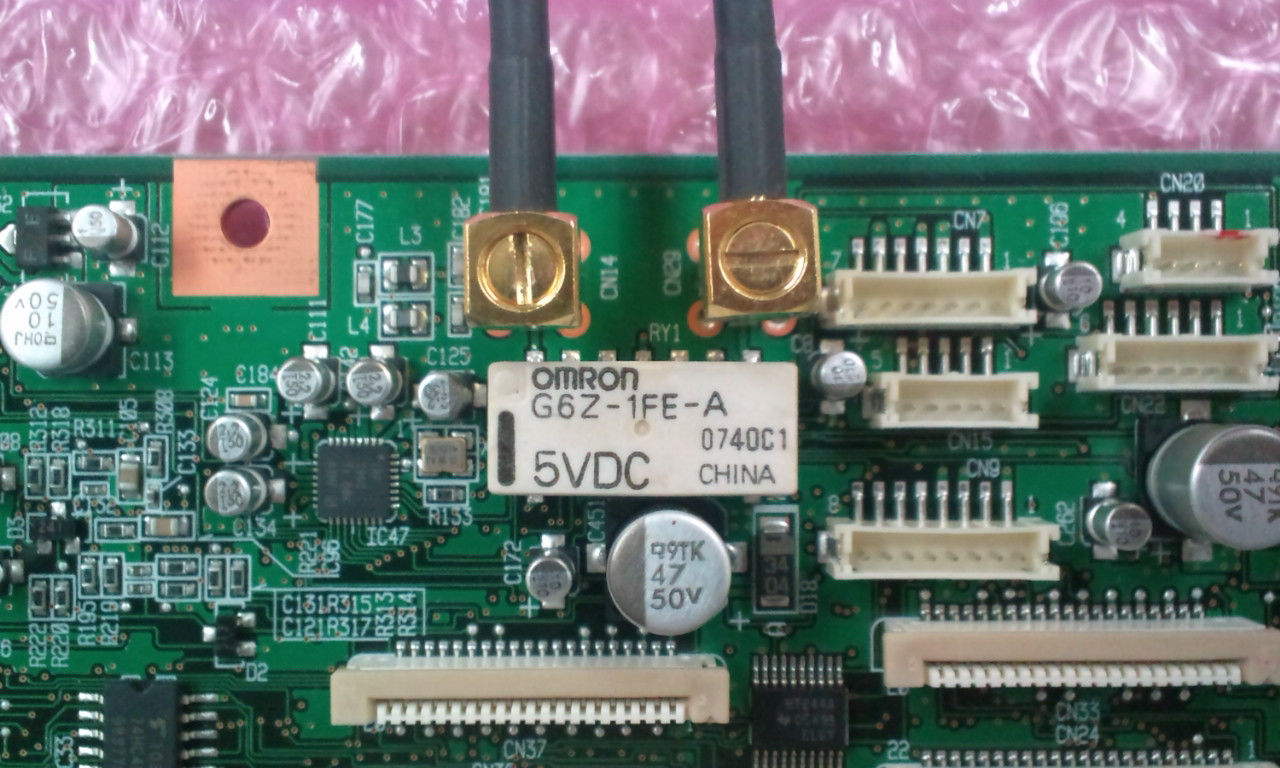

DP-1045-5 Product Photo (inside 1of5) DP-1045-5 Product Photo (inside 1of5)DP-1045-5 Product Photo (inside 1of5) DP-1045-5 Product Photo (inside 1of5) Antenna Board (Front side) Antenna Board (Rear side) Antenna Board Main Control Board DP-1045-5 Product Photo (inside 2of5) DP-1045-5 Product Photo (inside 2of5)DP-1045-5 Product Photo (inside 2of5) DP-1045-5 Product Photo (inside 2of5) Main Control Board Radio Unit (Front side) Radio Unit (Rear side) RFID LSI Relay CN29CN14 DP-1045-5 Product Photo (inside 3of5) DP-1045-5 Product Photo (inside 3of5)DP-1045-5 Product Photo (inside 3of5) DP-1045-5 Product Photo (inside 3of5) IC_Tag（Front side） IC_Tag（Rear side） DP-1045-5 Product Photo (inside 4of5) DP-1045-5 Product Photo (inside 4of5)DP-1045-5 Product Photo (inside 4of5) DP-1045-5 Product Photo (inside 4of5) Left side Enlarged view Main Control Board DP-1045-5 Product Photo (inside 5of5) DP-1045-5 Product Photo (inside 5of5)DP-1045-5 Product Photo (inside 5of5) DP-1045-5 Product Photo (inside 5of5) Enlarged view Left side Enlarged view Right side Antenna Board (Left side) Antenna Board (Right side)

Test Report

Test report No. : 31EE0296-HO-04-A-R1 Page : 2 of 24 Issued date : July 20, 2011 Revised date : August 10, 2011 FCC ID : ZQUDP-1045-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 CONTENTS PAGE SECTION 1: Customer information ................................................................................................... 3 SECTION 2: Equipment under test (E.U.T.) ..................................................................................... 3 SECTION 3: Test specification, procedures & results ...................................................................... 4 SECTION 4: Operation of E.U.T. during testing .............................................................................. 7 SECTION 5: Conducted emission ..................................................................................................... 10 SECTION 6: Radiated emission (Fundamental , Spurious Emission and Spectrum Mask ) ...... 11 SECTION 7: Other test ...................................................................................................................... 12 APPENDIX 1: Photographs of test setup ......................................................................................... 13 Conducted emission ..............................................................................................................................................................13 Radiated emission .................................................................................................................................................................14 Worst Case Position ..............................................................................................................................................................15 APPENDIX 2: Data of EMI test ........................................................................................................ 17 Conducted emission ..............................................................................................................................................................17 Fundamental emission and Spectrum Mask .......................................................................................................................18 Supurious emission ...............................................................................................................................................................19 20dB Bandwidth ...................................................................................................................................................................21 99% Occupied Bandwidth ...................................................................................................................................................22 Frequency Tolerance ............................................................................................................................................................23 APPENDIX 3: Test instruments ........................................................................................................ 24 Test report No. : 31EE0296-HO-04-A-R1 Page : 3 of 24 Issued date : July 20, 2011 Revised date : August 10, 2011 FCC ID : ZQUDP-1045-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 1: Customer information Company Name : SINFONIA TECHNOLOGY CO., LTD. Address : 100 Takegahana-cho, Ise-shi, Mie-ken, 516-8550 JAPAN Telephone Number : 81-596-36-1286 Facsimile Number : 81-596-36-3884 Contact Person : Tsutomu Inagaki SECTION 2: Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Type of Equipment : Digital Photo Printer Model No. : DP-1045-5 Serial No. : Refer to Section 4, Clause 4.2 Rating : AC 100-240V Receipt Date of Sample : June 14, 2011 Country of Mass-production : Japan Condition of EUT : Production prototype (Not for Sale: This sample is equivalent to mass-produced items.) Modification of EUT : No Modification by the test lab 2.2 Product Description General Specification Clock frequency(ies) in the system : External 24 MHz: Internal ARM 300 MHz, DSP 300 MHz, DDR 126 MHz USB: Communicate with PC at maximum 480 MHz External 50 MHz: Internal FPGA 50 MHz, 100 MHz External 13.56 MHz: Internal RFID 13.56 MHz Radio Specification Radio Type : Transceiver Frequency of Operation : 13.56MHz Modulation : ASK Power Supply (radio part input) : DC 3.3V Antenna type : Pattern Antenna Test report No. : 31EE0296-HO-04-A-R1 Page : 4 of 24 Issued date : July 20, 2011 Revised date : August 10, 2011 FCC ID : ZQUDP-1045-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 SECTION 3: Test specification, procedures & results 3.1 Test Specification Test Specification : FCC Part 15 Subpart C: 2011, final revised on July 8, 2011 and effective August 8, 2011 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.225 : Operation within the band 13.110-14.010MHz *The revision on July 8, 2011 does not affect the test specification applied to the EUT. 3.2 Procedures and results Item Test Procedure Specification Worst margin Results Remarks Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 [QP] 10.5dB 13.56000MHz, L [AV] 9.2dB 0.50326MHz, L Complied - <IC>RSS-Gen 7.2.4 <IC>RSS-Gen 7.2.4 Electric Field Strength of Fundamental Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.225(a) 53.4dB 13.56000MHz, QP, 90deg. Complied Radiated <IC> RSS-Gen 4.8, 4.11 <IC>RSS-210 A2.6 Spectrum Mask ANSI C63.4:2003 13. Measurement of intentional radiators Section 15.225(b)(c) 24.6dB 13.11000MHz, QP, 90deg. Complied Radiated <IC>RSS-Gen 4.9, 4.11 <IC> RSS-210 A2.6 20dB Bandwidt…

Text truncated - open the document above for the full version.

Test Report

Test report No. : 31EE0296-HO-04-A-R1 Page : 17 of 24 Issued date : July 20, 2011 Revised date : August 10, 2011 FCC ID : ZQUDP-1045-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 2: Data of EMI test Conducted emission DATA OF CONDUCTED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.3 Semi Anechoic Chamber Date : 2011/07/20 Company : SINFONIA TECHNOLOGY CO., LTD. Report No. : 31EE0296-HO-04 Kind of EUT : Digital Photo Printer Power : AC 120V / 60Hz Model No. : DP-1045-5 Temp./Humi. : 24deg. C / 53% RH Serial No. : E3-001 Engineer : Kazuya Yoshioka Mode / Remarks : Transmitting (Tx and Rx) without Tag mode LIMIT : FCC15.207 QP FCC15.207 AV CHART:WITH FACTOR,Peak hold data. CALCULATION:RESULT[dBuV]=READING[dBuV]+C.F[dB](LISN LOSS+CABLE LOSS) Except for the above table : adequate margin data below the limits. Frequency[Hz] [dBuV]<< QP/AV DATA >> L:QP:AV N:QP:AV .15M30M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 Frequency Reading LevelReading LevelCorr.ResultsResultsLimitLimitMarginMargin PhaseComment Frequency QPAVFactorQPAVQPAVQPAVPhaseComment [MHz][dBuV][dBuV][dB][dBuV][dBuV][dBuV][dBuV][dB][dB] PhaseComment 0.1988032.826.913.145.940.063.753.717.813.7N 0.2006534.230.213.347.543.563.653.616.110.1L 0.3987024.220.213.337.533.557.947.920.414.4L 0.3993022.719.313.336.032.657.947.921.915.3N 0.4976021.521.413.334.834.756.046.021.211.3N 0.5032625.323.513.338.636.856.046.017.49.2L 7.3630426.519.113.840.332.960.050.019.717.1N 7.3651627.820.513.841.634.360.050.018.415.7L 13.5600033.421.114.347.735.460.050.012.314.6N 13.5600035.223.714.349.538.060.050.010.512.0L 27.1200019.412.614.734.127.360.050.025.922.7N 27.1200021.012.914.735.727.660.050.024.322.4L * Noises of digital parts were excluded since the EUT was class A device. Transmitting (Tx and Rx) without Tag mode Test report No. : 31EE0296-HO-04-A-R1 Page : 18 of 24 Issued date : July 20, 2011 Revised date : August 10, 2011 FCC ID : ZQUDP-1045-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Fundamental emission and Spectrum Mask DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2011/07/01 Company : SINFONIA TECHNOLOGY CO., LTD. Report No. : 31EE0296-HO-04 Kind of EUT : Digital Photo Printer Power : AC 120V / 60Hz Model No. : DP-1045-5 Temp./ Humi. : 22deg. C / 52% RH Serial No. : Engineer : Tomotaka Sasagawa Mode / Remarks : Transmitting (Tx and Rx) without Tag mode, Worst axis(EUT:X/ANT:Z-axis) LIMIT : FCC15.225 10m, 9-90kHz:PK, 110-490kHz:PK, other:QP FCC15.225 10m, 9-90kHz:AV, 110-490kHz:AV, other:QP CHART: WITH FACTOR , ANT TYPE: LOOP Except for the data below : adequate margin data below the limits. CALCULATION : RESULT = READING + ANT FACTOR + LOSS( CABLE + ATTEN.) - GAIN(AMP.) Frequency[Hz] [dBuV/m]<< QP DATA >> 90 deg:C 12.56M14.56M 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 Freq.Reading DET Ant.FacLossGainResultLimitMarginAntenna Table Comment Freq.Reading DET Ant.FacLossGainResultLimitMarginAntenna Table Comment [MHz][dBuV] DET [dB/m][dB][dB][dBuV/m][dBuV/m][dB][deg] [deg] Comment 13.1100029.8QP19.37.132.224.048.624.690C0 13.4100029.8QP19.37.132.224.059.535.590C39 13.5530042.0QP19.37.132.236.269.533.390C110 13.5600038.6QP19.37.132.232.8103.070.20C231 13.5600053.5QP19.37.132.247.7103.055.345C322 13.5600055.4QP19.37.132.249.6103.053.490C154 13.5600052.1QP19.37.132.246.3103.056.7135C119 13.5600033.4QP19.37.132.227.6103.075.40C223LOOP-ANT:HOR 13.5670041.5QP19.37.132.235.769.533.890C96 13.7100029.8QP19.37.132.224.059.535.590C240 14.0100029.7QP19.37.132.223.948.624.790C15 Test report No. : 31EE0296-HO-04-A-R1 Page : 19 of 24 Issued date : July 20, 2011 Revised date : August 10, 2011 FCC ID : ZQUDP-1045-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Supurious emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.1 Semi Anechoic Chamber Date : 2011/07/01 Company : SINFONIA TECHNOLOGY CO., LTD. Report No. : 31EE0296-HO-04 Kind of EUT : Digital Photo Printer Power : AC 120V / 60Hz Model No. : DP-1045-5 Temp./ Humi. : 22deg. C / 52% RH Serial No. : Engineer : Tomotaka Sasagawa Mode / Remarks : Transmitting (Tx and Rx) without Tag mode, Worst axis(EUT:X/ANT:Z-axis) LIMIT : FCC15.225 10m, 9-90kHz:PK, 110-490kHz:PK, other:QP FCC15.225 10m, 9-90kHz:AV, 110-490kHz:AV, other:QP CHART: WITH FACTOR , ANT TYPE: LOOP Except for the data below : adequate margin data below the limits. CALCULATION : RESULT = READING + ANT FACTOR + LOSS( CABLE + ATTEN.) - GAIN(AMP.) Frequency[Hz] [dBuV/m]<< QP DATA >> 90 deg:C 45 deg:B 0 deg:A 30M.01M.02M.03M.05M.07M.1M.2M.3M.5M.7M1M2M3M5M7M10M20M 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 Freq.Reading DET Ant.FacLossGainResultLimitMarginAntennaTable Comment Freq.Reading DET Ant.FacLossGainResultLimitMarginAntennaTable Comment [MHz][dBuV] DET [dB/m][dB][dB][dBuV/m][dBuV/m][dB][deg][deg] Comment 16.7200036.9QP19.47.332.231.348.617.390C359 27.1000032.1QP20.17.732.227.748.620.990C359 Test report No. : 31EE0296-HO-04-A-R1 Page : 20 of 24 Issued date : July 20, 2011 Revised date : August 10, 2011 FCC ID : ZQUDP-1045-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Spurious emission DATA OF RADIATED EMISSION TEST UL Japan, Inc. Head Office EMC Lab. No.4 Semi Anechoic Chamber Date : 2011/07/02 Company : SINFONIA TECHNOLOGY CO., LTD. Report No. : 31EE0296-HO-04 Kind of EUT : Digital Photo Printer Power : AC 120V / 60Hz Model No. : DP-1045-5 Temp./Humi. : 24deg. C / 57% RH Serial No. : Engineer : Hironobu Ohnishi Mode / Remarks : Transmitting (Tx and Rx) without Tag mode, Worst axis (EUT:Z/ANT:Z) LIMIT : FCC15.209 3m, below 1GHz:QP, abo…

Text truncated - open the document above for the full version.

Test Setup Photos

Test report No. : 31EE0296-HO-04-A-R1 Page : 13 of 24 Issued date : July 20, 2011 Revised date : August 10, 2011 FCC ID : ZQUDP-1045-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 APPENDIX 1: Photographs of test setup Conducted emission Photo 1 Photo 2 Test report No. : 31EE0296-HO-04-A-R1 Page : 14 of 24 Issued date : July 20, 2011 Revised date : August 10, 2011 FCC ID : ZQUDP-1045-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Radiated emission Photo 1 Photo 2 Test report No. : 31EE0296-HO-04-A-R1 Page : 15 of 24 Issued date : July 20, 2011 Revised date : August 10, 2011 FCC ID : ZQUDP-1045-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position Below 30MHz EUT: X-axis / ANT:Z-axis Above 30MHz EUT: Horizontal:Z-axis / Vertical:Z-axis ANT: Horizontal:Z-axis / Vertical:Z-axis EUT ANT X-axis X-axis Y-axis Y-axis Z-axis Z-axis Test report No. : 31EE0296-HO-04-A-R1 Page : 16 of 24 Issued date : July 20, 2011 Revised date : August 10, 2011 FCC ID : ZQUDP-1045-5 UL Japan, Inc. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone : +81 596 24 8116 Facsimile : +81 596 24 8124 Worst Case Position With Tag Without Tag(Worst)
