ZR6DDM-101Dash-dock Multimedia

Bluetooth/iMode/MP3 Player With FM/AM Tuner OPERATING INSTRUCTION Dash-dock Multimedia 2 Safety Information To provide a clear demonstration and an alternative for easy understanding of the operation of this unit, graphic illustration was used. However, this illustration is not necessary printed as the actual image found on the unit. Thank you for purchasing this product. Please read through these operating instructions so you will know how to operate your model properly. After you have finished reading the instructions, keep this manual in a safe place for future reference. — — — — — — — — — — — — — — — — — — — —— PRECAUTIONS Use only in a 12-volt DC negative-ground electrical system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit. DO NOT attempt to disassemble the unit. Make sure those pins or other objects do not get inside the unit, they may cause malfunctions, or create safety hazards such as electrical shock or laser beam exposure. If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car become normal before operating the unit. Keep the volume at a level at which you can hear outside warning sounds (horns sirens, etc.). Stop the car before performing any complicated operation. FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. C h a n g e s o r m o d i f i c a t i o n s n o t e x p r e s s l y a p p r o v e d b y t h e p a r t y r e s p o n s i b l e f o r compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body Contents Safety Information .........................................2 Panel Controls ...............................................3 General Operation .........................................4 Steering Wheel Control .................................4 Tuner Operation ............................................5 RDS ............................................................5-6 Playing MP3/WMA Files .............................6-7 USB MP3 Playback .......................................7 Bluetooth Operation....................................8-9 System Menu............................................9-10 iMode operation ...........................................11 Electrical Connections .................................12 Installation Guide .........................................13 Troubleshooting ...........................................14 Specifications ..............................................15 3 3 1. - Display switch -.Adjust time(long press) 2. - Power on - Mute - Power off(long press) 3. - Enter system menu, 4. - Disc playback Button 1: - Play/pause - Start play from the beginning of the first track.(long press) Button 2: - Intro play (10 sec.) Button 3: - Track repeat play Button 4: - Track random play Button 5: - MP3 folder down - MP3 track -10 down (long press) Button 6: - MP3 folder up Panel Controls 15 16 6 5 - MP3 track +10 up (long press) - 1-6 Preset: - Press to tune in a preset station. - Long press to store station. 5. - MIC FR 6. - Aux-in jack 7. - Dial number - Answer phone - Redial number.(long press) 8. - Radio tune - Track seek 9. - Rotate to adjust volume - Push to select VOL/BAS/MID/TRE/BAL/ FAD, rotate the knob to adjust level. 10. - Terminate call - Preset scan - MP3 search - Disconnect Bluetooth connection(long press) 11. - USB connector 12. - RESET 13. - Radio - USB (when USB connected) - AUX in - I-MODE - BT Music 14. - Band select - Radio mode, long press to search and store strongest stations in the memory automatically. 15 - Program type - Traffic announcements identification. (long press) 16 - iMode input 4 General Operation Power On/Off Button Press the [ ] button to turn the unit on when the vehicle ignition switch is on. Press and hold the button to turn the unit off. — — — — — — — — — — — — — — — — — — — — Mode Button (SRC) Press the SRC button to change between Radio, USB (when USB is connected), AUX play, I-MODE or BT Music (when bluetooth connected). — — — — — — — — — — — — — — — — — — — — Adjust Volume level Rotate the knob to adjust volume level. Rotate it Clockwise to increase and Counterclockwise to decrease the volume. — — — — — — — — — — — — — — — — — — — — Audio Mute Press the [ ] button to mute the volume from the system. “MUTE” wil…

Text truncated - open the document above for the full version.

V V V

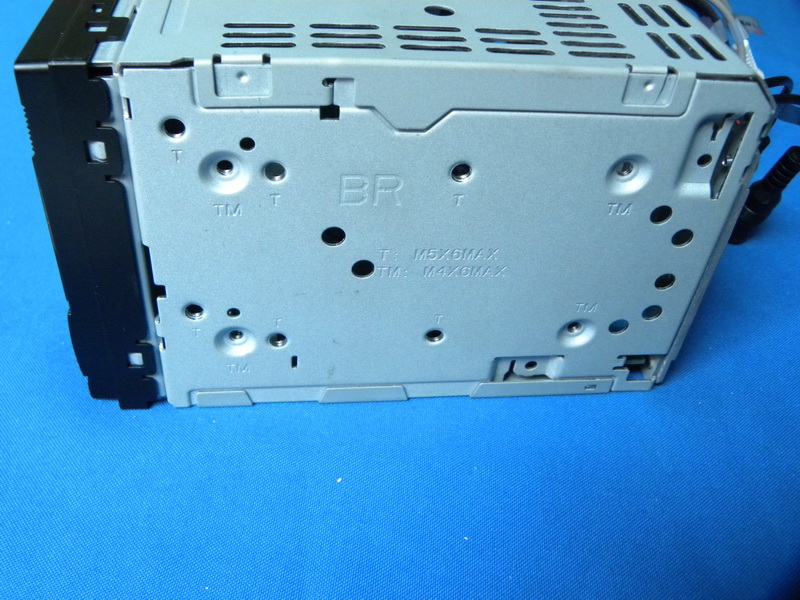

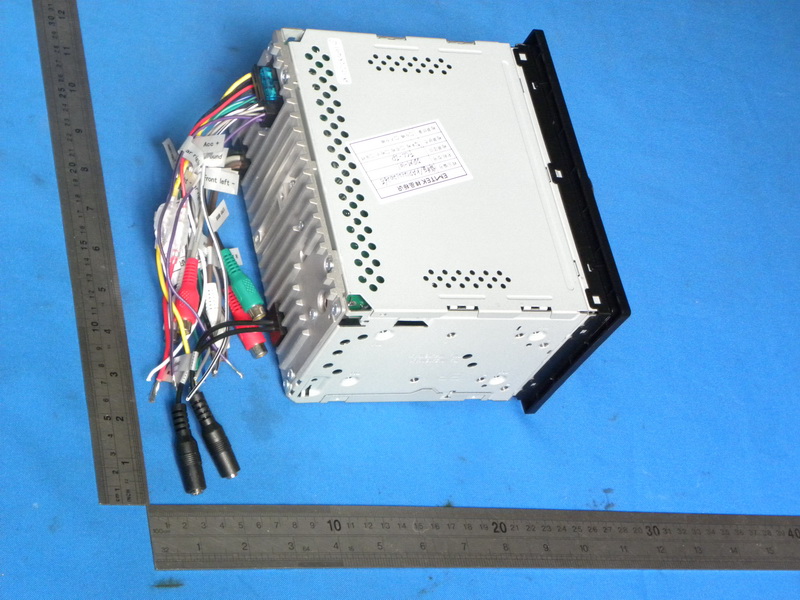

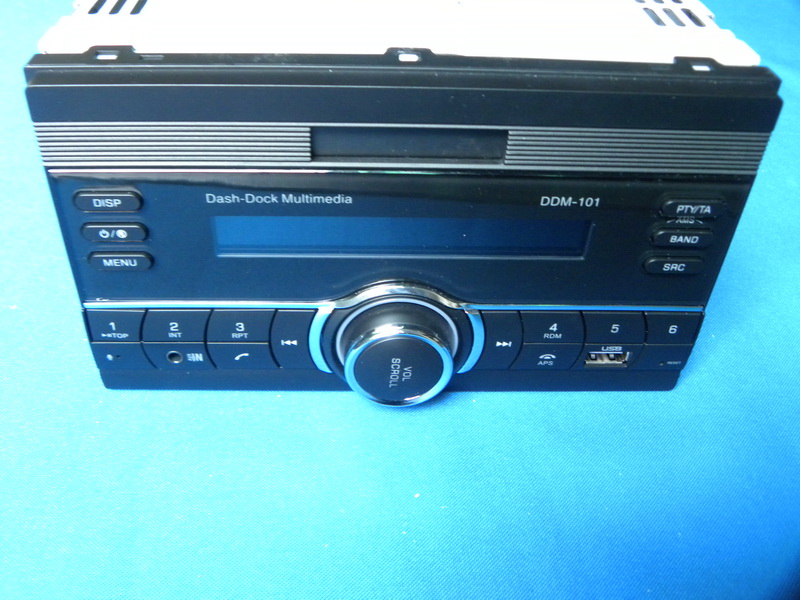

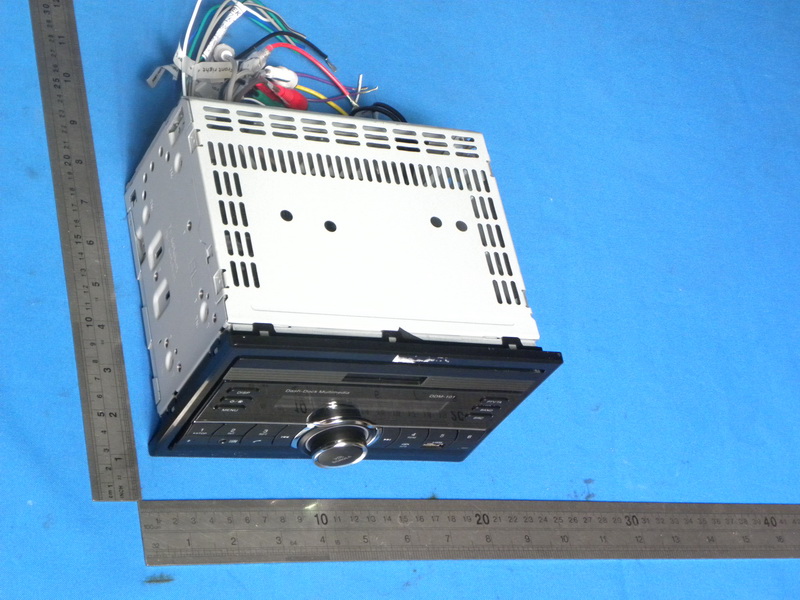

General Appearance of the EUT

Label Location on EUT

P/N:12707000xxxx Dash-dock Multimedia Rear Right (-) Purple/Black Stripe Front Right (+) Grey Front Left (-) White/Black Stripe Rear Left (+) Green Front Right (-)Grey/Black Stripe Rear Left (-) Green/Black Stripe Rear Right (+) Purple Front Left ()+ White SPEAKER OUTPUT Yellow Red Black POWER / LINE-OUT Battery + ACC+ Ground Blue AMP/ANT Control RCA Brown RCA Grey Red White Red White Front Right Line-out Front Line-outLeft Rear Right Line-out Rear Line-outLeft Green SUB OUT Black SWC Black MIC Bluetooth/iMode/MP3 Player With FM/AM Tuner Orange/White Stripe ILLUMI Design in California Made in China FCC ID ：ZR6DDM-101

Antenna

TRF No. FCC 15.247/A Page50of 50 Report No.: KAD121212026E 13. RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- --F/3006 1500-100000 -- --5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- --F/1500 6 1500-100000 -- --1 30 13.1 Friis transmission formula: Pd=(Pout*G)\(4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in Mw G= gain of antenna in linear scale Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm2. If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 13.2 Measurement Result. Operating Mode Channel Frequency (MHz) Output Peak power (mW) Antenna Gain (dBi) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/cm 2 ) op-mode 1 2402 0.052 -2.34 6.00e-06 1 op-mode 2 2441 0.041 -2.34 4.73e-06 1 op-mode 3 2480 0.049 -2.34 5.65e-06 1 op-mode 6 2402 0.045 -2.34 5.19e-06 1 op-mode 7 2441 0.033 -2.34 3.81e-06 1 op-mode 8 2480 0.038 -2.34 4.38e-06 1 op-mode 10 2402 0.043 -2.34 4.96e-06 1 op-mode 11 2441 0.031 -2.34 3.58e-06 1 op-mode 12 2480 0.035 -2.34 4.04e-06 1
