ZRYHS3Spread Spectrum Transmitter

Scale Module Comunication Module MCU sensor MCU Bluetooth module Battery Box DATA POWER LDO LDO EEPROM iOS Device APP ROMRAM 2.4G Raido RF ANT Center frequency 2.4GHz antenna for transmitting signal USB1.1 MFI CP POWER 8MHz oscillator D A T A 32.768KHz oscillator POWER SCALE MCU SYSTEM 16MHz oscillator Theory of operation : SCALE MODULE Measured the body weight dat a, and then send the data to the communication module via UART ,the MCU of the communication modul e Send the data through the Bluetooth module to the iOS device, at the same time ,these data are store d into the EEPROM.

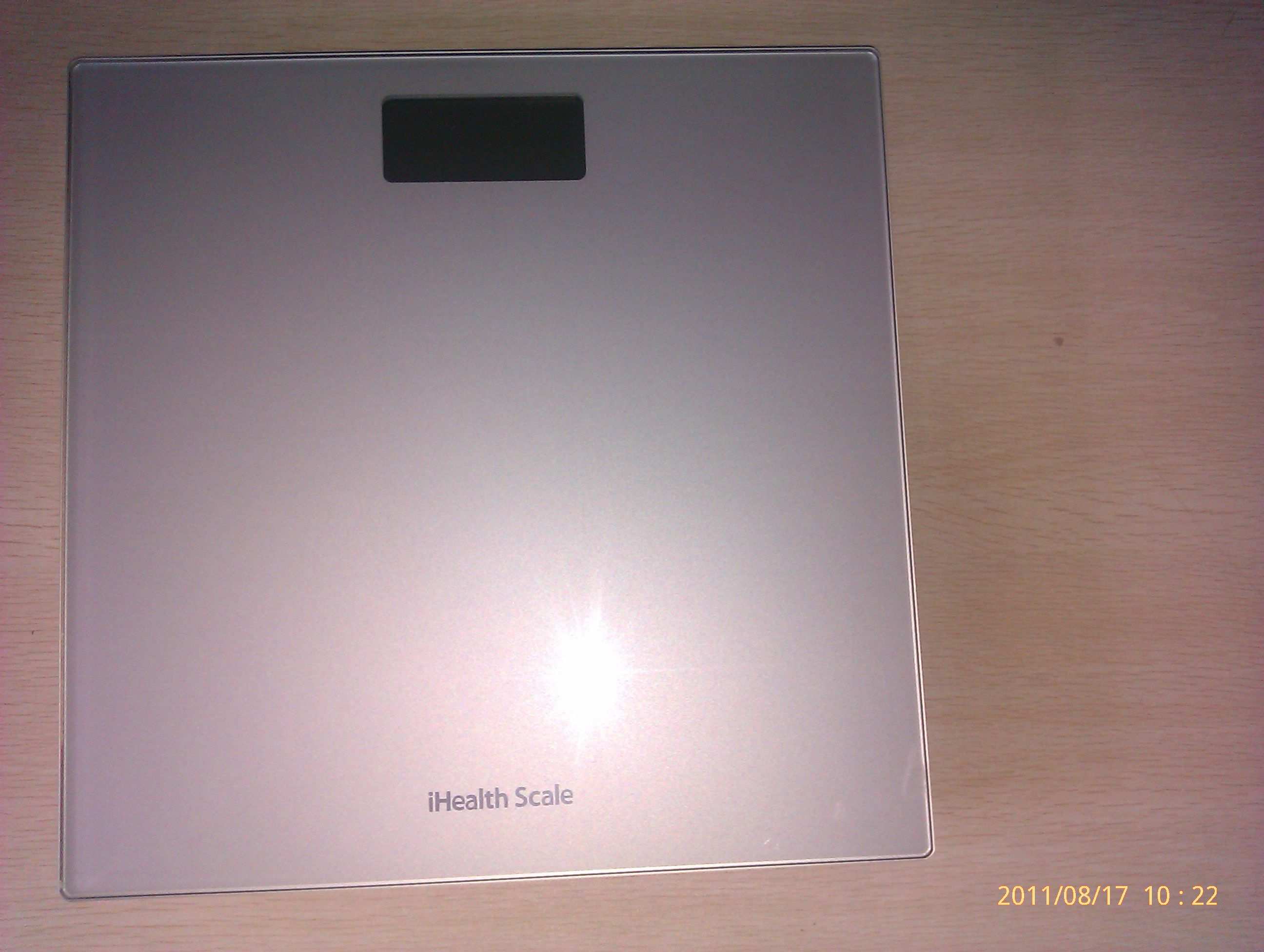

Photo Documentation Report Number: 15045728 001 Model: HS3 - Page 1 of 10 - External photos

2mm 1.5mm

Photo Documentation Report Number: 15045728 001 Model: HS3 - Page 2 of 10 - Internal Photos Photo Documentation Report Number: 15045728 001 Model: HS3 - Page 3 of 10 - Photo Documentation Report Number: 15045728 001 Model: HS3 - Page 4 of 10 - Photo Documentation Report Number: 15045728 001 Model: HS3 - Page 5 of 10 - Photo Documentation Report Number: 15045728 001 Model: HS3 - Page 6 of 10 - Photo Documentation Report Number: 15045728 001 Model: HS3 - Page 7 of 10 - Bluetooth module Photo Documentation Report Number: 15045728 001 Model: HS3 - Page 8 of 10 - Photo Documentation Report Number: 15045728 001 Model: HS3 - Page 9 of 10 - Photo Documentation Report Number: 15045728 001 Model: HS3 - Page 10 of 10 -

Theory of Operation Scale module including the MCU system and weight sensors, responsible for the weight weighing. Communication module including the MCU system and Bluetooth device is responsible for transferring the weight data to the iOS devices. The Bluetooth module is available in the 2.4GHz ISM band Class 2 Radio, compatible with Bluetooth Core Specification Version 3.0 + EDR. This Bluetooth module is design for MFi (The Made for iPod, Made for iPhone and Made for iPad logos) electronic accessory via Bluetooth connectivity. The Bluetooth module Uses on-board ceramic antenna and its center frequency is 2.45GHz. Scale module gets weight data first. These data will be sent to the communication module directly, through the UART. In communication module, the MCU system received and stored the weight data in memory, and then sent the data to the Bluetooth module. There also send control command to the Bluetooth module. These commands are used to set the operating mode of the Bluetooth. The Bluetooth module has its own MCU, memory unit, RF unit. They will send data out through the RF antenna. Installed on the iOS device with specific software, you can receive the data via Bluetooth.

FCC ID: ZRYHS3 IC: 9775A-HS3 Produkte Products RF Exposure Statement: 15044599 001 Page 1 of 1 Client: Andon Health Co., Ltd. No. 31 Changjiang Road, Nankai District Tianjin 300193, P.R. China Test item: Bluetooth Body Scale Identification: HS3 FCC Requirement According to FCC 2.1091, mobile equipment must comply with the following applicable limit for maximum permissible exposure (MPE) specified in FCC 1.1310: Equipment Use Frequency Range Power Density [mW/cm 2 ] Average Time [min] General Population / Uncontrolled Exposure 1.5 – 100GHz 1 6 IC Requirement According to RSS-102 (Issue 4), clause 2.5.2, no routine RF exposure evaluation is required if the transmitter power (e.i.r.p.) is below the following threshold: Frequency Range SAR Limitation [W] Above 1.5GHz 5 Measurement Result The maximum measured transmitter power is the following: Conducted Output Power P out [mW] Maximum Antenna Gain [dBi] P out EIRP [mW] Power Density at 20cm [mW/cm 2 ] 2.98 2.28 5.047 0.001002 Note: The power density S in mW/cm 2 is calculated according to the Friis formula: S = (P out · G) / (4π · D 2 ), where S = power density in mW/cm 2 P out = antenna conducted output power in mW G = antenna gain in linear scale (here: 2.28dBi = 1.69 linear) D = distance between observation point and radiating structure in cm (here: 20cm) Conclusion The device complies with the FCC and IC RF exposure requirements since the maximum transmitter power density is below the FCC limit and the e.i.r.p. power is below the IC RF exposure evaluation exemption threshold. Refer to test report 15045728 001 for more details. TÜV Rheinland (Shanghai) Co., Ltd. 10-15/F, Huatsing Building, No.88, Lane 777, Guangzhong Road West, Shanghai 200072, P.R. China

Communication Module － MCU Board Body Scale HS3 ASC221-MCU-V2.1-SCH 产品名称 第 页 产品型号 设计 审核 批准 日期 日期 日期 原理图编号 编号 11 版本 NO. 12 3 更 改 记 录 更改时间 V1.0 共 页 R24100K 13 D1 1N4148 VDD_3V3 P10/PCL 1 P120/INTP0/EXLVI 2 P47/KR7 3 P46/KR6 4 P45/KR5 5 P44/KR4/TI50/TO50 6 P43/KR3/TI51/TO51 7 P42/KR2 8 P41/KR1/RIN 9 P40/KR0/VLC3 10 VLC2 11 VLC1 12 VLC0 13 RESET 14 P124/XT2 15 P123/XT1 16 FLMD0 17 P122/X2/EXCLK/OCD0B 18 P121/X1/OCD0A 19 REGC 20 VSS 21 VDD 22 P153/SEG31 23 P152/SEG30 24 P151/SEG29 25 P150/SEG28 26 P143/SEG27 27 P142/SEG26 28 P141/SEG25 29 P140/SEG24 30 P133/SEG23 31 P132/SEG22 32 P131/SEG21 33 P130/SEG20 34 P113/RXD6/SEG19 35 P112/TXD6/SEG18 36 P111/SEG17 37 P110/SEG16 38 P103/SEG15 39 P102/SEG14 40 P101/SEG13 41 P100/SEG12 42 P93/SEG11 43 P92/SEG10 44 P91/SEG9 45 P90/SEG8 46 P83/SEG7 47 P82/SEG6 48 P81/SEG5 49 P80/SEG4 50 COM7/SEG3 51 COM6/SEG2 52 COM5/SEG1 53 COM4/SEG0 54 COM3 55 COM2 56 COM1 57 COM0 58 AVREF 59 AVSS 60 P27/ANI7/SEG32 61 P26/ANI6/SEG33 62 P25/ANI5/SEG34 63 P24/ANI4/SEG35 64 P23/ANI3/SEG36 65 P22/ANI2/SEG37 66 P21/ANI1/SEG38 67 P20/ANI0/SEG39 68 P30/INTP5 69 P31/TOH1/INTP3 70 P32/TOH0/MCG0 71 P33/TI000/RTCDIV/RTCCL/BUZ/INTP2 72 P34/TI52/TI010/TO00/RTC1HZ/INTP1 73 P17 74 P16/SOA0/<TXD6> 75 P15/SIA0/<RXD6> 76 P14/SCKA0/INTP4 77 P13/SO10/TXD0 78 P12/SI10/RXD0 79 P11/SCK10 80 Dia 0 U1 μ PD78F0485 RESET BM_P04 C21 0.47uF OSC2OSC1 R231K R2610K VDD_3V3 VDD_3V3 REGC_T SO_P SI_P REGC SDASCL WAKEUP BM_P23 SLFPRO C27 0.47uF SCK_P XT1XT2 HCI_TXD HCI_RXD BM_P22 BM_P24 BM_P20 EAN P_BT C27 is NC,when using debugger POWERWAKE FLMD0 SLFPRO RESET P120 P61 P17 C13 0.1uF BM_P26 BM_P27 RST_N P40P41P42P43P44 R6810K A0 1 A1 2 A2 3 GND 4 SDA 5 SCL 6 WP 7 VCC 8 U6K24C16 R8110K VDD_3V3 SDASCL C63 0.1uF SI_PSCK_P P_BT EANBM_P22BM_P24BM_P20 BM_P04 WAKEUP BM_P23 XT1XT2 OSC1 OSC2 VDD_3V3 HCI_RXDBM_P27HCI_TXDRST_N 123456789 1011121314 151617181920212223242526 U10pin_BT BM_P16 BM_P16 BM_P26SO_PPOWERWAKE P120 VDD_3V3 C11 0.1uF R221M X1 1 X2 2 GND 3 X18M CB1 47uF/NC C140.1uF R6310K VDD_3V3 R61100K R62200 1 32 Q2MMBT8050D GND VCC_3V3 12345 6 7 8 9 10 1112131415 16 17 18 19 20 U4 C41 0.1uF C2212pF C2512pF X1 1 X2 2 GND 3 X232.768KHz VDD_3V3 CB5 22uF C52 0.1uF Vin 3 Vout 2 GND 1 U2S-1206B33/NC VDD R1 10K C790.47uF/NC GND 1 SAR_BAT 2 BAT_IN_5V 3 BAT_IN 4 SW_BTN 5 LDO33-O 6 VDD_IO 7 LDO18_O 8 WAKEUP 9 PMULDO_O 10 P04 11 P12/SCL 12 P13/SDA 13 P16 14 USB_DP 15 USB_DM 16 P20 17 P24 18 P21 19 P22 20 EAN 21 RST_N 22 HCI_RXD 23 HCI_TXD 24 P26 25 P27 26 P23 27 P25 28 P07 29 LED1 30 GND 31 BT-RF 32 U3 GND CB3122uF/16V/NC GND VCC_3V3 CB32 22uF/16V GND CB3310uF/16V GND CB34 10uF/16V GND VCC_3V3 BM_P21 R41 10K R4210K BM_SDABM_SCL C35 1uF/16V GND BM_SCLBM_SDABM_WK BM_P23BM_TXDBM_RXDBM_RST_NBM_P22BM_P21BM_P24BM_P20 E30Antenna 1234567 P1Header 7 SCK_PBATT+ VDD GND P_BT POWERWAKESI_PSCK_P P_BT BM_EANBM_P22BM_P24BM_P20 BM_P04BM_WK BM_TXDBM_P23 XT1XT2OSC1OSC2 VDD_3V3 GND SI_PSO_P BATT+ BM_P04 OSC1 OSC2 XT1XT2 SO_P BM_P27 BM_P27BM_RXDBM_RST_N BM_P16 C1 0.1uF/16V CB2 47uF R00/NC BM_P16 1 32 Q3MMBT8050D R210K VDD_3V3 POWERWAKE BM_P26 R07 20K/NC BM_P26 123456789 101112 1314151617181920212223242526 U11 GND LED R3 10K/NC VDD_3V3 P120 C36NC C37NC GND GND R380 R4 10K/NC R5 10K/NC INGNDEN NR OUT U21 TPS79933 GND C530.01uF/NC GND Body Scale HS3 产品名称 第 页 产品型号 设计 审核 批准 日期 日期 日期 原理图编号 编号 11 版本 NO. 12 3 更 改 记 录 更改时间 V1.0 共 页 ASC221-N1S3.0-110528-SCH Communication Module － Bluetooth Board C2312pFC2412pF GND R8 4.7K/NC R7 4.7K/NC R64.7K/NC GND 1 23 Q1MOSFET_P R910 BM_EAN R11NCR12NCR14NCR13NC GND VCC_3V3 R16NCR17NC Scale Module the schematic of the Bluetooth Module

FCC ID: ZRYHS3 IC: 9775A-HS3 Produkte Products Prüfbericht - Nr.: Test Report No.: 15045728 001 Seite 2 von 53 Page 2 of 53 TEST SUMMARY 3.2.1 VOLTAGE REQUIREMENTS, FCC 15.31(E) RESULT: PASS 3.2.2 ANTENNA REQUIREMENTS, FCC 15.203, FCC 15.204 AND RSS-GEN 7.1.4 RESULT: PASS 5.1.1 CONDUCTED OUTPUT POWER, FCC 15.247(B)(1) AND RSS-210 A8.4(2) RESULT: PASS 5.1.2 CARRIER FREQUENCY SEPARATION, FCC 15.247(A)(1) AND RSS-210 A8.1(B) RESULT: PASS 5.1.3 20DB BANDWIDTH, FCC 15.247(A)(1) AND RSS-210 A8.1(A) 5.1.4 99% BANDWIDTH, RSS-GEN 4.6.1 5.1.5 NUMBER OF HOPPING FREQUENCIES, FCC 15.247(A)(1)(III) AND RSS-210 A8.1(D) RESULT: PASS 5.1.6 AVERAGE TIME OF OCCUPANCY, FCC 15.247(A)(1)(III) AND RSS-210 A8.1(D) RESULT: PASS 5.1.7 CONDUCTED SPURIOUS EMISSION, FCC 15.247(D) AND RSS-210 A8.5 RESULT: PASS 5.1.8 BAND EDGE COMPLIANCE OF RF CONDUCTED EMISSION, FCC 15.247(D) AND RSS-210 A8.5 RESULT: PASS 6.1.1 BAND EDGE RADIATED EMISSION, FCC 15.205, FCC 15.209, FCC 15.247(D), RSS-210 2.2, RSS-210 2.6 AND RSS-210 A8.5 RESULT: Pass 6.1.2 RADIATED SPURIOUS EMISSION OF TRANSMITTER, FCC 15.205, FCC 15.209, FCC 15.247(D), RSS-210 2.2, RSS-210 2.6 AND RSS-210 A8.5 RESULT: PASS 6.2.1 RADIATED SPURIOUS EMISSION OF RECEIVER, FCC 15.109, RSS-210 2.2, RSS- 210 2.6, RSS-210 A8.5, RSS-GEN 7.2.3.2 RESULT: PASS FCC ID: ZRYHS3 IC: 9775A-HS3 Produkte Products Prüfbericht - Nr.: Test Report No.: 15045728 001 Seite 3 von 53 Page 3 of 53 Contents 1. GENERAL REMARKS............................................................................................... 5 1.1 COMPLEMENTARY MATERIALS................................................................................. 5 2. TEST SITES............................................................................................................ 5 2.1 TEST FACILITIES..................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS...................................................... 6 2.3 MEASUREMENT UNCERTAINTY................................................................................. 6 3. GENERAL PRODUCT INFORMATION........................................................................... 7 3.1 PRODUCT FUNCTION AND INTENDED USE.................................................................. 7 3.2 SYSTEM DETAILS.................................................................................................... 7 3.2.1 Voltage Requirements, FCC 15.31(e).......................................................................................... 7 3.2.2 Antenna Requirements, FCC 15.203, FCC 15.204 and RSS-Gen 7.1.4..................................... 8 3.3 INDEPENDENT OPERATION MODES........................................................................... 8 3.4 CLOCK FREQUENCIES............................................................................................. 8 3.5 NOISE SUPPRESSING PARTS.................................................................................... 8 4. TEST SET-UP AND OPERATION MODES..................................................................... 9 4.1 TEST METHODOLOGY.............................................................................................. 9 4.2 PHYSICAL CONFIGURATION FOR TESTING................................................................. 9 4.3 TEST OPERATION AND TEST SOFTWARE................................................................... 9 4.4 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT................................................. 9 4.5 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE.............................................. 10 5 . TEST RESULTS OF CONDUCTED MEASUREMENTS AT ANTENNA PORT....................... 11 5.1 TRANSMITTER PARAMETERS.................................................................................. 11 5.1.1 Conducted Output Power, FCC 15.247(b)(1) and RSS-210 A8.4(2)......................................... 11 5.1.2 Carrier Frequency Separation, FCC 15.247(a)(1) and RSS-210 A8.1(b).................................. 13 5.1.3 20dB Bandwidth, FCC 15.247(a)(1) and RSS-210 A8.1(a) ....................................................... 16 5.1.4 99% Bandwidth, RSS-Gen 4.6.1................................................................................................ 20 5.1.5 Number of Hopping Frequencies, FCC 15.247(a)(1)(iii) and RSS-210 A8.1(d) ........................ 24 5.1.6 Average Time of Occupancy, FCC 15.247(a)(1)(iii) and RSS-210 A8.1(d)............................... 27 5.1.7 Conducted Spurious Emission, FCC 15.247(d) and RSS-210 A8.5.......................................... 33 5.1.8 Band Edge Compliance of RF Conducted Emission, FCC 15.247(d) and RSS-210 A8.5 ........ 39 6. TEST RESULTS OF RADIATED MEASUREMENTS....................................................... 42 6.1 TRANSMITTER PARAMETERS.................................................................................. 42 6.1.1 Band Edge Radiated Emission, FCC 15.205, FCC 15.209, FCC 15.247(d), RSS-210 2.2, RSS-210 2.6 and RSS-210 A8.5 ............................................................................................... 42 6.1.2 Radiated Spurious Emission of Transmitter, FCC 15.205, FCC 15.209, FCC 15.247(d), RSS-210 2.2, RSS-210 2.6 and RSS-210 A8.5......................................................................... 46 FCC ID: ZRYHS3 IC: 9775A-HS3 Produkte Products Prüfbericht - Nr.: Test Report No.: 15045728 001 Seite 4 von 53 Page 4 of 53 6.2 RECEIVER PARAMETERS....................................................................................... 48 6.2.1 Radiated Spurious Emission of Receiver, FCC 15.109, RSS-210 2.2, RSS-210 2.6, RSS- 210 A8.5, RSS-Gen 7.2.3.2 ....................................................................................................... 48 7. PHOTOGRAPHS OF THE TEST SETUP....................................................................... 49 8. LIST OF TABLES......................................…

Text truncated - open the document above for the full version.

FCC ID: ZRYHS3 IC: 9775A-HS3 Produkte Products Prüfbericht - Nr.: Test Report No.: 15045728 001 Seite 49 von 53 Page 49 of 53 7. Photographs of the Test Setup Photograph 1: Set-up for Conducted Emissions at Antenna Port FCC ID: ZRYHS3 IC: 9775A-HS3 Produkte Products Prüfbericht - Nr.: Test Report No.: 15045728 001 Seite 50 von 53 Page 50 of 53 Photograph 2: Radiated emission orientation of the sample on the table Photograph 3: Radiated emission orientation of the sample on the wood support FCC ID: ZRYHS3 IC: 9775A-HS3 Produkte Products Prüfbericht - Nr.: Test Report No.: 15045728 001 Seite 51 von 53 Page 51 of 53 Photograph 4: Set-up for Set-up for Radiated Emission, 30MHz-1000MHz Photograph 5: Set-up for Radiated Emission, 1G-18GHz
