iMusicBodyRhythm OWNER’S MANUAL TABLE OF CONTENTS INTRODUCTION WARNINGS AND CAUTIONS PACAKAGE CONTENTS INTENDED USE PARTS AND DISPLAY INDICATORS SET UP REQUIREMENTS SET UP PROCEDURES INSTRUCTIONS FOR USE SPECIFICATIONS TROUBLESHOOTING CARE AND MAINTENANCE WARRANTY INFORMATION EXPLANATION OF SYMBOLS ELECTROMAGNETIC COMPATIBILITY INFORMATION SERVICE CENTER INFORMATION To ensure safety and correct usage of the BodyRhythm, all of the safety and operating instructions should be read and followed before using it. INTRODUCTION Thank you for selecting the i-Music BodyRhythm. The i-Music BodyRhythm is designed to give you pleasure and fun. The main functions are in the following: • 5 different auto rhythmic tap modes work without iOS devices. Each of the mode lasts 15 minutes. • Drumbeat tap in sync with music rhythm with iOS devices • Drumbeat tap as what you create with iOS devices • Share the rhythmic tap with your friends with iOS devices PACKAGE CONTENTS • 1 Main Uit • 1 Power Cord • 1 Owner’s Manual • 1 Quick Start Guide INTENDED USE TheiMusic BodyRhythm is intended for adult to use in an indoor environment. It is designed to relieve fatigue and tiredness when you listen to the music. PARTS AND DISPLAY INDICATORS 1. Main Unit 2. Air Openings Main unit （Front view） Main unit （Back view） 1 2 3 4 5 6 7 8 3. Control Panel 4. Zip 5. Power Cord 6. Power Plug 7. Handle Strap 8. DC Jack SET UP REQUIREMENTS The iMusic BodyRhythm is designed to be used with the following iPod touch and iPhone models: iPhone5 iPhone4S iPhone4 iTouch 4 iTouch 5 The iOS version of these devices should be V5.0 or later. IMPORTANT: Any individual who may be pregnant, has a pacemaker, suffers from diabetes, phlebitis and/or thrombosis, is at an increased risk of developing blood clots, or who has pins/screws/artificial joints or other medical devices implanted in his/her body should consult with a physician before using a massaging device designed for home use. Safety information
To reduce the risk of electric shock, this product outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a Control Panel ‘Start’/’Stop’ button to control the BodyRhythm ‘Auto Mode’ button to adjust the different auto rhythmic modes ‘Intensity Level Up’ button to turn up the intensity ‘Intensity Level Down’ button to turn down the intensity qualified electrician to install a proper outlet. Do not attempt to bypass this safety feature in any way.
Do not use it an hour before and after mealtime as this may have adverse effects on the user.
The massager is not intended for persons (including infant and children) with reduced physical, sensory or mental capabilities or with the lack of experience and knowledge-unless or for sleeping person.
Do not operate the massager under the following conditions:  Where aerosol products are being used or oxygen is being administered.  Where explosive and /or flammable fumes is present  Excessively humid or dusty environment such as bathroom  Where the temperature is 40 centigrade or higher
Do not expose the massager to heaters, stoves or direct sunlight.
Remove all scarves, neckties, necklaces, and jewelry before using this massager.
Avoid using it under the influence of alcohol or when you are not feeling well.
Close supervision is necessary when the massager is near children, invalids, or disabled persons.
If you are under medication or with medical conditions, please consult your doctor before use. Do not use the massager if you are not feeling well.
Do not use outdoors. This massager is intended for household and indoor use only.
If you use it in a cold room, do not increase the room temperature abruptly. It is recommended that you increase the temperature gradually.
If it is brought into a warm environment from a cold place where it was stored, wait for one hour before use as there may be water droplets on mechanical parts due to condensation. Using it under such condition may result in malfunction. INSTRUCTION FOR USE
Use the BodyRhythm without iOS device Step 1 Preparation Step 2 Start the BodyRhythm program
Use the BodyRhythm withiOS device Step1 Preparation Step2 Set up procedures Connect the power plug to the electrical outlet Place the BodyRhythm on the shoulder and zip it on Press the ‘Start/Stop’ button to start/stop program Press the ‘Mode’ button to adjust intensity of your desired level Press the ‘Intensity Level Down’ or ‘Intensity Level Up’ button to choose your desired massage program Connect the power plug to the electrical outlet Place the BodyRhythm on the shoulder and zip it on Download the Free BodyRhythm App Prior to first use, download and install the BodyRhythm App from the App Store. Use keyword search terms ‘BodyRhythm’, ‘iMusic’. Or scan the 2D barcode on the package. Account Set Up and Registration Follow the on-screen instructions to register and set up your personal account. Connect to iOS Device via Bluetooth Turn Bluetooth “On” under the “Settings” Menu (Settings->General->Bluetooth->On).Wait until the model name printed on the monitor, (i.e. “BodyRhythm”) and “Not Paired” appear in the Bluetooth Menu,and select the model name to pair and connect. Note: For your maximum safety and comfort, the BodyRhythm are equipped with overheating protection circuit. After 30 minutes of usage, the units switch off automatically. Attention: You can stop the measurement process at any time by pressing the “START/STOP” button or unplug the Power Cord from the DC Jack. SAFTY INFORMATION
Do not overload the electrical outlet. Use only the power source as indicated.
Do not use it when your body is wet.
Do not use wet hands to operate the BodyRhythm, orconnect or disconnect the power plug from the electrical outlet
Do not tamper with the power cord or use it with a damaged cord as this may result in malfunction and an electric shock.
Do not use the BodyRhythm with other therapeutic equipment or el…

Text truncated - open the document above for the full version.

022311 – 6 Authority to Act as Agent Date: 14/12/2012_ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _____ SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd _______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ Title: ___Project Manager_____ On behalf of: ___Andon Health Co., Ltd.___ ___ (Company Name) Telephone: _0086-22-60526161-8086_ ___ 022311 – 6 Request for Confidentiality Date: __14/12/2012__ Subject: Confidentiality Request for: ______FCC ID: ZRYMB3_____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _____ ANDON HEALTH Co., Ltd ______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 022311 – 6 Sincerely,

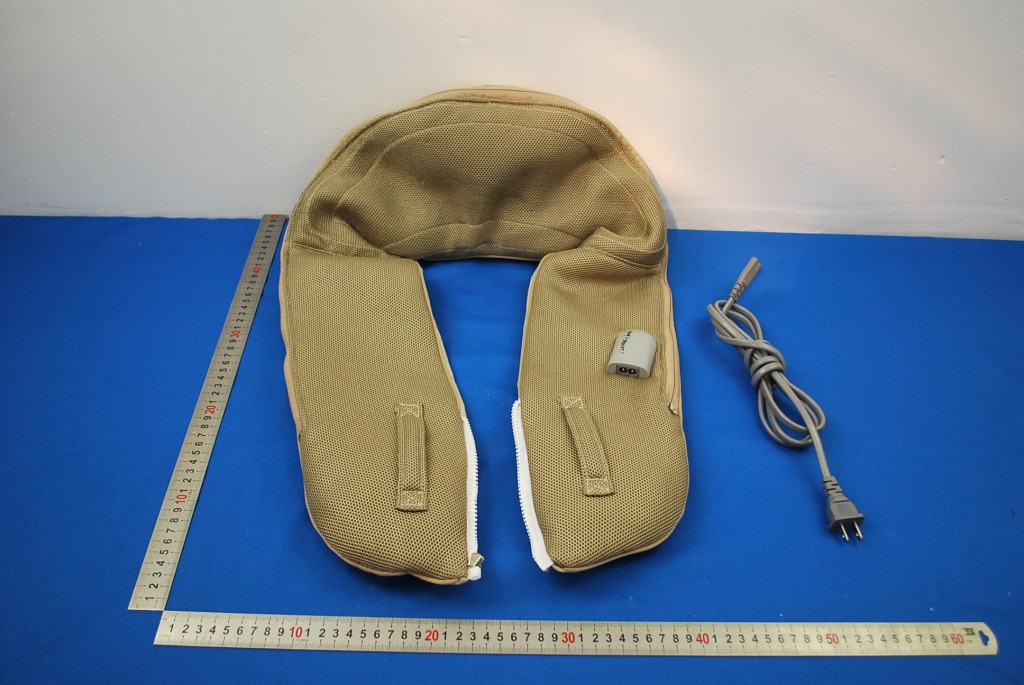

SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix B Page: 1 of 4 Page 1 of 4 MB3 External Photos Application No.: SHEM12110012706RF Applicant: ANDON HEALTH Co., Ltd. Address of Applicant: No. 3 Jin Ping Street, Ya An Road, Nankai District, Tianjin 300190, China Equipment Under Test (EUT): Product Name: BodyRhythm Brand Name: iMusic Model No.: MB3 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix B Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS ..................................................................................................... 2 2 EXTERNAL PHOTOS .................................................................................... 3 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix B Page: 3 of 4 Page 3 of 4 2 External Photos Front View Back View SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix B Page: 4 of 4 Page 4 of 4 Opened View End

8 7 6 5 4 3 2 1 ABCDEFGH MB3 MB3-F11 标签 Pro material Surf dispose Approve Checkup Design .XX .X° .X DateSignature Tolerance Edition Drawing NO. Scale Units 1:1 mm V1.0 Model NO. Part name No. 1 2 3 更 改 记 录 更改时间 Votage: 120V 60Hz ～ iMusic BodyRhythm Model: MB3 Rating time: ≤30 minutes Power consumption: 150W ANDON HEALTH CO .,LTD. NO.3 Jingping Street,YaAn Road, Nankai District,Tianjin 300190,China Distributed by iCess Labs, Inc. 719 N Shoreline Blvd., Mountain View, CA 94043. Operation is subject to the following two conditions: (1) this device may not cause harmful interference,and (2) this device must accept any interference received, Made in China including interference that may cause undesired operation. This device complies with Part 15 of the FCC Rules. White PANTONE 286 C Scale:2:1 缝合线位置 Scale:1:5 标签位置示意 Votage: 120V 60Hz ～ iMusic BodyRhythm Model: MB3 Rating time: ≤30 minutes Power consumption: 150W ANDON HEALTH CO .,LTD. NO.3 Jingping Street,YaAn Road, Nankai District,Tianjin 300190,China Distributed by iCess Labs, Inc. 719 N Shoreline Blvd., Mountain View, CA 94043. 尺寸序号 技术要求 1.材质：涤纶 3.本件要求通过RoHS测试 2.底色白色，印刷颜色Panton Cool Gray 7U 与肩带缝合示意图 标签展开图 FCC ID:ZRYMB3 MAC: SN: 标签内容为打印机打印，颜色黑色 SN码为镭雕，字高2.0 Votage: 120V 60Hz iMusic BodyRhythm Model: MB3 Ra ting time: ≤ 30 minutes Power consumption: 150W ANDON HEALTH CO .,LTD. NO.3 Jingping Street,YaAn R oad, Nankai District,Tianjin 3 00190,China Distributed by iCes s Labs, Inc. 719 N Shoreline Blvd., Mountain View, CA 94043. FCC ID:ZRYMB3 MAC: SN:

SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix C Page: 1 of 6 Page 1 of 6 MB3 Internal Photos Application No.: SHEM12110012706RF Applicant: ANDON HEALTH Co., Ltd. Address of Applicant: No. 3 Jin Ping Street, Ya An Road, Nankai District, Tianjin 300190, China Equipment Under Test (EUT): Product Name: BodyRhythm Brand Name: iMusic Model No.: MB3 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix C Page: 2 of 6 Page 2 of 6 1 Contents Page 1 CONTENTS ..................................................................................................... 2 2 INTERNAL PHOTOS ..................................................................................... 3 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix C Page: 3 of 6 Page 3 of 6 2 Internal Photos Power PCB Front View Power PCB Rear View SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix C Page: 4 of 6 Page 4 of 6 Motor View Control PCB Front View SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix C Page: 5 of 6 Page 5 of 6 Control PCB Rear View BT modular Front View SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix C Page: 6 of 6 Page 6 of 6 BT modular Rear View End

SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China Telephone: +86 (0) 21 61915666 Fax: +86 (0) 21 61915678 [email protected] Report No.: SHEM1211001270604 Page 1 of 9 Tony Wu E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only FCC MPE REPORT Application No.: SHEM12110012706RF Applicant: ANDON HEALTH Co., Ltd. Equipment Under Test (EUT): NOTE: The following sample(s) submitted was/were identified on behalf of the client as Product Name: BodyRhythm Brand Name: iMusic Model: MB3 Added Model: N/A FCC ID: ZRYMB3 Standards: 47 CFR Part 1.1307(2011) 47 CFR Part 2.1091(2011) KDB447498D01 Date of Receipt: November 29, 2012 Date of Test: December 04, 2012 to December 08, 2012 Date of Issue: December 11, 2012 Test Result : PASS* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Report No.: SHEM1211001270604 Page: 2 of 9 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only Version Revision Record Version Chapter Date Modifier Remark 00 / December 11, 2012 / Original Authorized for issue by: Zenger Zhang Engineer Print Name Date: Dec. 08, 2012 Amy Wang Clerk Print Name Date: Dec. 11, 2012 Jim Xu Reviewer Print Name Date: Dec. 11, 2012 SGS-CSTC Standards Technical Services（ （（ （Shanghai） ）） ） Co., Ltd. Report No.: SHEM1211001270604 Page: 3 of 9 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Contents Page 1 COVER PAGE .............................................................................................................. 1 VERSION.............................................................................................................................................1 VERSION................................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. 588 W est Jindu Road,Songjiang District,Shanghai,China Telephone: +86 (0) 21 6191 5666 Fax: +86 (0) 21 6191 5678 [email protected] Report No.: SHEM1211001270603 Page 1 of 79 Tony Wu E&E Section Manager SGS-CSTC (Shanghai) Co., Ltd. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only FCC Part 15C TEST REPORT Application No. : SHEM12110012706RF Applicant: ANDON HEALTH Co., Ltd. FCC ID: ZRYMB3 Equipment Under Test (EUT): NOTE: The following sample(s) submitted was/were identified on behalf of the client as Product Name: BodyRhythm Brand Name: iMusic Model: MB3 Added Model: N/A Standards: FCC PART 15 Subpart C: 2011 Date of Receipt: November 29, 2012 Date of Test: December 04, 2012 to December 08, 2012 Date of Issue: December 11, 2012 Test Result : PASS * *In the configuration tested, the EUT detailed in this report complied with the standards specified above. SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM1211001270603 Page: 2 of 79 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 2 Version Revision Record Version Chapter Date Modifier Remark 01 / December 11, 2012 / Original Authorized for issue by: Engineer Zenger Zhang Print Name Date: Dec. 08, 2012 Clerk Amy Wang Print Name Date: Dec. 11, 2012 Reviewer Jim Xu Print Name Date: Dec. 11, 2012 SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. Report No.: SHEM1211001270603 Page: 3 of 79 This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e- document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to thesample(s) tested and such sample(s) are retained for 90 days only 3 Test Summary Test Item Test Requirement Test method Result Antenna Requirement FCC Part 15, Subpart C Section 15.203/15.247 (c) --- PASS AC Power Line Conducted Emission FCC Part 15, Subpart C Section 15.207 ANSI C63.10 (2009) Section 6.2 PASS 20dB Occupied Bandwidth FCC Part 15, Subpart C Section 15.247 (a)(1) ANSI C63.10 (2009) Section 6.9.1 PASS Conducted Peak Output Power FCC Part…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix A Page: 1 of 4 Page 1 of 4 MB3 Test Setup Photos Application No.: SHEM12110012706RF Applicant: ANDON HEALTH Co., Ltd. Address of Applicant: No. 3 Jin Ping Street, Ya An Road, Nankai District, Tianjin 300190, China Equipment Under Test (EUT): Product Name: BodyRhythm Brand Name: iMusic Model No.: MB3 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix A Page: 2 of 4 Page 2 of 4 1 Contents Page 1 CONTENTS .......................................................................................................... 2 2 EQUIPMENT UNDER TEST PICTURES .......................................................... 3 2.1 Radiated Emission Test Setup ...................................................................... 3 2.2 Conducted Emission Test Setup ................................................................... 4 SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix A Page: 3 of 4 Page 3 of 4 2 EQUIPMENT UNDER TEST PICTURES 2.1 Radiated Emission Test Setup 30MHz to 1GHz Above 1GHz SGS-CSTC Standards Technical Services (Shanghai)Co., Ltd. Report No.: SHEM12110012706RF －Appendix A Page: 4 of 4 Page 4 of 4 2.2 Conducted Emission Test Setup End
