ZSG-55518RXNOVA DVR WIRELESS REMOTE

Teknatool International Limited
NOVA DVR WIRELESS REMOTE - FCC ID ZSG-55518RX - Teknatool International Limited
Click to zoom

Application Details

Equipment Class
DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant
Aug 04, 2011
Application Purpose
Original Equipment
Date of Application
Aug 04, 2011
Equipment Note
NOVA DVR WIRELESS REMOTE
Frequency Range
2440.00000000 - 2440.00000000
Company
Teknatool International Limited
Country
New Zealand

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

深 圳 市 盈 峰 电 子 科 技 有 限 公  Shenzhen Y efo Electronics Technology Co.Lt User Manual A . Preparing the PCBA socket which providing 3~5VDC power to RX module as blow red noted Herein Pin1 and Pin2 along left starting socket which proving the DC power t to RX module B. Inserting the bottom layer connector of RX module into this socket as below photo, the red line Noted is connector The status is as left photo after this operation finished The status is as left photo after this operation finished C. Connecting the Top layer two connectors of RX module as below photo. This connector transmit signal to MCU of other controlling module This connector transmit signal to LCD Panel module Above steps finish hard installation. D. the program will be loaded to MCU of RX module before SMT production E. Pressing the RX module switch, then pressing power switch of TX watch, this operation means building handshaking relation between RX and TX while the LED be lighted from red color to green color, the verifying method is to up/down the speed switch, the LCD display will show changed data. When RX module receives the TX data bag, the Transceiver IC will demodulate it and transmit it to MCU,MCU also release controlling instruction to related loading which including LCD controlling panel MCU and other module MCU. At the same time, this IC modulates these signals into data bag and wireless transmits to TX by Antenna. F. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) The device may not cause harmful interference, and (2)This device must accept any interference received, including interference that may cause undesired operation G. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment For a host using a certified modular with a standard fixed label, if (1) the module’s FCC ID is not visible when installed in the host, or (2) if the host is marketed so that end users do not have straightforward commonly used methods for access to remove the module so that the FCC ID of the module is visible; then an additional permanent label referring to the enclosed module: “Contains Transmitter Module FCC ID: ZSG-55518RX” or “Contains FCC ID: ZSG-55518RX” must be used. The host OEM user manual must also contain clear instructions on how end users can find and/or access the module and the FCC ID.

Cover Letter(s)

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 2011-07-20 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Teknatool International Limited hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: NOVA DVR WIRELESS REMOTE Model Name: 55518RX FCC ID: ZSG-55518RX We affirm that between SIEMIC and Teknatool International Limited,any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Nathan Stantiall / GM Teknatool International Limited 7D Dallan Place, Albany, Auckland 0632, New Zealand

Cover Letter(s)

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 Operational description SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Date: 2011-07-20 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZSG-55518RX We hereby request confidential treatment of information accompanying this application as outlined below: - Schematic - Part list - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Nathan Stantiall / GM Teknatool International Limited 7D Dallan Place, Albany, Auckland 0632, New Zealand -

Cover Letter(s)

SCS-F26 Modular Approval Letter Page 1 of 2 Rev 3.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option 2.0 3.0 April 14 2010 SCS-F26 Modular Approval Letter Page 2 of 2 Rev 3.0 2011-07-20 ( Product Name: NOVA DVR WIRELESS REMOTE Model Number: 55518RX ) FCC ID : ZSG-55518RX , is seeking FCC Authorization as a Modular transmitter / Limited Modular Approval (Please check one). The EUT meets the requirements for Modular approval / Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: 1. “The modular transmitter must have its own RF shielding.” NO 2. “The modular transmitter must have buffered modulation/data inputs.” Yes 3. “The modular transmitter must have its own power supply regulation.” Yes 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(c).” Yes 5. “The modular transmitter must be tested in a stand-alone configuration.” Yes 6. “The modular transmitter must be labeled with its own FCC ID number.” Yes 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacture must provide adequate instruction along with the module to explain any such requirements.” Yes 8. “The modular transmitter must comply with any applicable RF exposure requirements.” Yes Sincerely, Nathan Stantiall / GM Teknatool International Limited 7D Dallan Place, Albany, Auckland 0632, New Zealand

External Photos

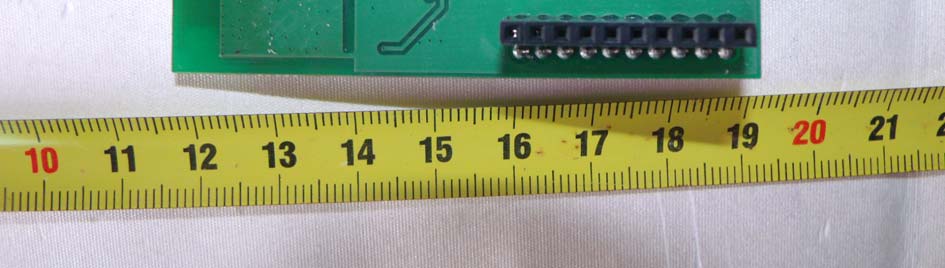

E U T- To p Vi e w EUT-Bottom View Antenna Location

ID Label/Location Info

FCC ID LABELING AND LOCATION FCC ID Labeling Proposed FCC ID Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) FCC ID: ZSG-55518RX Model: 55518RX

Internal Photos

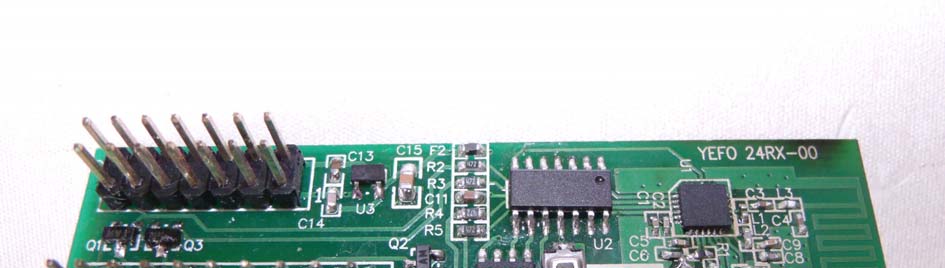

E U T- To p Vi e w EUT-Bottom View Antenna Location

Test Report

Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201107102R-1 Note: This report shall not be reproduced except in full ,without the written approval of by SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD .This document may be altered or revised by SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD. personnel only, and shall be noted in the revision section of the document. FCC PART 15.249 MEASUREMENT AND TEST REPORT For NOVA DVR WIRELESS REMOTE MODEL: 55518RX Test Report Number: BATT201107102R-1 ISSUED FOR Teknatool International Limited 7D Dallan Place, Albany, Auckland 0632, New Zealand ISSUED BY: SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD. 11F,Bldg.B,Xinbaoyuan,XinanhuCommercialcity,Bao’an District,, Shenzhen,Guangdong,China TEL: 86-755-27753991 FAX: 86-755-27754182 Issued Date: July 25, 2011 Teknatool International Limited FCC ID: ZSG-55518RX Report No.:BATT201107102R-1 Page 2 of 23 FCC Part15.249 Test Report TABLE OF CONTENTS TEST CERTIFICATION .............................................................................................................................................4 GENERAL INFORMATION.......................................................................................................................................5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................5 OBJECTIVE...................................................................................................................................................................6 TEST METHODOLOGY..................................................................................................................................................6 TEST FACILITY.............................................................................................................................................................6 SYSTEM TEST CONFIGURATION ..........................................................................................................................7 JUSTIFICATION.............................................................................................................................................................7 EQUIPMENT MODIFICATIONS.......................................................................................................................................7 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................7 EXTERNAL I/O CABLE..................................................................................................................................................7 CONFIGURATION OF TEST SETUP.................................................................................................................................8 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................8 SUMMARY OF TEST RESULTS...............................................................................................................................9 FCC§15.203 - ANTENNA REQUIREMENT............................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 ANTENNA CONNECTOR CONSTRUCTION....................................................................................................................10 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS ....................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 EUT SETUP................................................................................................................................................................11 EMI TEST RECEIVER SETUP.......................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST RESULTS SUMMARY..........................................................................................................................................12 TEST DATA................................................................................................................................................................12 FCC§15.205, §15.209& §15.249- RADIATED EMISSIONS ...................................................................................15 APPLICABLE STANDARD............................................................................................................................................15 MEASUREMENT UNCERTAINTY..................................................................................................................................15 TEST EQUIPMENT SETUP............................................................................................................................................15 EUT SETUP................................................................................................................................................................16 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................16 TE…

Text truncated - open the document above for the full version.

Test Setup Photos

Conducted Emission Test Front View Conducted Emission Test Side View 30 MHz ~ 1000 MHz 1 GHz ~ 18 GHz 18 GHz ~ 25 GHz
