ZSG-55518TXNOVA DVR WIRELESS REMOTE

User Manual a. Firstly assemble the button battery in watch housing and check the RX also be connected to power. b. Touching one time of the RX switch, then touch TX watch power switch up or down .the LED will be lighted with red color and be keeping 5 seconds , this means RX and TX already complete match code operation. Of course, if these steps failure, the LED will be blinked twice with Red and be keeping 1.5seconds, attention the TX power is not enough, the LED color will be dark red.(General this step need be completed before assemble, the user don’t need to do this operation.) c. According to your actual requirement, you may select a switch in surface of watch to control your machine, such as: power switch on or off /up speed switch/down speed switch, one touch or continuous touch one switch is available till achieving your requirement status. ------Switch on status: Pressing this switch till to more than 2seconds, the LED display will be green. Meaning ON status is success ------Switch off status: Quickly pressing this switch and loosing your hand finger, the LED will light with red. ------Switch up/down: quickly press a bit switch or continuing to press the switch till achieving your target status. FCC CAUTION: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) The device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 2011-07-20 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Teknatool International Limited hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: NOVA DVR WIRELESS REMOTE Model Name: 55518TX FCC ID: ZSG-55518TX We affirm that between SIEMIC and Teknatool International Limited，any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Nathan Stantiall / GM Teknatool International Limited 7D Dallan Place, Albany, Auckland 0632, New Zealand

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 Date: 2011-07-20 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: ZSG-55518TX We hereby request confidential treatment of information accompanying this application as outlined below: - Schematic - Part list - Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Nathan Stantiall / GM Teknatool International Limited 7D Dallan Place, Albany, Auckland 0632, New Zealand

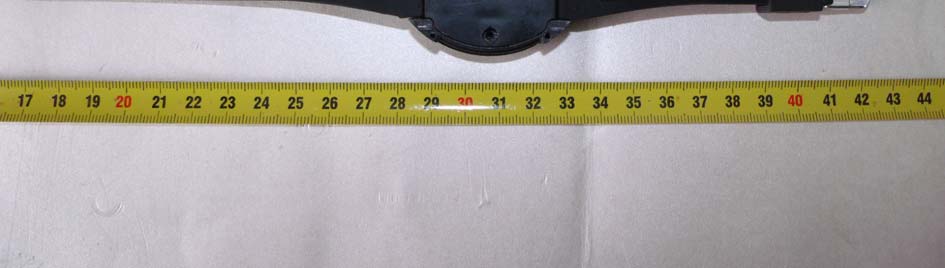

E U T- To p Vi e w EUT-Bottom View

FCC ID LABELING AND LOCATION FCC ID Labeling Proposed FCC ID Location Label here The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) FCC ID: ZSG-55518TX Model: 55518TX

EUT-Cover off View E U T- M a i n B o a r d To p Vi e w EUT-Main Board Bottom View Antenna Location EUT-Main Board Bottom View Battery Information View

深 圳 市 盈 峰 电 子 科 技 有 限 公司 Shenzhen Yefo Electronics Technology Co.Lt Circuit Description: Using MCU to control RF IC to transmit data by wireless mode, Press the different switch to achieve user thought. Technical specification: a.Operation Frequency:2440 MHz b.Modulation: GFSK c.The Gain of Antenna: 0dBi d.RF output power:≤ 0 dBm e.Current: working current:<20mA, Stand by current< 5uA f.Work voltage: 3.2V(DC) g.Operating temperature: -40°C~80°C h.Operating Relativity Humidity range: 20%~90%

Shenzhen BATT Testing Technology Co., Ltd. Report No.: BATT201107101R-1 Note: This report shall not be reproduced except in full ,without the written approval of by SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD .This document may be altered or revised by SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD. personnel only, and shall be noted in the revision section of the document. FCC PART 15.249 MEASUREMENT AND TEST REPORT For NOVA DVR WIRELESS REMOTE MODEL: 55518TX Test Report Number: BATT201107101R-1 ISSUED FOR Teknatool International Limited 7D Dallan Place, Albany, Auckland 0632, New Zealand ISSUED BY: SHENZHEN BATT TESTING TECHNOLOGY CO.,LTD. 11F,Bldg.B,Xinbaoyuan,XinanhuCommercialcity,Bao’an District,, Shenzhen,Guangdong,China TEL: 86-755-27753991 FAX: 86-755-27754182 Issued Date: July 22, 2011 Teknatool International Limited FCC ID: ZSG-55518TX Report No.:BATT201107101R-1 Page 2 of 20 FCC Part15.249 Test Report TABLE OF CONTENTS TEST CERTIFICATION .............................................................................................................................................3 GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 OBJECTIVE...................................................................................................................................................................5 TEST METHODOLOGY..................................................................................................................................................5 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 SUMMARY OF TEST RESULTS...............................................................................................................................7 FCC§15.203 - ANTENNA REQUIREMENT..............................................................................................................8 APPLICABLE STANDARD..............................................................................................................................................8 ANTENNA CONNECTOR CONSTRUCTION......................................................................................................................8 FCC §15.207 (A) – AC LINE CONDUCTED EMISSIONS ......................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 EMI TEST RECEIVER SETUP.......................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST RESULTS...........................................................................................................................................................10 FCC§15.205, §15.209& §15.249- RADIATED EMISSIONS ...................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 MEASUREMENT UNCERTAINTY..................................................................................................................................11 TEST EQUIPMENT SETUP............................................................................................................................................11 EUT SETUP................................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................13 CORRECTED AMPLITUDE & MARGIN CALCULATION.................................................................................................13 TEST RESULTS SUMMARY..........................................................................................................................................13 TEST DATA.......................................................................................................................................................…

Text truncated - open the document above for the full version.

30 MHz ~ 1000 MHz 1 GHz ~ 18 GHz 18 GHz ~ 25 GHz
