ZSW-10-002Dual Band Fixed Wireless Phone

User Manual FX2000 Dual band Fixed Wireless Phone 1 SAFETY INFORMATION 1. EXPOSURE TO RADIO FREQUENCY (RF) ENERGY  Your phone contains a transmitter and a receiver. When it is ON, it receives and also sends out radio frequency (RF) signals. When you communicate with your phone, the system handling your call controls the power level at which your phone transmits.  Your phone is designed to comply with local regulatory requirements in your country concerning exposure of human beings to RF energy. 2. OPERATIONAL PRECAUTIONS  To assure optimal phone performance and make sure human exposure to RF energy is within the guidelines set forth in the relevant standards; always adhere to the following procedures. 3. EXTERNAL ANTENNA CARE  Use only the supplied Motorola approved antenna. Unauthorized antennas, modifications, or attachments could damage the phone.  Do NOT hold the antenna when the phone is IN USE. Holding the antenna affects call quality and may cause the phone to operate at a higher power level than needed. In addition, use of unauthorized antennas may result in non-compliance with the local regulatory requirements in your country. 4. PHONE OPERATION  When placing or receiving a phone call, hold your phone as you would use a wireless telephone.  To maintain compliance with RF energy exposure guidelines, ensure the phone antenna is at least 10 inches (25centimeters) from your body when transmitting. 5. APPROVED ACCESSORIES  Use of accessories not approved by Motorola, including but not limited to batteries and antennas, may cause your phone to exceed RF energy exposure guidelines. 2 6. RF ENERGY INTERFERENCE / COMPATIBILITIES  Nearly every electronic device is susceptible to RF energy interference from external sources if inadequately shielded, designed, or otherwise configured for RF energy compatibility. In some circumstances your phone may cause interference. 7. MEDICAL DEVICES 1) Pacemakers Pacemaker manufacturers recommend that a minimum separation of 10 inches (25centimeters) be maintained between the fixed wireless phone and a pacemaker. Persons with pacemakers should: Always keep the phone more than 10 inches (25 centimeters) from your pacemaker when the phone is turned ON. Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. 2) Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult your hearing aid manufacturer to discuss alternatives. 3) Other Medical Devices If you use any other personal medical device, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. 8. BATTERIES Batteries can cause property damage and / or bodily injury such as burns if a conductive material such as jewelry, keys, or beaded chains touches exposed terminals. The conductive material may complete an electrical circuit (short circuit) and become quite hot. Exercise care in handling any charged battery, particularly when placing it inside a pocket, purse or other container with metal objects. Use only original batteries and chargers. 3  Please don’t use any damaged battery or charger and use the battery only for its intended purpose.  Don’t apply extreme shock to the battery. It’s dangerous to disassemble a battery or to apply extreme shock to the battery via nail or heavy metal objects.  Keep the charger or batteries out of reach of small children or babies.  Always try to keep the battery between -10 ~ 55 Celsius.  Use only manufacturer approved rechargeable batteries and charger designated for this devise. 9. Seizures / Blackouts  Some people may be susceptible to epileptic seizures or blackouts when exposed to flashing lights, such as when watching television or playing video games. These seizures or blackouts may occur even if a person never had a previous seizure or blackout.  If you experienced seizures or blackouts, or if you have a family history of such occurrences, please consult with your doctor. 4 PHONE OVERVIEW (1) Antenna (2) LCD (3) Volume key Up/Down/Ok key (4) Phonebook key (5) FM key (6) Send key (7) End/Power key (8) Speakerphone key (9) Numeric key (10) Right soft key (11) Left soft key (12) Loudspeaker (13) Microphone (14) Receiver (15) Hook key 5 INSTALLATION [1] Connect the coil cord to both the handset and the transceiver (phone). [2] Install the antenna to the antenna connector. Hold the plastic portion of the antenna and turn the metal screw clock-wise. [3] Connect the adaptor to the AC Wall outlet and put adapter jack into the hole on the rear side of transceiver [4] Remove the battery door and Insert SIM card into the SIM slot in the right direction. After this, please Connect the rechargeable battery pack into the battery plug and replace the battery door. [5] After installing the handset correctly, press the power key which is on the right of the front panel for about 3 seconds, the phone will then automatically test whether the SIM Card is inserted and valid. Wait for the antenna icon to display indicator bars before you make a call. Note: The battery pack is a backup for emergencies in case of a power failure. Do not operate the phone without having the AC/DC adaptor connected. Be sure to carefully match the positive and negative terminals as shown on the battery. When using the phone for the first time, charge it for over 6 hours to ensure optimum battery charge. Caution: It is prohibited to use the SIM card for this Fixed Wireless Phone in other GSM phone. Once the SIM pin number is entered, the SIM pin maybe automatically changed so the initial PIN is no longer valid. Therefore, it is highly recommended NOT to take out the SIM card once it is installed in this product. DO NOT bend or scratch your SIM card, and avoid exposing it to static electricity, water, or dirt. 6 KEY FUNCTION [1] Left / Right Soft Key ( Men…

Text truncated - open the document above for the full version.

Tune up Procedure/Part List --- (Long term)

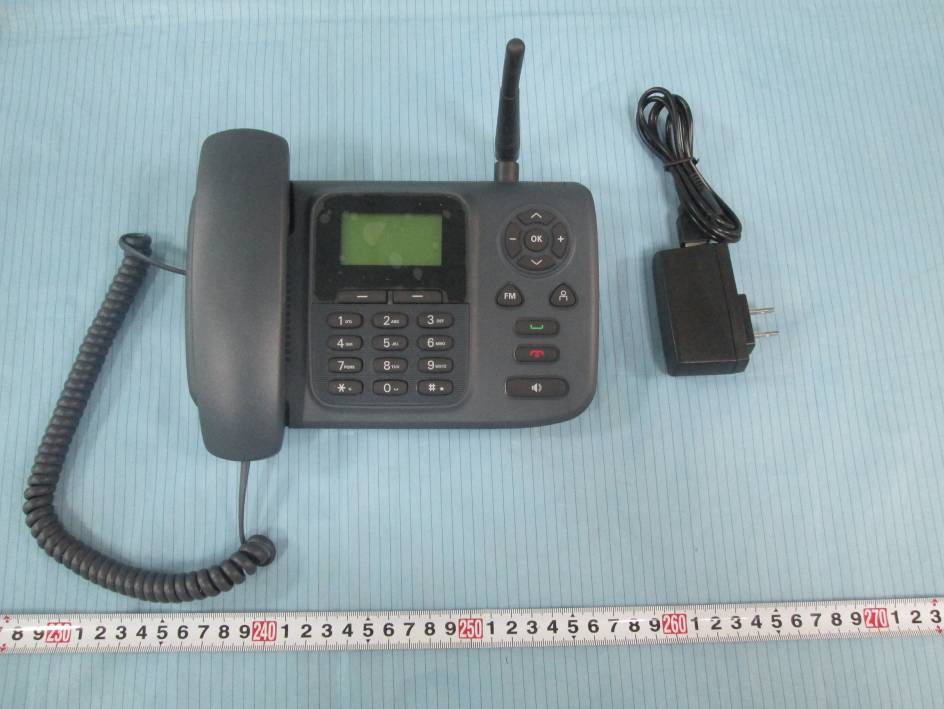

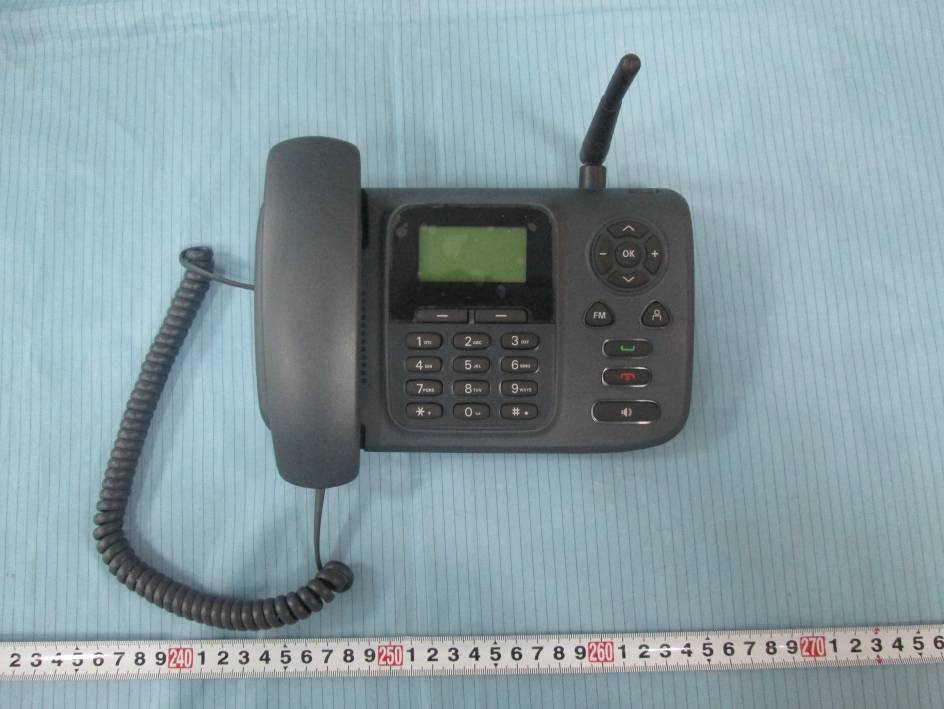

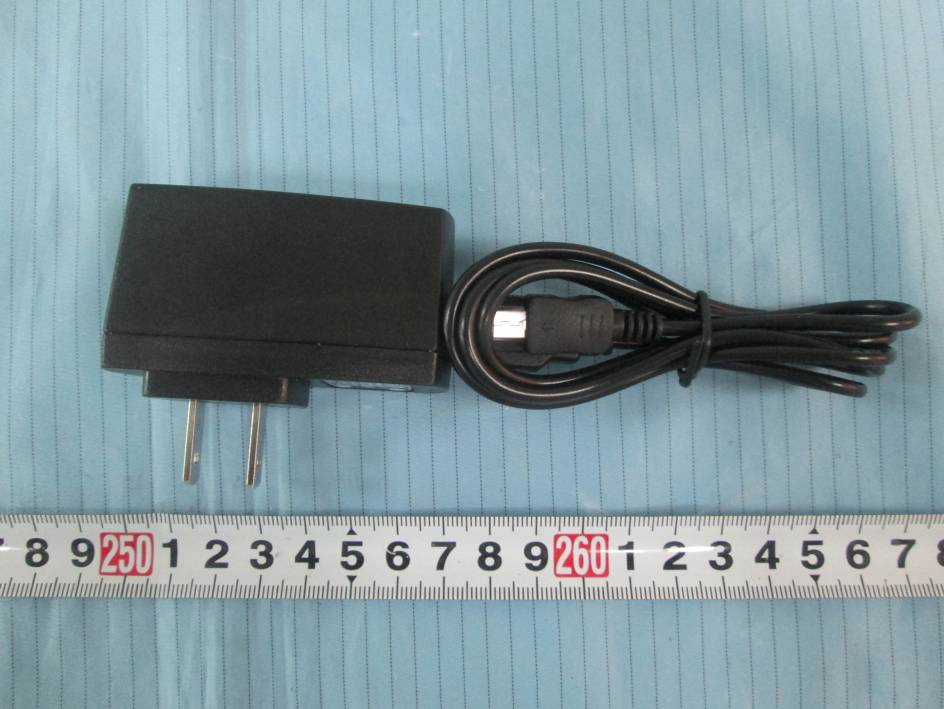

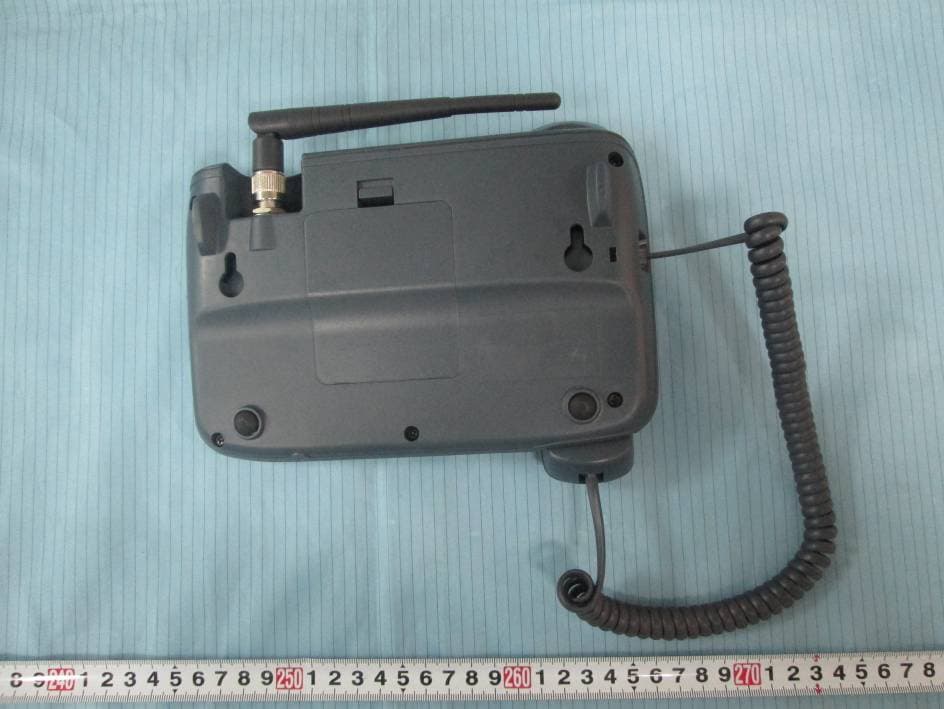

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Full View EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View EUT – Adapter View EUT – Adapter Label View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View EUT – LCD Top View EUT – LCD Bottom View EUT – Battery View EUT – Antenna View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140924001-00B FCC Part 22H/24E Page 8 of 28 FCC §1.1307 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 1.1307 (b)(1), 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mw/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Test Data Predication of MPE limit at a given distance S = PG/4R² Where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Mode Frequency Band Antenna Gain Conducted Power* Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) GSM 850 1 1.26 24.4 275.4 20 0.069 0.5495** 1900 1 1.26 21.4 138.0 20 0.035 1.0 Note *: The maximum target power is 32.4 dBm for GSM850 band, and 29.4 dBm for PCS1900 band The maximum tune-up tolerance is +/-1 dB. The duty cycle is 12.5% (1 slot). Note**: The worst case limit is 0.5495 mW/cm2 at 824.2 MHz Not e: The evaluation distance from human body to the antenna is 20 cm. Result: The device meets FCC MPE limits at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 22H, PART 24E TEST REPORT For b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrital Building; 16-26 Kwai Tak Street; Kwai Chung; New Territories; HONG KONG, CHINA FCC ID: ZSW-10-002 Report Type: Original Report Product Type: Fixed Wireless Phone Test Engineer: Haiguo Li Re port Number: RSZ140924001-00B Re port Date: 2014-09-28 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ140924001-00B FCC Part 22H/24E Page 2 of 28 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 4 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 FCC §1.1307 & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................. 8 APPLICABLE STANDARD .............................................................................................................................................. 8 TEST DATA .................................................................................................................................................................. 8 FCC §2.1047 - MODULATION CHARACTERISTIC .............................................................................................. 9 FCC § 2.1046, § 22.913 (A) & § 24.232 (C) - RF OUTPUT POWER ...................................................................... 10 APPLICABLE STANDARD ............................................................................................................................................ 10 TEST PROCEDURE ...................................................................................................................................................... 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 10 TEST DATA ................................................................................................................................................................ 11 FCC §2.1049, §22.917, §22.905 & §24.238 - BANDWIDTH .................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 TEST PROCEDURE ...................................................................................................................................................... 13 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 13 TEST DATA ................................................................................................................................................................ 13 FCC §2.1051, §22.917(A) & §24.238(A) - SPURIOUS EMISSIONS AT ANTENNA TERMINALS .................. 16 APPLICABLE STANDARD ............................................................................................................................................ 16 TEST PROCEDURE ...................................................................................................................................................... 16 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 16 FCC §2.1053, §22.917 & §24.238 - SPURIOUS RADIATED EMISSIONS ........................................................... 20 APPLICABLE STANDARD ...................…
