ZSW-10-035Mobile Phone

Universe User Guide Thank you for choosing this Spreadtrum Platformphone. This device will offer you unprecedented surprise for it can support GSM cards and multiple cards standby. Meanwhile, this phone is equipped with a 3 megapixel HD digital camera, a MP3 Mobile Musicand a MP4 video player. Enjoy yourself! Safety Please go through, and comply with, the following considerations before using this phone.   Please take earphone if making or Answer incoming call while driving or after you car is parked.   The phone may interfere with aircraft telecommunication. So please turn if off or switch to flight mode during the flight.   Anyphone may be susceptible to interference, which could affect performance.   Please turn off your phone near the medical equipment or in the medical facility where anyphone must be out of service.   Please use the original battery and accessories in order to have optimal performance and prevent phone damage. Please don’t use unmatched products.   Please turn off yourphone in the gas station or near fuel or chemicals to prevent explosion.   To avoid interference with blasting work, please turn off the phone on the site or where two-way radio must be switched off. Please observe the local rules.   Burning or disposing of phone battery as usual is prohibited, or it may cause life risk or environmental pollution. Please dispose of and recycle it in compliance with the local environmental regulations.   If your phone needs to be connected with other device, please read the User Guide of the latter.   Some small components (e.g. memory card, etc.) shall be out of children’s reach; otherwise it may be swallowed or cause other hazards.   Please copy or keep a written copy of the vital information stored in your phone.  SOS  Ensure the phone is turned on and within the service area. Enter the emergency number, press the talking key to tell your location. Please don’t end the call without permission. “Many people mistakenly assume that using a cell phone with a lower reported SAR value necessarily decreases a user’s exposure to RF emissions, or is somehow “safer” than using a cell phone with a high SAR value. While SAR values are an important tool in judging the maximum possible exposure to RF energy from a particular model of cell phone, a single SAR value does not provide sufficient information about the amount of RF exposure under typical usage conditions to reliably compare individual cell phone models.” World Health Organization (WHO) Advice，Organizations such as the World Health Organization and the US Food and Drug Administration have stated that if people are concerned and want to reduce their exposure they could use a hands-free device to keep the phone away from the head and body during phone calls, or reduce the amount of time spent on the phone. Contents Introduction ................................................................................................................................................................ 6 Insert SIM card and battery.................................................................................................................................... 6 Insert memory card ................................................................................................................................................ 6 Battery charging ..................................................................................................................................................... 6 Power on and off .................................................................................................................................................... 7 Call ............................................................................................................................................................................. 7 Making an overseas call. ........................................................................................................................................ 7 Dialing via Contacts ............................................................................................................................................... 7 Calling an extension number ................................................................................................................................. 7 Making an emergency phone ................................................................................................................................. 7 Answer or reject incoming calls ............................................................................................................................ 7 Menu during a call ................................................................................................................................................. 8 End a call ............................................................................................................................................................... 8 Call logs ..................................................................................................................................................................... 8 Commonly Used Functions ................................................................................................................................... 8 More Functions ...................................................................................................................................................... 8 Contacts...................................................................................................................................................................... 9 Browsing contacts .................................................................................................................................................. 9 Quick search ..................................................................................................................…

Text truncated - open the document above for the full version.

2021-01-22 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with b mobile HK Limited / Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong Agency agreement expiration date: Jan. 21, 2022 By: KA SHING LAM Signature Printed Title: DIRECTOR On behalf of : b mobile HK Limited Telephone: 852-2728 7886

2021-01-22 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: ZSW-10-035 Product Name: Mobile Phone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  BOM  Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: KA SHING LAM Signature Printed Title: DIRECTOR On behalf of : b mobile HK Limited Telephone: 852-2728 7886

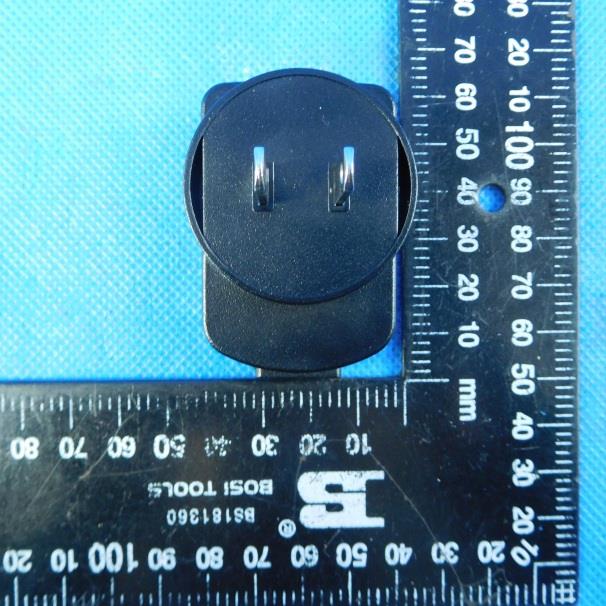

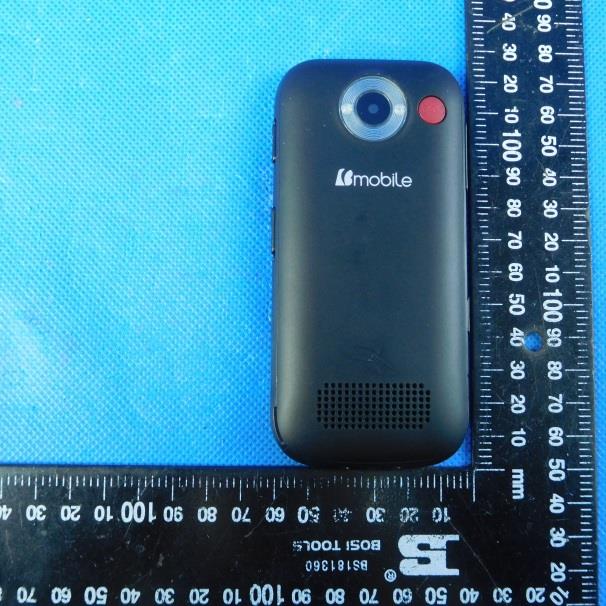

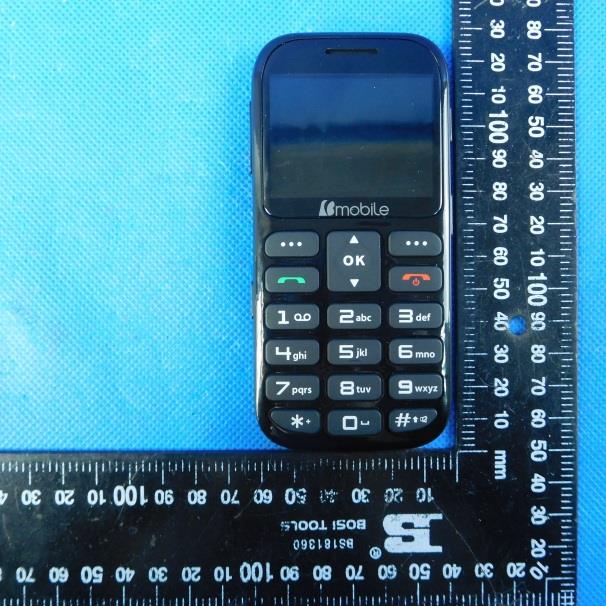

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT External photos of the EUT Model:BS30

Label & Location

Internal photos of the EUT Model:B S30

Page: 1 of 44 TEST REPORT Report No. ...................................... : CHTEW21010002 Report verificaiton: Project No. ...................................... : SHT2012093802EW FCC ID ............................................. : ZSW-10-035 Applicant’s name ........................... : Bmobile HK Limited Address ............................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong. Test item description .................... : Mobile Phone Trade Mark ....................................... : Bmobile Model/Type reference ....................... : BS30 Listed Model(s) ................................. : - Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample..........: Dec.28, 2020 Date of testing..............................: Dec.29, 2020- Dec.31, 2020 Date of issue...............................: Jan.04, 2021 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators: Fanghui Zhu Supervised by ( position+printedname+signature) ... : Test Engineer: Xiaodong Zhao Approved by ( position+printedname+signature) ... : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21010002 Page: 2 of 44 Issued: 2021-01-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. Statement of Compliance 3 2. Test Standards and Report version 4 2.1. Test Standards 4 2.2. Report version 4 3. Summary 5 3.1. Client Information 5 3.2. Product Description 5 3.3. RF Specification Description 5 3.4. Testing Laboratory Information 7 3.5. Environmental conditions 7 4. Equipments Used during the Test 8 5. Measurement Uncertainty 9 6. SAR Measurements System Configuration 10 6.1. SAR Measurement Set-up 10 6.2. DASY5 E-field Probe System 11 6.3. Phantoms 12 6.4. Device Holder 12 7. SAR Test Procedure 13 7.1. Scanning Procedure 13 7.2. Data Storage and Evaluation 15 8. Position of the wireless device in relation to the phantom 17 8.1. Head Position 17 8.2. Body Position 18 9. Dielectric Property Measurements & System Check 19 9.1. Tissue Dielectric Parameters 19 9.2. System Check 20 10. SAR Exposure Limits 25 11. Conducted Power Measurement Results 26 11.1. GSM 26 11.2. WCDMA 27 11.3. Bluetooth 29 12. Maximum Tune-up Limit 30 13. Antenna Location 32 14. Measured and Reported SAR Results 33 14.1. Head SAR 34 14.2. Body SAR 37 15. SAR Measurement Variability 39 16. Simultaneous Transmission analysis 40 16.1. Head 41 16.2. Body-worn 42 17. TestSetup Photos 43 18. External and Internal Photos of the EUT 44 Report No.: CHTEW21010002 Page: 3 of 44 Issued: 2021-01-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions PCE Head 0.651 Body-worn(Dist.= 15mm) 1.084 This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits (1.6 W/kg) specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2013 and FCC KDB publications. Report No.: CHTEW21010002 Page: 4 of 44 Issued: 2021-01-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices. IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 648474 D04 Handset SAR v01r03: SAR Evaluation Considerations for Wireless Handsets 941225 D01 3G SAR Procedures v03r01: SAR Measurement Procedures for 3G Devices TCB workshop April, 2019; Page 19, Tissue Simulating Liquids (TSL) 2.2. Report version Revision No. Date of issue Description N/A 2021-01-04 Original Report No.: CHTEW21010002 Page: 5 of 44 Issued: 2021-01-04 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. Summary 3.1. Client Information Applicant: Bmobile HK Limited Address: Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong. Manufacturer: Bmobile HK Limited Address: Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New …

Text truncated - open the document above for the full version.

Date: 12/30/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM 850-Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 824.2 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 825 MHz; σ = 0.91 S/m; ε r = 42.712; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.5°C;Liquid Temperature:22.3°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.46, 10.46, 10.46) @ 824.2 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Cheek Touch/CH 128/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.520 W/kg Right Cheek Touch/CH 128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.663 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.563 W/kg SAR(1 g) = 0.421 W/kg; SAR(10 g) = 0.308 W/kg Maximum value of SAR (measured) = 0.512 W/kg 0 dB = 0.512 W/kg = -2.91 dBW/kg Appendix A: SAR Test Data Plots Plot No.1 Date: 12/31/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM 1900-Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 1850.2 MHz;Duty Cycle: 1:2.66993 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.392 S/m; ε r = 41.065; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.3°C;Liquid Temperature:22.1°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1850.2 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Cheek Touch/CH 512/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.376 W/kg Right Cheek Touch/CH 512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.604 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 0.406 W/kg SAR(1 g) = 0.269 W/kg; SAR(10 g) = 0.167 W/kg Maximum value of SAR (measured) = 0.352 W/kg 0 dB = 0.352 W/kg = -4.53 dBW/kg Appendix A: SAR Test Data Plots Plot No.2 Date: 12/31/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band II-Head Communication System: UID 0, Generic UMTS (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.41 S/m; ε r = 41.032; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.7°C;Liquid Temperature:22.5°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.6, 8.6, 8.6) @ 1880 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Cheek Touch/CH 9400/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.405 W/kg Right Cheek Touch/CH 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.918 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.472 W/kg SAR(1 g) = 0.296 W/kg; SAR(10 g) = 0.181 W/kg Maximum value of SAR (measured) = 0.408 W/kg 0 dB = 0.408 W/kg = -3.89 dBW/kg Appendix A: SAR Test Data Plots Plot No.3 Date: 12/31/2020Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band IV-Head Communication System: UID 0, Generic UMTS (0); Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1752.6 MHz; σ = 1.333 S/m; ε r = 41.179; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.5°C;Liquid Temperature:22.3°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.92, 8.92, 8.92) @ 1752.6 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Cheek Touch/CH 1513/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.659 W/kg Right Cheek Touch/CH 1513/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.195 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 0.688 W/kg SAR(1 g) = 0.473 W/kg; SAR(10 g) = 0.306 W/kg Maximum value of SAR (measured) = 0.600 W/kg 0 dB = 0.600 W/kg = -2.22 dBW/kg Appendix A: SAR Test Data Plots Plot No.4 Date: 12/30/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab WCDMA Band V-Head Communication System: UID 0, Generic UMTS (0); Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 846.6 MHz; σ = 0.919 S/m; ε r = 42.691; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.3°C;Liquid Temperature:22.1°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.46, 10.46, 10.46) @ 846.6 MHz; Calibrated: 4/1/2020 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 4/4/2020 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Right Cheek Touch/CH 4233/Area Scan (61x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.802 W/kg Right Cheek Touch/CH 4233/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.900 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.872 W/kg SAR(1 g) = 0.644 W/kg; SAR(10 g) = 0.466 W/kg Maximum value of SAR (measured) = 0.786 W/kg 0 dB = 0.786 W/kg = -1.05 dBW/kg Appendix A: SAR Test Data Plots Plot No.5 Date: 12/30/2020 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab GSM 850-Body Communication Syste…

Text truncated - open the document above for the full version.

Appendix B: DAE and Probe Calibration Certificate 1 of 12 1.1. DAE4 Calibration Certificate Appendix B: DAE and Probe Calibration Certificate 2 of 12 Appendix B: DAE and Probe Calibration Certificate 3 of 12 Appendix B: DAE and Probe Calibration Certificate 4 of 12 1.2. Probe Calibration Certificate Appendix B: DAE and Probe Calibration Certificate 5 of 12 Appendix B: DAE and Probe Calibration Certificate 6 of 12 Appendix B: DAE and Probe Calibration Certificate 7 of 12 Appendix B: DAE and Probe Calibration Certificate 8 of 12 Appendix B: DAE and Probe Calibration Certificate 9 of 12 Appendix B: DAE and Probe Calibration Certificate 10 of 12 Appendix B: DAE and Probe Calibration Certificate 11 of 12 Appendix B: DAE and Probe Calibration Certificate 12 of 12

Appendix C: Dipole Calibration Certificate 1 of 27 1.1. D835V2 Dipole Calibration Certificate Appendix C: Dipole Calibration Certificate 2 of 27 Appendix C: Dipole Calibration Certificate 3 of 27 Appendix C: Dipole Calibration Certificate 4 of 27 Appendix C: Dipole Calibration Certificate 5 of 27 Appendix C: Dipole Calibration Certificate 6 of 27 Appendix C: Dipole Calibration Certificate 7 of 27 Appendix C: Dipole Calibration Certificate 8 of 27 Appendix C: Dipole Calibration Certificate 9 of 27 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head-835 Date of measurement Return-loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary impedance (ohm) Delta (ohm) 2018/2/19 -27.8 50.8 -4.0 2019/2/3 -27.1 2.52% 49.9 0.9 -3.6 0.4 2020/1/22 -26.9 3.24% 50.2 0.6 -3.7 0.3 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5ohm of prior calibration. Therefore the verification result should support extended calibration. Appendix C: Dipole Calibration Certificate 10 of 27 1.2. D1750V2 Dipole Calibration Certificate Appendix C: Dipole Calibration Certificate 11 of 27 Appendix C: Dipole Calibration Certificate 12 of 27 Appendix C: Dipole Calibration Certificate 13 of 27 Appendix C: Dipole Calibration Certificate 14 of 27 Appendix C: Dipole Calibration Certificate 15 of 27 Appendix C: Dipole Calibration Certificate 16 of 27 Appendix C: Dipole Calibration Certificate 17 of 27 Appendix C: Dipole Calibration Certificate 18 of 27 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head-1750 Date of measurement Return-loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary impedance (ohm) Delta (ohm) 2018/2/6 -39.2 51.1 -0.1 2019/2/3 -38.6 1.53% 50.7 0.4 -0.8 0.7 2020/1/22 -38.4 2.04% 50.5 0.6 -0.6 0.5 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5ohm of prior calibration. Therefore the verification result should support extended calibration. Appendix C: Dipole Calibration Certificate 19 of 27 1.3. D1900V2 Dipole Calibration Certificate Appendix C: Dipole Calibration Certificate 20 of 27 Appendix C: Dipole Calibration Certificate 21 of 27 Appendix C: Dipole Calibration Certificate 22 of 27 Appendix C: Dipole Calibration Certificate 23 of 27 Appendix C: Dipole Calibration Certificate 24 of 27 Appendix C: Dipole Calibration Certificate 25 of 27 Appendix C: Dipole Calibration Certificate 26 of 27 Appendix C: Dipole Calibration Certificate 27 of 27 Extended Dipole Calibrations Referring to KDB865664 D01, if dipoles are verified in return loss (<-20dB, within 20% of prior calibration), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. Head-1900 Date of measurement Return-loss (dB) Delta (%) Real Impedance (ohm) Delta (ohm) Imaginary impedance (ohm) Delta (ohm) 2018/2/22 -24.0 52.2 6.0 2019/2/20 -24.5 -2.08% 52.6 0.4 6.5 0.5 2020/01/22 -24.7 -2.92% 52.5 0.3 6.1 0.1 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5ohm of prior calibration. Therefore the verification result should support extended calibration.

Page: 1 of 26 FCC REPORT Report No. ...................................... : CHTEW21010069 Report Verification: Project No.................................： SHT2012093801EW FCC ID ............................................. : ZSW-10-035 Applicant’s name ........................... : Bmobile HK Limited Address ............................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong. Test item description .................... : Mobile Phone Trade Mark ....................................... : Bmobile Model/Type reference ....................... : BS30 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 FCC CFR Title 47 Part 24 Date of receipt of test sample..........: Dec.28, 2020 Date of testing..............................: Dec.29, 2020- Jan.14, 2021 Date of issue...............................: Jan.15, 2021 Result .................. ........................: Pass Compiled by ( position+printedname+signature) ... : File administrators Fanghui Zhu Supervised by (position+printedname+signature) .... : Project Engineer Aaron.Fang Approved by (position+printedname+signature) .... : Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21010069 Page: 2 of 31 Issued: 2021-01-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TE S T S T AN D A R D S A N D R EP O R T V E R S I O N 3 1.1. Applicable Standards 3 1.2. Report version information 3 2. T E S T D E S C R I P T I O N 4 3. S U M M AR Y 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Operation state 6 3.4. EUT configuration 6 3.5. Modifications 6 4. T E S T E N V I R O N M E N T 7 4.1. Testing Laboratory Information 7 4.2. Equipments Used during the Test 7 4.3. Environmental conditions 9 4.4. Statement of the measurement uncertainty 9 5. T E S T C O N D I T I O N S A N D R E S U L T S 10 5.1. Conducted Output Power 10 5.2. Peak-to-Average Ratio 11 5.3. 99% Occupied Bandwidth & 26 dB Bandwidth 12 5.4. Band Edge 13 5.5. Conducted Spurious Emissions 14 5.6. Frequency stability VS Temperature measurement 15 5.7. Frequency stability VS Voltage measurement 16 5.8. ERP and EIRP 17 5.9. Radiated Spurious Emission 20 6. TE S T S E T U P P H O T O S O F T H E E U T 24 7. EX T E R N AL AN D I N T E R N AL P H O T O S O F T H E E U T 25 8. A P P E N D I X R E P O R T 31 Report No.: CHTEW21010069 Page: 3 of 31 Issued: 2021-01-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST STANDARDS AND REPORT VERSION 1.1. Applicable Standards The tests were performed according to following standards: FCC Rules Part 2: FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS FCC Rules Part 22: PUBLIC MOBILE SERVICES FCC Rules Part 24: PERSONAL COMMUNICATIONS SERVICES TIA/EIA 603 E March 2016: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI C63.26-2015: American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services KDB 971168 D01 Power Meas License Digital Systems v03: MEASUREMENT GUIDANCE FOR CERTIFICATION OF LICENSED DIGITAL TRANSMITTERS 1.2. Report version information Revision No. Date of issue Description N/A 2021-01-15 Original Report No.: CHTEW21010069 Page: 4 of 31 Issued: 2021-01-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. Test Description Test Item Section in CFR 47 Result Test Engineer Conducted Output Power Part 2.1046 Part 22.913(a) Part 24.232(c) Pass Jiongsheng Feng Peak-to-Average Ratio Part 24.232 Pass Jiongsheng Feng 99% Occupied Bandwidth & 26 dB Bandwidth Part 2.1049 Part 22.917(b) Part 24.238(b) Pass Jiongsheng Feng Band Edge Part 2.1051 Part 22.917 Part 24.238 Pass Jiongsheng Feng Conducted Spurious Emissions Part 2.1051 Part 22.917 Part 24.238 Pass Jiongsheng Feng Frequency stability VS Temperature Part 2.1055(a)(1)(b) Part 22.355 Part 24.235 Pass Jiongsheng Feng Frequency stability VS Voltage Part 2.1055(d)(1)(2) Part 22.355 Part 24.235 Pass Jiongsheng Feng ERP and EIRP Part 22.913(a) Part 24.232(b) Pass Jiongsheng Feng Radiated Spurious Emissions Part 2.1053 Part 22.917 Part 24.238 Pass Jian Li Note: The measurement uncertainty is not included in the test result. Report No.: CHTEW21010069 Page: 5 of 31 Issued: 2021-01-15 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMM ARY 3.1. Client Information Applicant: …

Text truncated - open the document above for the full version.
