ZSW-10-049Mobile Phone

1 Table of Contents 1. Security ................................................................................... 3 2. Getting Started ........................................................................ 3 2.1.1. Installing and uninstalling SIM card ......................... 3 2.1.2. Charging the battery .............................................. 4 2.2. Connecting to the Network ................................................... 4 2.2.1. SIM card ............................................................... 4 2.2.2. Connecting to the network ...................................... 4 3. Call logs ................................................................................... 4 4. Multimedia ............................................................................... 5 4.1. Camera ............................................................................... 5 4.2. DV ...................................................................................... 5 4.3. Image ................................................................................. 5 4.4. Audio .................................................................................. 5 4.5. Video .................................................................................. 5 4.6. Recorder ............................................................................. 6 4.7. FM radio ............................................................................. 6 5. Phonebook ............................................................................... 6 6. Profiles .................................................................................... 7 7. Message ................................................................................... 7 7.1. Write message .................................................................... 7 7.2. Inbox / Outbox/ Drafts/Sent box ........................................... 7 7.3. Security inbox ..................................................................... 7 7.4. Templates ........................................................................... 7 7.5. Broadcast Messages: ............................................................ 7 7.6. Voice mail service ................................................................ 7 7.7. Message Settings ................................................................. 8 8. Tools ........................................................................................ 8 8.1. Torch .................................................................................. 8 8.2. My files ............................................................................... 8 8.3. Alarm ................................................................................. 8 8.4. Calculator............................................................................ 8 8.5. Calendar ............................................................................. 8 8.6. World Clock:........................................................................ 8 2 8.7. Bluetooth ............................................................................ 8 8.8. STK .................................................................................... 9 9. Settings ................................................................................... 9 9.1. Call settings ........................................................................ 9 9.2. Phone settings ..................................................................... 9 9.3. Display ............................................................................... 9 9.4. Security .............................................................................. 9 9.5. Connections ...................................................................... 10 10. Apps & Games ....................................................................... 10 10.1. Bookmark ......................................................................... 10 10.2. Games .............................................................................. 10 11. Internet ................................................................................. 10 12. Appendix................................................................................ 11 12.1. FAQ .................................................................................. 11 12.2. Error Message ................................................................... 11 Manual Statements 2014. Thank you for selecting our mobile phone. This user guide will provide you with the general information and operation instructions. Note:  Use only accessories approved by the phone manufacturer to ensure safety. Failing to comply with this will violate the terms and conditions of the warranty.  If the contents and displays described in this user guide do not match the actual operation of the phone set, please use the display of the actual phone set. We reserved the rights to change the mechanisms of the phone without notice. Protect your environment! We strive to produce products in compliance with global environmental standards. Please consult your local authorities for proper disposal. 3 General Information 1. Security  Emergency call In any country, you can dial 112 (or other emergency call number) for emergency help. Note: Based on the nature of cellular networking, the success of the emergency call cannot be guaranteed.  Safety Precautions Before using your phone, please read the following important information to eliminate or reduce any possibility causing damage and personal injury.  Do not use wireless phones while driving.  Switch off wireless devices in aircraft.  Do not use mobile phones at refueling point. Don’t use near fuel or chemicals. Follow regulations or rules in hospital and health care facilities. Switch phone off.  Only qualified service personnel can install or repair this device.  Use only approved accessories and batteries.  Do not expose your phone to…

Text truncated - open the document above for the full version.

b mobile HK Limited 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: b mobile HK Limited Address: Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Product Name: Mobile Phone FCC ID: ZSW-10-049 Model(s): TRITON 4G, Tritón 4G 2.911(d)(5)(i) EquipmentType We, [b mobile HK Limited] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Carlos Lopez Date: 8/12/2024 Title and Company name: Manager / b mobile HK Limited NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

b mobile HK Limited 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: b mobile HK Limited Address: Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Product Name: Mobile Phone FCC ID: ZSW-10-049 Model(s): TRITON 4G, Tritón 4G 2.911(d)(5)(ii) Applicant filing We, [b mobile HK Limited] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Carlos Lopez Date: 8/12/2024 Title and Company name: Manager / b mobile HK Limited NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

b mobile HK Limited Family models difference declaration Product Name: Mobile Phone Trade Name: Bmobile Model Name: TRITON 4G, Tritón 4G Difference declaration: All models are the same circuit and RF module, except for the model name. Regards, Signature Name: Carlos Lopez Date: 2024-08-12

THREE STONES MEDIA LLC U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: 8/12/2024 Ref: Attestation Statement – Part2.911(d)(7) filing FCC ID：ZSW-10-049 b mobile HK Limited (“the applica nt”) certifies that, as of the date of the filing of the application, THREE STONES MEDIA LLC(“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. THREE STONES MEDIA LLC ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: THREE STONES MEDIA LLC FRN: 0033401761 GC: 2A99E Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Signature: Contact Person: Sijie Zhang Tel: +1 267 909 3692 Email: [email protected] Applicant Company Name: b mobile HK Limited Address: Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Signature: Contact Person: Carlos Lopez GC: ZSW FRN: 0021037635 Tel: 852-2728 7886 Email: [email protected]

b mobile HK Limited Agent Authorization Letter (2024-08-12) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park Sanwei, Xixiang, Bao'an District, Shenzhen, Guangdong, China Alex.li [email protected] to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Carlos Lopez / Manager Date/City: 2024-08-12 / HONG KONG Phone: 852-2728 7886 Fax: 852-2728 0468 E-mail: [email protected]

b mobile HK Limited Long Term Confidentiality Request Letter (2024-08-12) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR Product: Mobile Phone Model No.: TRITON 4G, Tritón 4G FCC ID: ZSW-10-049 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the  Schematic Diagram  Block Diagram  Operational Description  Part List / BOM List / PCB Layout  Tune-up Procedure Required to be submitted with this application be permanently withheld from public review. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Please contact me if there is any information you may need. Sincerely, Carlos Lopez / Manager Date/City: 2024-08-12 / HONG KONG Phone: 852-2728 7886 Fax: 852-2728 0468 E-mail: [email protected]

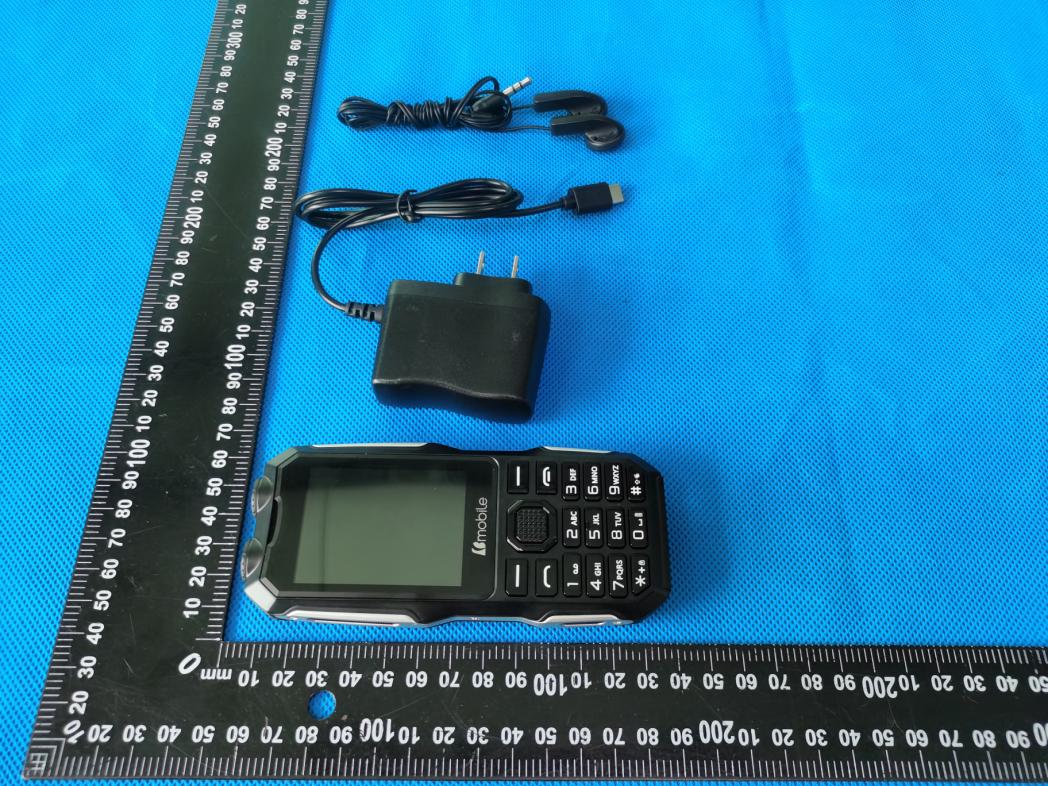

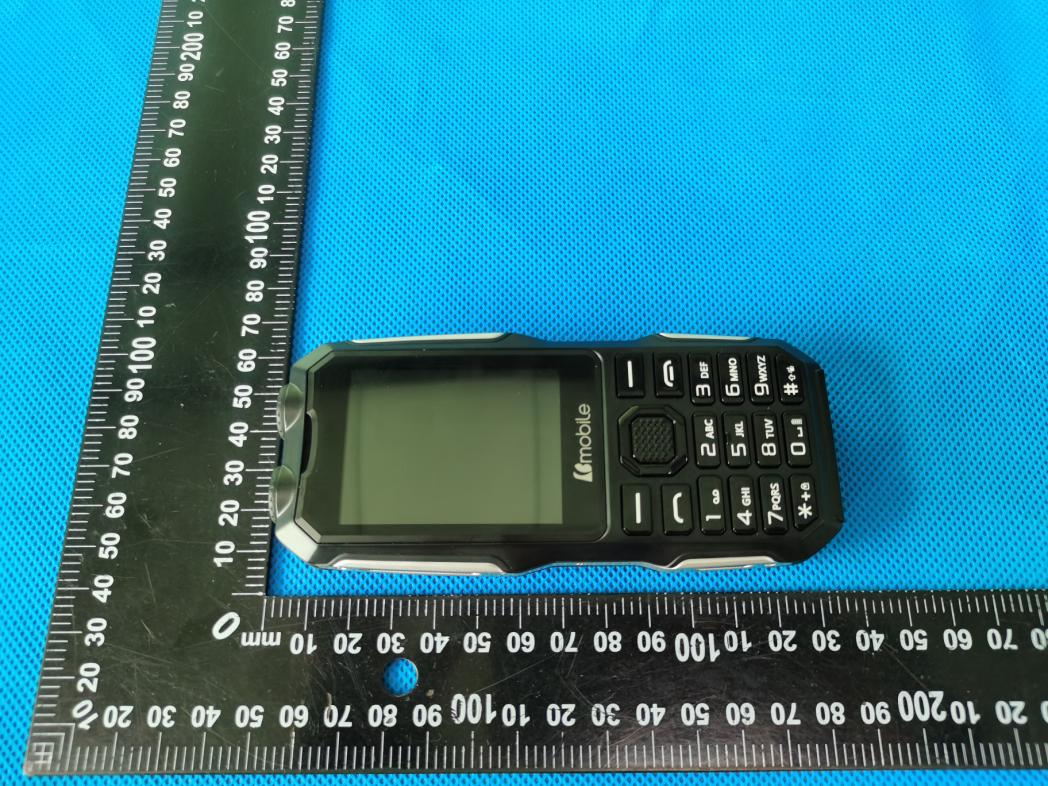

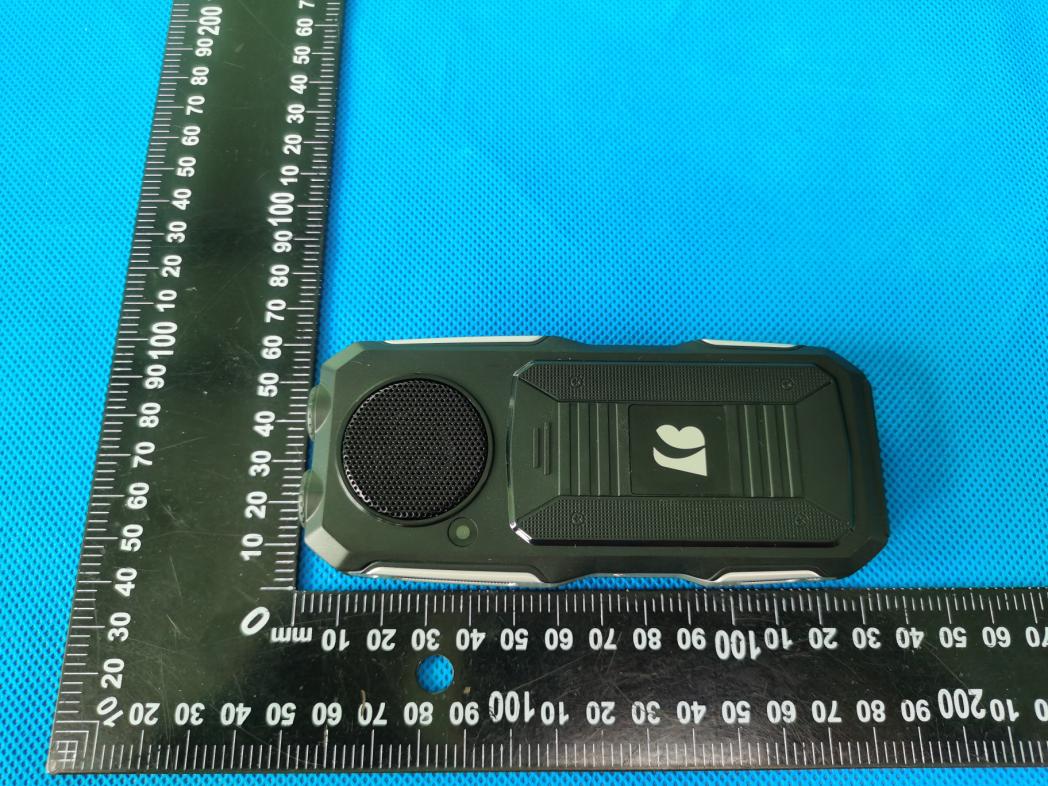

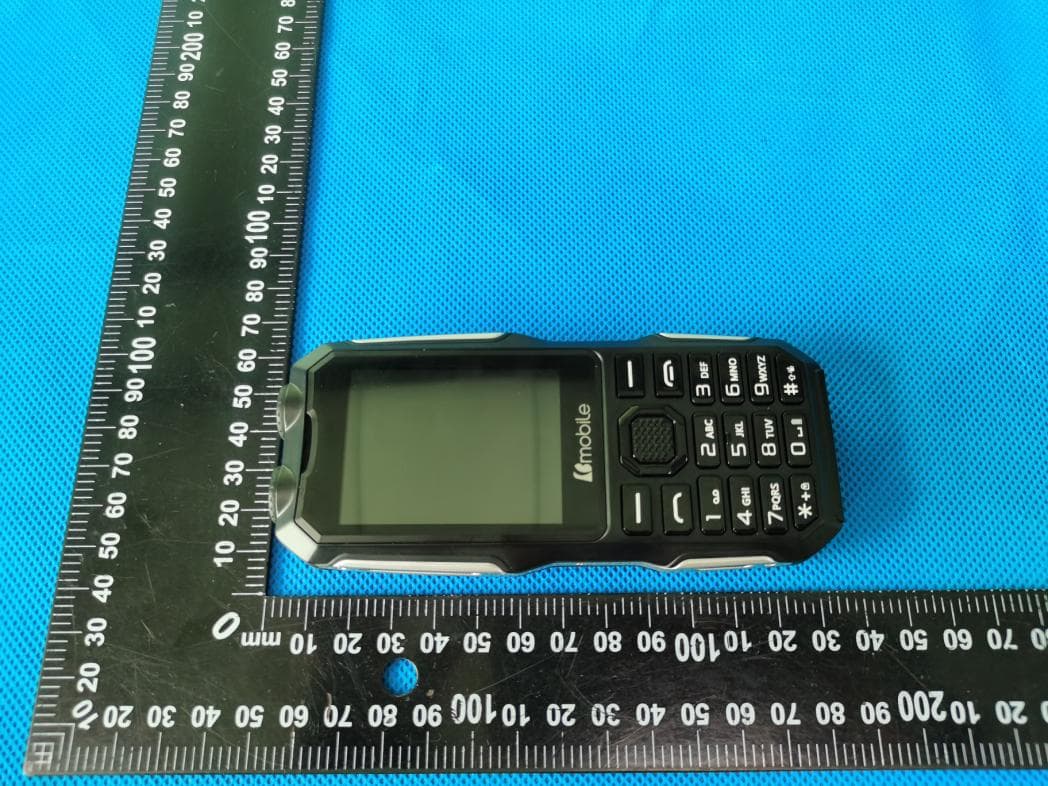

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 BT ANT Photo 11 GSM/WCDMA/LTE Main ANT

Page 1 of 139 Report No.: S24062802203001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093) and IEEE Std 1528-2013 Product Name： Mobile Phone Brand Name： Bmobile Model Name： TRITON 4G Family Model： Tritón 4G Report No.： S24062802203001 FCC ID： ZSW-10-049 Prepared for b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 139 Report No.: S24062802203001 TEST RESULT CERTIFICATION Applicant’s name ................. : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Manufacturer's Name .......... : b mobile HK Limited Address .................................. : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Product description Product name ........................ : Mobile Phone Brand Name ......................... : Bmobile Model and/or type reference .............................. : TRITON 4G Family Model ......................... : Tritón 4G Standards ............................. : FCC 47 CFR Part 2(2.1093) IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Date of Test Date (s) of performance of tests .............. : Jun. 29, 2024 ~ Jul. 08, 2024 Date of Issue ........................................... : Aug. 08, 2024 Test Result ............................................... : Pass Prepared By : Reviewed By : Approved By : Jack Li (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Page 3 of 139 Report No.: S24062802203001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Aug. 08, 2024 Jack Li Page 4 of 139 Report No.: S24062802203001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 8 1.5. Ambient Condition ................................................................................... 8 2. SAR Measurement System ................................................................................... 9 2.1. SATIMO SAR Measurement Set-up Diagram ............................................ 9 2.2. Robot ..................................................................................................... 10 2.3. E-Field Probe .......................................................................................... 11 2.3.1. E-Field Probe Calibration ................................................................. 11 2.4. SAM phantoms ...................................................................................... 12 2.4.1. Technical Data .................................................................................. 13 2.5. Device Holder ........................................................................................ 14 2.6. Test Equipment List ................................................................................ 15 3. SAR Measurement Procedures .......................................................................... 17 3.1. Power Reference ................................................................................... 17 3.2. Area scan & Zoom scan .......................................................................... 17 3.3. Description of interpolation/extrapolation scheme .............................. 19 3.4. Volumetric Scan ..................................................................................... 19 3.5. Power Drift ............................................................................................ 19 4. System Verification Procedure .......................................................................... 20 4.1. Tissue Verification ................................................................................. 20 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 21 4.2. System Verification Procedure .............................................................. 22 4.2.1. System Verification Results .............................................................. 23 5. SAR Measurement variability and uncertainty .................................................. 24 5.1. SAR measurement variability ................................................................. 24 5.2. SAR measurement uncertainty .............................................................. 24 6. RF…

Text truncated - open the document above for the full version.

Page 103 of 139 Report No.: S24062802203001 Page 104 of 139 Report No.: S24062802203001 Page 105 of 139 Report No.: S24062802203001 Page 106 of 139 Report No.: S24062802203001 Page 107 of 139 Report No.: S24062802203001 Page 108 of 139 Report No.: S24062802203001 Page 109 of 139 Report No.: S24062802203001 Page 110 of 139 Report No.: S24062802203001 Page 111 of 139 Report No.: S24062802203001 Page 112 of 139 Report No.: S24062802203001 Page 113 of 139 Report No.: S24062802203001 Page 114 of 139 Report No.: S24062802203001 Page 115 of 139 Report No.: S24062802203001 Page 116 of 139 Report No.: S24062802203001 Page 117 of 139 Report No.: S24062802203001 Page 118 of 139 Report No.: S24062802203001 Page 119 of 139 Report No.: S24062802203001 Page 120 of 139 Report No.: S24062802203001 Page 121 of 139 Report No.: S24062802203001 Page 122 of 139 Report No.: S24062802203001 Page 123 of 139 Report No.: S24062802203001 Page 124 of 139 Report No.: S24062802203001 Page 125 of 139 Report No.: S24062802203001

Page 126 of 139 Report No.: S24062802203001 Page 127 of 139 Report No.: S24062802203001 Page 128 of 139 Report No.: S24062802203001 Page 129 of 139 Report No.: S24062802203001 Page 130 of 139 Report No.: S24062802203001 Page 131 of 139 Report No.: S24062802203001 Page 132 of 139 Report No.: S24062802203001 Page 133 of 139 Report No.: S24062802203001 Page 134 of 139 Report No.: S24062802203001 Page 135 of 139 Report No.: S24062802203001 Page 136 of 139 Report No.: S24062802203001 Page 137 of 139 Report No.: S24062802203001 Page 138 of 139 Report No.: S24062802203001 Page 139 of 139 Report No.: S24062802203001 _______________________________________END _____________________________________

Report No.: S24062802202001 Version.1.3 Page 1 of 95 RADIO TEST REPORT FCC ID: ZSW-10 -049 Product: Mobile Phone Trade Mark: Bmobile Model No.: TRITON 4G Family Model: Tritón 4G Report No.: S24062802202001 Issue Date: Jul. 31, 2024 Prepared for b mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S24062802202001 Version.1.3 Page 2 of 95 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 26 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 29 7.7 PEAK OUTPUT POWER .............................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 32 7.10 ANTENNA APPLICATION .......................................................................................................................... 33 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ......................................... 34 8 TEST RESULTS ................................................................................................................................................... 35 8.1 DWELL TIME ................................................................................................................................................... 35 8.2 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 45 8.3 -20DB BANDWIDTH ........................................................................................................................................ 51 8.4 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 57 8.5 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 63 8.6 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 69 8.7 BAND EDGE .................................................................................................................................................... 72 8.8 BAND EDGE(HOPPING) ................................................................................................................................... 79 8.9 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 86 Report No.: S24062802202001 Version.1.3 Page 3 of 95 1 TEST RESULT CERTIFICATION Applicant’s name ........................ : b mobile HK Limited Address ....................................... : Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung; New Territories; Hong Kong, China Manufacturer's Name ................. : b mo…

Text truncated - open the document above for the full version.

Shenzhen Kuruijie Communication Technologies Co.,Ltd Antenna Test Report SHENZHEN KURUIJIE Project: KT2425 Customer:pinxin J RF Engineer:AN Testing Date:2024.08.14 Shenzhen Kuruijie Communication Technologies Co.,Ltd Index: 1. Testing Item & Equipments 2. Matching Circuits 3. Environmental Disposal 4. Test Data Shenzhen Kuruijie Communication Technologies Co.,Ltd 1: Anechoic Chamber 7x4x3 m (3D) 2: Rohde & Schwarz CMW500 3: AGILENT 8960 5515C 4: Network Analyzer-AGILENT ENA5071B 1. The Equipment of Active Test Shenzhen Kuruijie Communication Technologies Co.,Ltd 2. Matching Circuits-swich 2G(GSM)3G(WCDMA) RF 4G(LTE) 1 0欧姆 850/900/1800/1900W2/4/5/8 RF B2/4/5/7 2NCB28AB RF3NC RF4NC Shenzhen Kuruijie Communication Technologies Co.,Ltd 3. Matching Circuits-MAIN Shenzhen Kuruijie Communication Technologies Co.,Ltd 4. Environmental Disposal Shenzhen Kuruijie Communication Technologies Co.,Ltd Shenzhen Kuruijie Communication Technologies Co.,Ltd 5. Test Data GSM850TRPEGSMTRPPCSTRP Result128190251162124512661810 TRPAve(dBm)27.527.928.7229.228.327.825.325.0242 TISAve(dBm)-104.1-102.2-104.5 WCDMA_ITRPWCDMA_IITRPWCDMA_IVTRPWCDMA_VTRP Result105621070010838926294459538131214001513413241824233 TRPAve(dBm)18.5178.318.018.718.518.318.818.919.319.118.818.7 TISAve(dBm)-104.2-105.2-104.0-103.8 TestLTE2TRPLTE4TRPLTE5TRPLTE7TRP Result186501890019150200002017520350204502052520600208002110021400 TRPAve(dBm)18.218.017.518.418.719.219.319.019.118.017.617.0 TISAve(dBm)-91.3-90.1-90.9-90.6 TestLTE28TRP Result272602746027610 TRPAve(dBm)15.717.218.0 TISAve(dBm)-92.1 Shenzhen Kuruijie Communication Technologies Co.,Ltd FM left hands right hands Shenzhen Kuruijie Communication Technologies Co.,Ltd 6. Antena Gain in dbi Shenzhen Kuruijie Communication Technologies Co.,Ltd Apple diagram of main antenna Shenzhen Kuruijie Communication Technologies Co.,Ltd Shenzhen Kuruijie Communication Technologies Co.,Ltd

Radiated Measurement Photos Conducted Measurement Photos

Test Positions Left Cheek Left Tilt 15 Degree Right Cheek Right Tilt 15 Degree Front Side (Separation distance of 10mm) Back Side (Separation distance of 10mm) END
