ZSW-30-006Mobile phone

0 Table of Contents 1. Foreword .................................................................................. 32 2. Getting to know your touch phone.............................................35 3. Starting up the device ................................................................37 4. Introduce the basic phone function ...........................................40 5. Technical Specifications ............................................................47 6. FCC Cautions............. ............................................................48 1 1. FOREWORD Safety In order to ensure the phone is used safely and correctly, please read the precautions below carefully before use. 1.1 General precaution •Your phone is only suitable for the battery and charger approved by our company or else it may cause the battery to leak, overheat, explode or even catch fire. •Do not knock, vibrate or throw the phone heavily to avoid malfunction, fire, overheating, explosion or fire. •If there are abnormal phenomena, like temperature rising, color change or distortion during the usage, charging or storage of the battery, please stop using it and replace it with a new battery. •It may burn the skin if liquid in the battery leaks onto skin or clothes. If this happens please flush with plenty of clean water immediately and go to a hospital at once. •Please keep the battery away from fire to avoid fire and explosion if the battery leaks or emits a strange smell. •Do not place expose the battery to moisture or it may cause overheating, fumes and corrosion. •Do not use or place the battery under direct sunlight, or in hot places, it may cause leakage and overheating, thus reducing performance and shortening the lifespan. •Do not charge the battery for over 24 hours continuously. •Use careful with the earphone maybe possible excessive sound pressure from earphones and headphones can cause hearing loss. 1.2 Precaution for the use of charger •Do not cause short circuit to the charger, or it may cause electric shock, fumes and damage to 2 the charger. •Do not use the charger if the power wire is broken, or it may cause fire and electric shock. •Please remove accumulated dust on the power plug. •Do not put water containers next to the power supply to avoid overheating, fire, electric shock and malfunction in case they come into contact. •Do not disassemble or tamper with the charger or it may cause personal injury, electric shock, fire and the damage of the charger. •Do not use the charger in places of high humidity, like bathrooms, or it may cause electric shock, fire and damage of charger. •Do not touch the charger, power cord or power plug with wet hands or it can cause electric shock. •Do not put heavy objects on the power cord or change the power cord or it may cause electric shock and fire. •Please unplug the power socket before cleaning and maintenance. •Please hold the charger to unplug the socket as pulling the power cord may damage the power wire and cause electric shock and fire. 1.3 Cleaning and maintenance •As the phone, battery and charger are not waterproof, do not use them in places of high humidity and avoid them being wet by rain. •Please clean the battery and charger with a soft dry cloth. •Never use alcohol, thinner or solutions, like benzene, to wipe the phone. •Dirty sockets can cause poor contact and power down, and even make recharging unavailable. So, please clean them periodically. 3 1.4 Common Precaution Mobile Phone: •Please use the phone in an environment with temperature between -20°C- 45°Cand humidity of <75%. •Please use the phone far away from regular telephones, TV sets, radio sets and office automation equipment, to avoid affecting the normal use of these equipment and mobile phone. Battery: •Store the battery in cool and ventilated place without direct sunlight. •The battery has a limited lifespan. The usage of battery will be shortened progressively due to frequent charging. Once the battery is out of use, it means that its lifespan has ended, and you will need to replace it with an approved new battery. •Do not dispose of old batteries as household waste. Give them to specified disposal places and follow any stipulated instructions for disposal. CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCYIONS. Charger: •Do not charge under following conditions: -- Places with direct sunlight -- Places with ambient temperature less than 0°C or over 40°C, wet or dusty places with strong vibrations (it may cause malfunction) -- Places near electrical appliances (it may affect the image and sound) like TV set, radio, etc -- Adapter shall be installed near the equipment and shall be easily accessible. The plug considered as disconnect device of adapter 4 2. GETTING TO KNOW YOUR TOUCH PHONE 5 1）USB / Charger Connector 2) Receiver 3) Volume Button 4) LCD Display 5) Settings – Home – Back Buttons 6) Headphones Connector (Jack 3.5) 7) Front Camera 8) Proximity Sensor 9) Turn on / off Button 10) Back Camera 11) Led Flash 12) Loudspeaker 13) Microphone 6 3. STARTING UP YOUR DEVICE •Make sure your device is turned off. •Firmly hold the device with the front panel facing down. •Slide your finger into the groove at the top of the phone and gently pull open the back cover. To install the SIM card •Remove the battery if it is installed. •Locate the SIM card slot, and then insert the SIM card with its gold contacts facing down and Its cut-off corner facing out of the card slot as shown in the diagram. •Slide the SIM card completely into the slot. Note: The phone can support two SIM cards. The card will support 2G card. 7 To install a memory card To have additional storage for your images, videos, music and files, you can purchase a memory card and install it in your device. Locate the memory card slot on the upper part of the exposed right panel. Insert the memory card into the slot with its gold contacts facing down until i…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 b mobile HK Limited To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, b mobile HK Limited hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Product description: Mobile phone Model name: AX680/AX670 FCC ID: ZSW-30-006 Client’s name & title : KA SHING LAM/ Director Contact information / address: b mobile HK Limited/ Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 b mobile HK Limited 2015-6-29 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: ZSW-30-006 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Tune up Procedure - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Client’s name & title : KA SHING LAM/ Director Contact information / address: b mobile HK Limited/ Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong

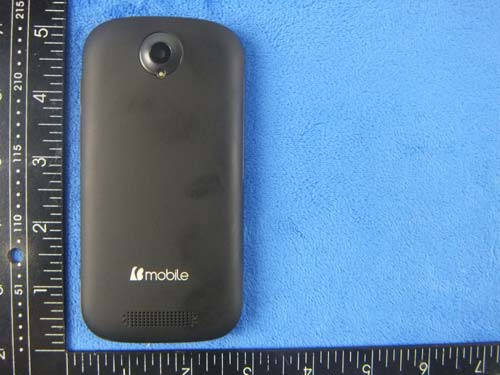

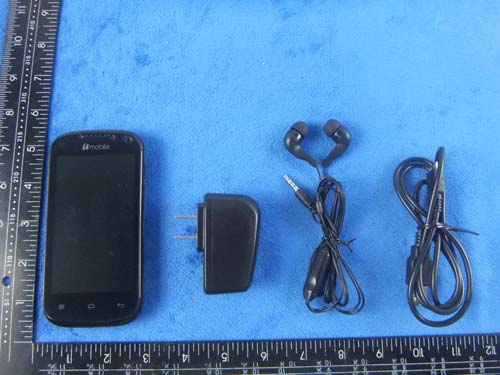

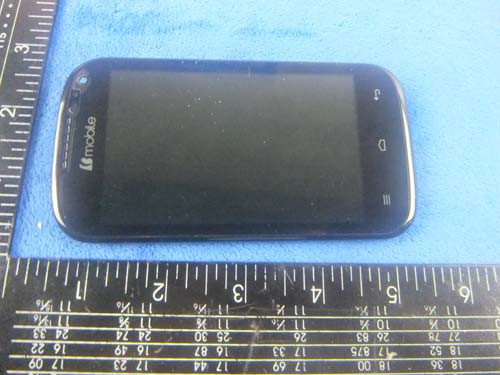

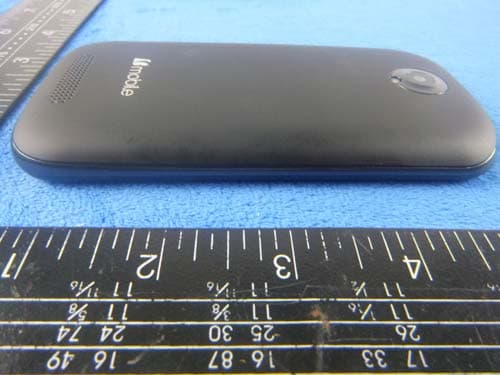

Test Report 15050020-FCC-E Page 20 of 29 Annex B. EUT And Test Setup Photographs Annex B.i. Photograph: EUT External Photo Whole Package - Top View Adapter - Front View EUT - Front View EUT - Rear View Test Report 15050020-FCC-E Page 21 of 29 EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

FCC ID label location

Test Report 15050020-FCC-E Page 22 of 29 Annex B.ii. Photograph: EUT Internal Photo Cover Off - Top View 1 Cover Off - Top View 2 Battery - Top View Battery - Bottom View Mainborad With Shielding - Front View Mainborad With out Shielding - Front View Test Report 15050020-FCC-E Page 23 of 29 Mainborad With Shielding - rear View LCD front View LCD Rear View GPS- Antenna View WIFI - Antenna View GSM Antenna View

SAR TEST REPORT Report No.: 15050020-FCC-H Applicant B mobile HK Limited Product Name Mobile phone Model Name AX680 Serial Model Name AX670 Standards FCC 47 CFR Part2(2.1093) ANSI/IEEE C95.1-1999 IEEE 1528-2013 & Published RF Exposure KDB Procedures Test Date June 11 to June 12, 2015 Issue Date July 6, 2015 Test Result PASS Equipment complied with the specification Equipment did not comply with the specification Wiky Jam Test Engineer Chris You Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15050020-FCC-H Page 2 of 91 Laboratory Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15050020-FCC-H Page 3 of 91 CONTENTS 1 EUT IMFORMATION ...................................................................................................................................................... 4 2 TECHNICAL DETAILS ................................................................................................................................................... 5 3 INTRODUCTION ........................................................................................................................................................... 6 4 SAR MEASUREMENT SETUP ....................................................................................................................................... 7 5 ANSI/IEEE C95.1 – 1999 RF EXPOSURE LIMIT ............................................................................................................ 18 6 SYSTEM AND LIQUID VERIFICATION ......................................................................................................................... 19 7 UNCERTAINTY ASSESSMENT .................................................................................................................................... 27 8 TEST INSTRUMENT .................................................................................................................................................... 30 9 OUTPUT POWER VERIFICATION ................................................................................................................................ 31 10 EXPOSURE CONDITIONS CONSIDERATION ............................................................................................................... 37 11 SAR TEST RESULTS .................................................................................................................................................. 38 12 SAR MEASUREMENT REFERENCES .......................................................................................................................... 43 ANNEX A CALIBRATION REPORTS .................................................................................................................................. 46 ANNEX B SAR SYSTEM PHOTOGRAPHS .......................................................................................................................... 86 ANNEX C SETUP PHOTOGRAPHS .................................................................................................................................... 87 Test Report 15050020-FCC-H Page 4 of 91 1 EUT IMFORMATION EUT Information EUT Description Mobile phone Model No AX680 Input Power Li-ion Battery Model: T-41 Charging Voltage:3.7V , 1500mAh Charge Cut-off Voltage: 4.2V Maximum Conducted Output Power to Antenna GSM 850(Class 4) : 33.58dBm PCS1900 (Class 1) :31.05dBm WCDMA Band V(Class 3): 22.56dBm WCDMA Band II(Class 3): 22.87dBm Highest Reported SAR Level(s) 0.98W/Kg 1g Head Tissue 1.06W/Kg 1g Body Tissue Classification Per Stipulated Test Standard Portable Device, Class B, No DTM Mode Multi-SIM NA Co-located TX WWAN can transmit simultaneously with Bluetooth WIFI cannot transmit simultaneously with Bluetooth WWAN can transmit simultaneously with WiFi Antenna Separation distances 1cm - WWAN antenna-to-WIFI/Bluetooth antenna Antenna Type(s) PIFA Antenna(WWAN) Accessory Earphone Equipment Class Highest Reported SAR ( W/kg) Head Body-Worn Hotspot WWAN/PCE 0.98 1.06 1.06 Max Simultaneous sum SAR 1.35 Test Report 15050020-FCC-H Page 5 of 91 2 TECHNICAL DETAILS Purpose Compliance testing of Mobile phone model AX680 with stipulated standard Applicant / Client B mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong Manufacturer B mobile HK Limited Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong Laboratory performing the tests SIEMIC(China-Shenzhen) Laboratories Zone A, Floor 1, Building 2, Wan Ye Long Technology Park, South Side of Zhoushi Road, Bao'an District, Shenzhen 518108, Guangdong, P.R.C. Tel: +(86) 0…

Text truncated - open the document above for the full version.

RF TEST REPORT Report No.: 15050020-FCC-R1 Applicant b mobile HK limited Product Name Mobile phone Model No. AX680 Serial No. AX670 Test Standard FCC Part 22(H),2014; FCC Part 24(E),2014; ANSI/TIAC603 D: 2010 Test Date June 04 to June 16, 2015 Issue Date June 17, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Winnie Zhang Test Engineer Chris You Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15050020-FCC-R1 Page 2 of 53 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15050020-FCC-R1 Page 3 of 53 This page has been left blank intentionally. Test Report 15050020-FCC-R1 Page 4 of 53 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 8 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 9 6.1 RF EXPOSURE (SAR) .............................................................................................................................................. 9 6.2 RF OUTPUT POWER ............................................................................................................................................. 10 6.3 PEAK-AVERAGE RATIO ........................................................................................................................................ 18 6.4 MODULATION CHARACTERISTIC ...................................................................................................................... 20 6.5 OCCUPIED BANDWIDTH ...................................................................................................................................... 21 6.6 SPURIOUS EMISSIONS AT ANTENNA TERMINALS ...................................................................................... 25 6.7 SPURIOUS RADIATED EMISSIONS ................................................................................................................... 30 6.8 BAND EDGE ............................................................................................................................................................. 35 6.9 FREQUENCY STABILITY ...................................................................................................................................... 39 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 43 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 44 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 49 ANNEX C.II. EUT OPERATING CONKITIONS ........................................................................................................ 51 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 52 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 53 Test Report 15050020-FCC-R1 Page 5 of 53 1. Report Revision History Report No. Report VersionDescription Issue Date 15050020-FCC-R1 NONE Original June 17, 2015 2. Customer information Applicant Name b mobile HK limited Applicant Add Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong Manufacturer b mobile HK limited Manufacturer Add Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Te…

Text truncated - open the document above for the full version.

Test Report 15050020-FCC-R1 Page 48 of 53 Annex B.iii. Photograph: Test Setup Photo Radiated Spurious Emissions Test Setup Below 1GHz Radiated Spurious Emissions Test Setup Above 1GHz

Test Report 15050020-FCC-H Page 87 of 91 Annex C SETUP PHOTOGRAPHS Right Head Touch View Right Head Tilt View Test Report 15050020-FCC-H Page 88 of 91 Left Head Touch View Left Head Tilt View Test Report 15050020-FCC-H Page 89 of 91 Body Setup Photo (LCD UP) Body Setup Photo (LCD DOWN) 1.0cm separation 1.0cm separation Test Report 15050020-FCC-H Page 90 of 91 Body Setup Photo (LEFT EDGE) Body Setup Photo (RIGHT EDGE) 1.0cm separation 1.0cm separation Test Report 15050020-FCC-H Page 91 of 91 Body Setup Photo (TOP EDGE) 1.0cm separation
