ZSW-30-008Mobile phone

1 Contents Safety................................................................................................................3 Environment....................................................................................................4 1 Getting Started..............................................................................................5 1.1 Getting to know your touch phone ..................................................5 1.2 Installing the SIM card and storage card..........................................5 1.3 Charging the Battery.......................................................................5 1.4 Starting up the device......................................................................6 1.5 Status Icons.....................................................................................7 2 Using phone features....................................................................................8 2.1 Turning the phone function on and off.............................................8 2.2 Making a call ..................................................................................9 2.3 Answering and Ending a call...........................................................9 2.4 In-call options.................................................................................9 2.5 Using call history..........................................................................10 2.6 Call settings ..................................................................................10 3 Setting on your device.................................................................................11 4 ActiveSync...................................................................................................14 5 Contacts......................................................................................................16 6 Exchanging Messages.................................................................................19 7 Internet........................................................................................................25 7.1 Ways of Connecting to the Internet................................................25 7.2 Browser.........................................................................................25 8 Experiencing Multimedia...........................................................................27 8.1 Camera & Picture..........................................................................27 8.2 Music............................................................................................29 8.3 FM Radio......................................................................................32 8.4 Voice Search .................................................................................32 8.5 Sound Recorder.............................................................................32 2 9 Other applications......................................................................................32 9.1 Calendar........................................................................................32 9.2 Alarm Clock..................................................................................34 9.3 Calculator......................................................................................35 SAR.................................................................................错误！未定义书签。 3 Safety Never attempt to disassemble your phone. You alone are responsible for how you use your phone and any consequences of its use. As a general rule, always switch off your phone wherever the use of a phone is prohibited. Use of your phone is subject to safety measures designed to protect users and their environment. Do not use your phone in damp areas (bathroom, swimming pool...). Protect it from liquids and other moisture.、 Do not expose your phone to extreme temperatures lower than - 10°C and higher than + 55°C. The physicochemical processes created by chargers impose temperature limits when charging the battery. Your phone automatically protects the batteries in extreme temperatures. Do not leave your phone within the reach of small children (certain removable parts may be accidentally ingested). Electrical safety: Only use the chargers listed in the manufacturer’s catalogue. Using any other charger may be dangerous; it would also invalidate your warranty. Line voltage must be exactly the one indicated on the charger’s serial plate. Aircraft safety: When traveling by plane, you will need to switch your phone off when so instructed by the cabin crew or the warning signs. Using a mobile phone may be dangerous to the operation of the aircraft and may disrupt the phone network. Its use is illegal and you could be prosecuted or banned from using cellular networks in the future if you do not abide by these regulations. Explosive materials: Please comply with warning signs at petrol station asking you to switch your phone off. You will need to comply with radio equipment usage restrictions in places such as chemical plants, fuel depots and at any location where blasting operations are under way. Electronic equipment: To avoid the risk of demagnetization, do not let electronic devices close to your phone for a long time. Electronic medical equipment: Your phone is a radio transmitter which may interfere with electronic medical equipment or implants, such as hearing aids, pacemakers, insulin pumps, etc. It is recommended that a minimum separation of 15 cm be maintained between the phone and an implant. Your doctor or the 4 manufacturers of such equipment will be able to give you any advice you may need in this area. Hospitals: Always make sure that your phone is switched off in hospitals when so instructed by warning signs or by medical staff. Road safety: Do not use your phone when driving. In order to give your full attention to driving, stop and park safely before making a call. You must comply with any current legislation. Distance of operation: This phone m…

Text truncated - open the document above for the full version.

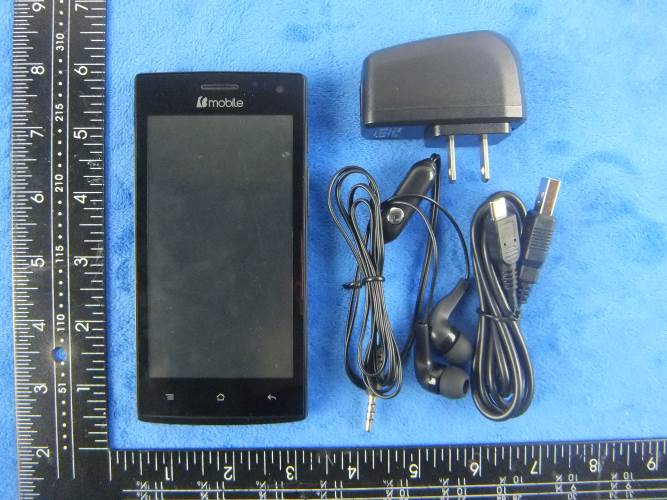

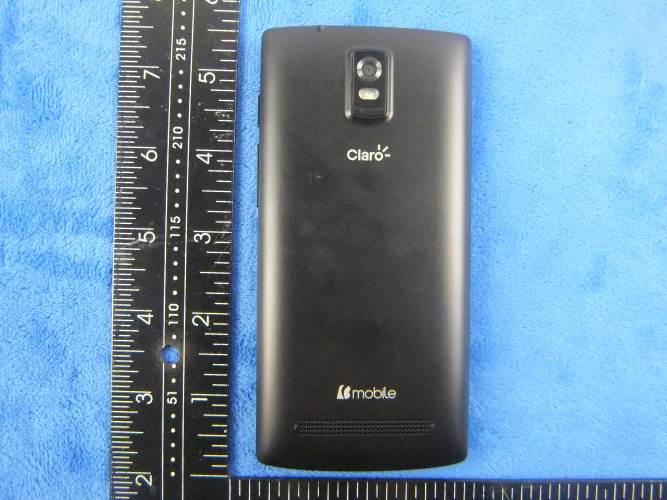

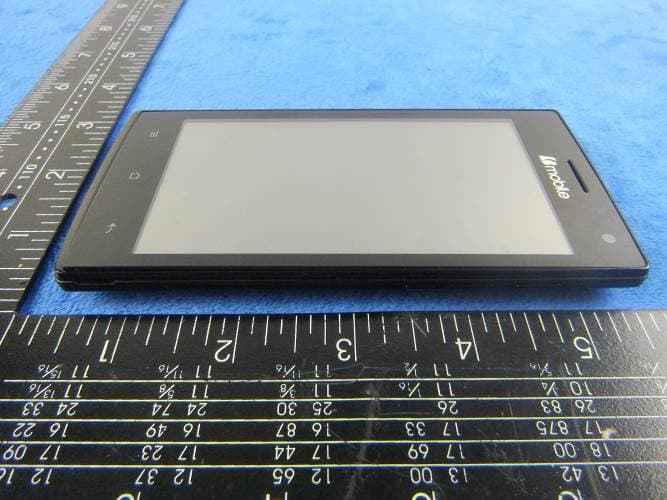

Test Report 15050004-FCC-E1 Page 18 of 27 Annex B. EUT And Test Setup Photographs Annex B.i. Photograph: EUT External Photo Whole Package - Top View Adapter - Front View EUT - Front View EUT - Rear View Test Report 15050004-FCC-E1 Page 19 of 27 EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

AX710 IMEI N°: 12345678901234X FCC ID: ZSW-30-008 Hecho en China

FCC ID label location FCC ID label location

Test Report 15050004-FCC-E1 Page 20 of 27 Annex B.ii. Photograph: EUT Internal Photo Cover Off - Top View 1 Cover Off - Top View 2 Battery - Front View Battery - Rear View LCD - Front View LCD - Rear View Test Report 15050004-FCC-E1 Page 21 of 27 Mainborad With Shielding - Front View Mainborad Without Shielding - Front View Mainborad - Rear View GSM/PCS/UMTS/ -FDD Antenna View BT/WIFI Antenna View

EMC TEST REPORT Report No.: 15050004-FCC-E1 Supersede Report No.: N/A Applicant b mobile HK Limited Product Name Mobile phone Model No. AX710 Serial No. N/A Test Standard FCC Part 15 Subpart B Class B:2013, ANSI C63.4: 2009 Test Date March 26, 2015 Issue Date April 02, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification LiLi Xia Test Engineer Chris You Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15050004-FCC-E1 Page 2 of 27 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15050004-FCC-E1 Page 3 of 27 This page has been left blank intentionally. Test Report 15050004-FCC-E1 Page 4 of 27 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 8 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 9 6.1 AC POWER LINE CONDUCTED EMISSIONS ..................................................................................................... 9 6.2 RADIATED EMISSIONS ......................................................................................................................................... 13 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 17 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 18 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 23 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 26 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 27 Test Report 15050004-FCC-E1 Page 5 of 27 1. Report Revision History Report No. Report Version Description Issue Date 15050004-FCC-E1 NONE Original April 02, 2015 2. Customer information Applicant Name b mobile HK Limited Applicant Add Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong Manufacturer b mobile HK Limited Manufacturer Add Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report 15050004-FCC-E1 Page 6 of 27 4. Equipment under Test (EUT) Information Description of EUT: Mobile phone Main Model: AX710 Serial Model: N/A Date EUT received: March 20, 2015 Test Date(s): March 26, 2015 Equipment Category： JBP Antenna Gain: GSM850: 2.8 dBi PCS1900: 3.2 dBi UMTS-FDD Band V: 3.1 dBi UMTS-FDD Band II: 3.1 dBi Bluetooth: 3.1 dBi WIFI: 3.2 dBi Type of Modulation: GSM / GPRS: GMSK EGPRS: GMSK, 8PSK UMTS-FDD: QPSK 802.11b/g/n: DSSS, OFDM Bluetooth: GFSK, π /4DQPSK, 8DPSK RF Operating Frequency (ies): GSM850 TX: 824.2 ~ 848.8 MHz; RX: 869.2 ~ 893.8 MHz PCS1900 TX: 1850.2 ~ 1909.8 MHz; RX: 1930.2 ~ 1989.8 MHz UMTS-FDD Band V TX: 826.4 ~ 846.6 MHz; RX: 871.4 ~ 891.6 MHz UMTS-FDD Band II TX:1852.4 ~ 1907.6 MHz; RX: 1932.4 ~ 1987.6 MHz WIFI:802.11b/g/n(20M): 2412-2462 MHz WIFI:802.11n(40M): 2422-2452 MHz Bluetooth: 2402-2480 MHz Number of Channels: GSM 850: 124CH PCS1900: 299CH Test Report 15050004-FCC-E1 Page 7 of 27 UMTS-FDD Band V : 102CH UMTS-FDD Band II : 277CH WIFI :802.11b/g/n(20M): 11CH WIFI :802.11n(40M): 7CH Bluetooth: 79CH Port: Power Port, Earphone Port, USB Port Input Power: Battery: Model: 4502 Spec: 3.7V 1600mAh 5.92Wh Limited charger voltage: 4.20V Adapter: Input: AC 100-240V; 50/60Hz 0.15A Output: DC 5.0V; 500mA T…

Text truncated - open the document above for the full version.

Test Report 15050004-FCC-E1 Page 22 of 27 Annex B.iii. Photograph: Test Setup Photo Conducted Emissions Test Setup – Front View Conducted Emissions Test Setup – Side View Radiated Spurious Emissions Test Setup Below 1GHz Radiated Spurious Emissions Test Setup Above 1GHz
