ZSW-30-009Mobile phone

1 SAFETY PRECAUTIONS Please read the following safety guidelines before using the device.  Do not use the phone while you are driving.  Do not place magnetic storage media near your phone. Radiation from the phone may erase the information stored on them.  Keep your phone and its accessories away from children.  Mobile phones can interfere with the functioning of medical devices such as hearing aids or pacemakers. People having active medical implants should keep their cell phone at least 15 cm away from the implant.  Permanent hearing loss may occur if you use earphones or headphones at high volume.  Use a wireless hands-free system (headphone/ headset) with a low power Bluetooth emitter.  Keep your calls short or send a text message (SMS) instead. This advice applies specially to children adolescents and pregnant women.  Use cell phone when the signal quality is good. 2 NOTICE Do not dismantle the device or accessories otherwise, manufacturer is not liable to pay for damages as the device and accessories are not covered by warranty. Use only original batteries and charging devices. Please back up your important data timely and keep them properly. The company is not liable for any failure to call or loss of data due to mis-operation, poor signal or power cut, etc. All the screens in this manual are for reference only, and some contents actually displayed may depend upon the presetting of the service provider or the network operator, or the SIM card. If any functions referred to in this manual are different from those of your device, please follow your device. Do not put use it in a place with flammable gas such as a petrol pumps. The temperature recommended for using the device is 5-35°C. Do not tap the charger, power cable or socket with wet hands. This may cause an electric shock. If your phone or any of its accessories do not function normally, then please visit your nearest authorized service facility. The qualified personnel will assist you, and if necessary, will arrange for the service. 3 TABLE OF CONTENTS SAFETY PRECAUTIONS ............................................................................................... 1 NOTICE ....................................................................................................................... 2 TABLE OF CONTENTS ................................................................................................. 3 1. UNDERSTANDING YOUR DEVICE ........................................................................... 6 1.1 GENERAL INFO ................................................................................................. 6 1.2 DEVICEOVER VIEW ........................................................................................... 7 2. GETTING STARTED ................................................................................................. 8 2.1 INSTALLING CARDS & BATTERY ....................................................................... 8 2.2 POWERING ON /OFF ...................................................................................... 10 3. BASIC OPERATIONS ............................................................................................. 11 3.1 CALLING ......................................................................................................... 11 3.2 MESSAGING ................................................................................................... 12 3.3 CONTACTS ...................................................................................................... 16 3.4 EMAIL ............................................................................................................. 18 3.5 BROWSER ....................................................................................................... 19 4. HOME SCREEN ..................................................................................................... 21 4.1 STATUS BAR ................................................................................................... 21 4.2 APPLICATION TAB .......................................................................................... 22 4.3 CUSTOMIZING SCREEN .................................................................................. 22 5. MULTIMEDIA ....................................................................................................... 23 5.1 MUSIC PLAYER ............................................................................................... 23 5.2 MOVIES .......................................................................................................... 24 5.3 CAMERA ......................................................................................................... 24 5.4 GALLERY ......................................................................................................... 25 5.5 FILE MANAGER ............................................................................................... 26 5.6 SOUND RECORDER ......................................................................................... 27 5.7 FM RADIO ...................................................................................................... 28 4 6. TOOLS .................................................................................................................. 29 6.1 CALCULATOR .................................................................................................. 29 6.2 CLOCK ............................................................................................................. 29 6.3 CALENDAR ...................................................................................................... 30 6.4 DOWNLOADS ................................................................................................. 30 7. SETTINGS ............................................................................................................. 30 7.1 WIRELESS & NETWOKS ...............................…

Text truncated - open the document above for the full version.

Test Report 15050022-FCC-R2 Page 57 of 57 Annex E. DECLARATION OF SIMILARITY

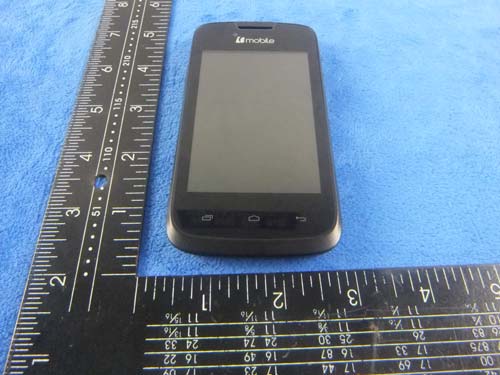

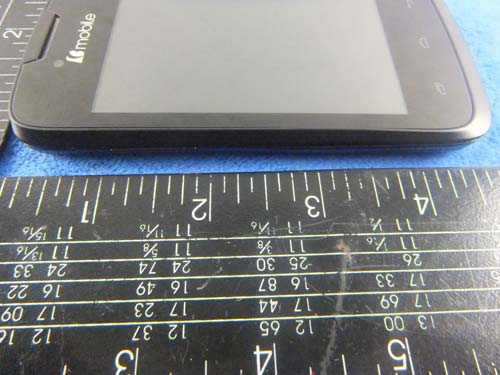

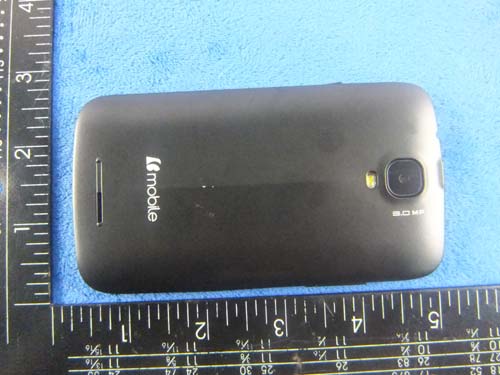

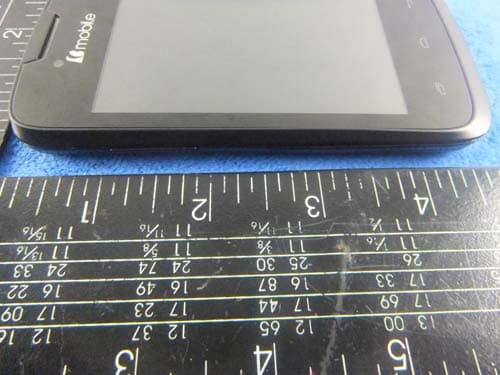

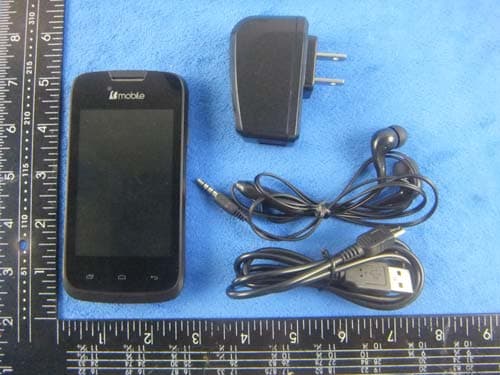

Test Report 15050022-FCC-E Page 20 of 29 Annex B. EUT And Test Setup Photographs Annex B.i. Photograph: EUT External Photo Whole Package - Top View Adapter - Front View EUT - Front View EUT - Rear View Test Report 15050022-FCC-E Page 21 of 29 EUT - Top View EUT - Bottom View EUT - Left View EUT - Right View

FCC ID Label

FCC ID Label location

Test Report 15050022-FCC-E Page 22 of 29 Annex B.ii. Photograph: EUT Internal Photo Cover Off - Top View Battery - Top View Battery - Bottom View Mainborad With Shielding - Front View Mainborad Without Shielding - Front View Mainborad - rear View Test Report 15050022-FCC-E Page 23 of 29 LCD - Front View LCD – Rear View LCD – Rear View WIFI/BT/BLE - Antenna View GSM/PCS/UMTS-FDD Antenna View

RF EXPOSURE REPORT Report No.: 15050022-FCC-H Applicant b mobile HK Limited Product Name Mobile Phone Model No. AX600 Serial No. AX630 Test Standard FCC 2.1093 Test Date June 10 to June 24,2015 Issue Date June 24,2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Lucifer.He Test Engineer David Huang Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report 15050022-FCC-H Page 2 of 10 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report 15050022-FCC-H Page 3 of 10 This page has been left blank intentionally. Test Report 15050022-FCC-H Page 4 of 10 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. FCC §2.1093 - RADIOFREQUENCY RADIATION EXPOSURE EVALUATION: PORTABLE DEVICES. 8 5.1 RF EXPOSURE .......................................................................................................................................................... 8 5.2 TEST RESULT ........................................................................................................................................................... 9 Test Report 15050022-FCC-H Page 5 of 10 1. Report Revision History Report No. Report Version Description Issue Date 15050022-FCC-H NONE Original June 24, 2015 2. Customer information Applicant Name b mobile HK Limited Applicant Add Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong Manufacturer b mobile HK Limited Manufacturer Add Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report 15050022-FCC-H Page 6 of 10 4. Equipment under Test (EUT) Information Description of EUT: Mobile Phone Main Model: AX600 Serial Model: AX630 Date EUT received: June 10,2015 Antenna Gain: GSM850: -1.18dBi PCS1900: 0.06dBi UMTS-FDD Band V: -1.79dBi UMTS-FDD Band II: -0.2dBi Bluetooth/BLE:0.03dBi WIFI: 0.03 dBi GPS: -1.76 dBi Input Power: Battery: Model: AX600 Spec: 3.8V, 1250 mAh 4.75Wh Adapter: Input: AC100 ~ 240V ,50/60Hz 0.15A Output:DC5.0V, 0.7A Trade Name : Bmobile GPRS/EGPRS Multi-slot class 8/10/12 FCC ID: ZSW-30-009 Test Report 15050022-FCC-H Page 7 of 10 Type of Modulation: GSM / GPRS: GMSK EGPRS: GMSK, 8PSK UMTS-FDD: QPSK, 16QAM 802.11b/g/n: DSSS, OFDM Bluetooth: GFSK, π /4DQPSK, 8DPSK BLE: GFSK GPS:BPSK RF Operating Frequency (ies): GSM850 TX: 824.2 ~ 848.8 MHz; RX: 869.2 ~ 893.8 MHz PCS1900 TX: 1850.2 ~ 1909.8 MHz; RX: 1930.2 ~ 1989.8 MHz UMTS-FDD Band V TX: 826.4 ~ 846.6 MHz; RX: 871.4 ~ 891.6 MHz UMTS-FDD Band II TX:1852.4 ~ 1907.6 MHz; RX: 1932.4 ~ 1987.6 MHz WIFI:802.11b/g/n(20M): 2412-2472 MHz WIFI:802.11n(40M): 2422-2462 MHz Bluetooth& BLE: 2402-2480 MHz GPS RX:1575.42 MHz Number of Channels: GSM 850: 124CH PCS1900: 299CH UMTS-FDD Band V : 102CH UMTS-FDD Band II : 277CH WIFI :802.11b/g/n(20M): 13CH WIFI :802.11n(40M): 9CH Bluetooth: 79CH BLE: 40CH Port: Power Port, Earphone Port, USB Port GPRS/EGPRS Multi-slot class 8/10/12 Test Report 15050022-FCC-H Page 8 of 10 DFP/ 5. FCC §2.1093 - Radiofrequency radiation exposure evaluation: portable devices. 5.1 RF Exposure Standard Requirement: According to §15.247 (i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’ s guidelines. Routine SAR evaluation refers to that specifically required by § 2.1093, using measurements or computer simulation. When routine SAR evaluation is not required, portable transmitters with output power greater than the applicable low threshold require SAR evaluation to qualify for TCB approval. result = P= Maximum turn-up power in mW F= Channel frequency in GHz D= Minimum test separatio…

Text truncated - open the document above for the full version.

RF TEST REPORT Report No.: 15050022-FCC-R3 Applicant b mobile HK Limited Product Name Mobile Phone Model No. AX600 Serial No. AX630 Test Standard FCC Part 15.247: 2014, ANSI C63.10: 2013 Test Date June 10 to June 24,2015 Issue Date June 24, 2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Lucifer.He Test Engineer David Huang Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report No. 15050022-FCC-R3 Page 2 of 52 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report No. 15050022-FCC-R3 Page 3 of 52 This page has been left blank intentionally. Test Report No. 15050022-FCC-R3 Page 4 of 52 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 8 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 9 6.1 ANTENNA REQUIREMENT ..................................................................................................................................... 9 6.2 DTS (6 DB&20 DB) CHANNEL BANDWIDTH ..................................................................................................... 10 6.3 MAXIMUM OUTPUT POWER ............................................................................................................................... 16 6.4 POWER SPECTRAL DENSITY ............................................................................................................................. 20 6.5 BAND-EDGE & UNWANTED EMISSIONS INTO NON-RESTRICTED FREQUENCY BANDS .................. 24 6.6 AC POWER LINE CONDUCTED EMISSIONS ................................................................................................... 30 6.7 RADIATED SPURIOUS EMISSIONS ................................................................................................................... 36 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 41 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 42 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 47 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 51 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 52 Test Report No. 15050022-FCC-R3 Page 5 of 52 1. Report Revision History Report No. Report Version Description Issue Date 15050022-FCC-R3 NONE Original June 24, 2015 2. Customer information Applicant Name b mobile HK Limited Applicant Add Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong Manufacturer b mobile HK Limited Manufacturer Add Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report No. 15050022-FCC-R3 Page 6 of 52 4. Equipment under Test (EUT) Information Description of EUT: Mobile Phone Main Model: AX600 Serial Model: AX630 Date EUT received: June 10 Equipment Category： DTS Antenna Gain: GSM850: -1.18dBi PCS1900: 0.06dBi UMTS-FDD Band V: -1.79dBi UMTS-FDD Band II: -0.2dBi Bluetooth/BLE:0.03dBi WIFI: 0.03 dBi GPS: -1.76 dBi Input Power: Battery: Model: AX600 Spec: 3.8V, 1250 mAh 4.75Wh Adapter: Input: AC100 ~ 240V ,50/60Hz 0.15A Output:DC5.0V, 0.7A Trade Name : Bmobile FCC ID: ZSW-30-009 Test Report No. 15050022-FCC-R3 Page 7 of 52 Max. Outp…

Text truncated - open the document above for the full version.

RF TEST REPORT Report No.: 15050022-FCC-R4 Applicant b mobile HK Limited Product Name Mobile Phone Model No. AX600 Serial No. AX630 Test Standard FCC Part 15.247: 2014, ANSI C63.10: 2013 Test Date June 10 to June 24,2015 Issue Date June 24,2015 Test Result Pass Fail Equipment complied with the specification Equipment did not comply with the specification Lucifer He Test Engineer David Huang Checked By This test report may be reproduced in full only Test result presented in this test report is applicable to the tested sample only Issued by: SIEMIC (SHENZHEN-CHINA) LABORATORIES Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 Phone: +86 0755 2601 4629801 Email: [email protected] Test Report No. 15050022-FCC-R4 Page 2 of 40 Laboratories Introduction SIEMIC, headquartered in the heart of Silicon Valley, with superior facilities in US and Asia, is one of the leading independent testing and certification facilities providing customers with one-stop shop services for Compliance Testing and Global Certifications. In addition to testing and certification, SIEMIC provides initial design reviews and compliance management throughout a project. Our extensive experience with China, Asia Pacific, North America, European, and International compliance requirements, assures the fastest, most cost effective way to attain regulatory compliance for the global markets. Accreditations for Conformity Assessment Country/Region Scope USA EMC, RF/Wireless, SAR, Telecom Canada EMC, RF/Wireless, SAR, Telecom Taiwan EMC, RF, Telecom, SAR, Safety Hong Kong RF/Wireless, SAR, Telecom Australia EMC, RF, Telecom, SAR, Safety Korea EMI, EMS, RF, SAR, Telecom, Safety Japan EMI, RF/Wireless, SAR, Telecom Singapore EMC, RF, SAR, Telecom Europe EMC, RF, SAR, Telecom, Safety Test Report No. 15050022-FCC-R4 Page 3 of 40 This page has been left blank intentionally. Test Report No. 15050022-FCC-R4 Page 4 of 40 CONTENTS 1. REPORT REVISION HISTORY ............................................................................................................................ 5 2. CUSTOMER INFORMATION ................................................................................................................................ 5 3. TEST SITE INFORMATION ................................................................................................................................... 5 4. EQUIPMENT UNDER TEST (EUT) INFORMATION ......................................................................................... 6 5. TEST SUMMARY .................................................................................................................................................... 8 6. MEASUREMENTS, EXAMINATION AND DERIVED RESULTS ..................................................................... 9 6.1 ANTENNA REQUIREMENT ..................................................................................................................................... 9 6.2 DTS (6 DB) CHANNEL BANDWIDTH .................................................................................................................. 10 6.3 MAXIMUM OUTPUT POWER ............................................................................................................................... 12 6.4 POWER SPECTRAL DENSITY ............................................................................................................................. 14 6.5 BAND-EDGE & UNWANTED EMISSIONS INTO NON-RESTRICTED FREQUENCY BANDS .................. 16 6.6 AC POWER LINE CONDUCTED EMISSIONS ................................................................................................... 19 6.7 RADIATED SPURIOUS EMISSIONS ................................................................................................................... 25 ANNEX A. TEST INSTRUMENT ................................................................................................................................. 30 ANNEX B. EUT AND TEST SETUP PHOTOGRAPHS ........................................................................................... 31 ANNEX C. TEST SETUP AND SUPPORTING EQUIPMENT ................................................................................ 36 ANNEX D. USER MANUAL / BLOCK DIAGRAM / SCHEMATICS / PARTLIST .................................................. 39 ANNEX E. DECLARATION OF SIMILARITY ............................................................................................................ 40 Test Report No. 15050022-FCC-R4 Page 5 of 40 1. Report Revision History Report No. Report Version Description Issue Date 15050022-FCC-R4 NONE Original June 24, 2015 2. Customer information Applicant Name b mobile HK Limited Social Mob i Applicant Add Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong Manufacturer b mobile HK Limited Manufacturer Add Flat 18; 14/F Block 1; Golden Industrial Building;16-26 Kwai Tak Street; Kwai Chung;New Territories; Hong Kong 3. Test site information Lab performing tests SIEMIC (Shenzhen-China) LABORATORIES Lab Address Zone A, Floor 1, Building 2 Wan Ye Long Technology Park South Side of Zhoushi Road, Bao’an District, Shenzhen, Guangdong China 518108 FCC Test Site No. 718246 IC Test Site No. 4842E-1 Test Software Radiated Emission Program-To Shenzhen v2.0 Test Report No. 15050022-FCC-R4 Page 6 of 40 4. Equipment under Test (EUT) Information Description of EUT: Mobile Phone Main Model: AX600 Serial Model: AX630 Date EUT received: June 10,2015 Equipment Category： DTS Antenna Gain: GSM850: -1.18dBi PCS1900: 0.06dBi UMTS-FDD Band V: -1.79dBi UMTS-FDD Band II: -0.2dBi Bluetooth/BLE:0.03dBi WIFI: 0.03 dBi GPS: -1.76 dBi Input Power: Battery: Model: AX600 Spec: 3.8V, 1250 mAh 4.75Wh Adapter: Input: AC100 ~ 240V ,50/60Hz 0.15A Output:DC5.0V, 0.7A Trade Name : Bmobile FCC ID: ZSW-30-009 Test Report No. 15050022-FCC-R…

Text truncated - open the document above for the full version.

Test Report No. 15050022-FCC-R4 Page 35 of 40 Annex B.iii. Photograph: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Radiated Spurious Emissions Test Setup Below 1GHz Radiated Spurious Emissions Test Setup Above 1GHz

Test Report No. 15050022-FCC-R3 Page 46 of 52 Annex B.iii. Photograph: Test Setup Photo Conducted Emissions Test Setup Front View Conducted Emissions Test Setup Side View Radiated Spurious Emissions Test Setup Below 1GHz Radiated Spurious Emissions Test Setup Above 1GHz
